AWO150 – 7/TRP40/DSPR – Metal surface-mounted enclosure with transformer

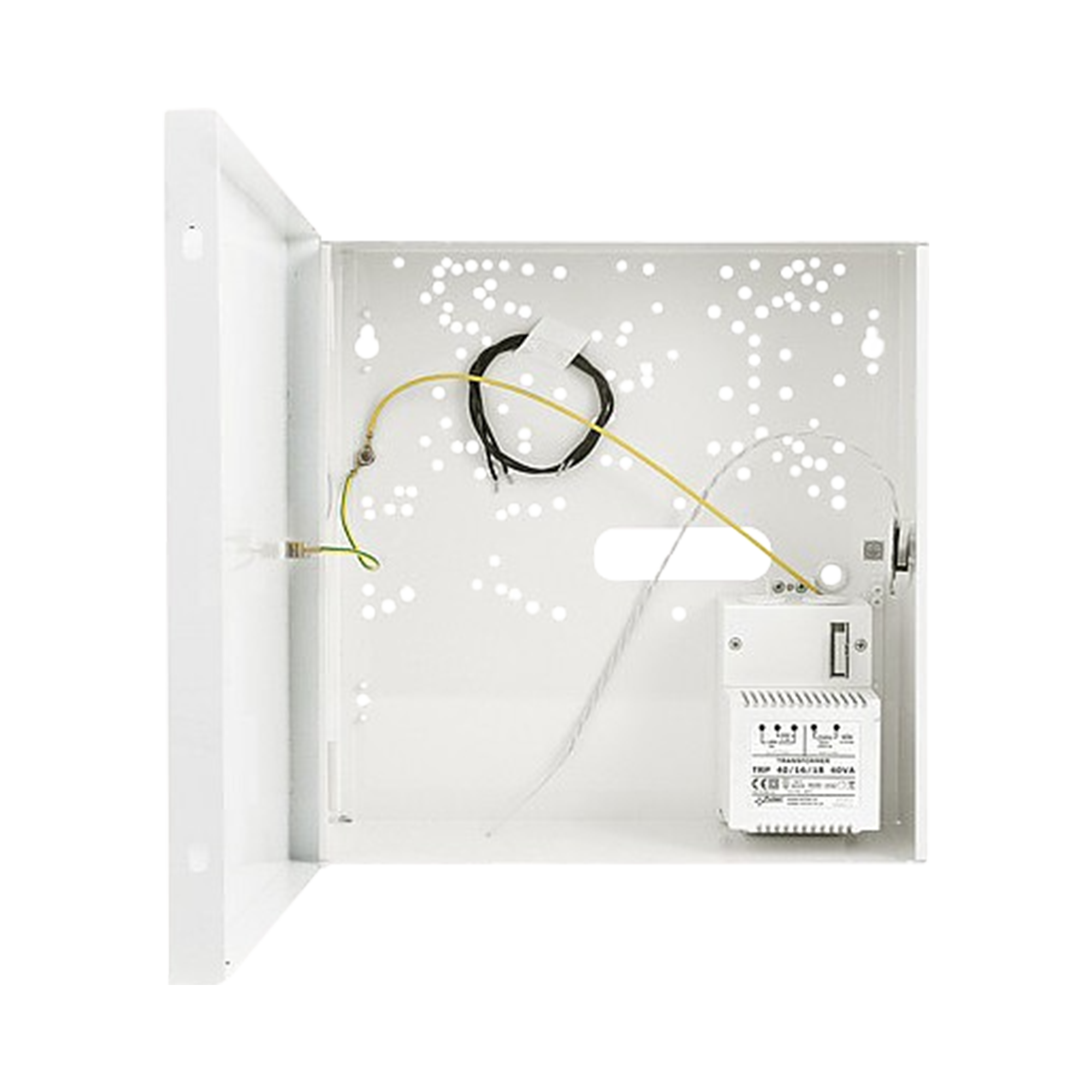

The Pulsar AWO 150 7/TRP40/DSPR is a metal surface-mounted enclosure designed for the installation of control panels and modules from Pulson Alarm, Satel, Risco, DSC, Paradox, Pyronix, Crow, Roel, EBS, Telmor, Pulsar and Roger control panels and modules indoors (IP20). The enclosure has space for a battery with a maximum capacity of 7Ah/12V, a built-in TRP 40VA/16V/18V transformer and an anti-tamper device to prevent unauthorised opening of the enclosure.
The AWO150 has an 8 mm clearance from the wall, allowing for easy routing of cables to the devices installed within it. The enclosure is secured by screws, but it is also possible to fit a lock.
- Compatibility: Pulson Alarm, Satel, Risco, DSC, Paradox, Pyronix, Crow, Roel, EBS, Telmor, Pulsar, Roger
- Application: indoor use (IP20)
- installation: surface-mounted
- material: DC01 sheet metal, 0.7 mm
- Battery compartment: 7Ah/12V
- transformer: TRP 40VA/16V/18V
- supply voltage: 230V AC 50Hz
- output voltage: 18V AC / 2A or 16V AC / 2.2A
- closure: screw-fastened or lockable (optional)
- Security: tamper switch (case opening)
- Distance from the ground: 8mm
- weight: 2.60kg
- net dimensions: 280x290x80mm (W/H/L)
- warranty: 24 months
