| Product | BCS-B-ISP08G-2SFP |
|---|---|
| PoE ports | 8×RJ45 1Gbps |
| Uplink ports | 2×SFP 1Gbps |
| Standard IEEE | 802.3 / 802.3u / 802.3ab / 802.3z / 802.3af / 802.3at |
| Transfer | 10/100/1000Mbps half-duplex, full-duplex, auto-negotiation, auto MDI/MDIX |
| Packet forwarding rate | 14.8Mpps |
| Capacity | 20Gbps |
| MAC table | 4K |
| Packet buffer memory | 2Mbit |
| STANDARD mode | 100m |
| VLAN mode | VLAN mode ports 1-8 isolated |
| EXTEND mode | EXTEND mode ports 1-8 support transmission 250m 10Mbps (cat5e, cat6) |
| QoS mode | QOS Quality Of Service – priority video pockets |
| PoE mode | Monitoring ports supply PoE devices and automatic restart with power supply cut when not responding |
| PoE pin | 1,2(+), 3,6(-) |
| LED status | LINK/ACT(green): connected device, PoE(yellow): device powered by PoE |
| PoE switch power | 250W |
| Protection | (ESD): ±8kV (contact), ±15kV (air), (EFT): Power Port: ±4kV; Data Port: ±2kV, (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±6kV |
| Power supply | 48~56V DC |
| Working environment | -40°C~+70°C max 90% RH |
| Weight | 1 kg |

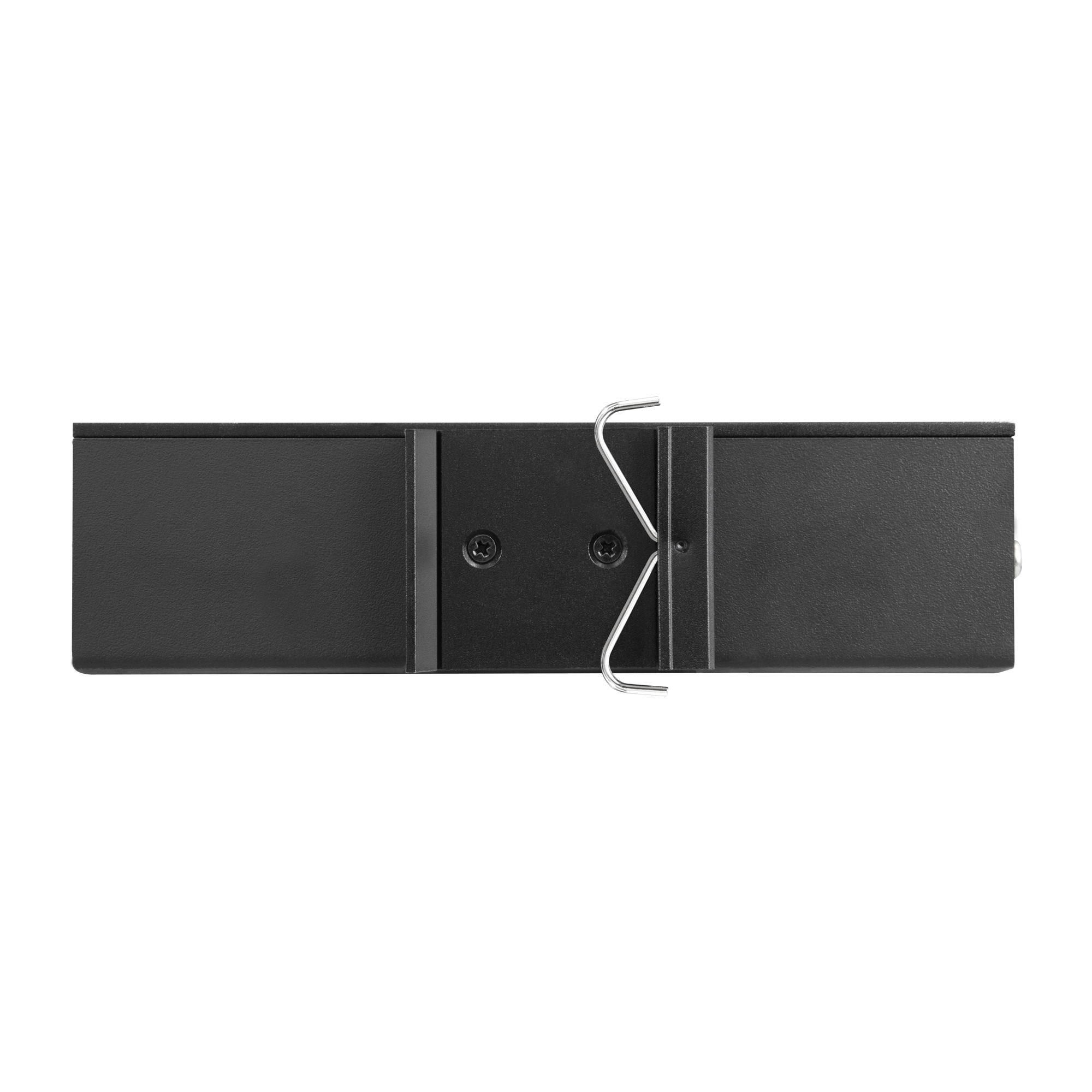

| Casing | DIN rail |
| Dimensions (W×D×H) | 150×127×40mm |
Warning: This product belongs to the BCS BASIC product line.
Use only components and devices from the same line to ensure compatibility.
BCS BASIC
BCS-B-ISP08G-2SFP
148,83 € gross
100 In Stock8-port industrial PoE switch for DIN rail mounting
- 8xPoE 1Gbps af/at
- exPoE technology
- 2x 1Gbps SFP uplinks
- Total power 250W (31.25W per port)
- Modes: standard/VLAN/extend/QoS/PoE
- The kit does not include a power supply
100 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
