| Flag | PROMOTION |
|---|---|
| Product | BCS-B-SP1602G-1SFP |
| PoE ports | 16×RJ45 100Mbps |
| Uplink ports | 2×RJ45 1Gbps / 1×SFP 1Gbps |
| Standard IEEE | 802.3af / 802.3at |
| Transfer | 10/100/1000Mbps half-duplex, full-duplex, auto-negotiation, auto MDI/MDIX |
| Packet forwarding rate | 5.36Mpps |
| Capacity | 7.2Gbps |
| STANDARD mode | 100m |
| VLAN mode | VLAN mode ports 1-16 isolated |
| EXTEND mode | EXTEND mode ports 1-8 support transmission 250m 10Mbps (cat5e, cat6) |
| QoS mode | QOS Quality Of Service – priority video pockets |
| PoE mode | Monitoring ports supply PoE devices and automatic restart with power supply cut when not responding |
| PoE pin | 1,2(+), 3,6(-) |
| LED status | PWR(red): power supply connected, LINK/ACT(green): device connected, PoE(yellow): device powered from PoE |
| PoE switch power | 150W max 30W/port |
| Protection | 6kV surge protection |
| Power supply | 100~240V AC |
| Working environment | 0°C~+40°C max 90% RH |
| Weight | 1.5 kg |
| Casing | 1U |
| Dimensions (W×D×H) | 285×180×44mm |
Warning: This product belongs to the BCS BASIC product line.
Use only components and devices from the same line to ensure compatibility.
Save 34%
BCS BASIC
BCS-B-SP1602G-1SFP
133,43 € gross

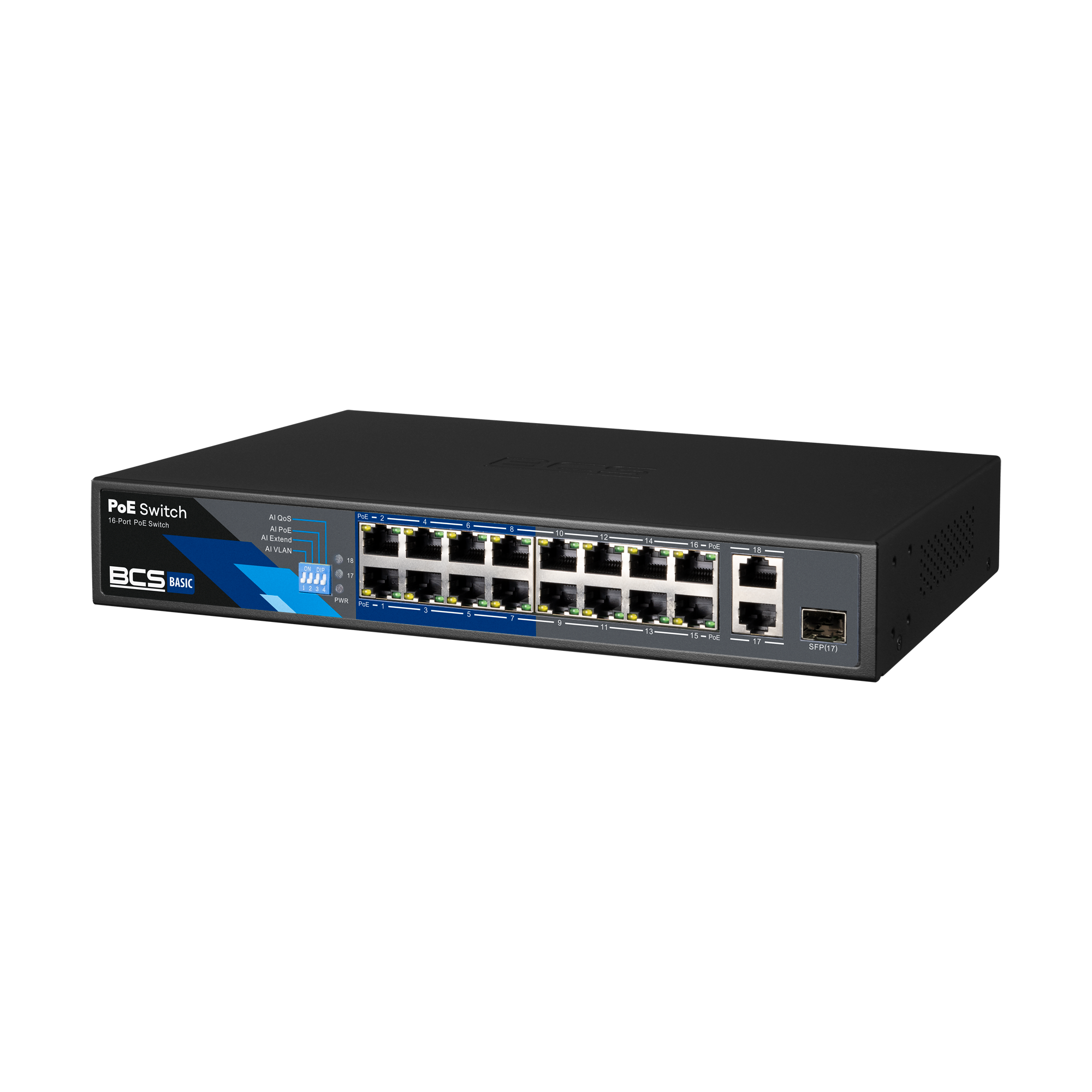

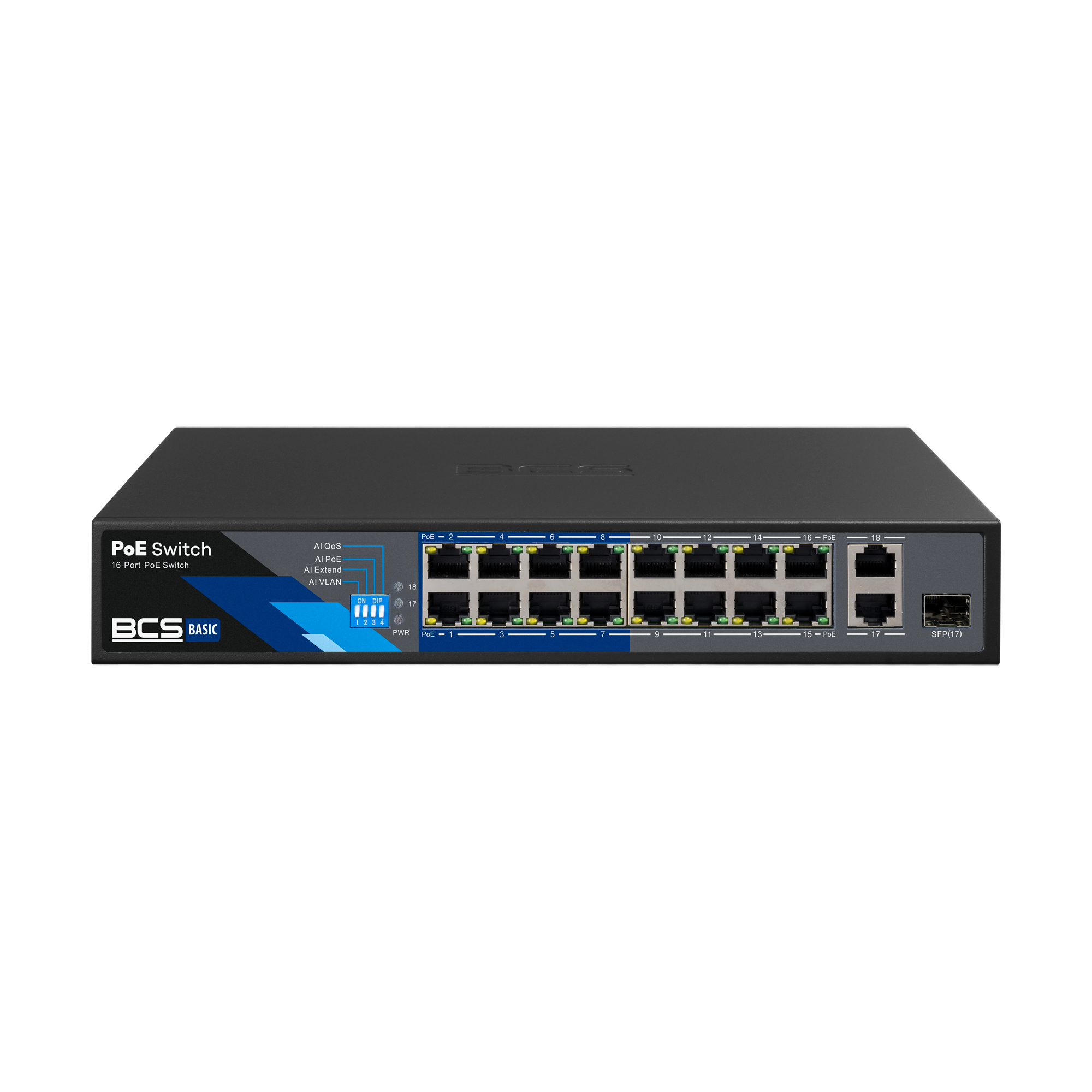

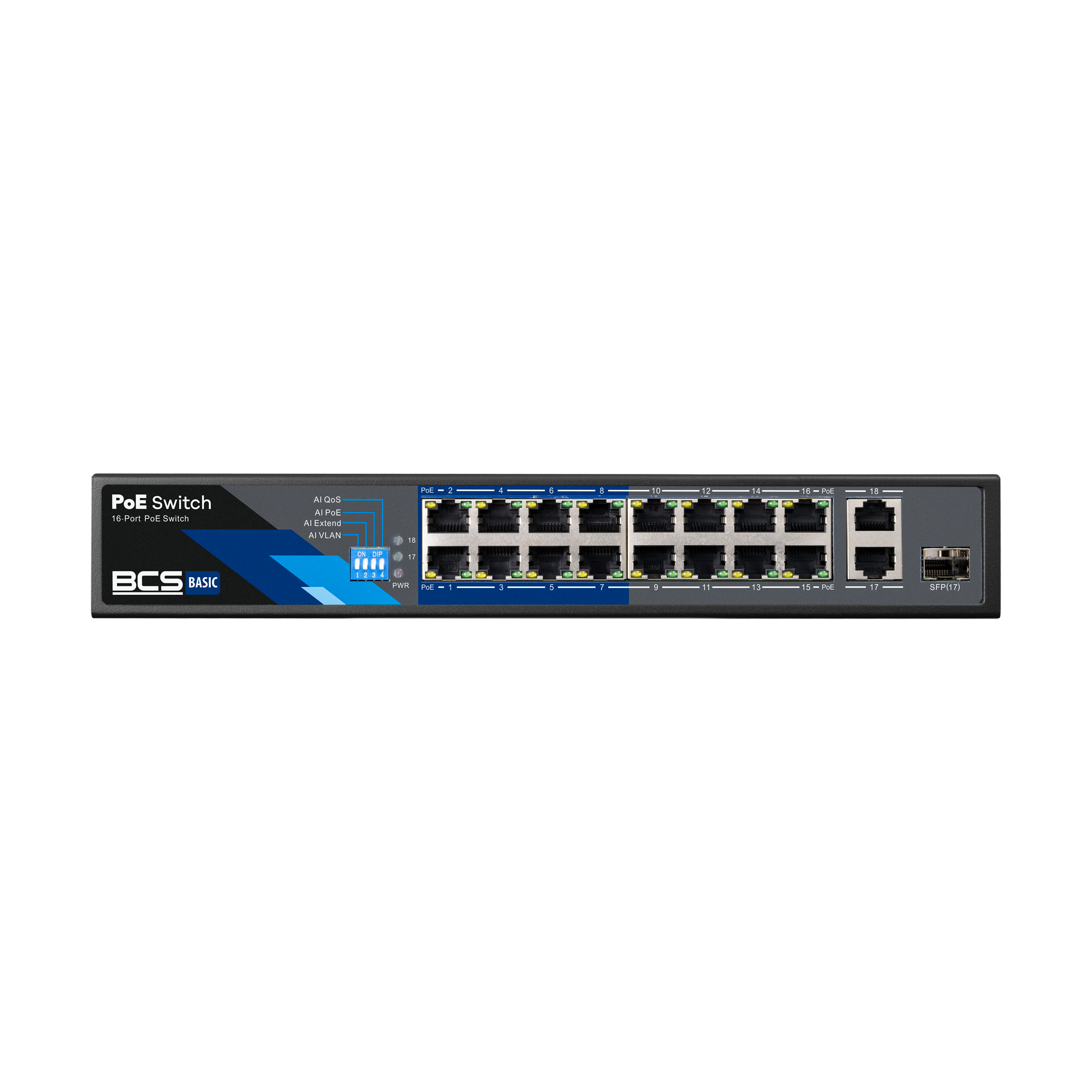

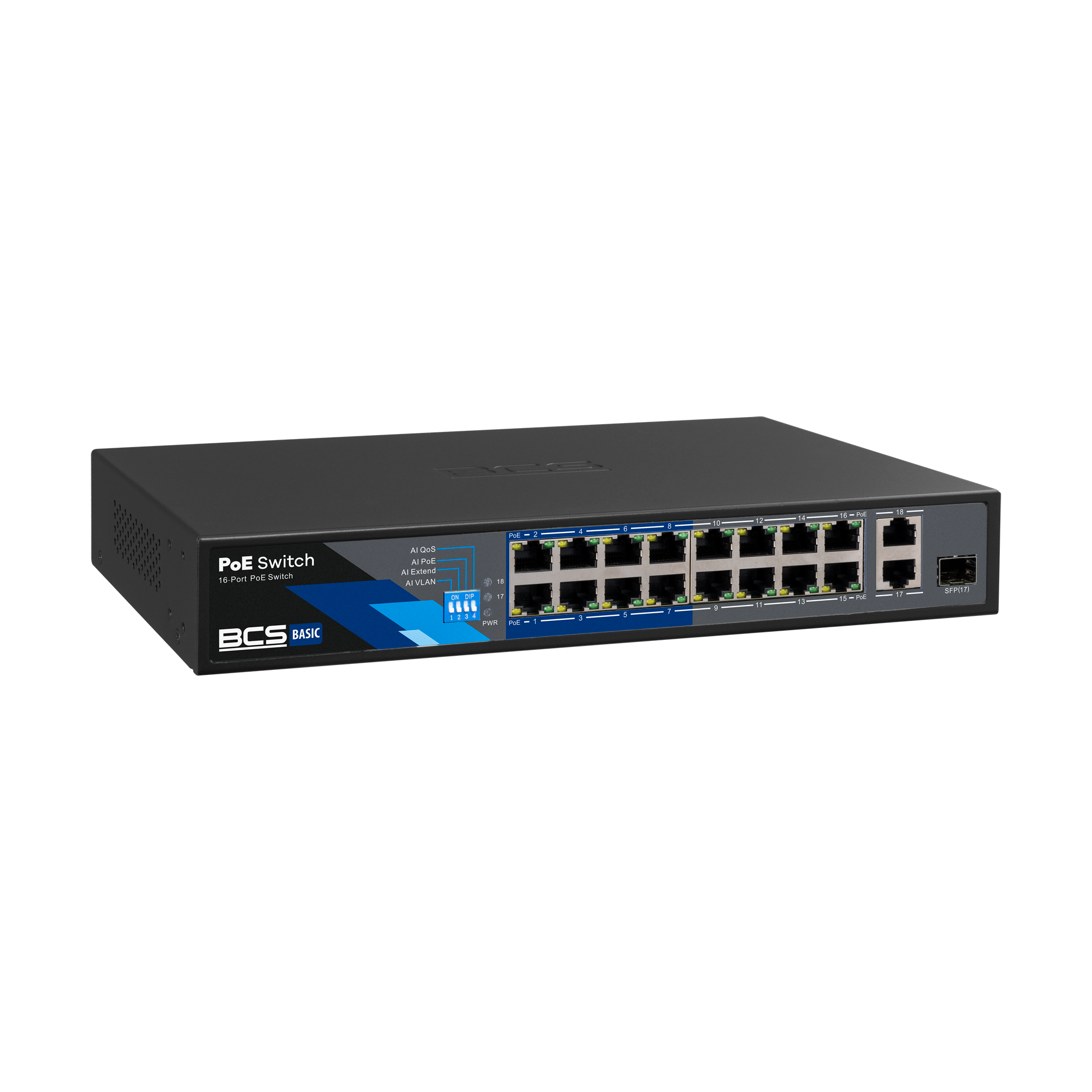

100 In Stock16-port PoE switch
- exPoE technology
- 16xPoE 100Mbps af/at
- 2xRJ45 1Gbps uplink
- 1x SFP uplink 1 Gbps
- Total power: 150W
- modes: standard/VLAN/extend/QoS/PoE
