| Product | BCS-B-TIP45VSR5(2.0) |
|---|---|
| Recording in BCS CLOUD | Yes |
| Camera type | Bullet |
| Resolution | 5 Mpx |
| Sensor | 1/2.7'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 2880(H)×1620(V) |
| Lens | motozoom |
| Focal length | 2.8~12 mm |
| Aperture | F1.8 |
| Focus | Auto / manual |
| Iris | Auto |
| Digital zoom | 16× |
| Angle of view | H: 102.79°~ 30.86° V: 54.5°~ 17.49° D: 106.94°~ 35.49° |
| DORI | Detect 63~270m / Observe 25~108m / Recognize 13~54m / Identify 6~27m |
| Min illumination | 0.005Lux(F1.8,AGC) 0Lux(B/W,IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| Image rotate | Mirror, flip 180° |
| Stream support | 2 |
| Resolutions | 5M(2880×1620) / 4M(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 720P(1280×720) / D1(720×576) / (640×360) / 2CIF(704×288) / CIF(352×288) |
| Main stream | 2880×1620@25fps 2560×1440@25fps 2304×1296@30fps 1920×1080@30fps |
| Second stream | 1280×720@30fps 720×576@30fps 640×360@30fps 704×288@30fps 352×288@30fps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR |
| Illuminator type | IR LED |
| IR range | 50m |
| Microphone | Yes |
| Audio compression | G.711 |

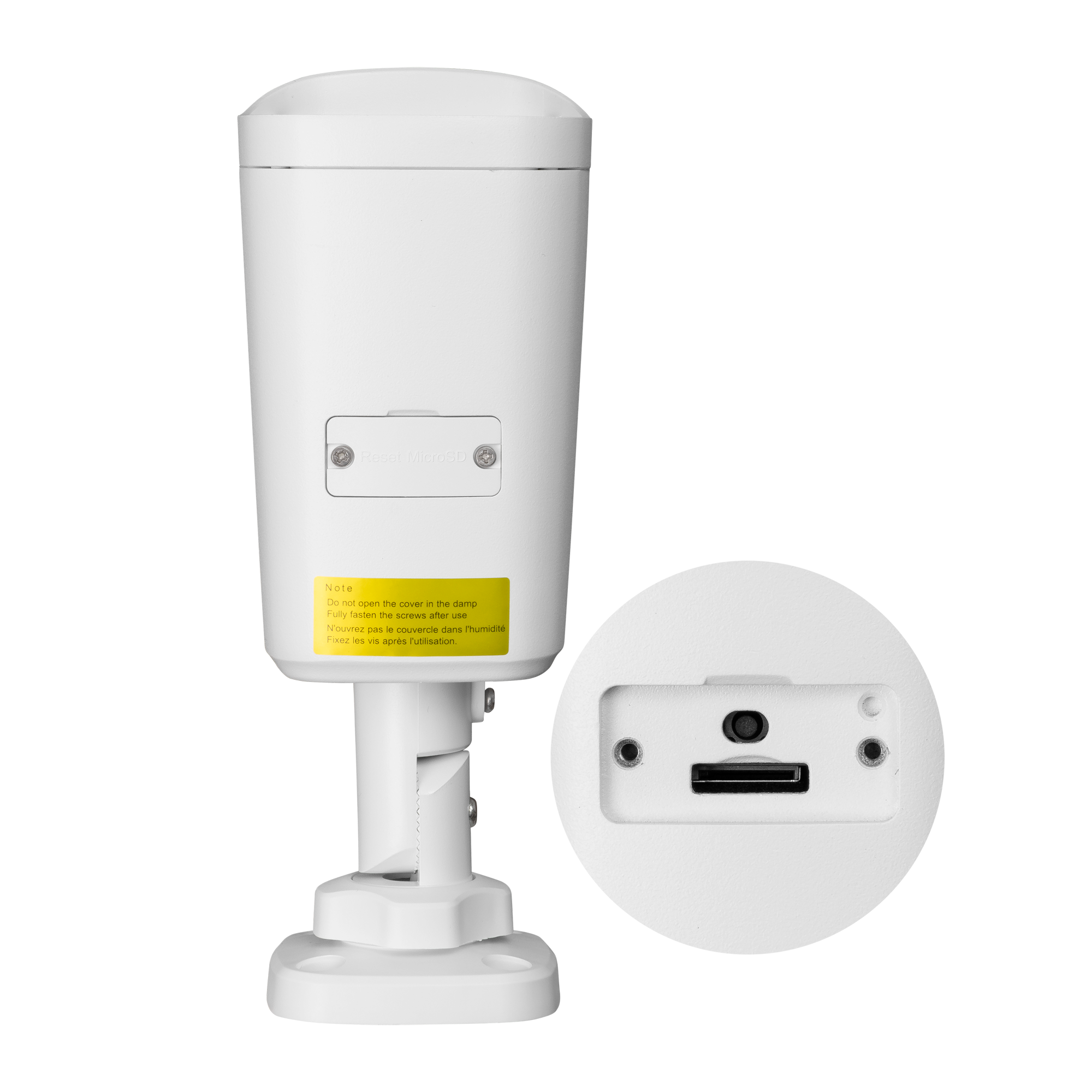

| Memory card slot | microSD 256GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, RTMP |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 7.5W |
| Housing color | White |
| IP class | IP67 |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | 198×74×74mm |
| Weight | 0.51kg |
Warning: This product belongs to the BCS BASIC product line.
Use only components and devices from the same line to ensure compatibility.
Save 42%
BCS BASIC

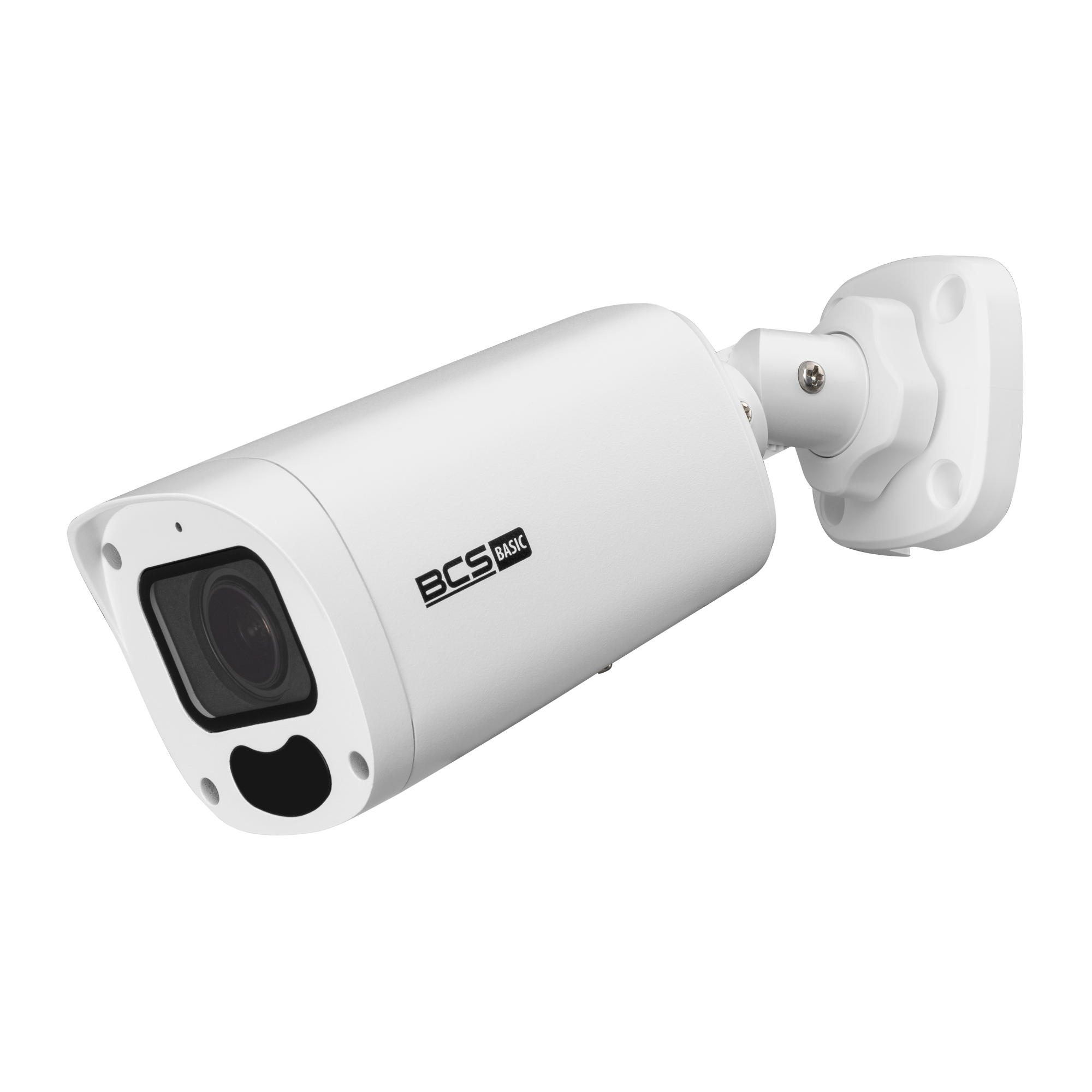

BCS-B-TIP45VSR5(2.0)
84,55 € gross
100 In Stock- 5Mpx IP bullet camera
- 1/2.7" PS CMOS sensor
- SkyLight technology
- WDR 120dB
- 2.8–12 mm motorised zoom lens
- IR 50m
- Microphone
- IP67-rated housing
100 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
