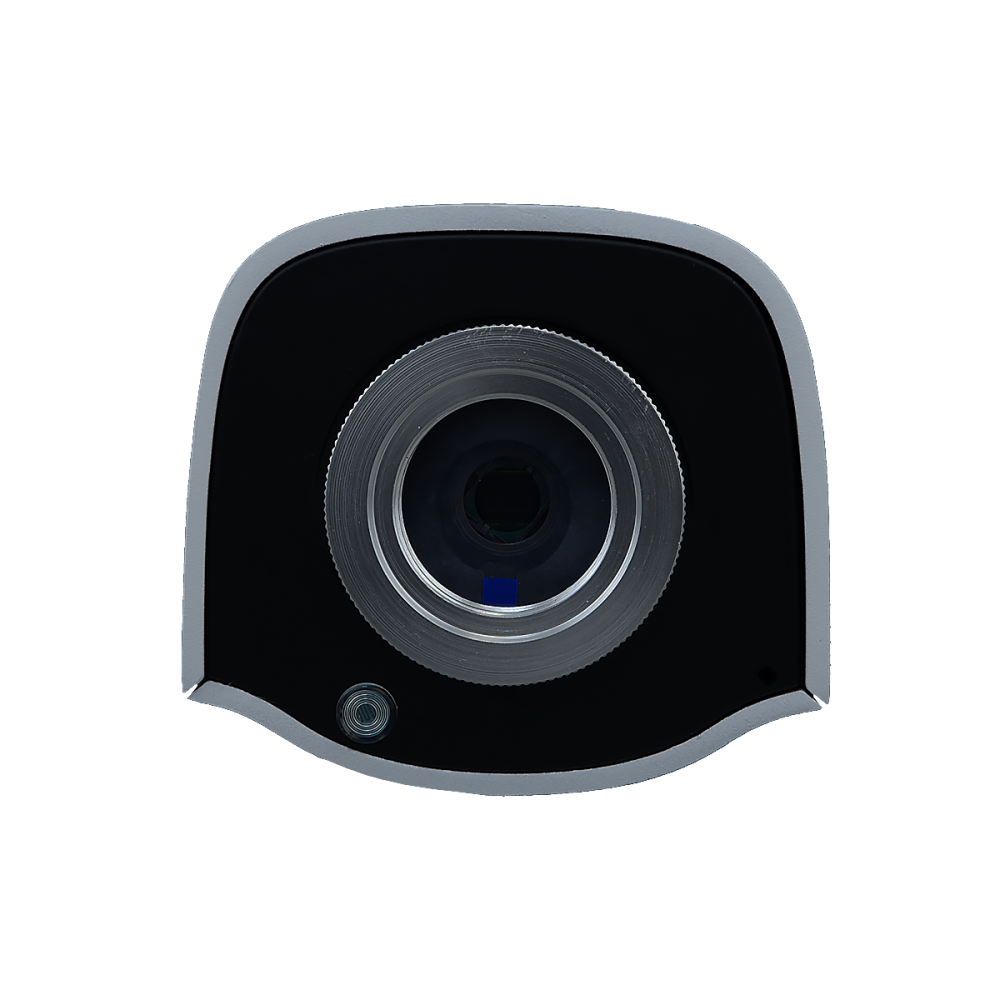

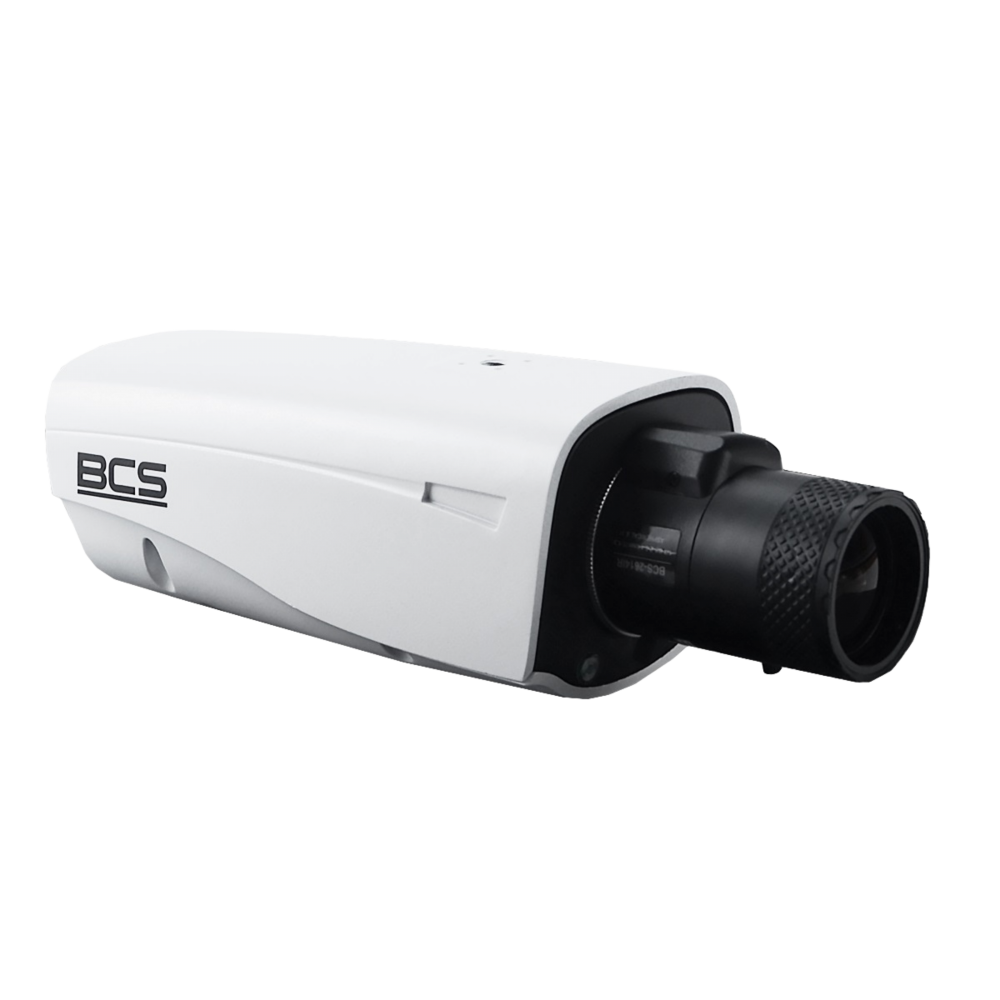

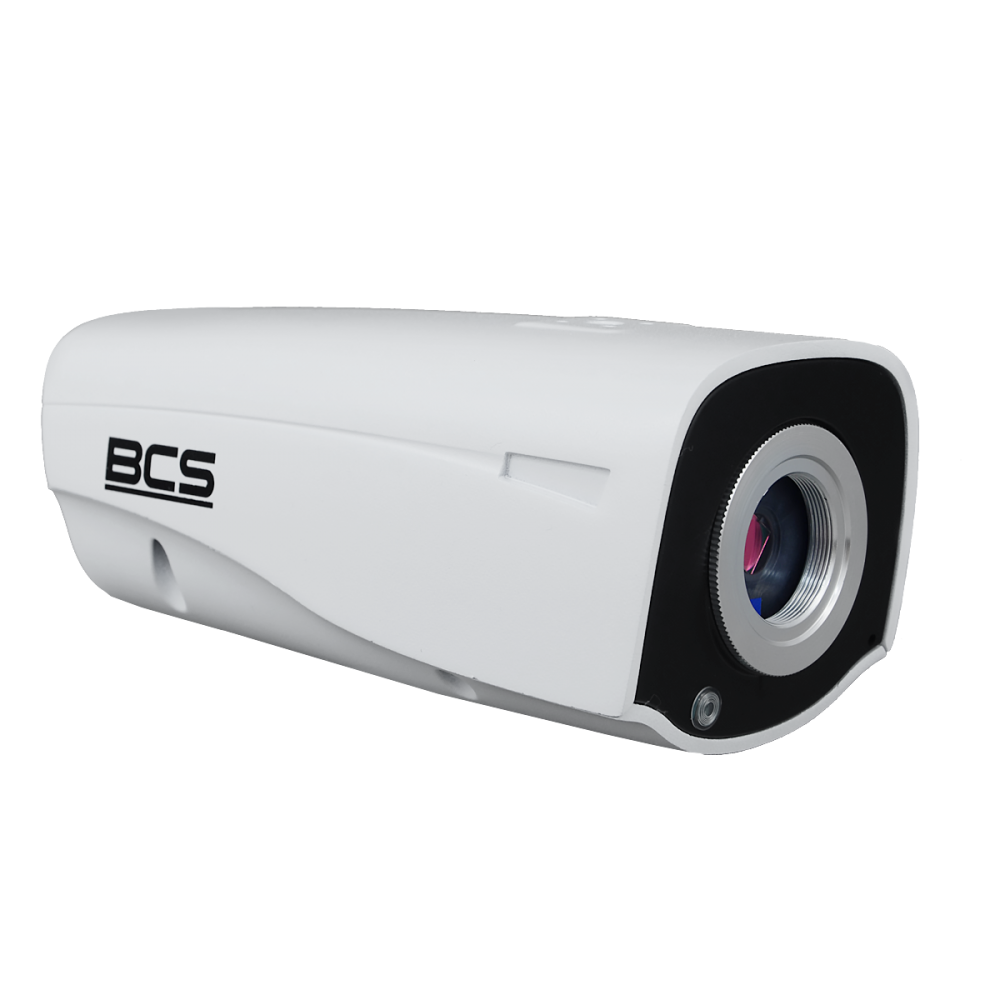

Compact 4-system camera 5Mpx 1 / 2.8 “CMOS sensor.
BCS UNIVERSAL
BCS-BA25S
70,11 € gross
73 In Stock- 5Mpx analogue HD compact camera
- HDCVI/AHD/TVI/CVBS
- 1/2.8" STARVIS PS CMOS sensor
- SkyLight technology
- C/CS auto-iris lens
- WDR 120dB
73 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Product | BCS-BA25S |
|---|---|
| Camera type | Compact |
| Transmission standard | HD-CVI / AHD / HD-TVI / ANALOG CVBS |
| Resolution | 5 Mpx |
| Sensor | 1/2.8'' CMOS STARVIS |
| Scanning system | Progressive Scan |
| Pixels | 2704(H)×1950(V) |
| Lens | C/CS |
| Min illumination | 0.01Lux(F1.2,AGC) |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Resolutions | AHD/TVI 5M(2704×1950)@20fps AHD/TVI/CVI 4M(2560×1440)@25/30fps 2M(1920×1080)@25/30fps |
| Day/night | ICR mechanical infrared filter |
| Support | Support for settings in the camera OSD menu by the BCS-XVR recorder |
| Privacy masking | Support from XVR recorder |
| Power supply | 12V DC |
| Power supply type | 12V DC |
| Power consumption | max 5W |
| Housing color | White |
| Working environment | – 20°~+60° max 95% RH |
| Dimensions | Ø76×69.99×157.13mm |
| Weight | 0.4 kg |
