BCS-DVR-KNLCD-II

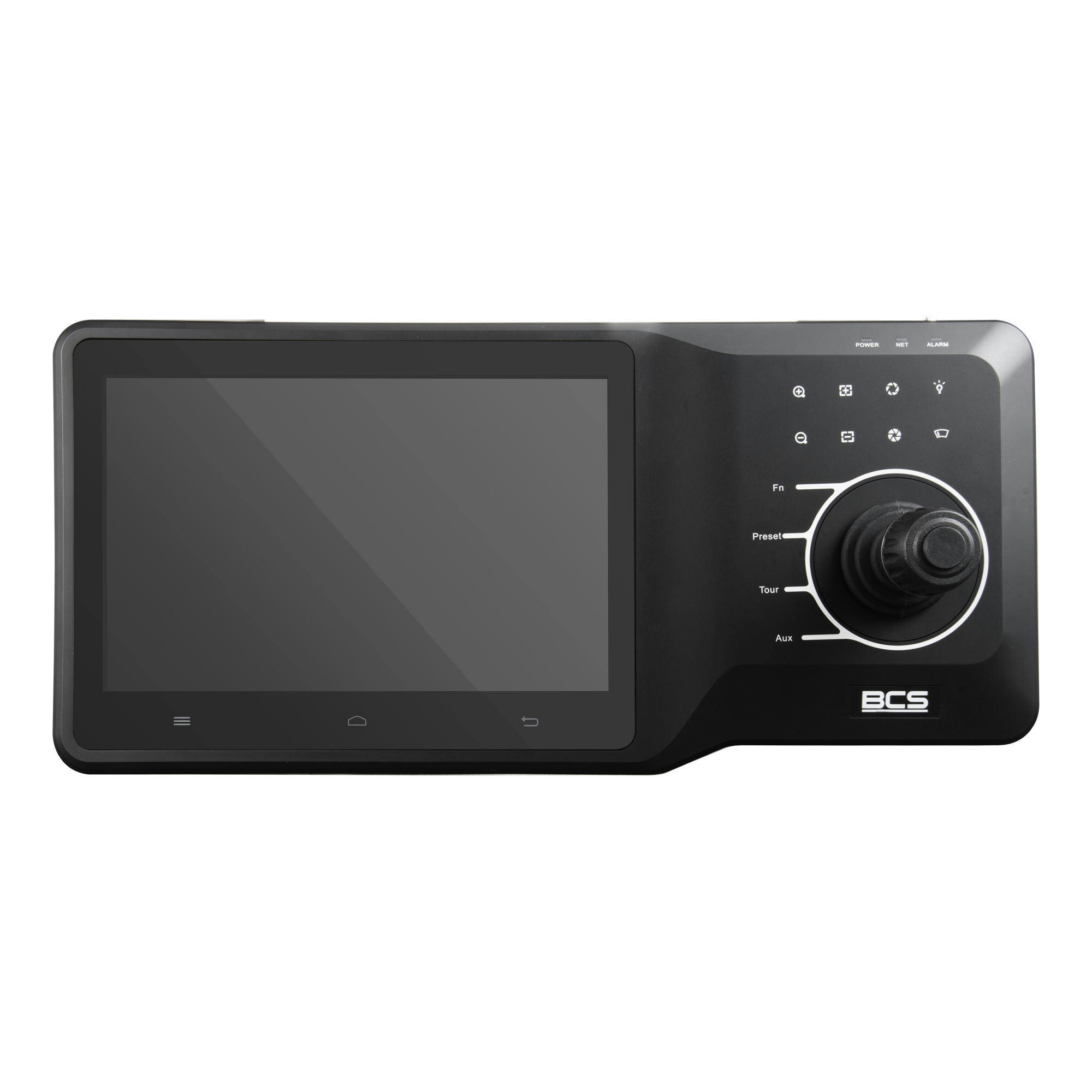

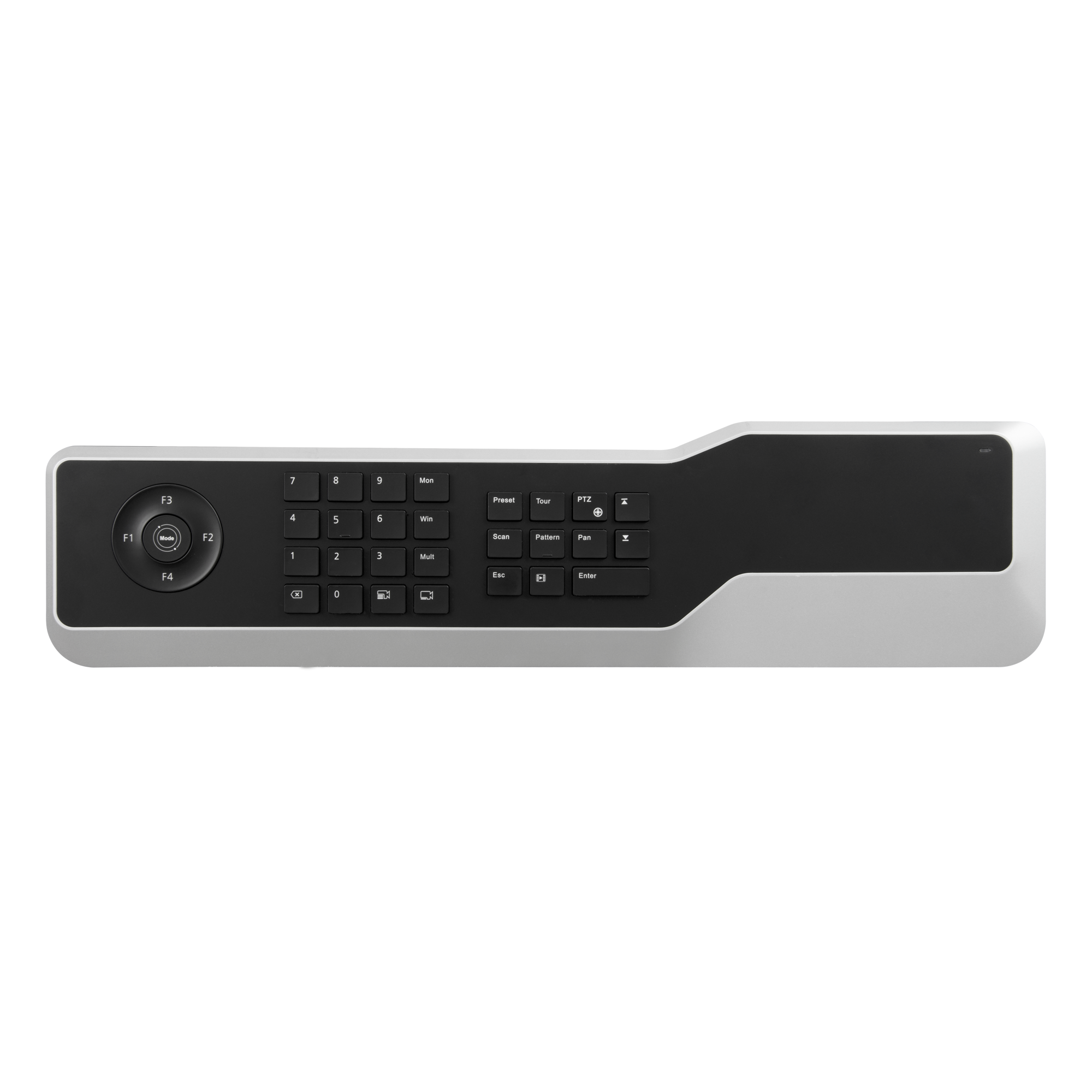

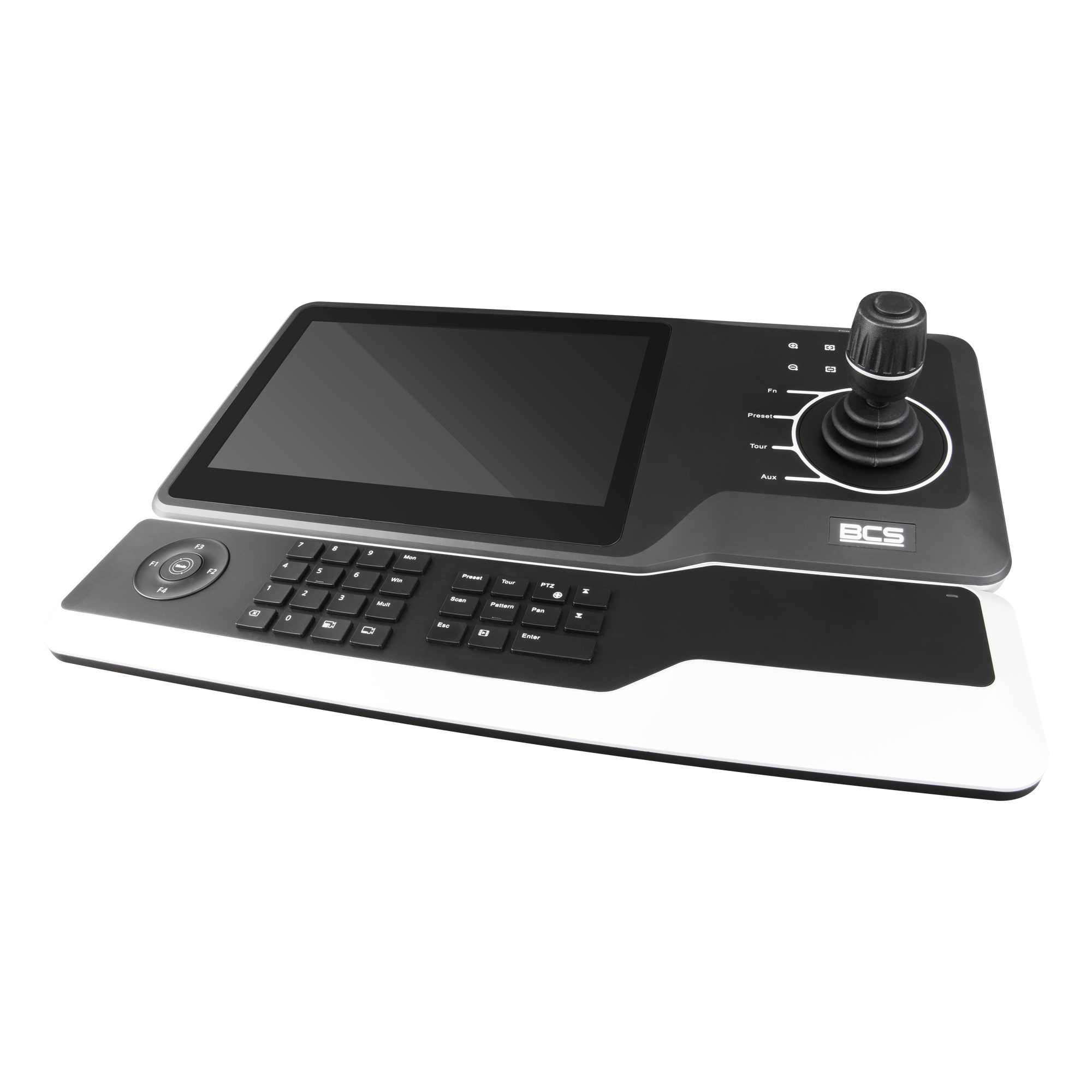

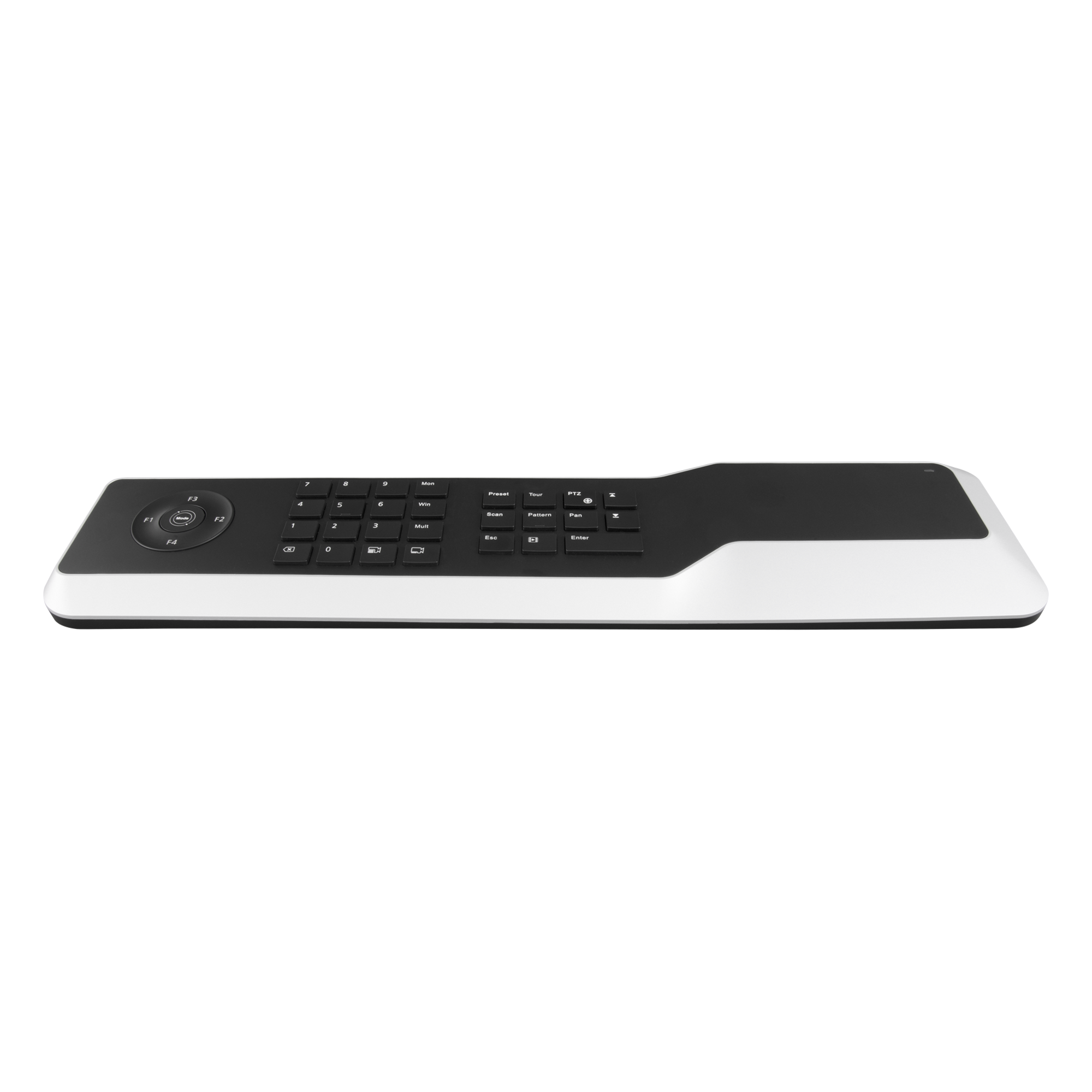

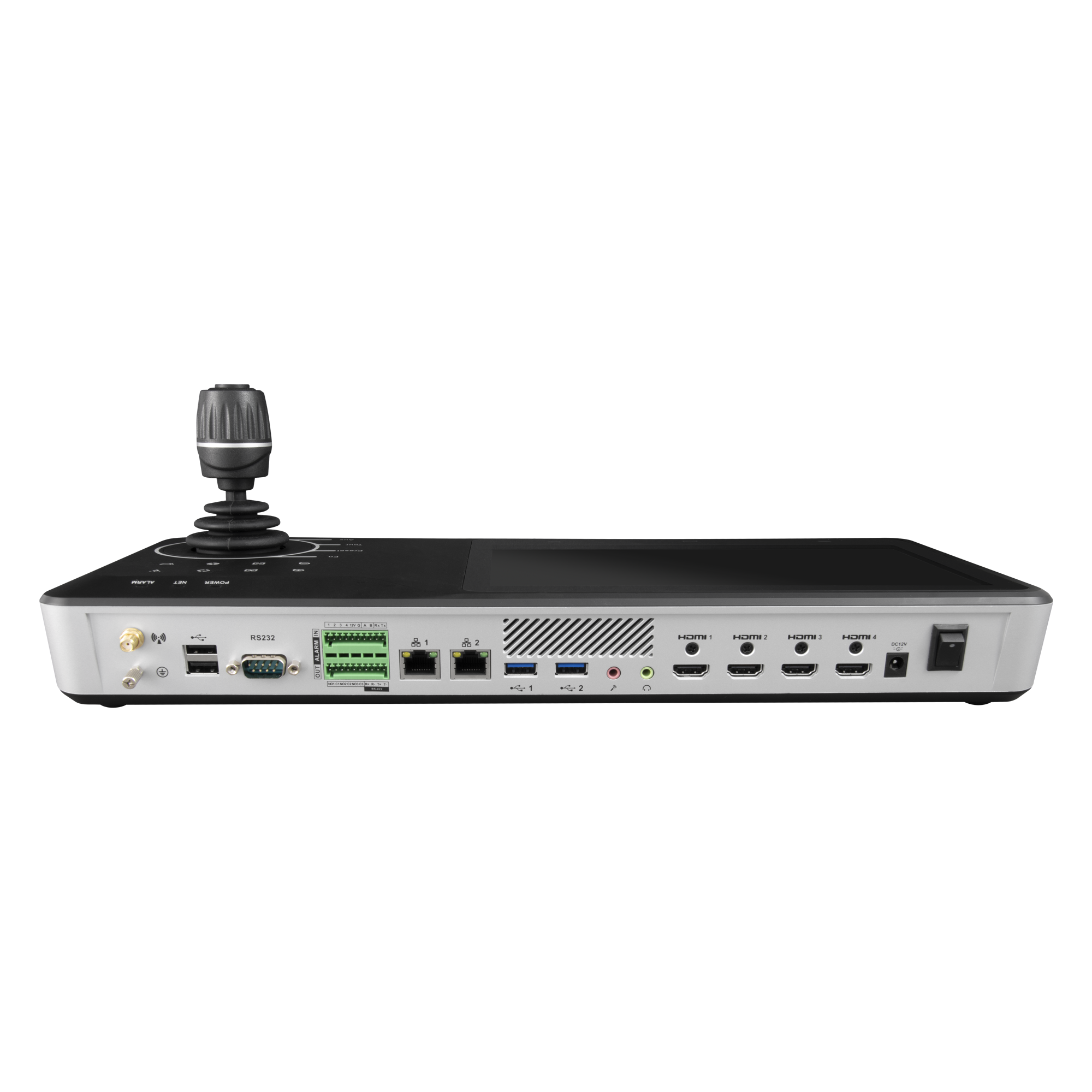

Touch keyboard with Embedded LINUX 4.2.0 system and Dual-core CPU, 10.1 inch 1280×800 TFT LCD touch screen, supporting local screen preview, Four-dimensional PTZ control by joystick, Support H.265, H.264, MPEG decoding, display performance 3CH@12MP(25fps)/4CH@4K(25fps)/8CH@5MP(25fps)/12CH@3MP(25fps)/16CH@2MP(30fps), Support TV WALL, The buttons on the keyboard can perform operations such as zoom, focus, tour, track, preset, and also allow you to use iris, wiper and preset. Audio input and output 3.5mm jack, loudspeaker, 4 alarm inputs / 4 alarm outputs 2×RJ-45 port (10/100/1000M), WLAN 2.4GHz, 2x USB3.0, 2 x USB2.0, RS485, RS232, RS422, power supply 12V AC 4A, power consumption max 25W, operating conditions -10°C ~ +55°C 10% ~ 95% RH, dimensions 425mmx194mmx59mm, 421mmx105mmx26mm (keyboard)
