| Product | BCS-EA45VR4(H2) |
|---|---|
| Camera type | Dome |
| Transmission standard | HD-CVI / AHD / HD-TVI / ANALOG CVBS |
| Resolution | 5 Mpx |
| Sensor | 1/2.5'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 2704(H)×1950(V) |
| Lens | varifocal |
| Focal length | 3.3~12 mm |
| Aperture | F1.2 |
| Focus | Manual |
| Iris | Auto |
| Optical zoom | 3× |
| Angle of view | H: 38°~120° |
| Min illumination | 0.05Lux(F1.2,AGC) 0Lux(B/W,IR) |
| White balance | (AWB) Auto / manual |
| WDR | DWDR |
| Backlight compensation | BLC / HLC / DWDR |
| Shutter | Auto / manual |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Resolutions | AHD/TVI 5M(2704×1950)@20fps AHD/TVI/CVI 4M(2560×1440)@25/30fps 2M(1920×1080)@25/30fps |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 40m |
| Support | Support for settings in the camera OSD menu by the BCS-XVR recorder |
| Power supply | 12V DC |
| Power supply type | 12V DC |
| Power consumption | max 8W |
| Housing color | White |
| IP class | IP66 |
| Working environment | – 20°~+60° max 95% RH |
| Dimensions | Ø98×119mm |
| Weight | 0.5 kg |
BCS UNIVERSAL

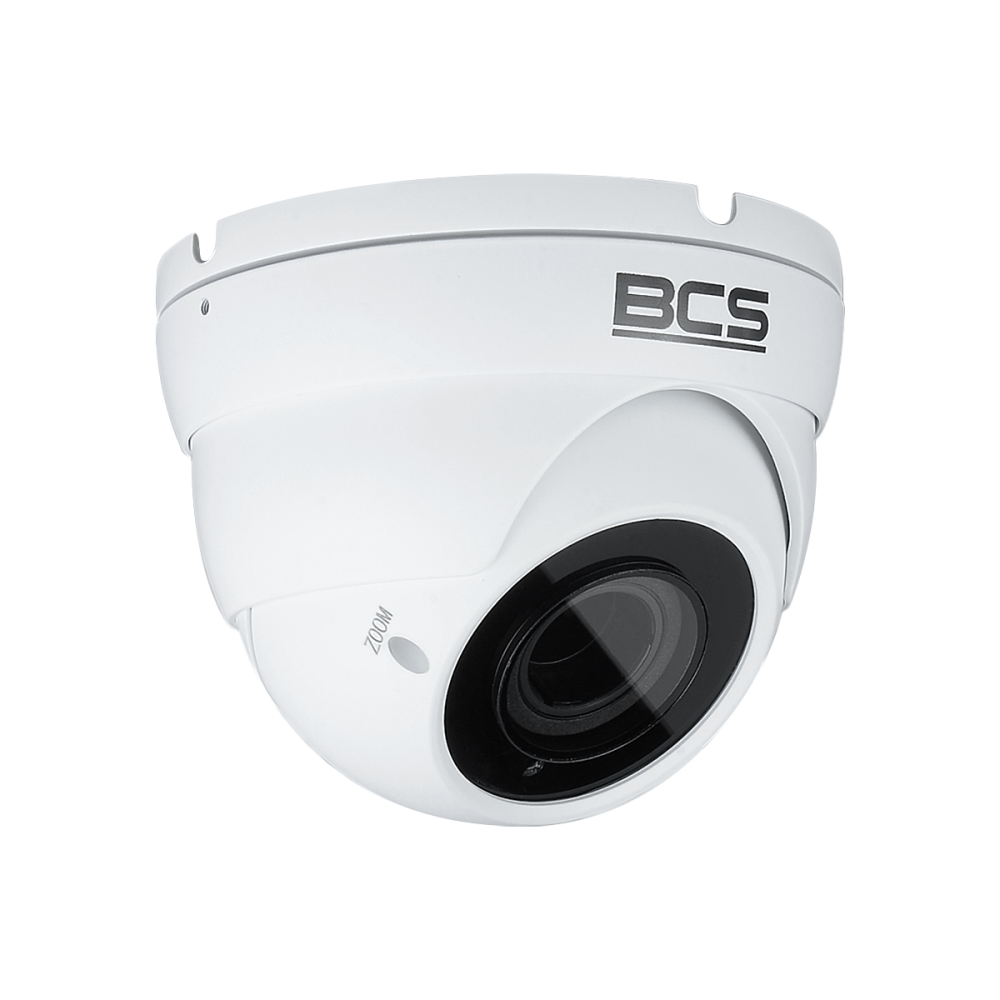

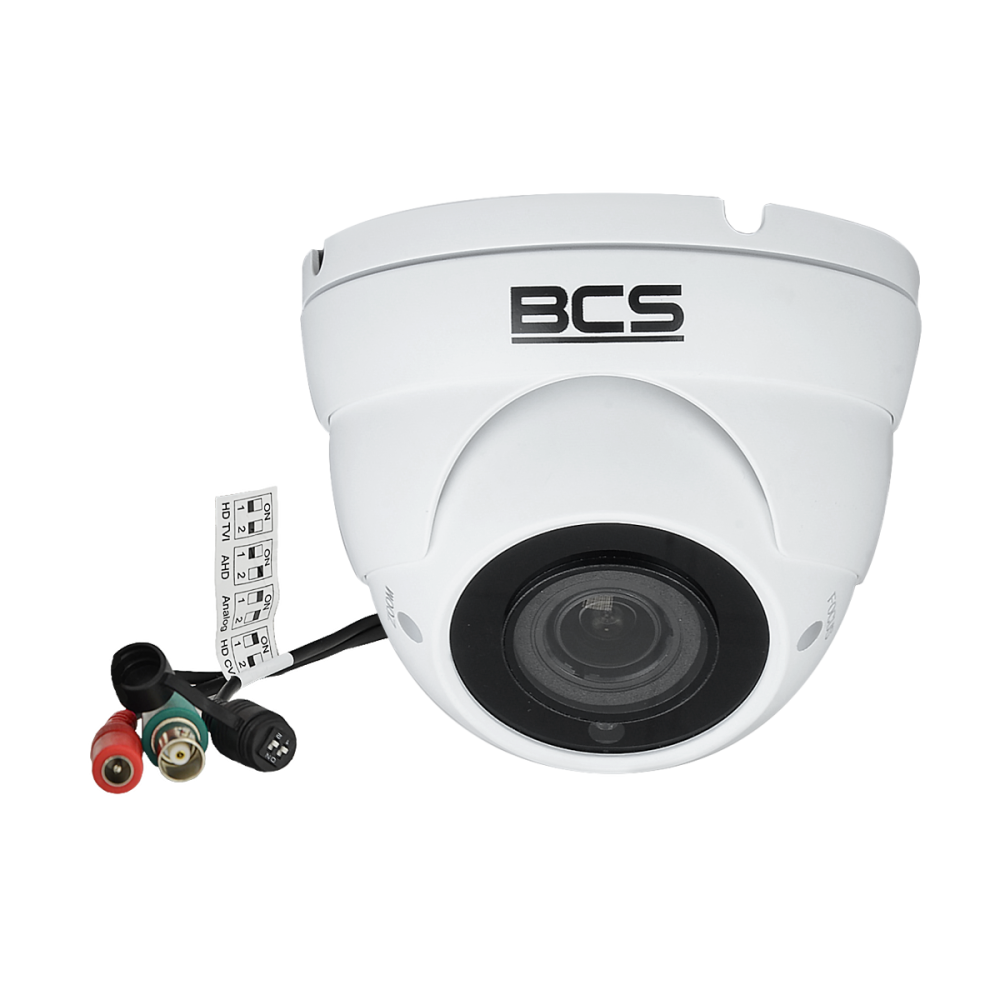

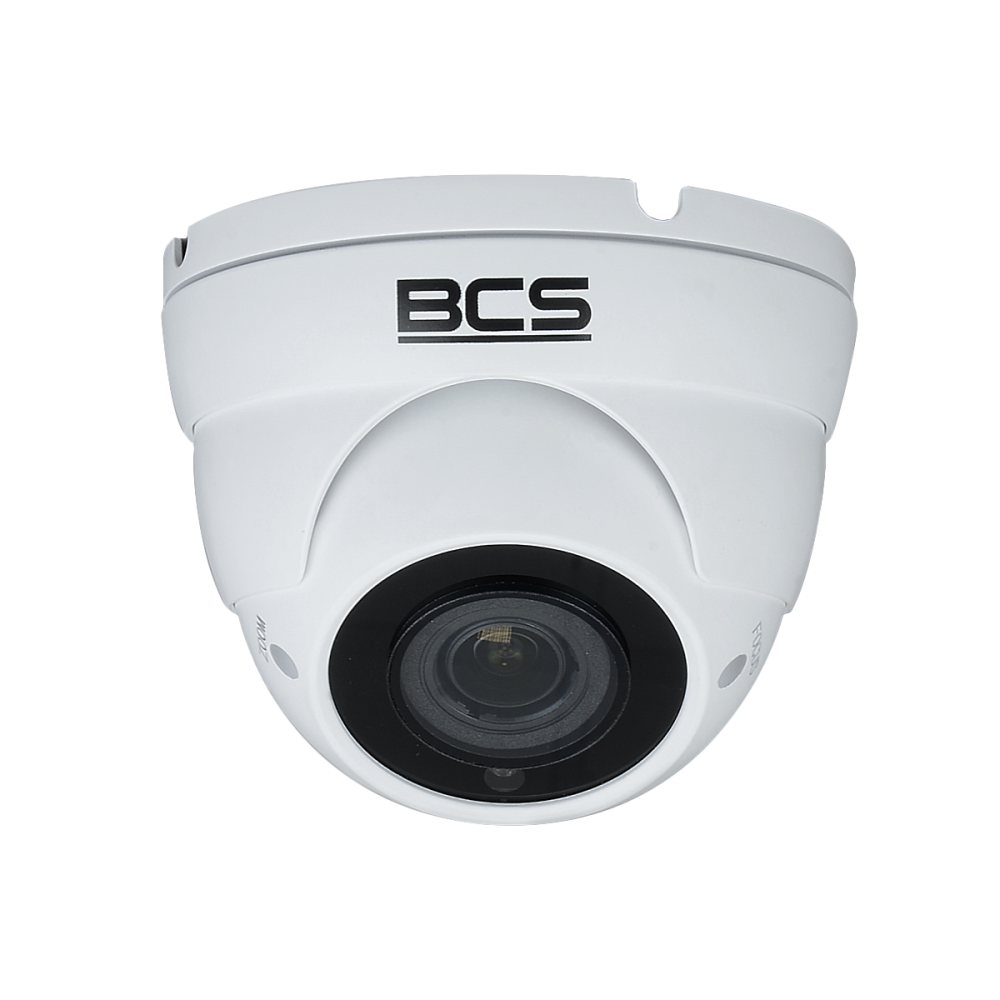

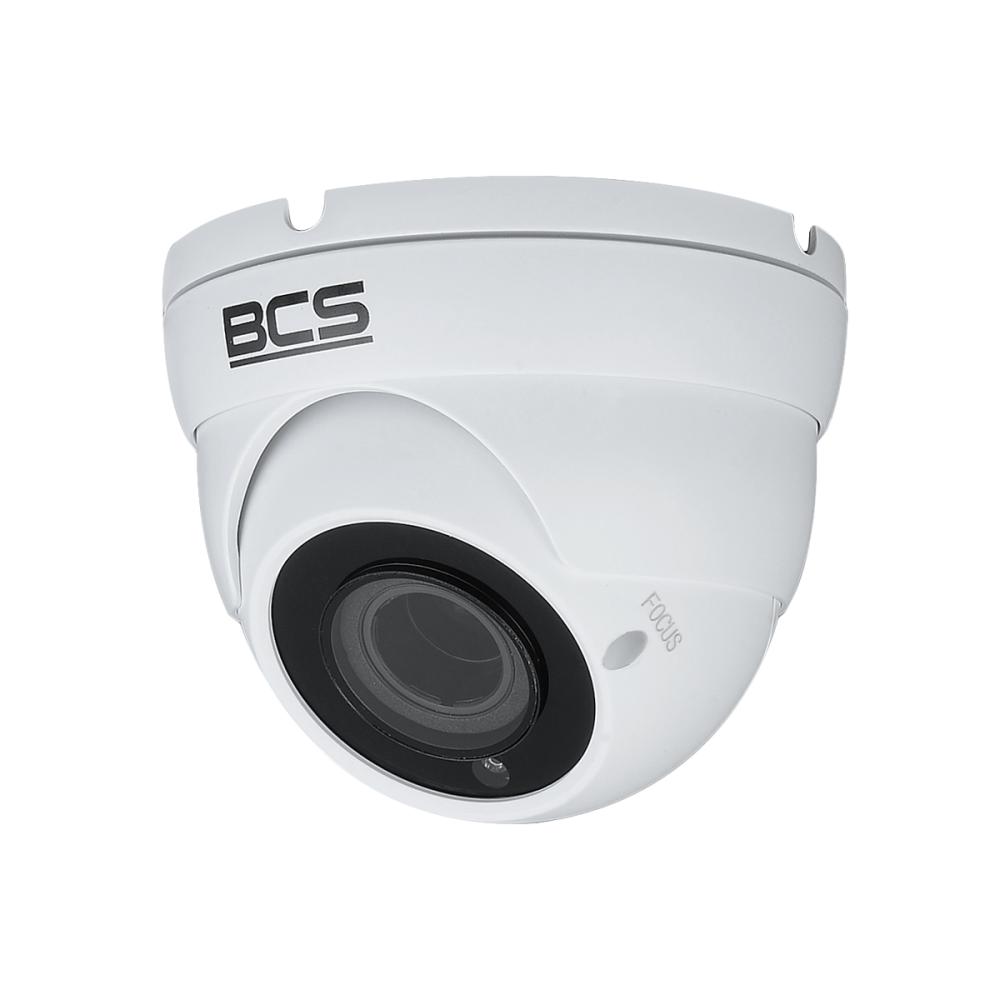

BCS-EA45VR4(H2)
55,35 € gross
Out of Stock- 5Mpx analogue HD dome camera
- HDCVI/AHD/TVI/CVBS
- 1/2.5" PS CMOS sensor
- 3.3–12 mm varifocal lens
- IR 40m
- IP66 housing
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
