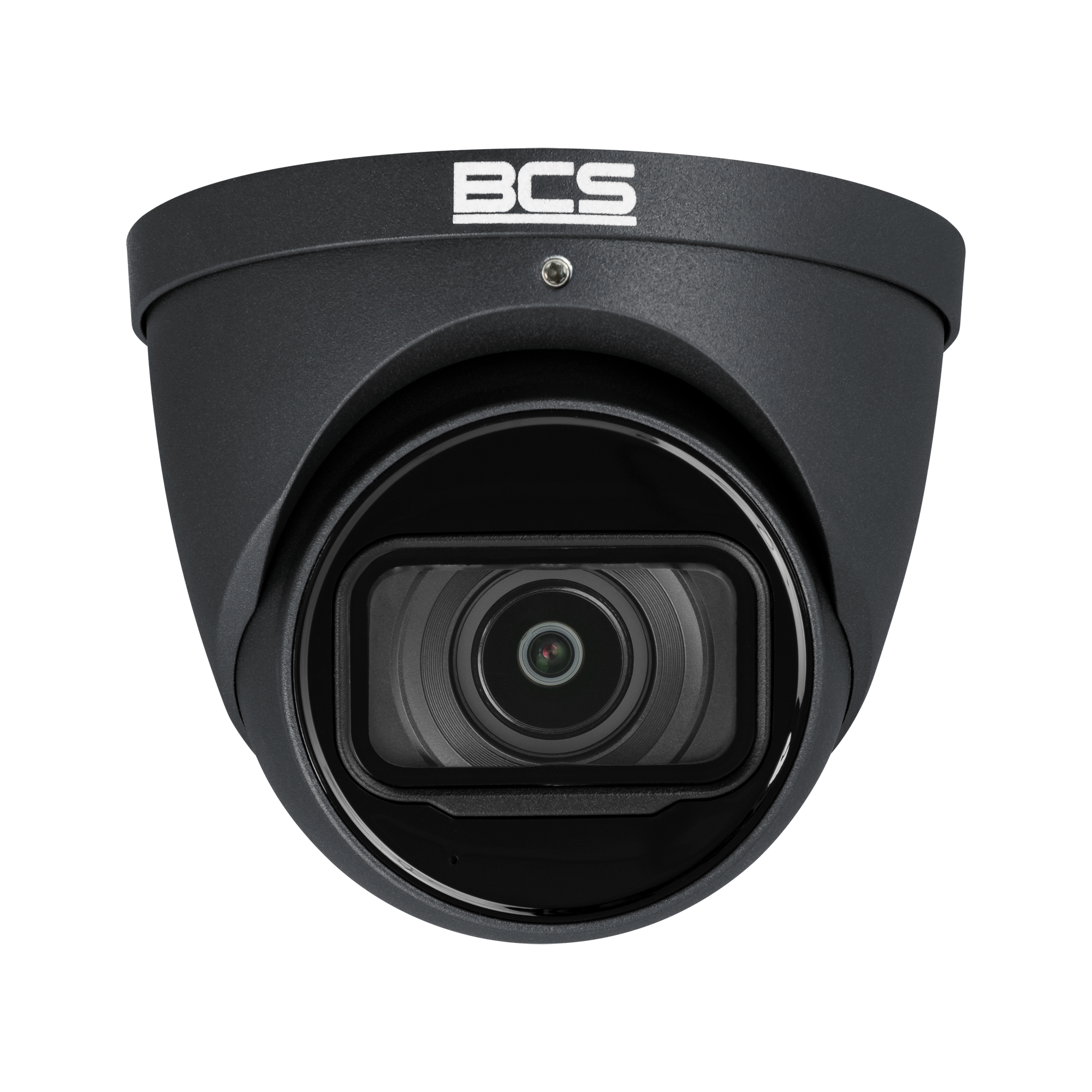

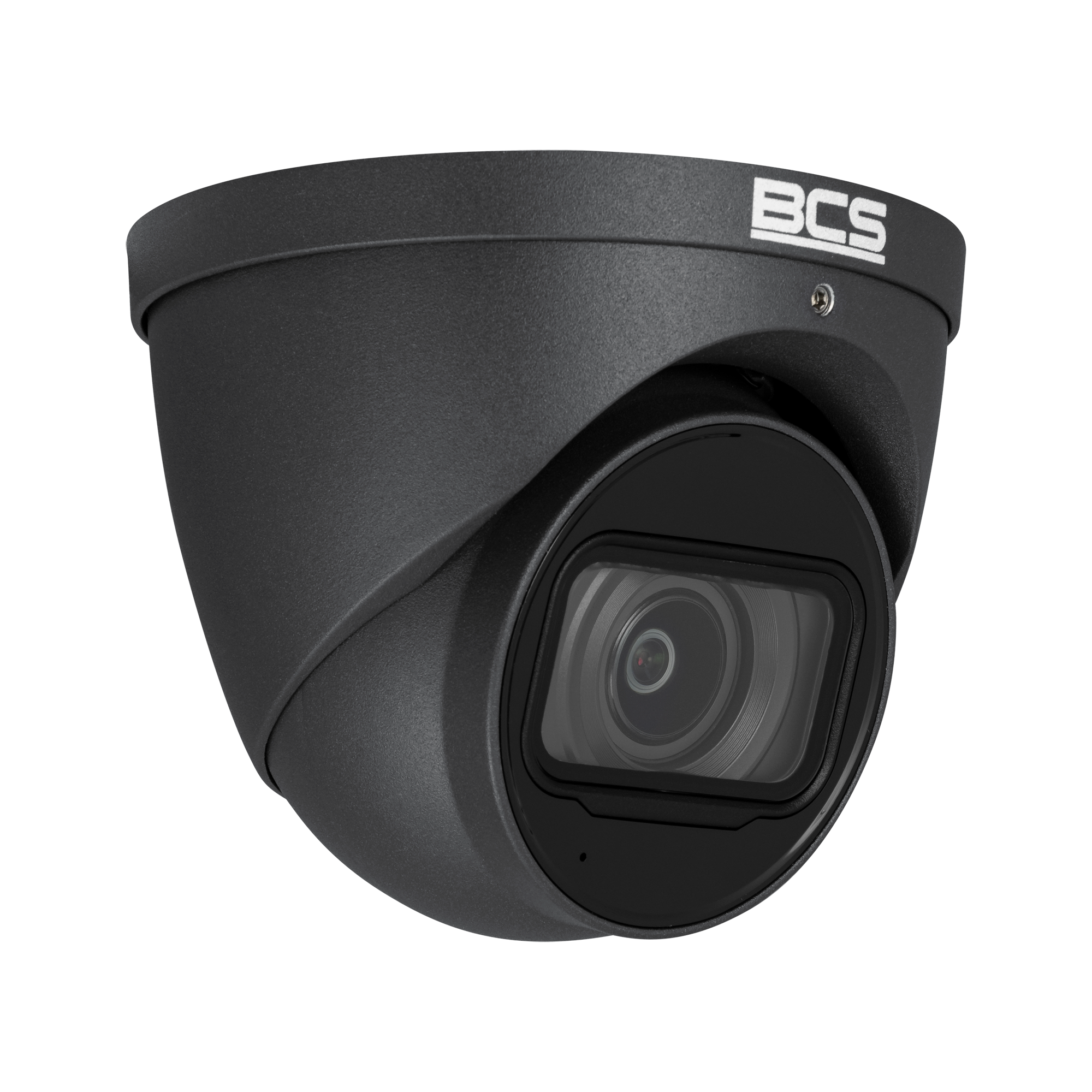

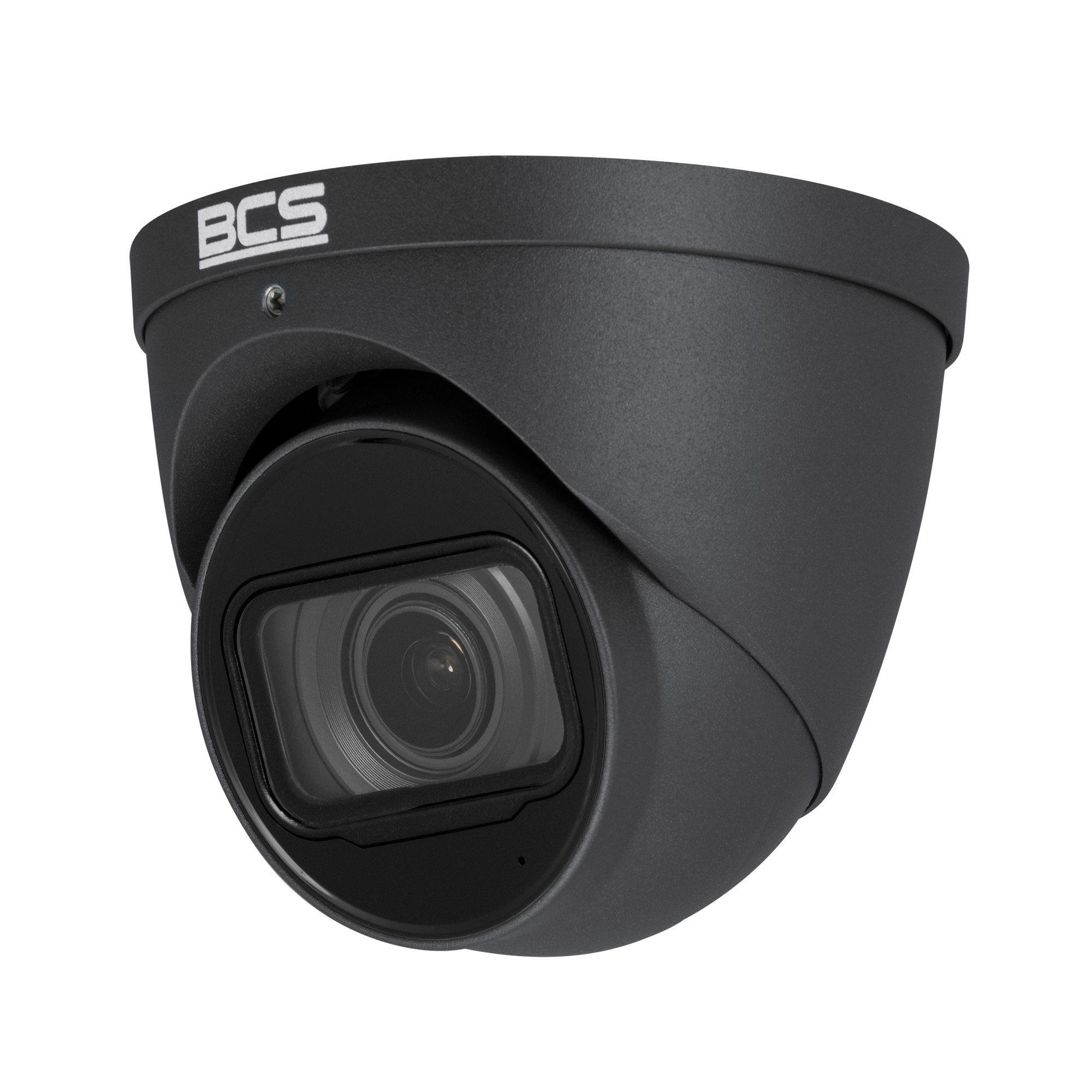

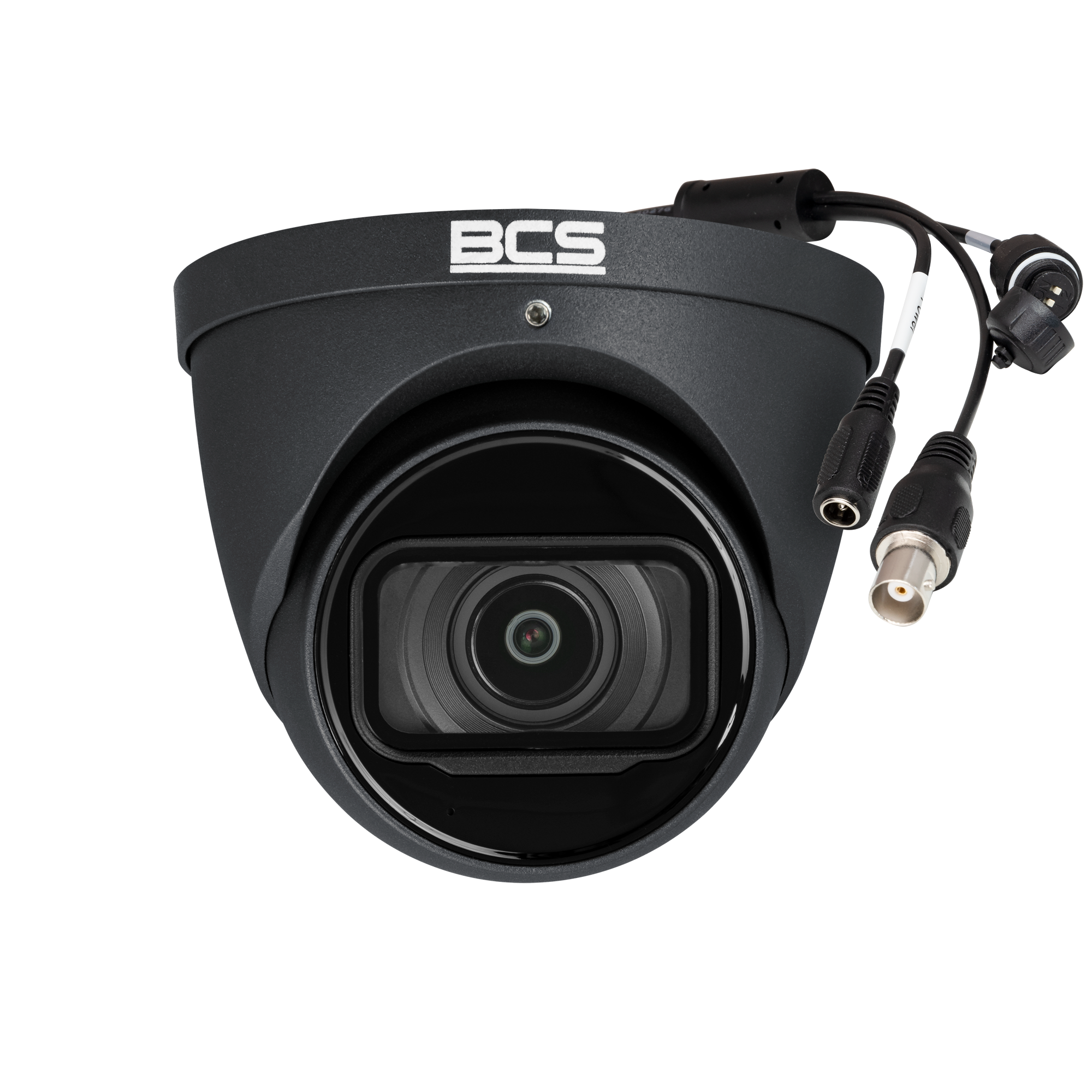

4in1 camera: HDCVI / AHD / TVI / ANALOG, sensor 1/2.7″ 5 Mpx Starlight, 25/30 fps at 5 Mpx (2880×1620), progressive scan, built-in microphone. IR illuminator up to 60m, support for ICR day / night , D-WDR extended dynamic function, noise reduction, privacy mask, OSD menu support, graphite color housing, IP67 protection class, power supply: DC 12V, dimensions: Ø122 x 104.8 mm.
BCS UNIVERSAL
BCS-EA45VSR6-G(2)
107,01 € gross
15 In Stock4-in-1 camera: HDCVI / AHD / TVI / ANALOG, sensor 1/2.7″ 5 Mpx Starlight, 25/30 fps at 5 Mpx (2880×1620).
15 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Flag | PROMOTION |
|---|---|
| Product | BCS-EA45VSR6-G(2) |
| Camera type | Dome |
| Transmission standard | HD-CVI / AHD / HD-TVI / ANALOG CVBS |
| Resolution | 5 Mpx |
| Sensor | 1/2.7'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 2880(H)×1620(V) |
| Lens | motozoom |
| Focal length | 2.7~12 mm |
| Aperture | F1.6 |
| Focus | Manual |
| Iris | Auto |
| Optical zoom | 4× |
| Angle of view | H: 34°~107° V: 19°~55°D: 39°~130° |
| DORI | Detect 69~192m / Observe 28~77m / Recognize 14~38m / Identify 7~19m |
| Min illumination | 0.01Lux(F1.6,30IRE) 0Lux(IR) |
| S/N ratio | 65dB |
| White balance | (AWB) Auto / manual |
| WDR | DWDR |
| Backlight compensation | BLC / HLC / DWDR |
| Shutter | Auto / manual 1/25(30)s~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D DNR |
| Image rotate | Mirror |
| Resolutions | CVI: 5M(2880×1620)@25fps 4M(2560×1440)@25/30fps 1080P(1920×1080)@25/30fps AHD: 4M(2560×1440)@25/30fps TVI: 4M(2560×1440)@25/30fps CVBS: 960H(960× 576/960×480) |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 60m |
| Microphone | Yes |
| Support | Support for settings in the camera OSD menu by the BCS-XVR recorder |
| Privacy masking | 8 |
| Power supply | 12V DC |
| Power supply type | 12V DC |
| Power consumption | max 6.6W |
| Housing color | Graphite |
| IP class | IP67 |
| Working environment | – 30°~+60° max 95% RH |
| Dimensions | Ø122×104.8mm |
| Weight | 0.58 kg |
