| Product | BCS-EA45VSR8L6-G |
|---|---|
| pa_product-line | BCS UNIVERSAL |
| Camera type | Dome |
| Transmission standard | HD-CVI / AHD / HD-TVI / ANALOG CVBS |
| Resolution | 5 Mpx |
| Scanning system | Progressive Scan |
| Pixels | 2880(H)×1620(V) |
| Lens | motozoom |
| Focal length | 2.7~13.5 mm |
| Aperture | F1.6 |
| Focus | Auto/manual |
| Iris | Auto |
| Optical zoom | 5× |
| Angle of view | H: 32.7°~111.8° V: 18.4°~58.3°D: 37.5°~135.2° |
| DORI | Detect 65.4~202m / Observe 26.2~80.8m / Recognize 13.1~40.4m / Identify 6.54~20.2m |
| Min illumination | 0.01Lux(F1.6) 0.001Lux(B/W,F1.6,30IRE) 0Lux(B/W,IR) |
| S/N ratio | 65dB |
| White balance | (AWB) Auto / manual |
| WDR | DWDR |
| Backlight compensation | BLC / HLC / DWDR |
| Shutter | Auto / manual 1/30s~1/10000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Image rotate | Mirror |
| Resolutions | 5M(2880×1620) 4M(2560×1440) 1080p(1920×1080) 960H(960×576/960×480); TVI 5M 16:9(2960×1665) |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED + WhiteLight |
| IR range | 80m |
| WhiteLight range | 60m |
| NightColor | Yes |
| Microphone | Yes |
| Support | Support for settings in the camera OSD menu by the BCS-XVR recorder |
| Privacy masking | 8 |
| Power supply | 12V DC |
| Power supply type | 12V DC |
| Power consumption | max 7.4W |
| Housing color | Graphite |
| IP class | IP67 |
| Working environment | – 30°~+60° max 95% RH |
| Dimensions | Ø122×108.2mm |
| Weight | 0.61 kg |
| Casing | Metal |

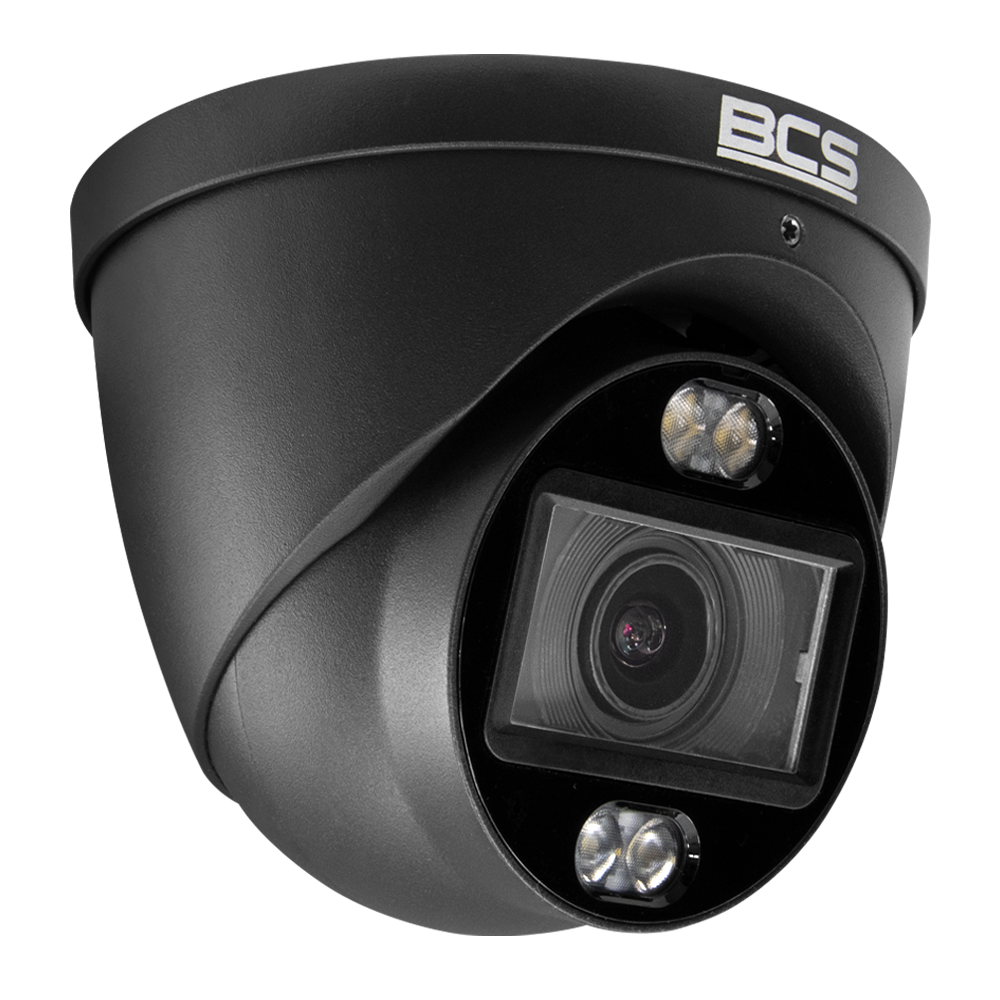

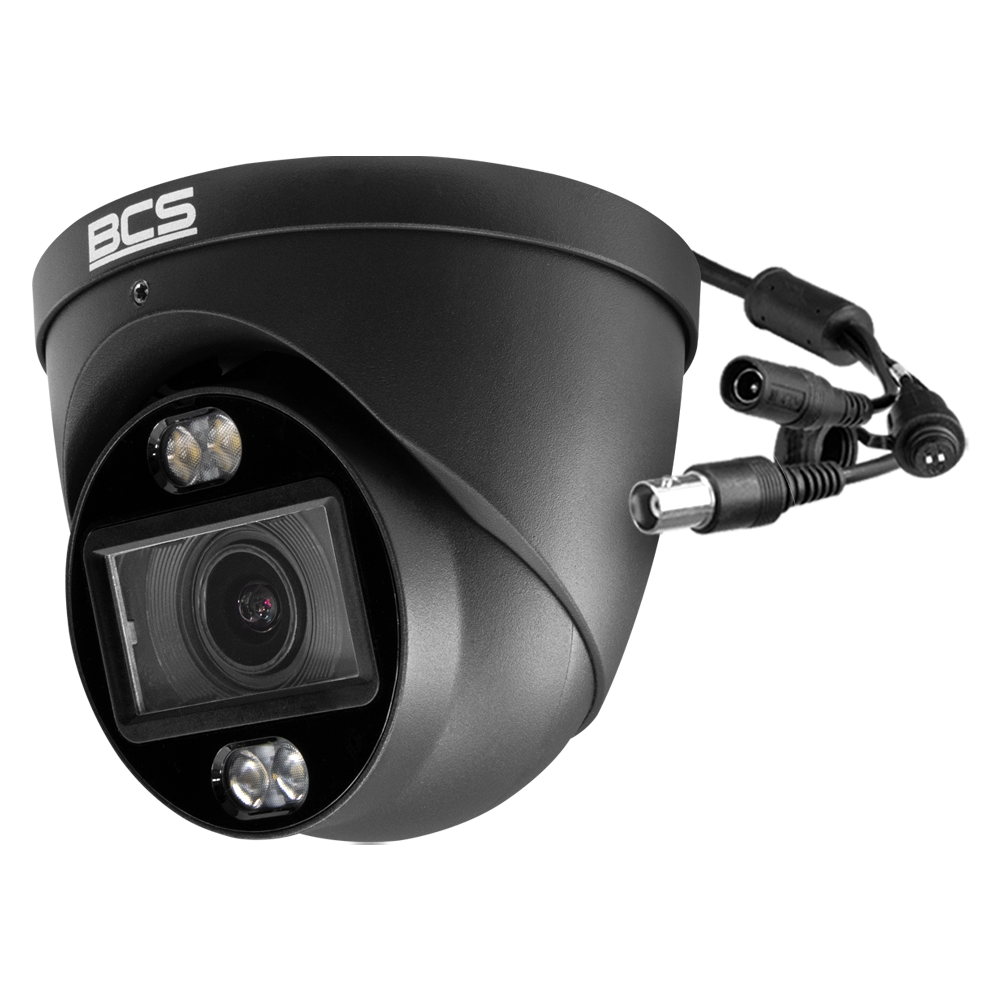

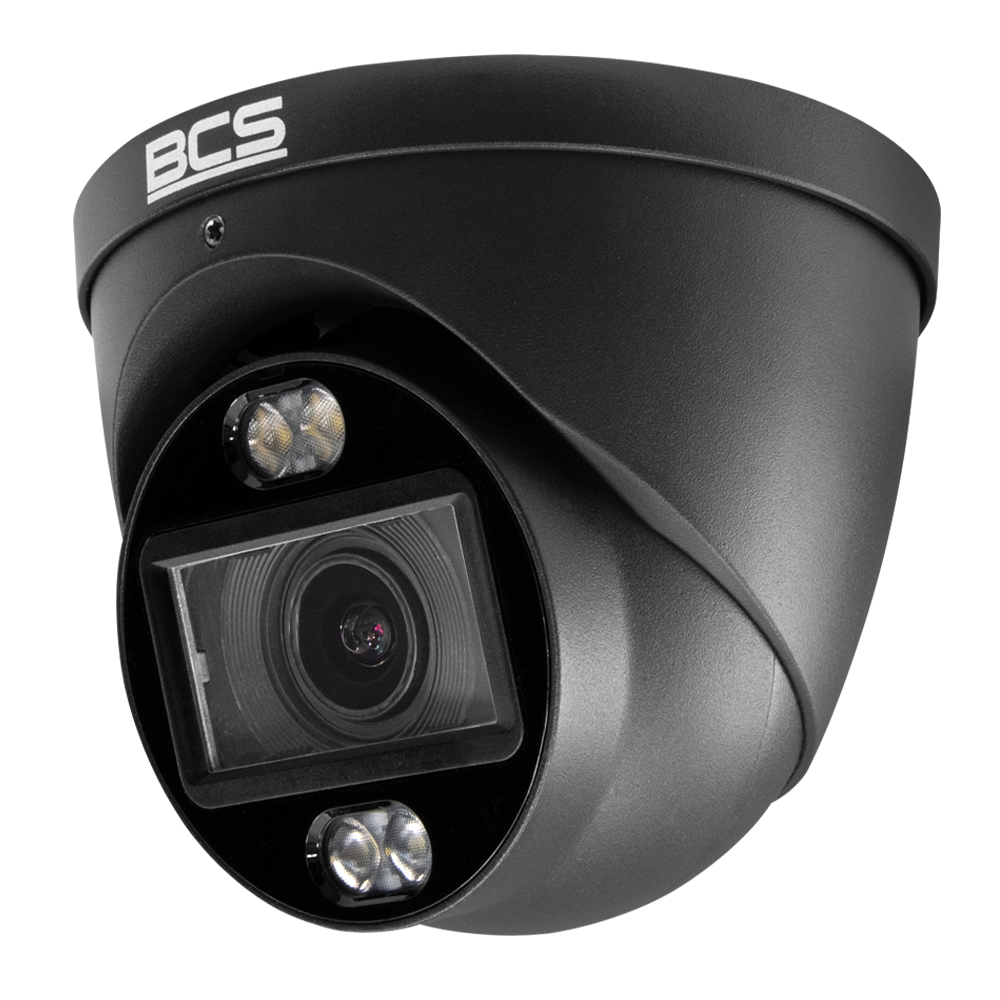

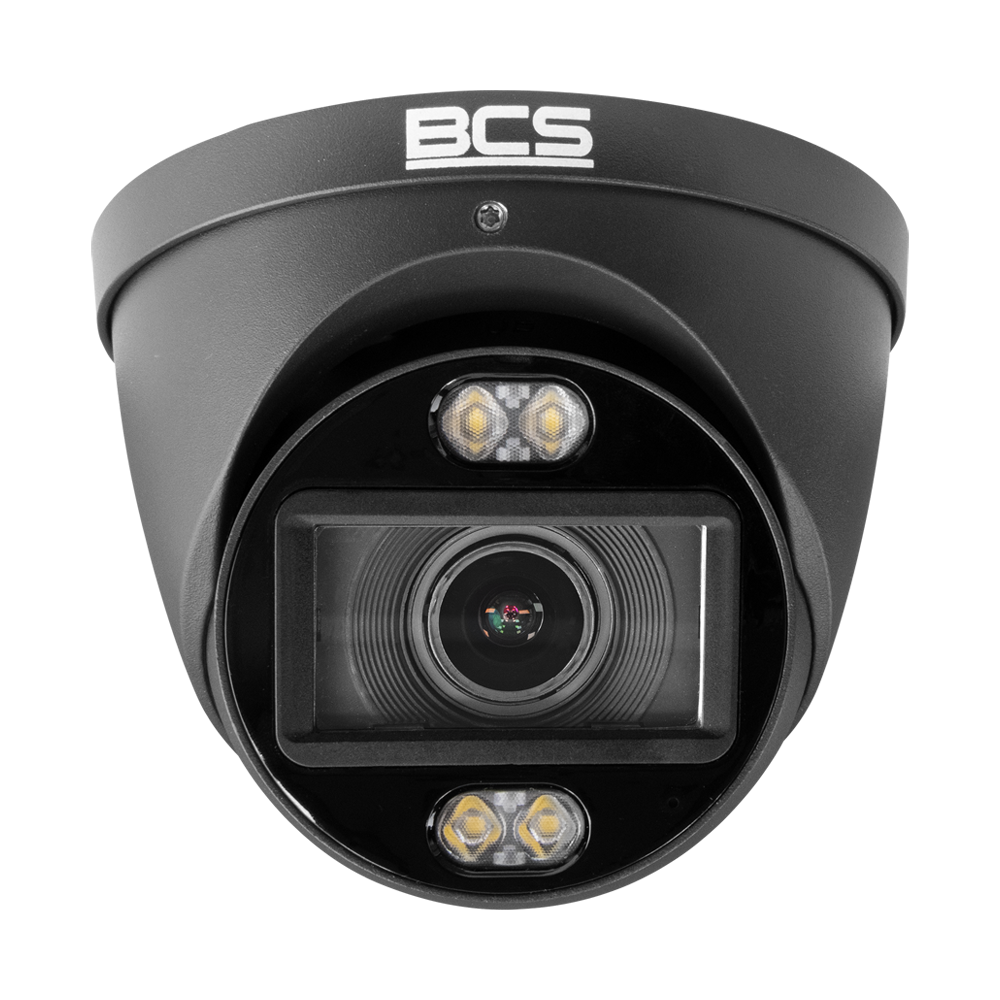

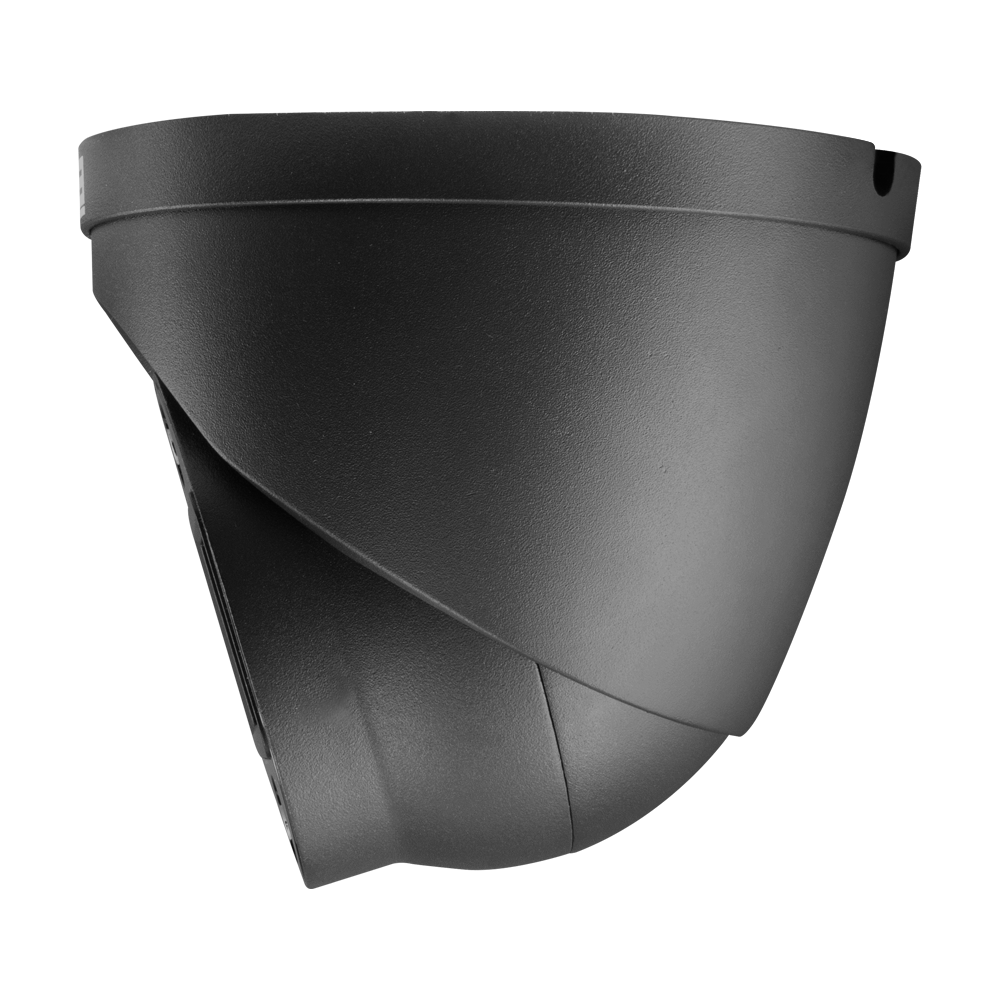

BCS-EA45VSR8L6-G
72,57 € gross
43 In Stock- Analog HD 5Mpx dome camera
- HDCVI/AHD/TVI/CVBS
- Motozoom lens 2.7~13.5mm
- IR 80m WhiteLight 60m
- Microphone
- IP67 housing
43 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
