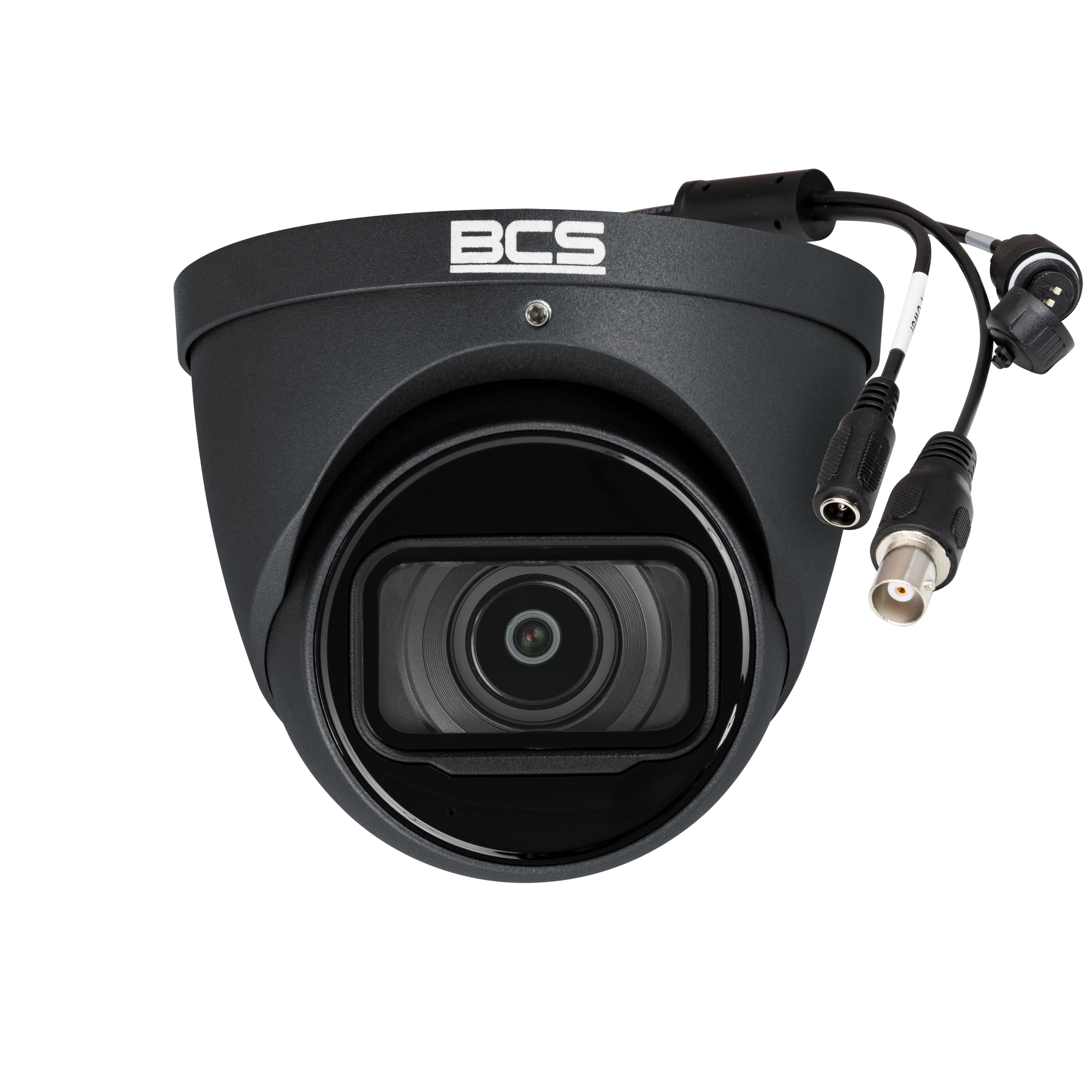

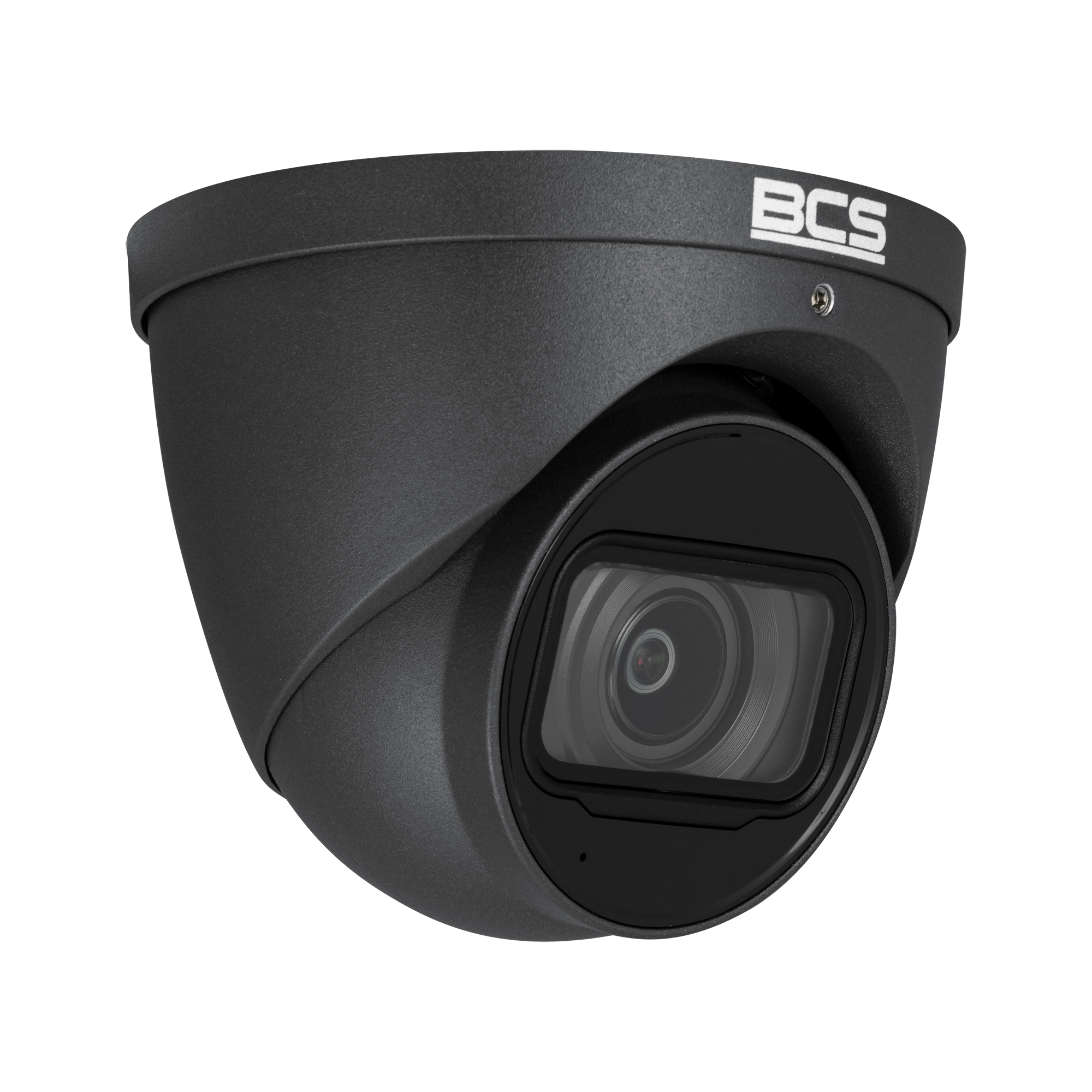

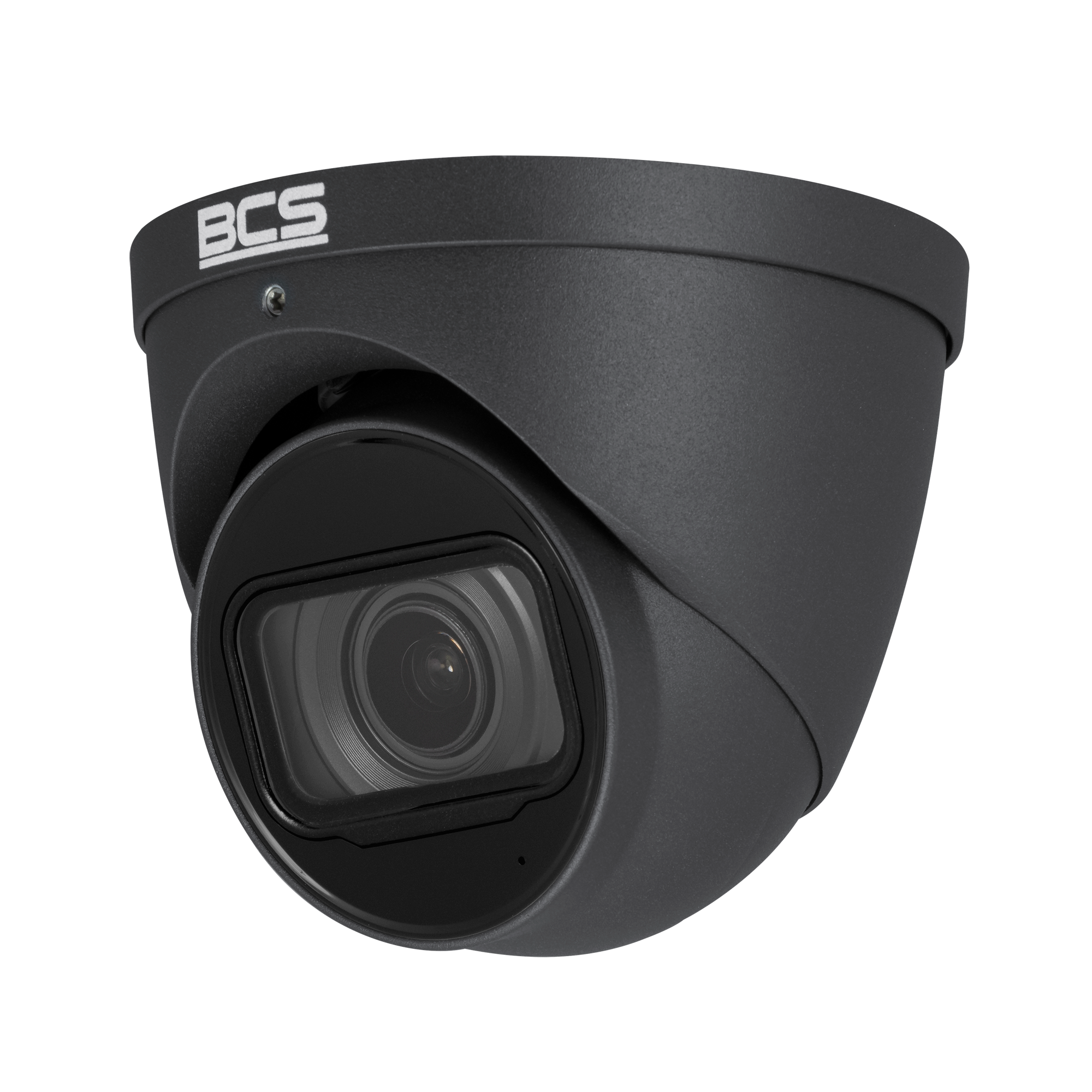

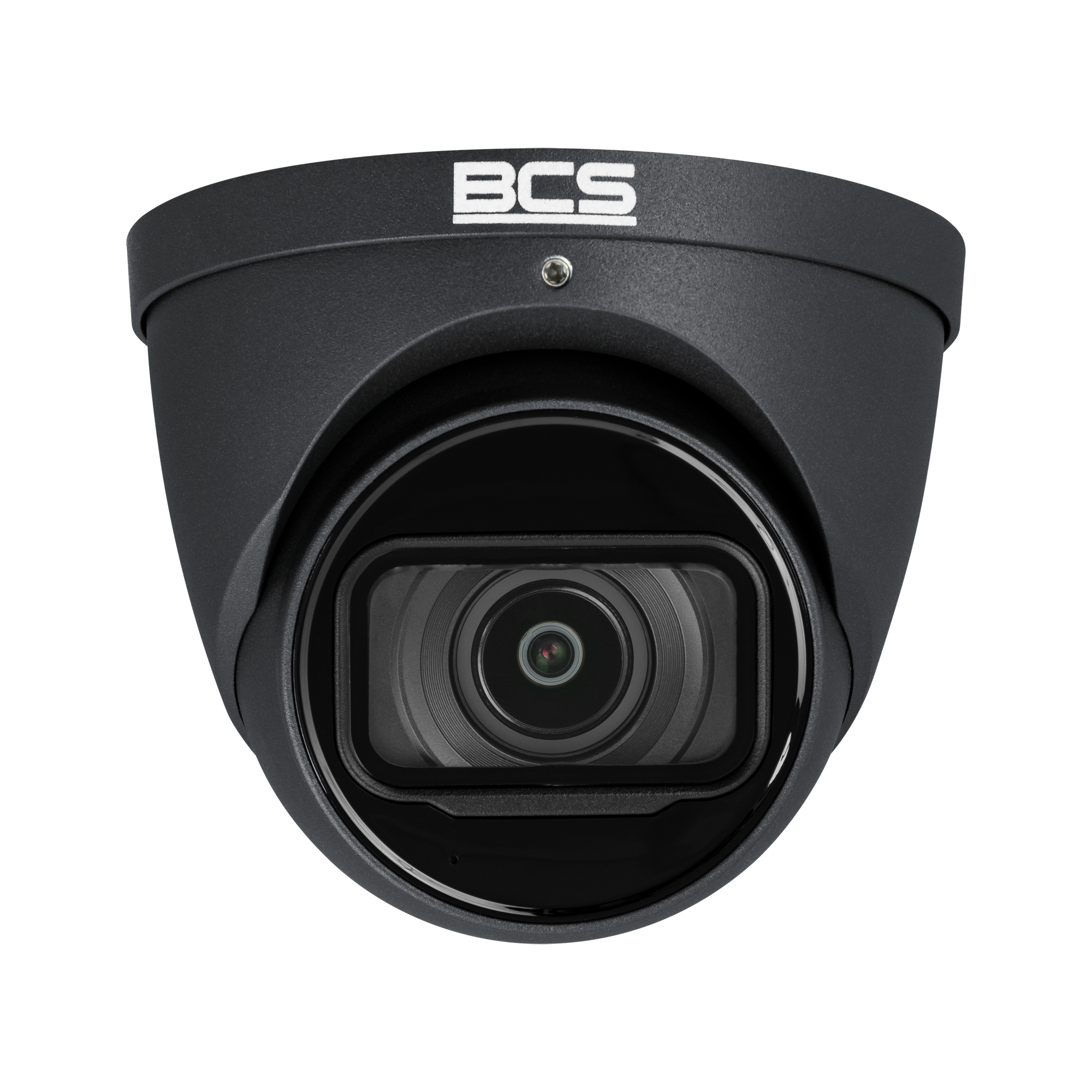

8Mpx HD-CVI / HD-TVI / AHD / ANALOG camera, 1 / 2.7 “8Mpx SONY CMOS sensor with a resolution of 3840 × 2160 (8Mpx), a motozoom lens with a focal length of 2.7mm ~ 13.5mm, image display: 1080p 2Mpx, Max 25 / 30 fps @ 1080p, built-in Infrared illuminator – 60 meters (smart)
BCS-EA48VWR6-G(2)
146,37 € gross
14 In Stock- 8Mpx analogue HD dome camera
- HDCVI/AHD/TVI/CVBS
- 1/2.7" PS CMOS sensor
- 2.7–13.5 mm motorised zoom lens
- WDR 120dB
- IR 60m
- Microphone
- IP67-rated housing
14 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Product | BCS-EA48VWR6-G(2) |
|---|---|
| pa_product-line | BCS UNIVERSAL |
| Camera type | Dome |
| Transmission standard | HD-CVI / AHD / HD-TVI / ANALOG CVBS |
| Resolution | 8 Mpx |
| Sensor | 1/2.7'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 3840(H)×2160(V) |
| Lens | motozoom |
| Focal length | 2.7~13.5 mm |
| Aperture | F1.5 |
| Focus | Auto/manual |
| Iris | Auto |
| Optical zoom | 4× |
| Angle of view | H: 114°~32° V: 58°~17° D: 138°~36° |
| DORI | Detect 85~280m / Observe 34~112m / Recognize 17~56m / Identify 9~28m |
| Min illumination | 0.01Lux(F1.5) 0.001Lux(B/W,F1.5,30IRE) 0Lux(B/W,IR) |
| S/N ratio | 65dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1/25(30)s~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Defog | Electronic |
| Image rotate | Mirror |
| Resolutions | CVI: 8M(3840×2160)@15fps 5M(2880×1620)@25fps; 4M(2560×1440)@25fps/30fps; 2M(1920×1080)@25/30fps AHD/TVI: 8M(3840×2160)@15fps CVBS: 960H(960×576/960×480) |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 60m |
| Microphone | Yes |
| Support | Support for settings in the camera OSD menu by the BCS-XVR recorder |
| Privacy masking | 8 |
| Power supply | 12V DC |
| Power supply type | 12V DC |
| Power consumption | max 7.8W |
| Housing color | Graphite |
| IP class | IP67 |
| Working environment | – 30°~+60° max 95% RH |
| Dimensions | Ø122×104.8mm |
| Weight | 0.58 kg |
