| Flag | TO ORDER |
|---|---|

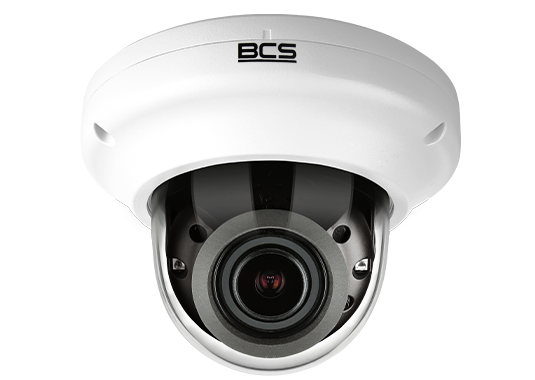

| Product | BCS-F-DIP28FSR3 |
| NDAA | National Defense Authorization Act |
| Camera type | Dome |
| Resolution | 8 Mpx |
| Sensor | 1/1.8'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 3840(H)×2160(V) |
| Lens | fixed |
| Focal length | 2.8 mm |
| Aperture | F1.6 |
| Focus | fixed |
| Iris | fixed |
| Angle of view | H: 106° V: 59° D: 120° |
| Min illumination | 0.1Lux(F1.6) 0Lux(IR) |
| S/N ratio | 50dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | WDR(120dB) |
| Shutter | Auto / manual 1/15~1/32000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Image rotate | Mirror, Flip |
| Stream support | 3 |
| Resolutions | 8M(3840×2160) / 5M(2592×1944) / 4M(2560×1440) / 2M(1920×1080) / 720P(1280×720) / (800×600) / (768×432) / D1(704×576/704×480) / VGA(640×480) / (640×360) / CIF(352×288/352×240) |
| Main stream | 3840×2160(1~25fps) / 2592×1944(1~25fps) / 2560×1440(1~25fps) / 1920×1080(1~25fps) |
| Second stream | 800×600 / 704×576 / 704×480 / 640×480 / 640×360 / 352×288 / 352×240 (1~25fps) |
| Third stream | 1920×1080 / 1280×720 / 800×600 / 768×432 / 704×576 / 704×480 / 640×480 / 640×360 / 352×288 / 352×240 (1~25fps) |
| Bitrate | 100Kbps~25Mbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 30m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711ulaw |
| Alarm in | 1 |
| Alarm out | 1 |
| Memory card slot | microSD |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 16 |
| Network | RJ-45 10/100/1000 Mbps |
| Compatibility | ONVIF |
| Protocols | TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2) |
| Network security | HTTPS, SSL, IP filtering, IEEE802.1X, Digest Authentication |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 9.6W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Working environment | -20°C~+50°C max 90% RH |
| Dimensions | 125×92mm |
| Weight | 0.51 kg |
Warning: This product belongs to the BCS FLEX product line.
Use only components and devices from the same line to ensure compatibility.
BCS FLEX
BCS-F-DIP28FSR3
512,91 € gross
Out of Stock- 8Mpx dome IP camera
- 1/1.8" PS CMOS sensor
- NDAA compliant
- SkyLight technology
- 2.8mm fixed lens
- WDR 120dB
- IR 30m
- Alarm 1/1, audio 1/1
- IP67, IK10 housing
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
