BCS-IP16Gb/E-S

771,21 € gross

25 In Stock

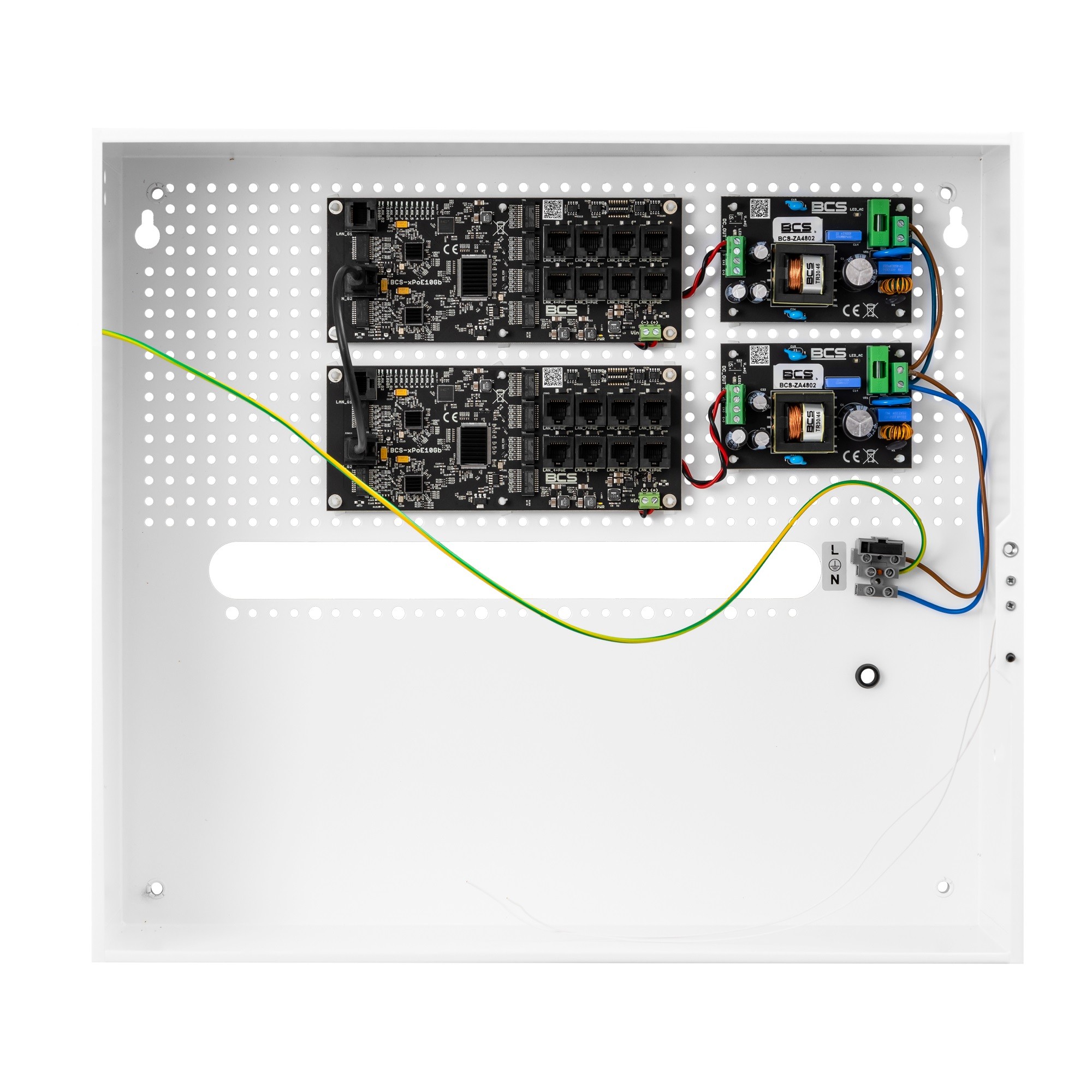

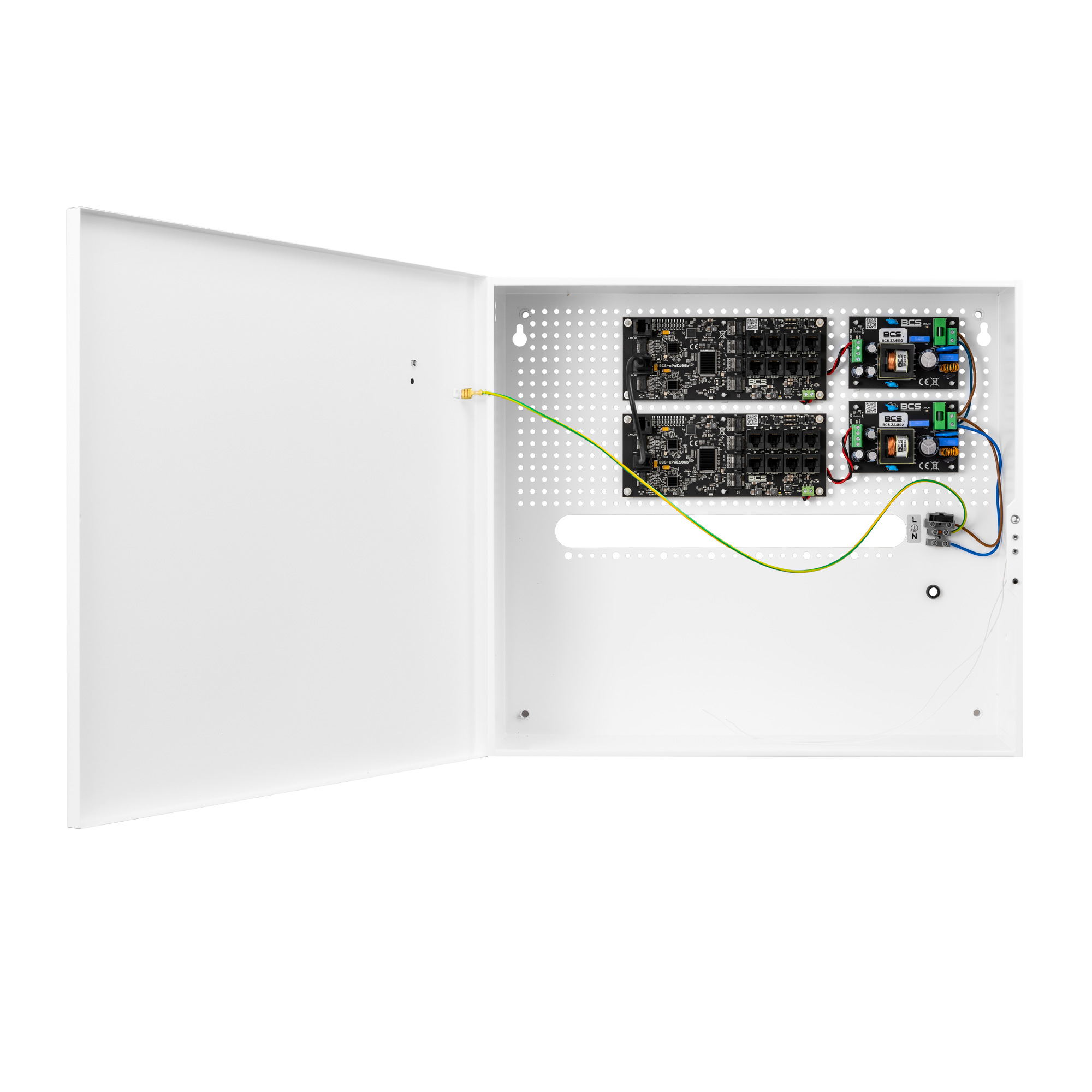

IP camera power supply kit, in an indoor housing, for up to 16 PoE devices.

25 in stock

  • DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
  • Official BCS e-commerce Business Partner
  • Technical support
SKU: 7909 Categories: ,

Set for powering IP CCTV cameras. The device is a convenient solution to the problem of central powering for monitoring cameras. The device is designed to work with IP cameras and other network devices powered in PoE 802.3at / af and PoE PASSIVE standards.

The device is especially recommended for systems requiring higher network bandwidth, such as 4K Ultra HD CCTV monitoring.

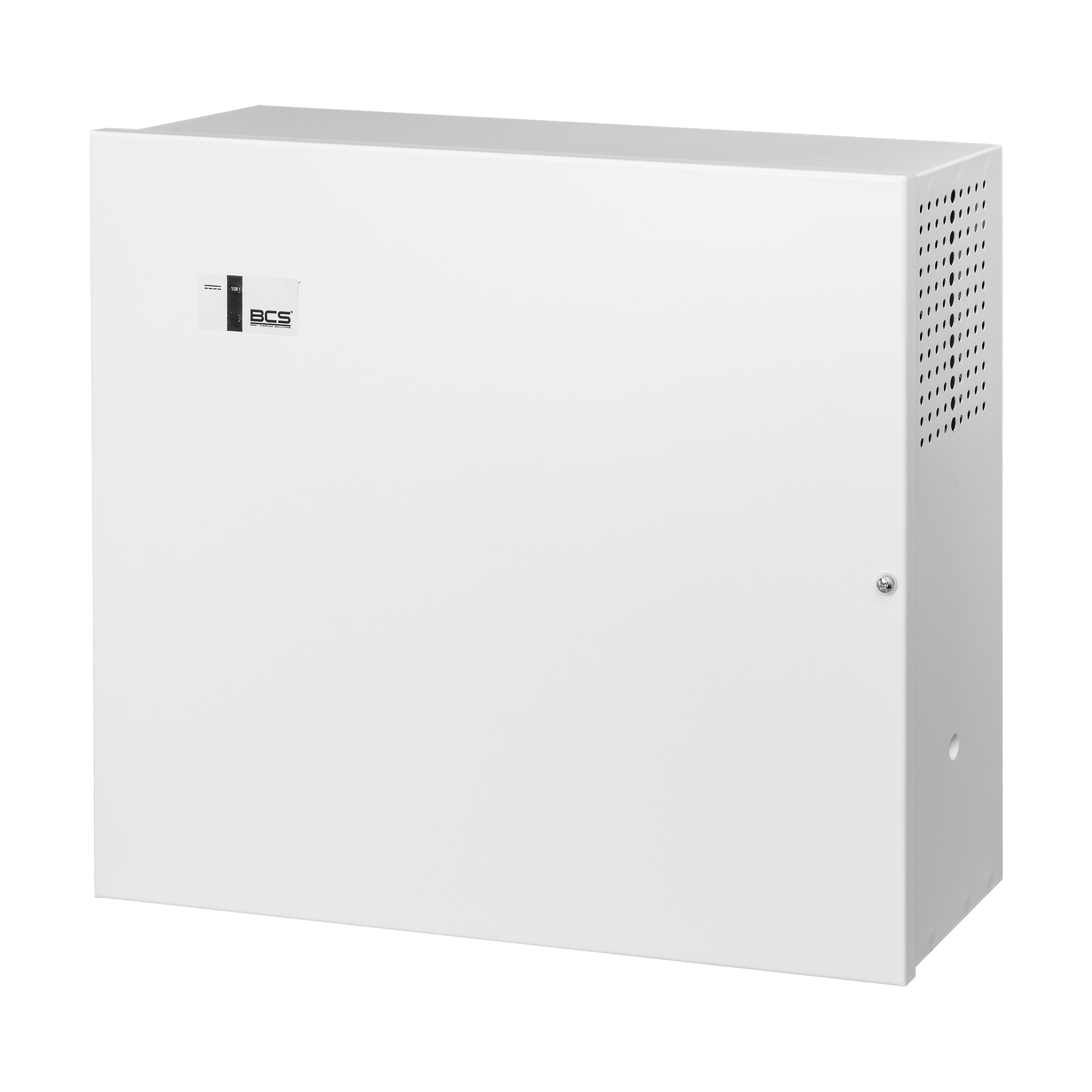

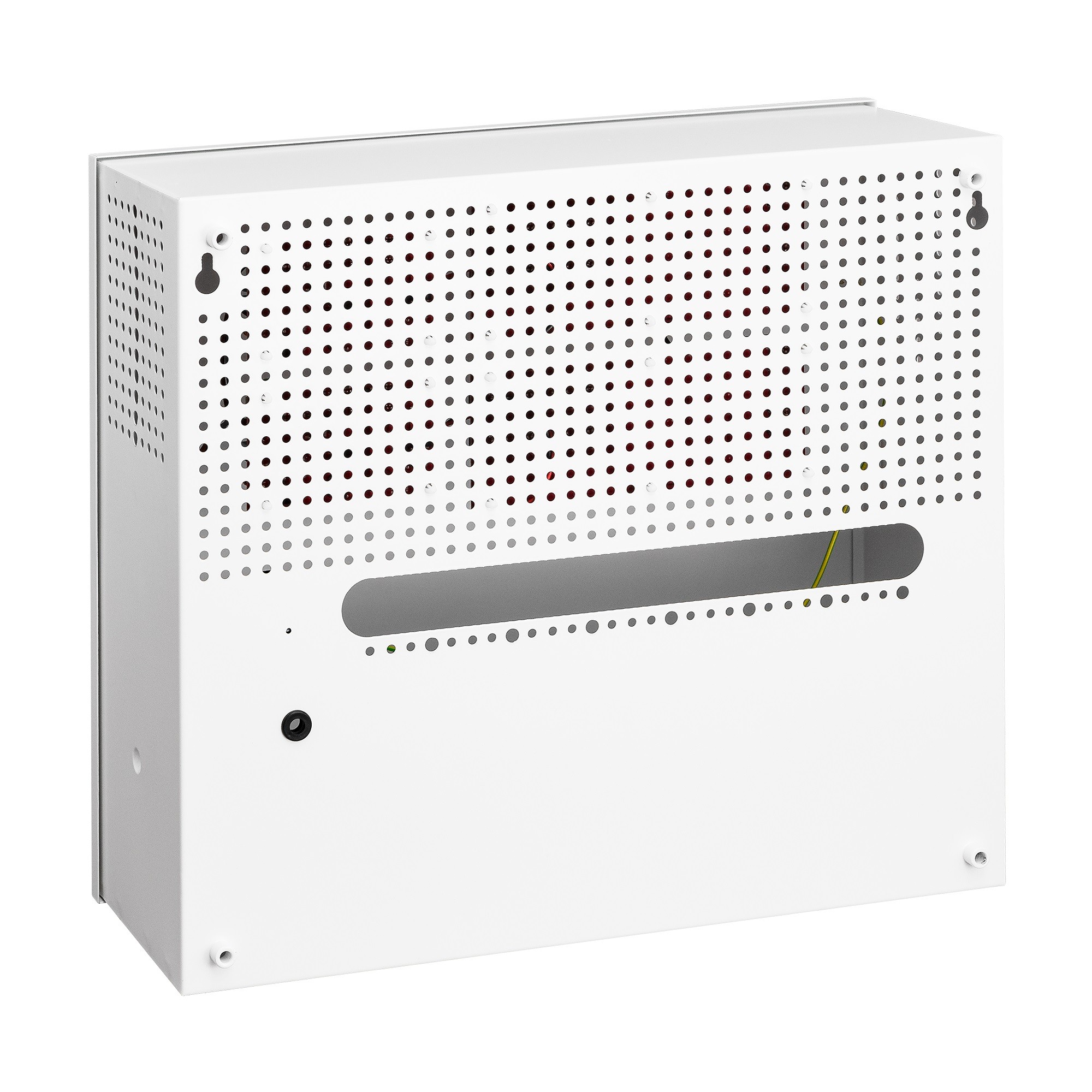

The device is closed in the BCS-H internal housing, which is a convenient solution to the problem of aesthetic installation of monitoring devices and termination of wiring inside buildings. The housing is made of sheet steel, powder coated in a semi-matt white color.

Product

BCS-IP16Gb/E-S

PoE ports

16×RJ45 100Mbps

Standard IEEE

802.3af / 802.3at / PoE PASSIVE

STANDARD mode

100m

Adapter power

2×96W

Power supply

V in: 190-260 VAC, 50 Hz V out: 48 VDC +/- 2%

Working environment

-10°C~+40°C max 90% RH

Weight

4.46 kg

Protection level

IP20

Casing

BCS-H housing Housing material – 0.8 mm steel sheet, White powder-coated housing, Opening tamper installed, System drilling 4.8 mm in a 10.8 mm pitch, Wall distance, 6 mm mounting holes

Dimensions (W×D×H)

450×400×140mm
