| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion and fast moving reduces false alarms |
|---|---|
| Product | BCS-L-DCIP54FSR1-Ai2 |
| Camera type | Dome |
| Sensor | 1/1.8'' CMOS |
| RAM | 512MB |
| Aperture | F2.0 |
| Angle of view | H: 135° V: 90° |
| WDR | 140dB |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Image Stabilization | Electronic (EIS) |
| Flag | TO ORDER |
| Resolution | 4 Mpx |
| Scanning system | Progressive Scan |
| Pixels | 2688(H)×1520(V) |
| ROM | 128MB |
| Lens | fixed |
| Focal length | 2.5 mm |
| Focus | fixed |
| Iris | fixed |
| Digital zoom | 16× |
| DORI | Detect 35m/ Observe 14m/ Recognize 7m/ Identify 3m |
| Min illumination | 0.004Lux(Color,F2.0,30IRE) 0.0004Lux(B/W,F2.0,30IRE) 0Lux(IR) |
| White balance | (AWB) Auto / manual |
| Backlight compensation | BLC / WDR(140dB) / SSA |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Defog | Electronic |
| Image rotate | Mirror, Flip 0°/90°(corridor mode)/180°/270° |
| Stream support | 3 |
| Resolutions | 4M(2688×1520)(2560×1440) /3M(2304×1296)(2016×1512) /2M(1920×1080) /UXGA(1600×1200) /1.3M(1280×960) /720P(1280×720) /D1(704×576/704×480) /VGA(640×480) /CIF(352×288/352×240) |
| Main stream | 2688×1520(1~25/30fps) |
| Second stream | 704×576(1~25fps) 704×480(1~30fps) |
| Third stream | 1920×1080(1~25/30fps) |
| Bitrate | H.264: 32 Kbps~8192 Kbps H.265: 19 Kbps~8192 Kbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 10m |
| Microphone | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.726 |
| Alarm in | 1 |
| Alarm out | 1 |
| Storage | FTP, NAS |
| Memory card slot | microSD 256GB |
| Other interfaces | RS485 |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS,UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP |
| Network security | |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) / ePoE |
| Power consumption | max 11.5W |
| Housing color | White |
| IP class | IP67 |
| IK10 | IK10+(50J) |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | 209.4×212×103.1mm |
| Weight | 1.36 kg |
| Ai - Perimeter protection | Intrusion, crossline, fast moving, loitering, people gathering, parking detection |
| &Ai - Object classification | Yes |
| Ai - People counting | People counting for intrusion and crossline, counting people in/out/stay in, queue management, generate and export reports in periods of time |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

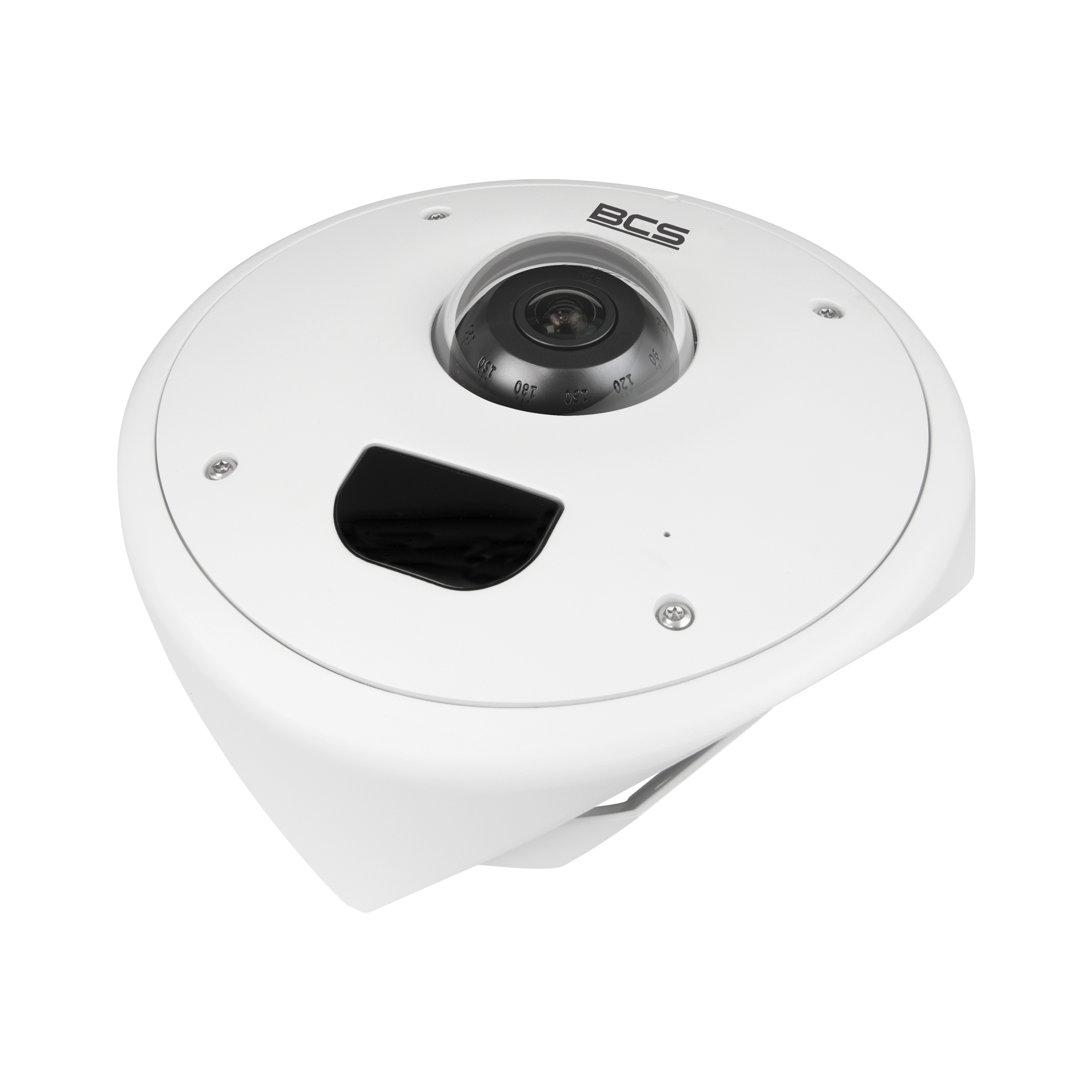

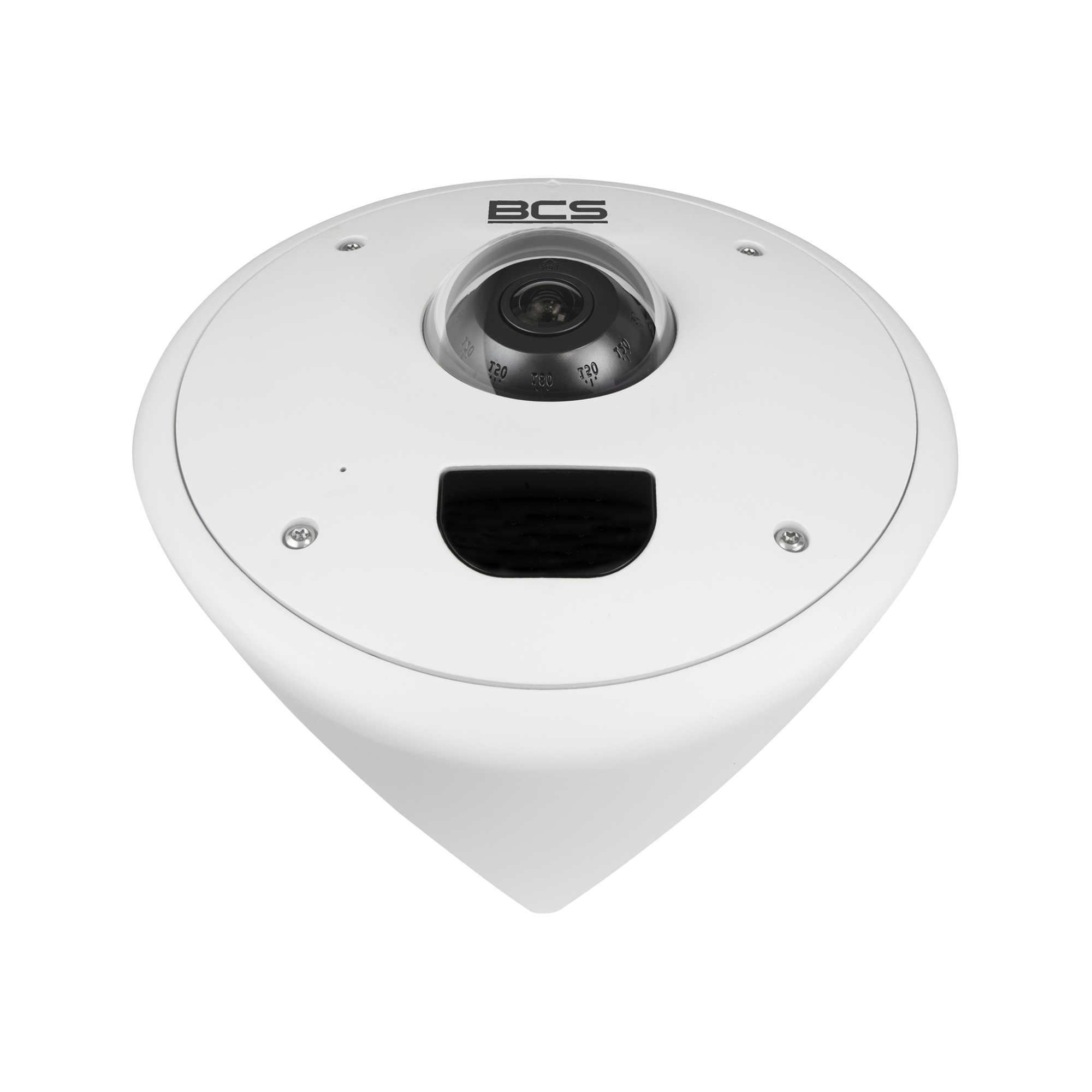

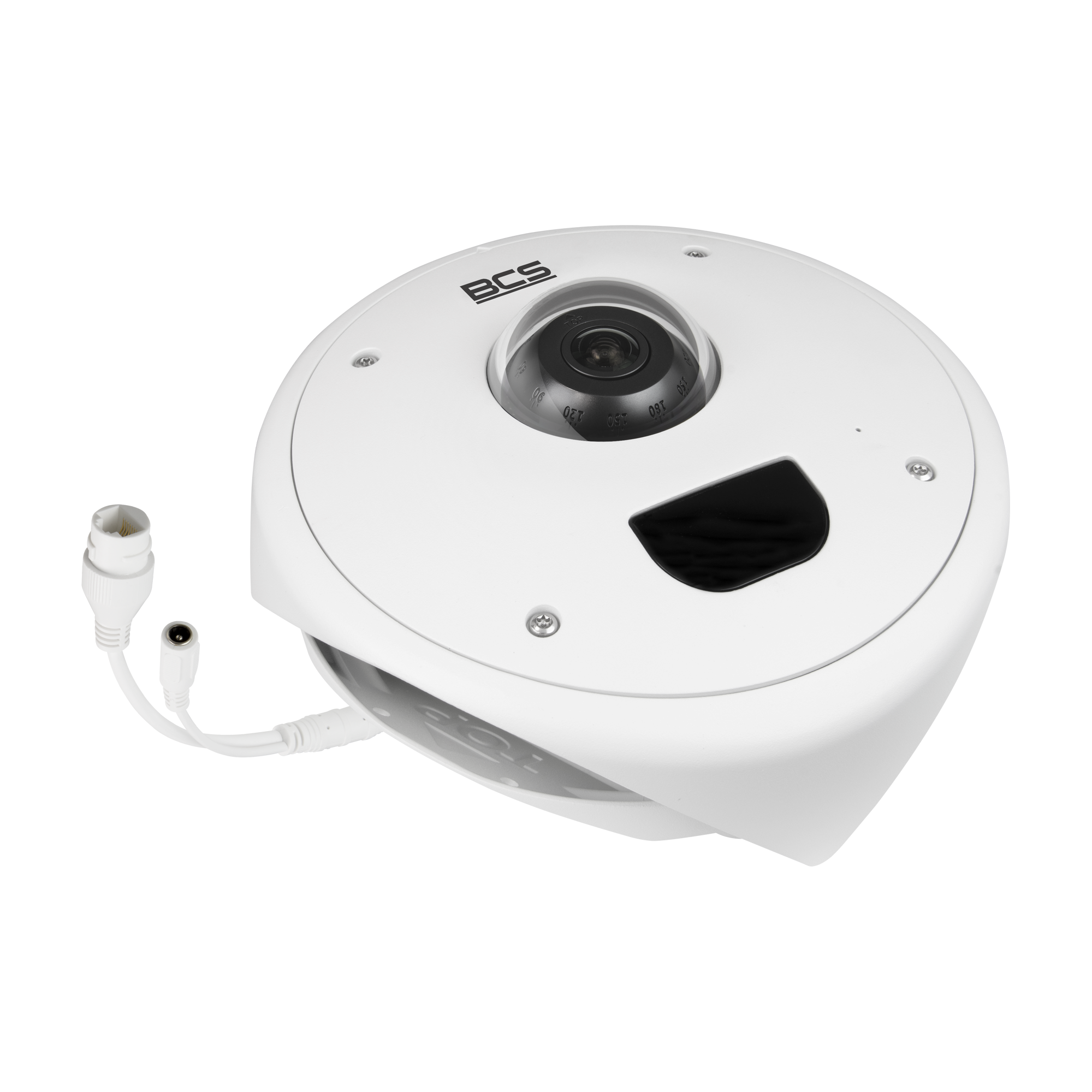

BCS-L-DCIP54FSR1-Ai2
0,00 € gross
Out of Stock- 4Mpx corner dome IP camera
- 1/1.8" PS CMOS sensor
- SkyLight technology
- exPoE technology
- 2.5mm fixed lens
- WDR 140dB
- IR 10m
- Alarm 1/1, audio 1/1, microphone
- Built-in smart features
