| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
|---|---|
| Ai - SMD - Smart Motion Detection | Intelligent motion detection with human recognition |
| Flag | COMING SOON |
| Product | BCS-L-DIP18FCR3L3-Ai |
| Camera type | Dome |
| Resolution | 8 Mpx |
| Sensor | 1/2.7'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 3840(H)×2160(V) |
| RAM | 256MB |
| ROM | 128MB |
| Lens | fixed |
| Focal length | 2.8 mm |
| Aperture | F1.6 |
| Focus | fixed |
| Iris | fixed |
| Digital zoom | 16× |
| Angle of view | H: 108° V: 60° D: 127° |
| DORI | Detect 82.1m/ Observe 32.9m/ Recognize 16.4m/ Identify 8.2m |
| Min illumination | 0.008Lux(Color,F1.6,30IRE) 0.0008Lux(F1.6,B/W,30IRE) 0Lux(IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| WDR | DWDR |
| Backlight compensation | BLC / HLC / DWDR |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| RoI | Region of Interest |
| Image rotate | Mirror, Flip 0°/90°(corridor mode)/180°/270° |
| Stream support | 2 |
| Resolutions | 8M(3840×2160) 6M(3072×2048) 5M(3072×1728) 4M(2880×1620/2688×1520) 3M(2048×1536/2304×1296) 1080p(1920×1080) 1.3M(1280×960) 720p(1280×720) D1(704×576/704×480) VGA(640×480) CIF(352×288/352×240) |
| Main stream | 3840×2160(1~20fps) 2688×1520(1~25/30fps) |
| Second stream | 704×576(1~25fps) 704×480(1~30fps) |
| Bitrate | H.264: 32 kbps~8192kbps H.265: 12 kbps~8192kbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / H.264H / H.264B / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED + WhiteLight |
| IR range | 30m |
| WhiteLight range | 30m |
| NightColor | Yes |
| Microphone | Yes |
| Audio compression | G.711A / G.711Mu / G.726 / PCM |
| Storage | FTP |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, P2P |
| Network security | Digest, WSSE, Account lockout, Security logs, Generation and importing of X.509 certification, HTTPS, Trusted boot, Trusted execution, Trusted upgrade |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 8.3W |
| Housing color | White |
| IP class | IP67 |
| IK10 | IK08 |
| Working environment | -40°C~+60°C max 95% RH |
| Dimensions | Ø109.9×81mm |
| Weight | 0.33 kg |
| &Ai - SMD | Yes |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

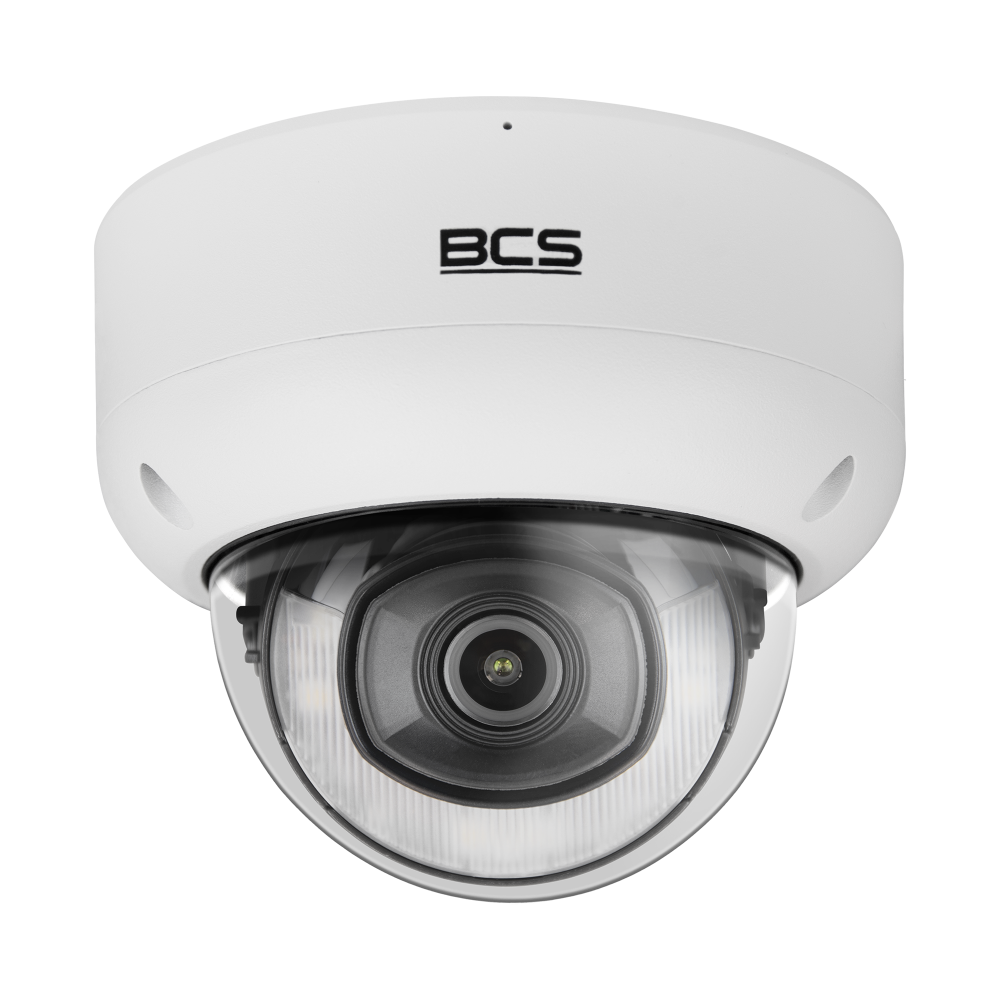

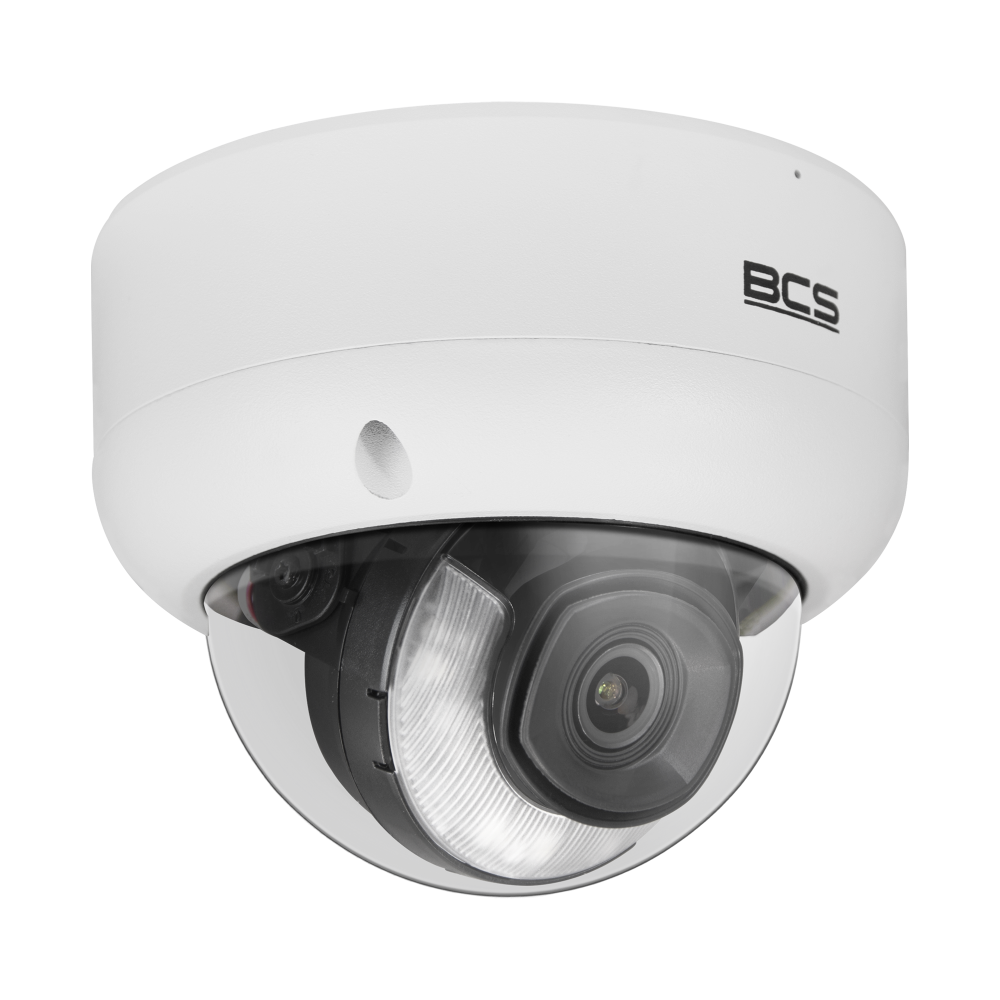

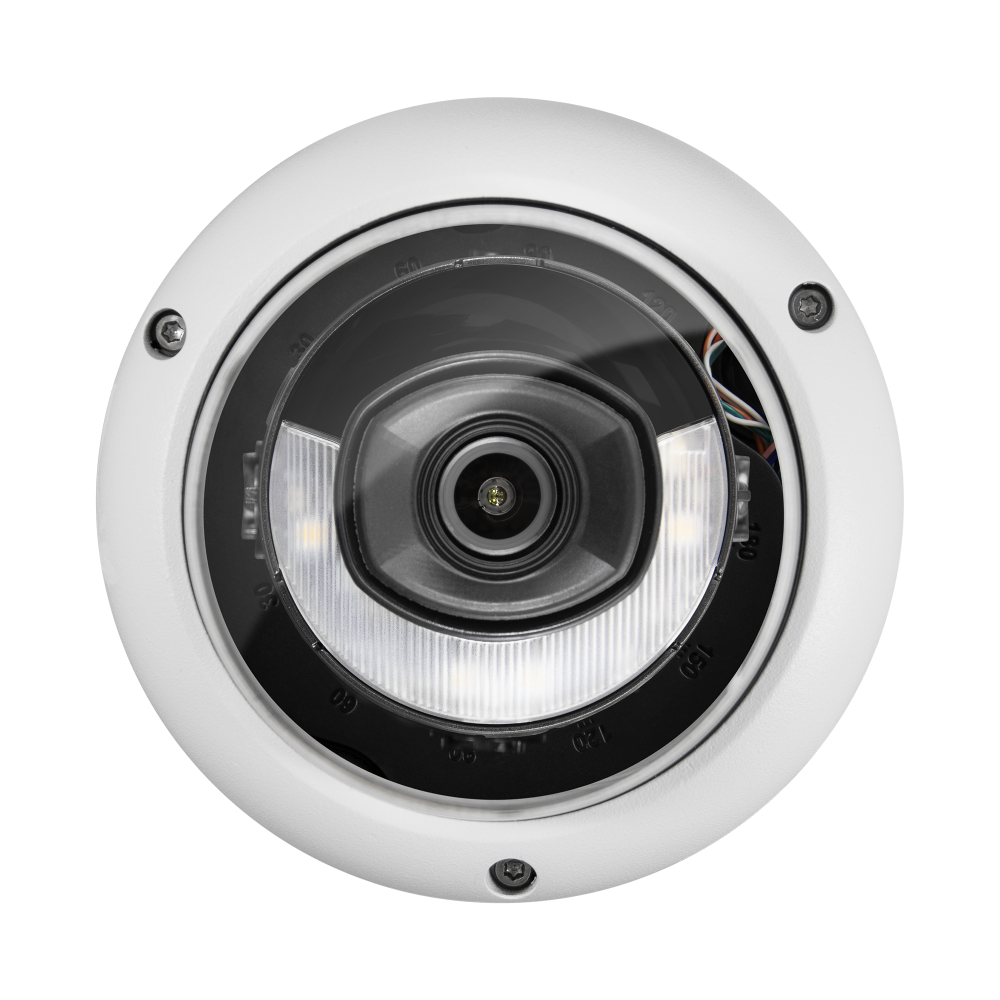

BCS-L-DIP18FCR3L3-Ai
265,68 € gross
75 In Stock- 8Mpx dome IP camera
- 1/2.7" PS CMOS sensor
- NightColor technology
- 2.8 mm fixed lens
- Microphone
- 30m IR illuminator
- 30m Whitelight
- IP67 IK08 housing
- Intelligent motion detection with human recognition
75 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
