| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
|---|---|
| Ai - SMD - Smart Motion Detection | SMD 4.0 |
| Product | BCS-L-DIP28FCR3L3-Ai1 |
| Camera type | Dome |
| Resolution | 8 Mpx |
| Sensor | 1/2.7'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 3840(H)×2160(V) |
| RAM | 1GB |
| ROM | 256MB |
| Lens | fixed |
| Focal length | 2.8 mm |
| Aperture | F1.4 |
| Focus | fixed |
| Iris | fixed |
| Digital zoom | 16× |
| Angle of view | H: 110° V: 58° D: 132° |
| DORI | Detect 85m/ Observe 34m/ Recognize 17m/ Identify 9m |
| Min illumination | 0.007Lux(Color,F1.4,30IRE) 0.0007Lux(F1.4,B/W,30IRE) 0Lux(IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) / SSA |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| LDC | Lens Distortion Correction |
| RoI | Region of Interest |
| Defog | Electronic |
| Image rotate | Mirror, Flip 0°/90°(corridor mode)/180°/270° |
| Stream support | 3 |
| Resolutions | 8M (3840×2160) /6M (3200×1800) /5M (3072×1728) /4M (2688×1520/2560×1440) /3M (2304×1296) /1080p (1920×1080) /720p (1280×720) /D1 (704×576/704×480) /VGA (640×480) /CIF (352×288/352×240) |
| Main stream | 3840×2160@(1–25/30 fps) |
| Second stream | 1920×1080@(1–25/30 fps) |
| Third stream | 1920×1080@(1–25/30 fps) |
| Bitrate | H.264: 3 kbps~16384 kbps H.265: 3 kbps~16384 kbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG / Ai Coding |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED + WhiteLight |
| IR range | 30m |
| WhiteLight range | 30m |
| NightColor | Yes |
| Microphone | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / PCM |
| Alarm in | 1 |
| Alarm out | 1 |
| Storage | FTP, SFTP, NAS |

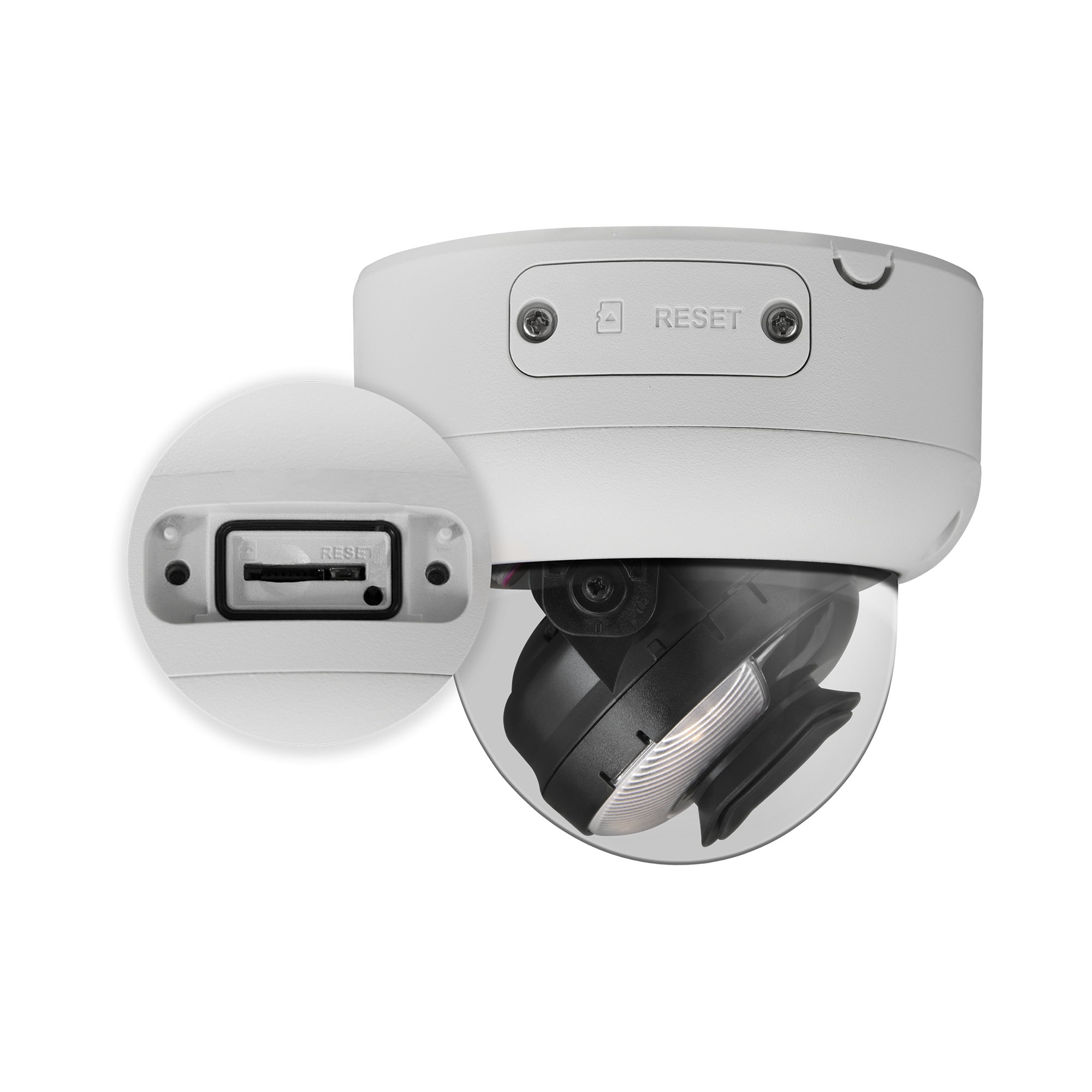

| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P |
| Network security | |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 8.2W |
| Redundant power | Dual Power Backup |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Working environment | -40°C~+60°C max 95% RH |
| Dimensions | Ø111.7×89mm |
| Weight | 0.5 kg |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
| &Ai - SMD | Yes |
| Ai - Smart search | AcuPick technology – intelligent search for human/vehicle objects in the recording history with a recorder with the AcuPick function |
| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion reduces false alarms |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE
BCS-L-DIP28FCR3L3-Ai1
569,49 € gross
100 In Stock- 8Mpx dome IP camera
- 1/2.7" PS CMOS sensor
- NightColor technology
- 2.8 mm fixed lens
- WDR 120 dB
- Microphone
- IR illuminator 30m
- Whitelight 30m
- IP67 housing
- Built-in smart features
100 in stock
