| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
|---|---|
| Ai - SMD - Smart Motion Detection | SMD Plus |
| Flag | PROMOTION |
| Product | BCS-L-DIP44VSR4-Ai1 |
| Camera type | Dome |
| Resolution | 4 Mpx |
| Sensor | 1/2.9'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 2688(H)×1520(V) |
| RAM | 128MB |
| ROM | 128MB |
| Lens | motozoom |
| Focal length | 2.7~13.5 mm |
| Aperture | F1.5 |
| Focus | Auto / manual |
| Iris | Auto |
| Optical zoom | 5× |
| Digital zoom | 16× |
| Angle of view | H: 104°~29° V: 54°~16° D: 125°~34° |
| DORI | Detect 64~210m / Observe 26~84m / Recognize 13~42m / Identify 6~21m |
| Min illumination | 0.008Lux(Color,F1.5,30IRE) 0.0008Lux(F1.5,B/W,30IRE) 0Lux(IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Image rotate | Mirror, Flip 0°/90°(corridor mode)/180°/270° |
| Stream support | 2 |
| Resolutions | 4M(2688×1520)(2560×1440) /3M(2304×1296) /2M(1920×1080) /1.3M(1280×960) /720P(1280×720) /D1(704×576/704×480) /VGA(640×480) /CIF(352×288/352×240) |
| Main stream | 2688×1520(1~20fps) 2560×1440(1~25/30fps) |
| Second stream | 704×576(1~25fps) 704×480(1~30fps) |
| Bitrate | H.264: 32 Kbps~6144 Kbps H.265: 12 Kbps~6144 Kbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 40m |
| Microphone | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.726 / PCM |
| Alarm in | 1 |
| Alarm out | 1 |
| Memory card slot | microSD 256GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 7.7W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | Ø122×93.4mm |
| Weight | 0.5 kg |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
| &Ai - SMD | Yes |
| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion reduces false alarms |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE
BCS-L-DIP44VSR4-Ai1
482,16 € gross

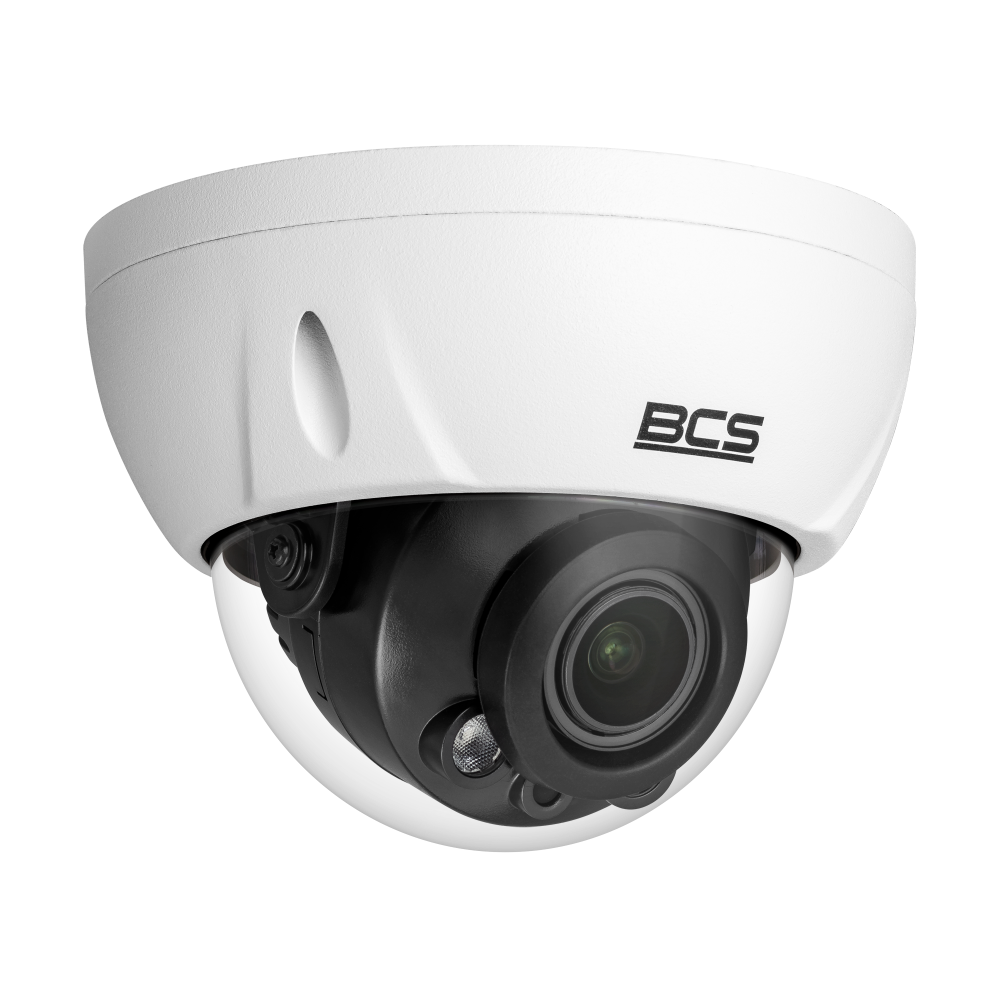

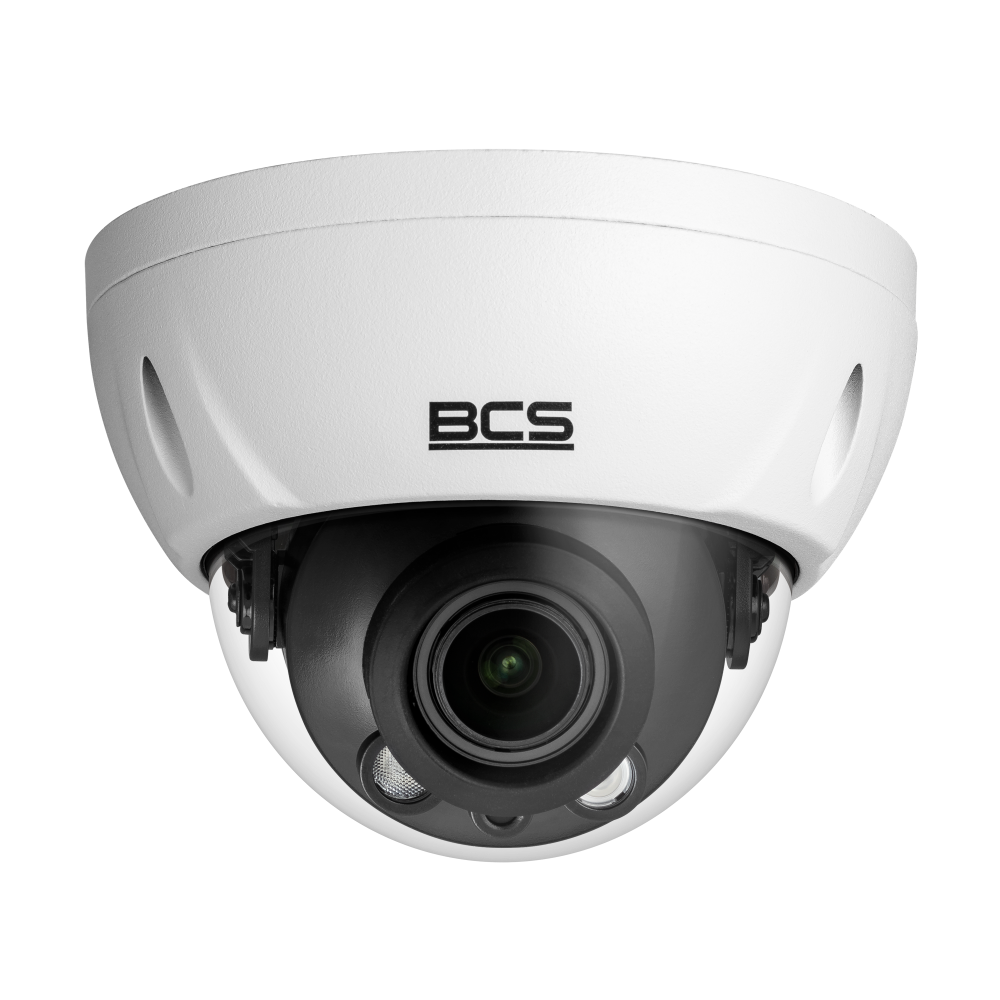

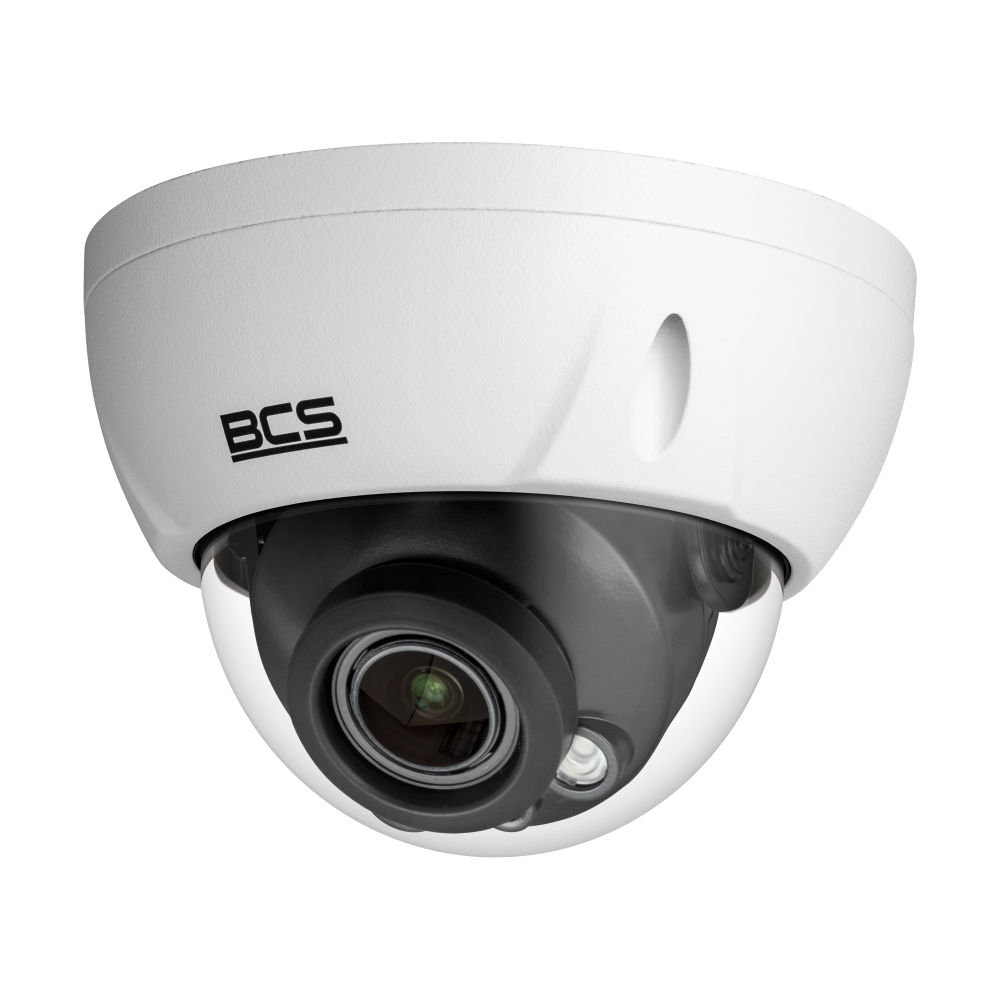

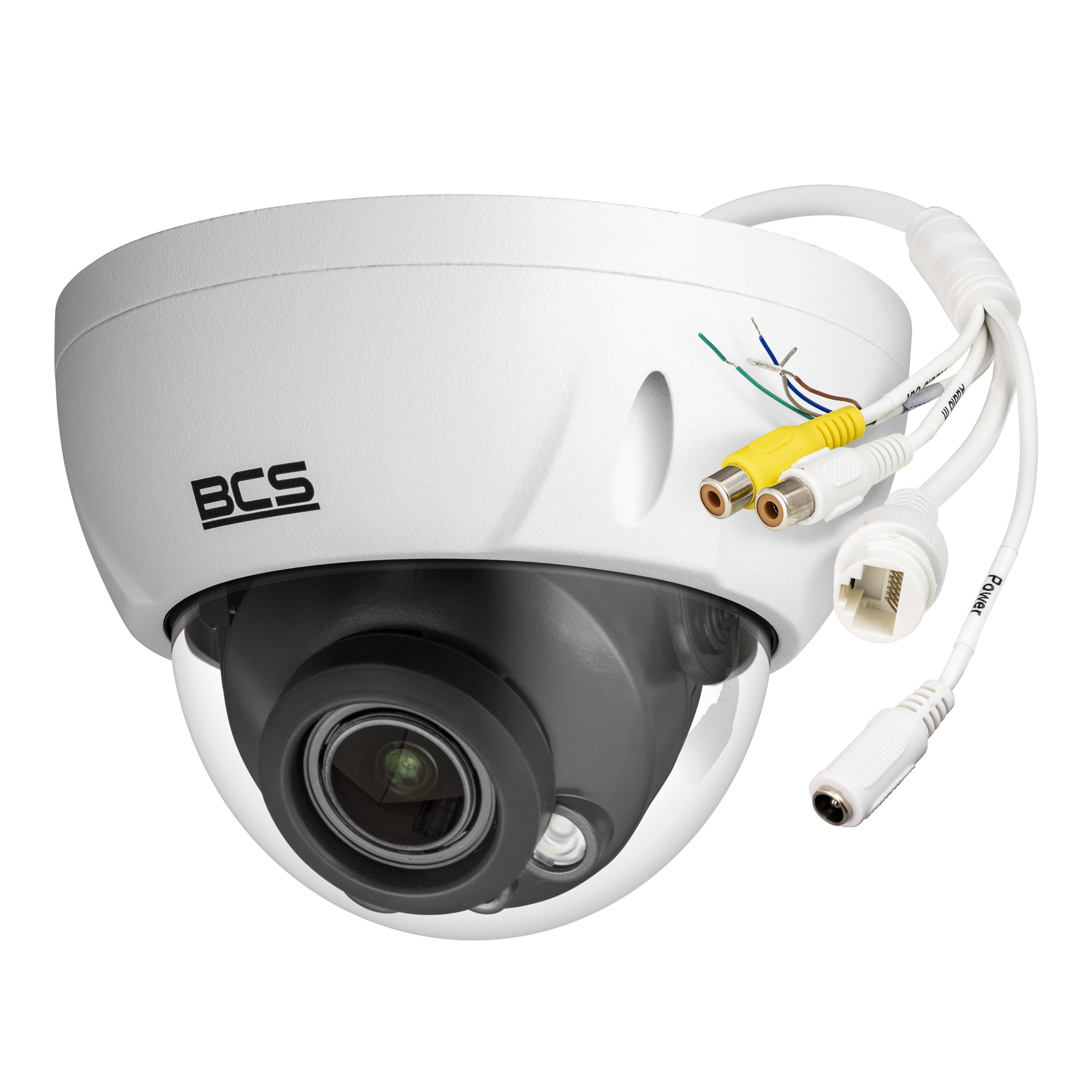

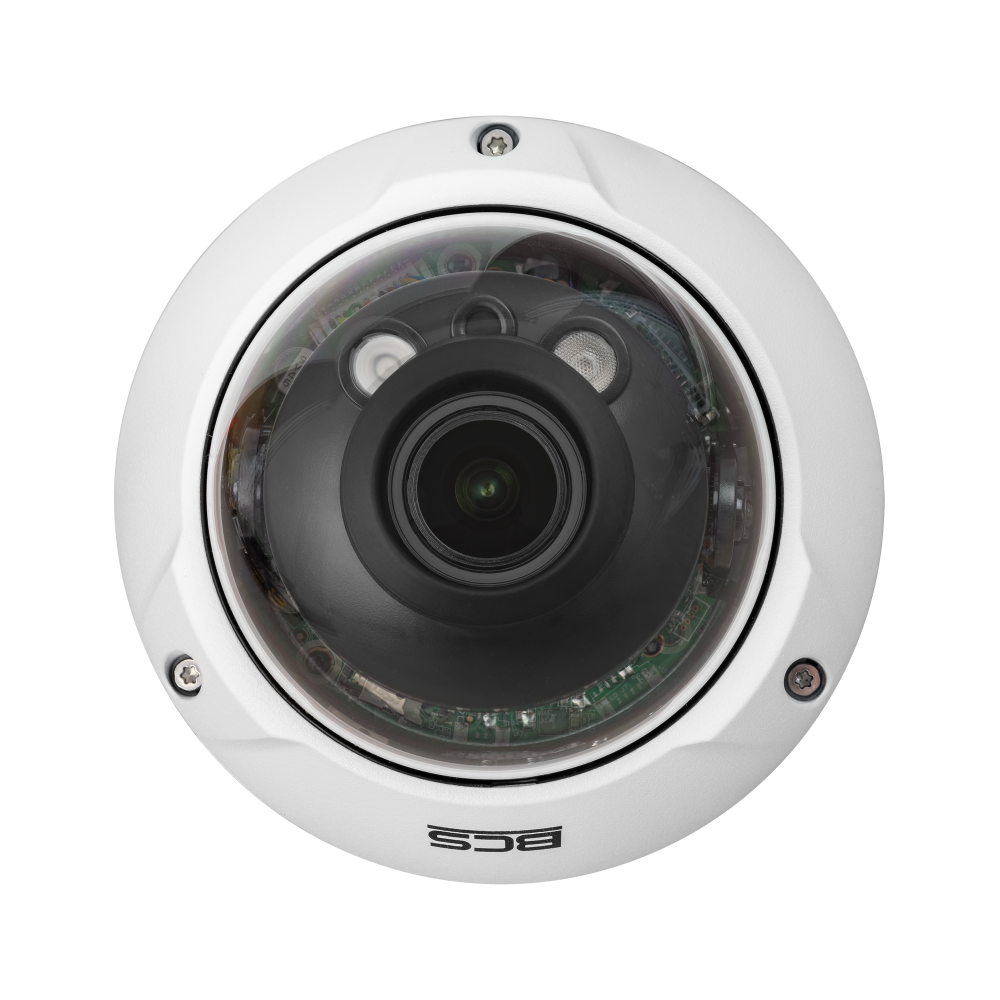

68 In Stock- 4Mpx dome IP camera
- 1/2.9" PS CMOS sensor
- SkyLight technology
- 2.7–13.5 mm motorised zoom lens
- WDR 120dB
- IR 40m
- Alarm 1/1, audio 1/1, microphone
- IP67, IK10 housing
- Built-in smart features
- 2kV surge protection
68 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
