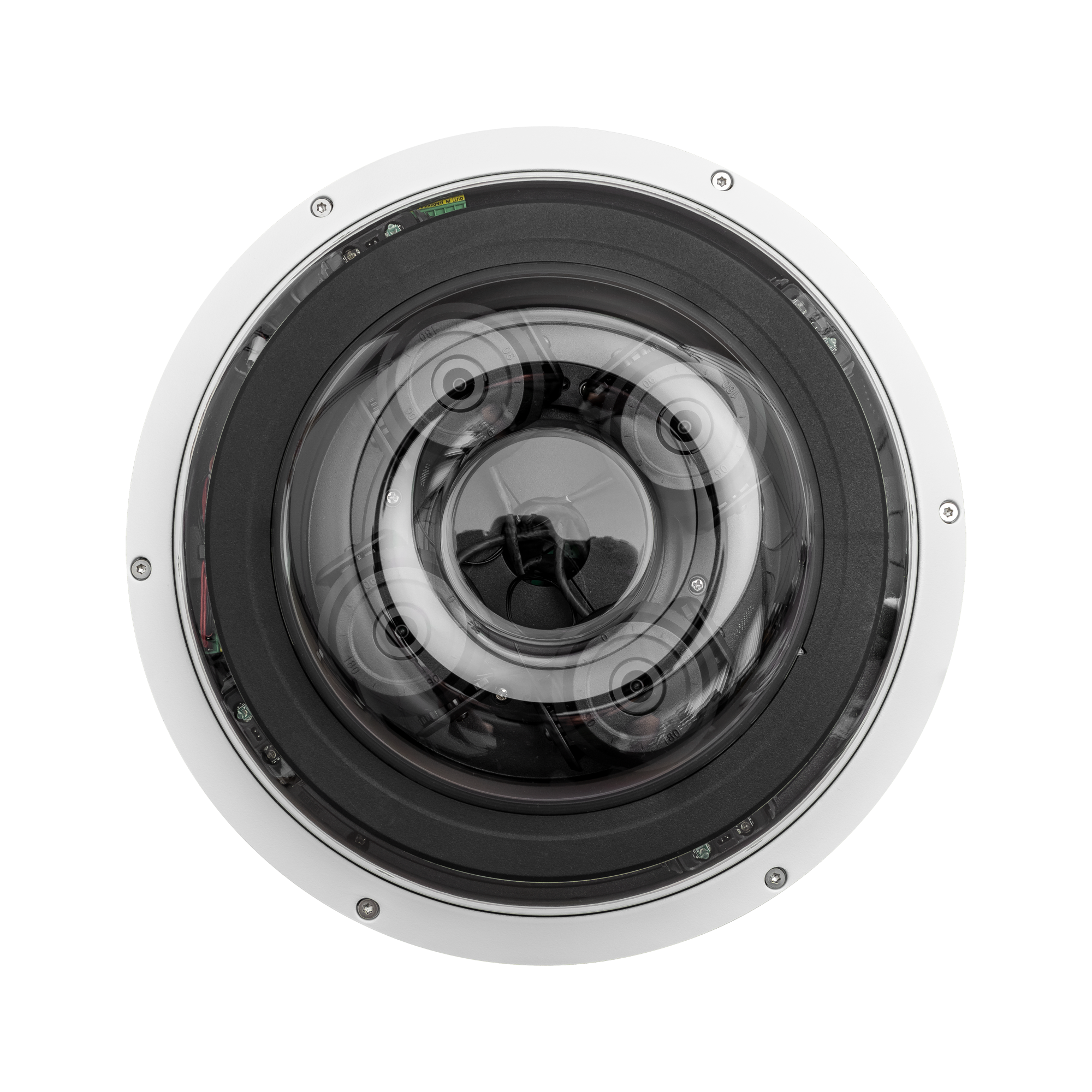

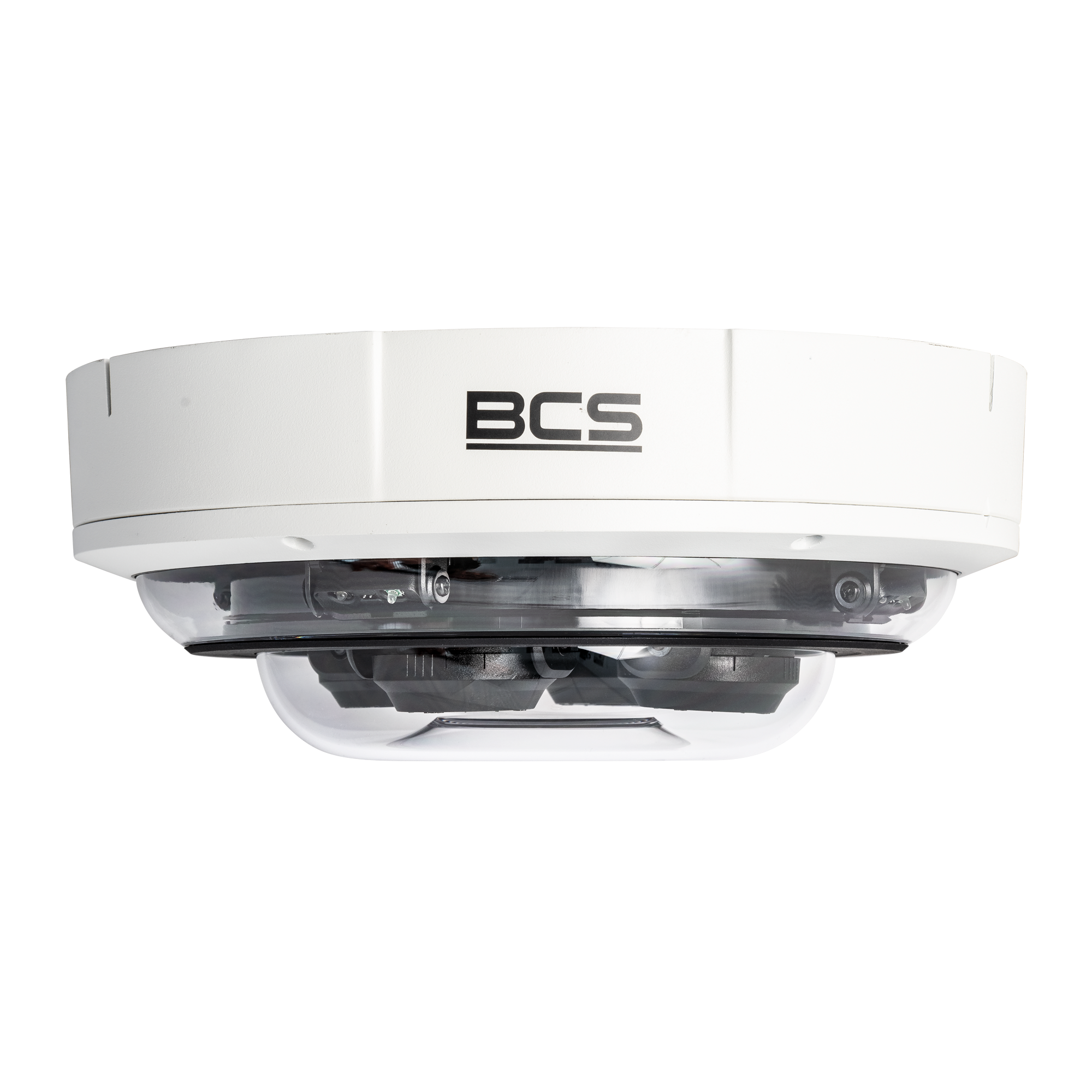

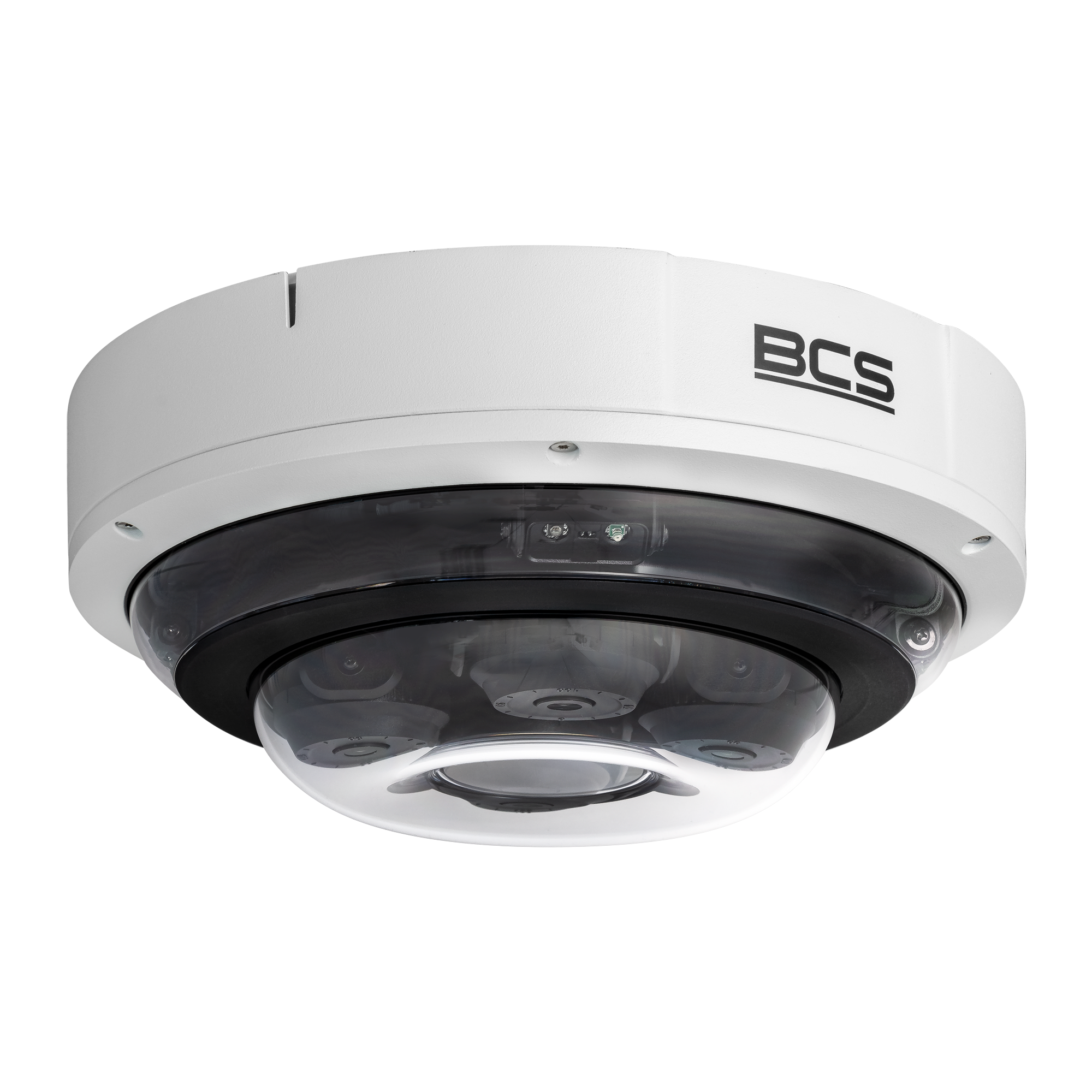

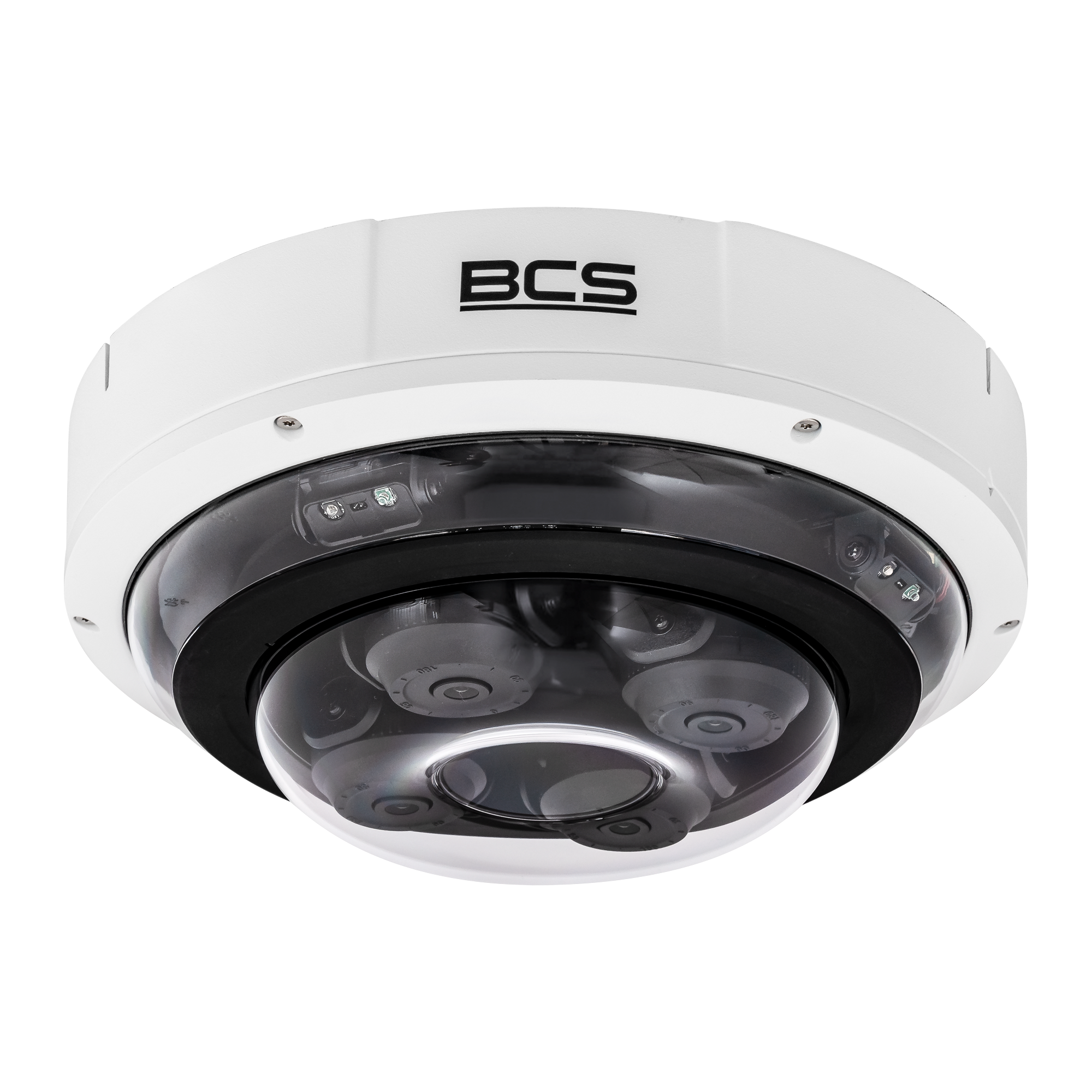

2Mpx dome IP camera, 4 x 1/2.8″ progressive scan STARVIS CMOS sensor, video compression H.265 + / H.264 / MJPEG, support for two video streams, 25 fps at 1080p, extended dynamic function 4 x WDR 140dB, BLC HLC, Day / Night ICR support, built-in IR LED heater – range up to 30 meters, Smart IR.
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
Save 63%
BCS LINE
BCS-L-DMIP-4x2MWSIR3-V-A
710,69 € gross
1 In Stock- 2Mpx dome IP camera
- 4x 1/2.8" PS CMOS sensor
- SkyLight technology
- 4x motorised zoom lens 2.7–12 mm
- IR 30m
- Alarm 1/1, audio 1/1
- IP67, IK10 housing
- Built-in smart features
1 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Ai - Perimeter protection | Yes |
|---|---|
| Resolution | 2 Mpx |
| Scanning system | Progressive Scan |
| ROM | 128MB |
| Focus | Auto / manual |
| Angle of view | H: 105° ~44° V:54° ~25° |
| White balance | (AWB) Auto / manual |
| Ai - Built-in intelligent functions | Yes |
| Product | BCS-PDMIP4x2M-IR |
| Camera type | Panoramic |
| Sensor | 4×1/2.8'' CMOS |
| Pixels | 1920(H)×1080(V) |
| RAM | 1GB |
| Lens | motozoom |
| Focal length | 2.7~12 mm |
| Aperture | F1.8 |
| Iris | Auto |
| Optical zoom | 4× |
| Digital zoom | 16× |
| Noise reduction | 3D DNR |
| DORI | Detect 45~99m / Observe 18~40m / Recognize 9~20m / Identify 5~10m |
| Min illumination | 0.005Lux(Color,F1.8,1/3s,30IRE) 0.06Lux(F1.8,1/30s,30IRE) 0Lux(F1.8,IR) |
| S/N ratio | 50dB |
| WDR | 140dB |
| Backlight compensation | BLC / HLC / WDR(140dB) / SSA |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Image rotate | Mirror, Flip 0°/90°(corridor mode)/180°/270° |
| Stream support | 2 |
| Resolutions | 2M(1920×1080) /1.3M(1280×960) /720P(1280×720) /D1(704×576/704×480) /CIF(352×288/352×240) |
| Main stream | 1920×1080(1~25/30fps) |
| Second stream | 704×576/704×480(1~25/30fps) |
| Bitrate | H.264: 32~8192Kbps H.265: 12~6144Kbps |
| Video compression | H.265 / H.264 / H.264B / H.264H / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 30m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.726 / AAC |
| Alarm in | 1 |
| Alarm out | 1 |
| Memory card slot | microSD 256GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100/1000 Mbps |
| Compatibility | ONVIF |
| Protocols | HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP, NTP |
| Power supply | PoE |
| Power supply type | 24V AC / PoE(802.3at) |
| Power consumption | max 23.8W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | 286.1×111.3mm |
| Weight | 2.7 kg |
