| Product | BCS-L-DMIP26FSR3L3-Ai2 |
|---|---|
| pa_product-line | BCS LINE |
| Camera type | Dome |
| Resolution | 6 Mpx |
| Sensor | 1/2.7'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 3288(H)×1850(V) |
| RAM | 1GB |
| ROM | 128MB |
| Lens | fixed |
| Focal length | 2.8 mm |
| Aperture | F1.6 |
| Focus | fixed |
| Iris | fixed |
| Angle of view | H: 108.4° V: 60° D: 127.1° |
| DORI | Detect 70.3m/ Observe 28.1m/ Recognize 14.1m/ Identify 7m |
| Min illumination | 0.008Lux(Color,F1.6,30IRE) 0.0008Lux(F1.6,B/W,30IRE) 0Lux(IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) / SSA |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| LDC | Lens Distortion Correction |
| RoI | Region of Interest |
| Defog | Electronic |
| Image rotate | Mirror, Flip 0°/90°(corridor mode)/180°/270° |
| Stream support | 3 |
| Resolutions | 6M(3288×1850/3200×1800) 5M(2960×1688/2880×1620) 4M(2688×1520) 3M(2304×1296) 1080p(1920×1080) 720p(1280×720) D1(704×576/704×480) VGA(640×480) CIF(352×288/352×240) |
| Main stream | 3288×1850@(1~25/30fps) |
| Second stream | 1920×1080(1~25/30fps) |
| Third stream | 1920×1080(1~25/30fps) |
| Bitrate | H.264: 3 kbps~16384 kbps H.265: 3 kbps~16384 kbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / Ai Coding |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED + WhiteLight |
| IR range | 30m |
| WhiteLight range | 30m |
| Microphone | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / PCM |
| Alarm in | 1 |
| Alarm out | 1 |
| Storage | FTP, SFTP, NAS |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 8 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T/M) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P |
| Network security | |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 10.1W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Working environment | -40°C~+60°C max 95% RH |
| Dimensions | Ø111×64.8mm |
| Weight | 0.42 kg |
| Casing | Metal |
| pa_ai-built-in-intelligent-f | Built-in intelligent algorithm of image analisis |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
| Ai - Face detection | Face detection and tracking, snapshot, attributes and expression recognition |
| &Ai - SMD | Yes |
| Ai - Smart search | AcuPick technology – intelligent search for human/vehicle objects in the recording history with a recorder with the AcuPick function |
| pa_ai-large-scale-models | Perimeter protection: increased detection range, reduced false alarms |
| pa_ai-human-vehicle-detectio | Human/vehicle classification for crossline and intrusion reduces false alarms |
| pa_ai-smd-smart-motion-detec | SMD 4.0 |

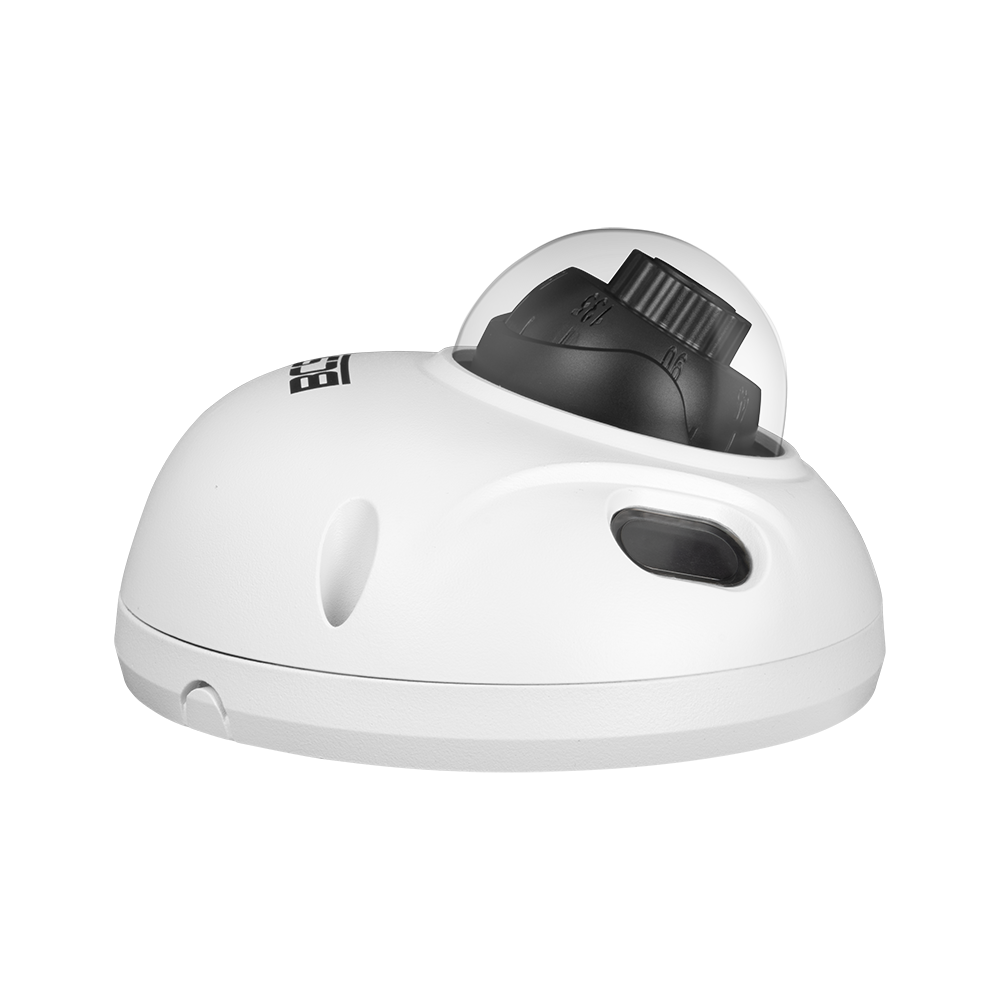

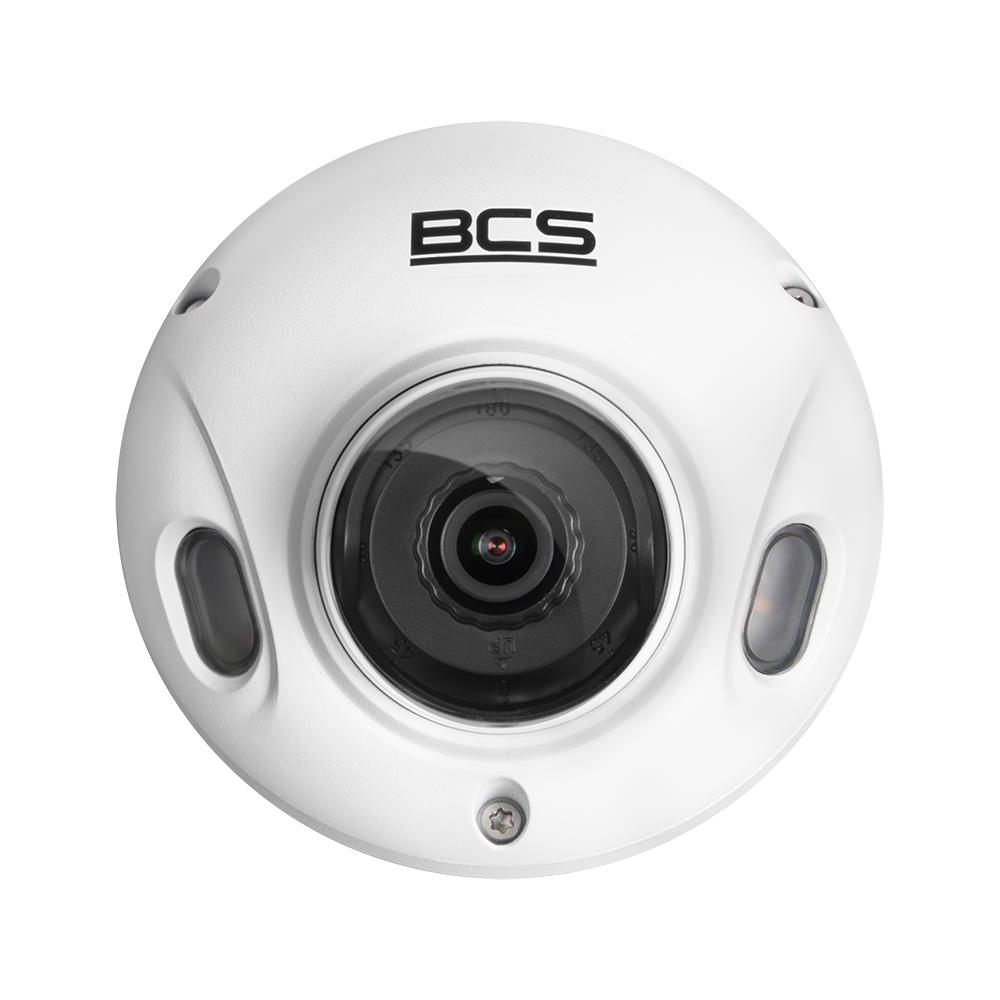

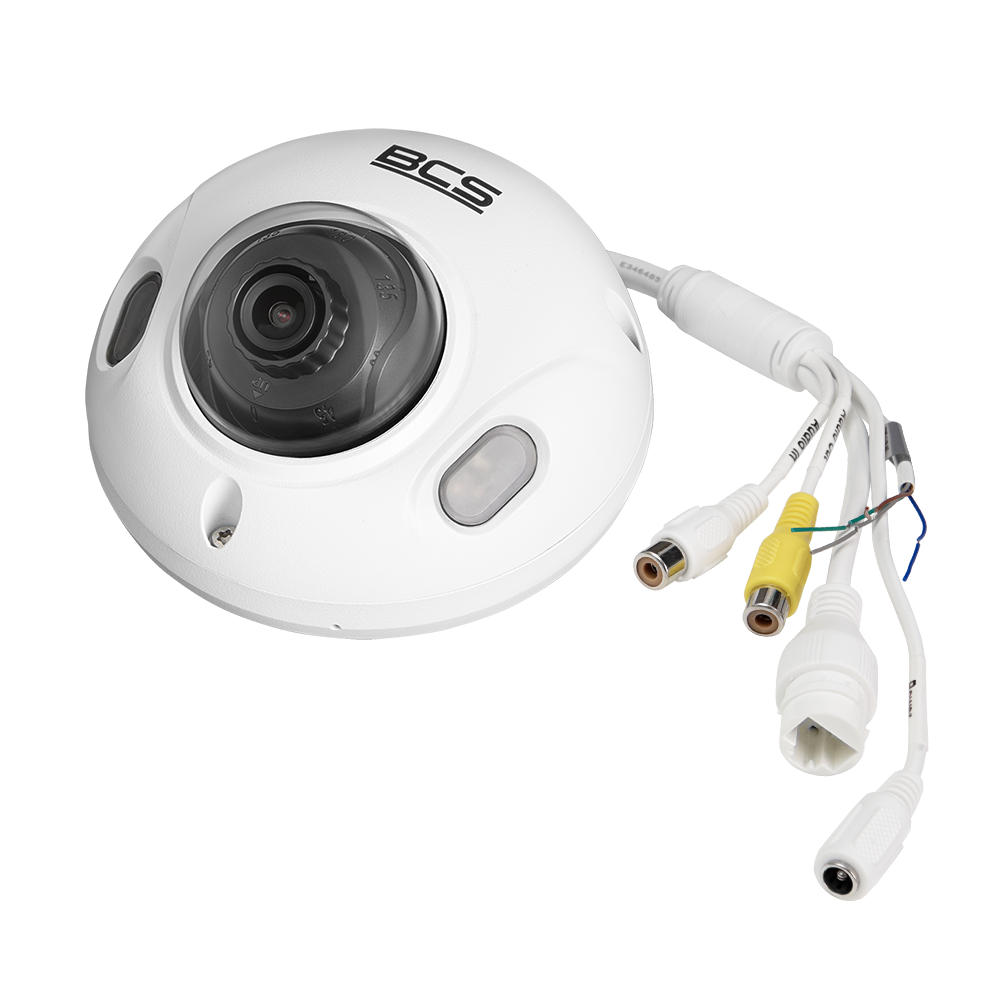

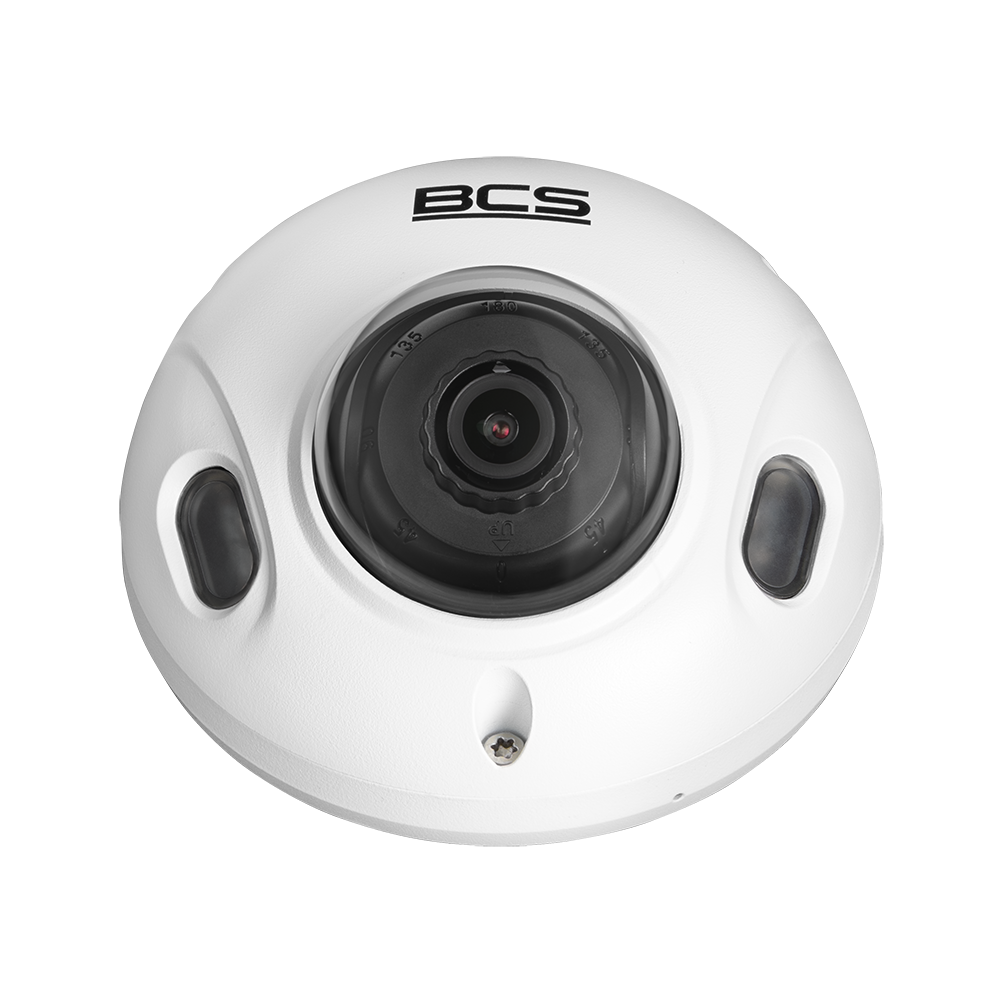

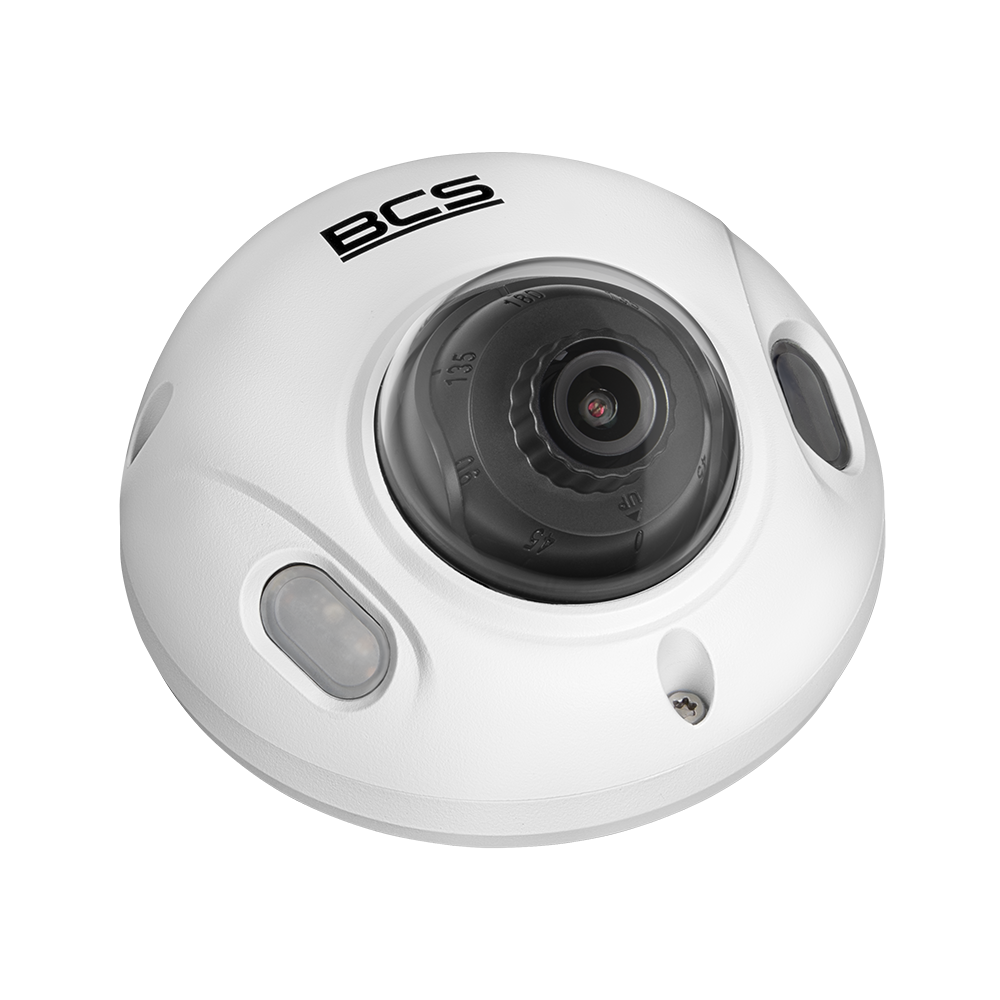

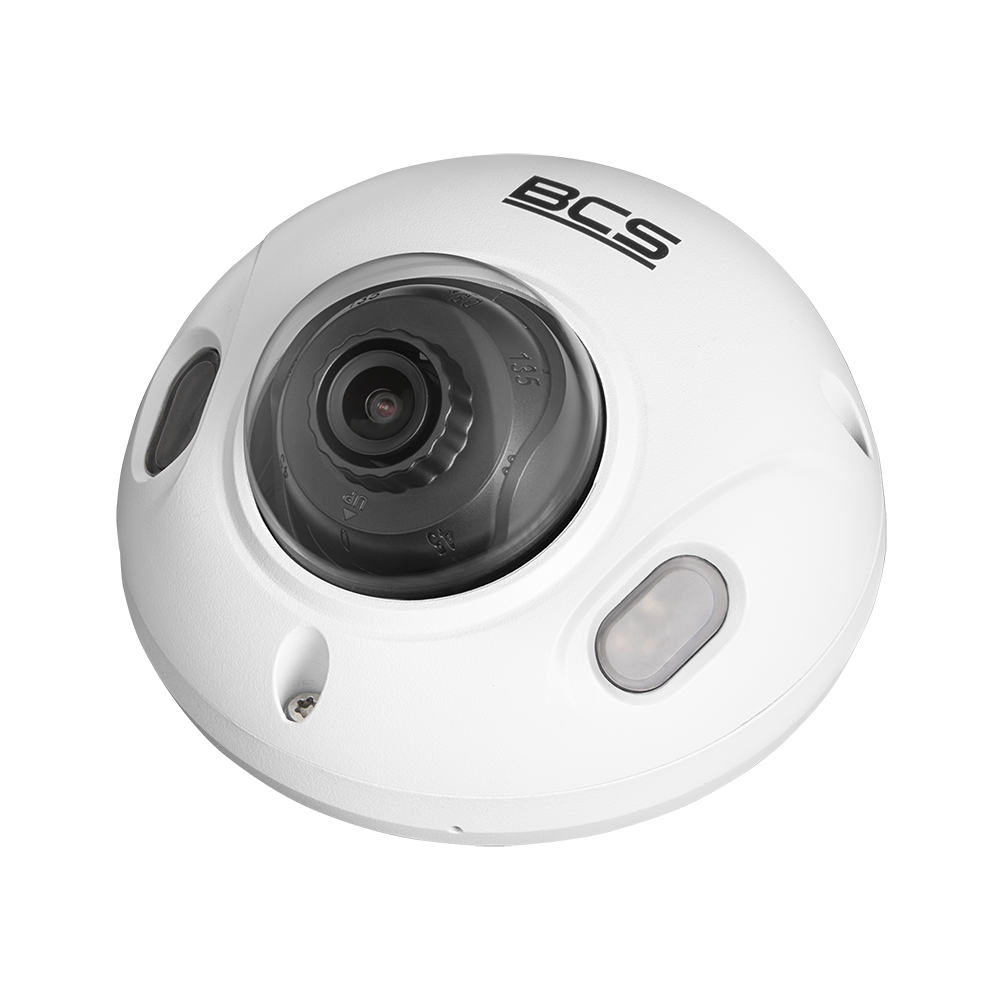

BCS-L-DMIP26FSR3L3-Ai2
479,70 € gross
100 In Stock- 6Mpx dome IP camera
- 1/2.7" PS CMOS sensor
- SkyLight technology
- 2.8mm fixed lens
- WDR 120dB
- IR 30m, WhiteLight 30m
- Alarm 1/1, audio 1/1, microphone
- IP67, IK10 housing
- Built-in smart features
