| Ai - ARTR | License plate recognition, photo, tracking, max speed 80 km/h, black and white list of 110,000 items, attributes (license plate number, vehicle type, vehicle color, logo) |
|---|---|
| Product | BCS-L-EIP64VSR4-ITC |
| Camera type | Dome |
| Sensor | 1/1.8'' CMOS |
| RAM | 1GB |
| Aperture | F1.8 |
| Digital zoom | 16× |
| S/N ratio | 56dB |
| Flag | TO ORDER |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Resolution | 4 Mpx |
| Scanning system | Progressive Scan |
| Pixels | 2688(H)×1520(V) |
| Gain control | (AGC) Auto / manual |
| ROM | 4GB |
| Lens | motozoom |
| Focal length | 2.7~12 mm |
| Focus | Auto / manual |
| Iris | Auto |
| Optical zoom | 4× |
| Angle of view | H: 115°~47° V: 62°~27° D: 137°~54° |
| DORI | Detect 57~131m / Observe 23~52m / Recognize 11~26m / Identify 6~13m |
| Min illumination | 0.0007Lux(Color,F1.8,30IRE) 0.0004Lux(F1.8,B/W,30IRE) 0Lux(IR) |
| White balance | (AWB) Auto / manual |
| WDR | 140dB |
| Backlight compensation | BLC / HLC / WDR(140dB) / SSA |
| Shutter | Auto / manual 1/3~1/100000s |
| Noise reduction | 3D DNR |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Image rotate | Mirror, Flip 0°/90°(corridor mode)/180°/270° |
| Stream support | 4 |
| Resolutions | 4M(2688×1520)(2560×1440) /3M(2048×1536)(2304×1296) /2M(1920×1080) /1.3M(1280×960) /720P(1280×720) /D1(704×576/704×480) /VGA(640×480) /CIF(352×288/352×240) |
| Main stream | 2688×1520(1~25/30fps) 1920×1080(1~50/60fps) |
| Second stream | 704×576(1~25fps) 704×480(1~30fps) |
| Third stream | 1920×1080(1~25/30fps) |
| Fourth stream | 1280×720(1~25/30fps) |
| Bitrate | H264: 32Kbps~16384Kbps H265: 12Kbps~11008Kbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG / Ai Coding |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 40m |
| Microphone | Yes |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / PCM |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 8 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P |
| Network security | |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) / ePoE |
| Power consumption | max 8.2W |
| Housing color | White |
| IP class | IP67 |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | Ø122×108.3mm |
| Weight | 0.7 kg |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

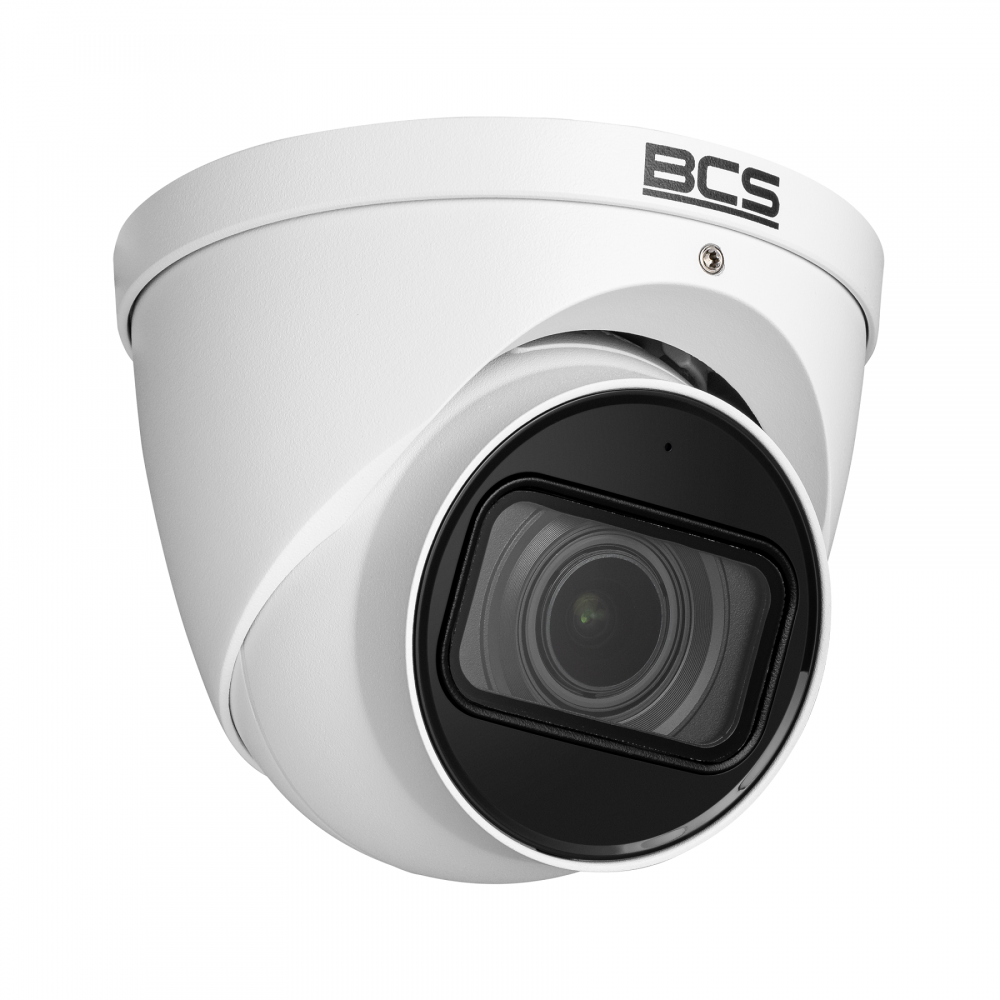

BCS-L-EIP64VSR4-ITC
0,00 € gross
Out of Stock- 4Mpx dome IP camera
- ITC for number plate recognition
- 1/1.8" PS CMOS sensor
- SkyLight technology
- exPoE technology
- 2.7–12 mm motorised zoom lens
- WDR 140dB
- IR 40m
- Microphone
- IP67-rated housing
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
