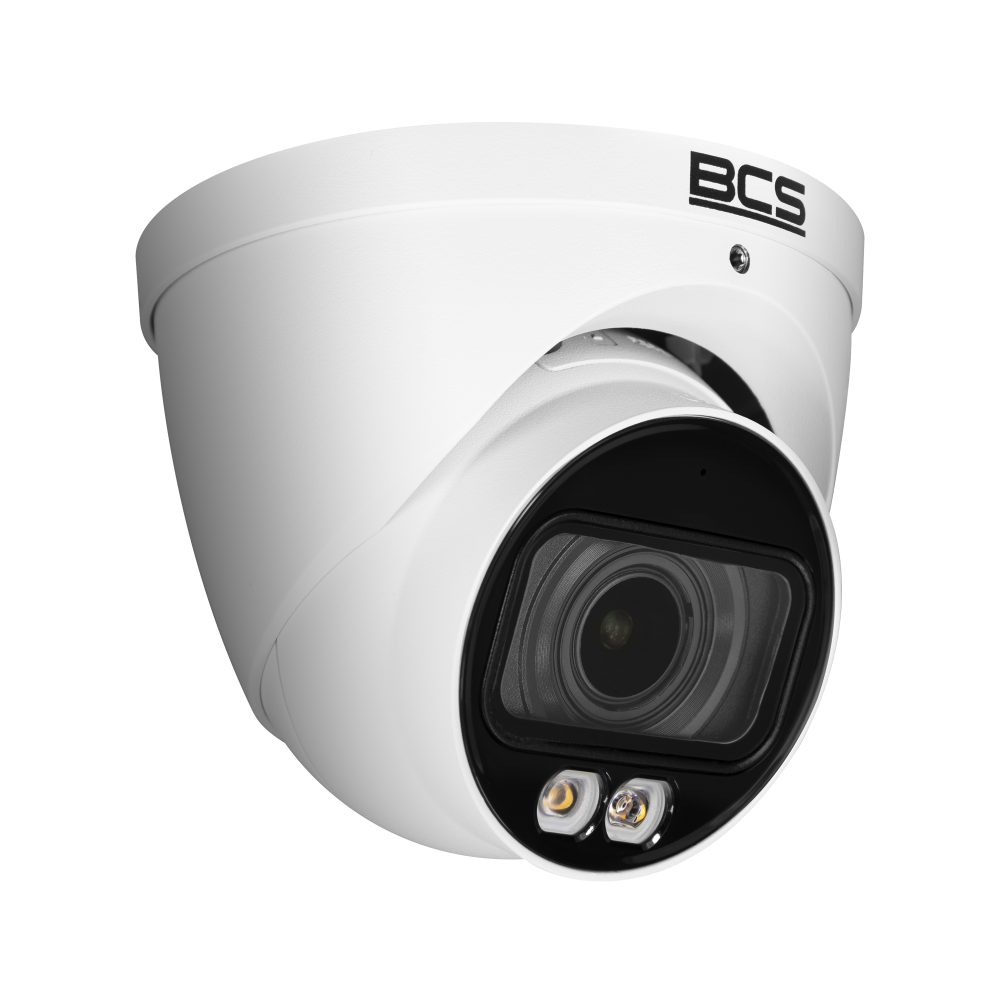

Name: BCS-L-EIP65VCR5L4-Ai2
SKU: 13177
Price: 961.86 EUR
Availability: OutOfStock

Ai - Built-in intelligent functions

Built-in intelligent algorithm of image analisis

Ai - SMD - Smart Motion Detection

SMD 4.0

Flag

TO ORDER

Product

BCS-L-EIP65VCR5L4-Ai2

Camera type

Dome

Resolution

5 Mpx

Sensor

1/2.7'' CMOS

Scanning system

Progressive Scan

Pixels

2960(H)×1668(V)

RAM

2GB

ROM

4GB

Lens

motozoom

Focal length

2.7~13.5 mm

Aperture

F1.6

Focus

Auto / manual

Iris

Auto

Optical zoom

4×

Digital zoom

16×

Angle of view

H: 110°~32° V: 57°~18° D: 134° ~37°

DORI

Detect 65.4~202m / Observe 26.1~80.8m / Recognize 13.1~40.4m / Identify 6.5~20.2m

Min illumination

0.0009Lux(Color,F1.6,30IRE) 0.0005Lux(F1.6,B/W,30IRE) 0Lux(IR)

S/N ratio

56dB

White balance

(AWB) Auto / manual

WDR

120dB

Backlight compensation

BLC / HLC / WDR(120dB) / SSA

Shutter

Auto / manual 1/3~1/100000s

Gain control

(AGC) Auto / manual

Noise reduction

3D DNR

LDC

Lens Distortion Correction

RoI

Region of Interest

Image Stabilization

Electronic (EIS)

Defog

Electronic

Image rotate

Mirror, Flip 0°/90°(corridor mode)/180°/270°

Stream support

4

Resolutions

5M(2960×1668/2880×1620) 4M(2688×1520/2560×1440) 3M(2048×1536/2304×1296) 1080p(1920×1080) 1.3M(1280×960) 720p(1280×720) D1(704×576/704×480) VGA(640×480) CIF(352×288/352×240)

Main stream

2960×1668(1~25/30fps)

Second stream

704×576(1~25fps) 704×480(1~30fps)

Third stream

1920×1080(1~25/30fps)

Fourth stream

1280×720(1~25/30fps)

Bitrate

H.264: 3 kbps~16384kbps H.265: 3 kbps~16384kbps

Video compression

H.265+ / H.265 / H.264+ / H.264 / H.264H / H.264B / MJPEG / Ai Coding

Day/night

ICR mechanical infrared filter

Illuminator type

IR LED + WhiteLight

IR range

50m

WhiteLight range

40m

NightColor

Yes

Microphone

Yes

Audio compression

G.711A / G.711Mu / G.723 / G.726 / PCM

Storage

FTP, SFTP, NAS

Memory card slot

microSD 1TB

Support

Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)

Motion detect

4

Privacy masking

8

Network

RJ-45 10/100 Mbps

Compatibility

ONVIF(S/G/T/M)

Protocols

IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Auto Registration

Network security

Power supply

PoE

Power supply type

12V DC / PoE(802.3at) / ePoE

Power consumption

max 15.9W

Redundant power

Dual Power Backup

Housing color

White

IP class

IP67

Working environment

-40°C~+60°C max 95% RH

Dimensions

Ø122×108.3mm

Weight

0.7 kg

Casing

Metal

Ai - Perimeter protection

Intrusion, crossline, fast moving, loitering, people gathering, parking detection

&Ai - Object classification

Yes

Ai - Face detection

Face detection and tracking, snapshot, attributes and expression recognition

&Ai - SMD

Yes

Ai - People counting

People counting for intrusion and crossline, counting people in/out/stay in, queue management, generate and export reports in periods of time

Ai - Metadata

People attributes (gender, clothes, color, bag, hat, umbrella), face attributes (gender, age, expression, glasses, mask, beard), vehicle attributes (type, color, logo, seat belts, smoking, calling)

Ai - Heat map

Recording the movement of objects over a period of time, statistics of the time density of movement presented graphically in red/blue color tones

Ai - Smart search

AcuPick technology – intelligent search for human/vehicle objects in the recording history with a recorder with the AcuPick function

Ai - Human/vehicle detection

Human/vehicle classification for crossline and intrusion and fast moving reduces false alarms
