| Ai - Heat map | Recording the movement of objects over a period of time, statistics of the time density of movement presented graphically in red/blue color tones |
|---|---|
| Resolution | 5 Mpx |
| Scanning system | Progressive Scan |
| ROM | 128MB |
| Focus | fixed |
| DORI | Detect 28m / Observe 11m / Recognize 6m / Identify 3m |
| WDR | 120dB |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Product | BCS-L-FIP25FSR1-Ai2 |
| Camera type | Fisheye |
| Sensor | 1/2.7'' CMOS |
| RoI | Region of Interest |
| Pixels | 2592(H)×1944(V) |
| RAM | 512MB |
| Lens | Fisheye |
| Focal length | 1.4 mm |
| Aperture | F2.0 |
| Iris | fixed |
| Digital zoom | 16× |
| Angle of view | H: 180° V: 180° D: 180° |
| Min illumination | 0.006Lux(Color,F2.0,30IRE) 0.0006Lux(B/W,F2.0,30IRE) 0Lux(IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Stream support | 3 |
| Resolutions | 5M(2592×1944) /3M(2048×1536) /UXGA(1600×1200) /1.3M(1280×960) /720P(1280×720) /D1(704×576/704×480) /VGA(640×480) /CIF(352×288/352×240) |
| Main stream | 2592×1944(1~25/30fps) |
| Second stream | 704×576(1~25fps) 704×480(1~30fps) |
| Third stream | 1280×720(1~25/30fps) |
| Bitrate | H.264: 3 Kbps~8192 Kbps H.265: 3 Kbps~8192 Kbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 10m |
| Microphone | Yes |
| Loudspeaker | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.726 / PCM |
| Alarm in | 1 |
| Alarm out | 1 |
| Storage | FTP, SFTP, NAS |
| Memory card slot | microSD 256GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, SNMP |
| Power supply | PoE |
| Power supply type | 12V DC / PoE |
| Power consumption | max 8.8W |
| Housing color | White |
| Working environment | -10°C~+50°C max 95% RH |
| Dimensions | Ø126.2×44.6mm |
| Weight | 0.3 kg |
| Ai - Perimeter protection | Crossline, intrusion |
| Ai - People counting | People counting for intrusion and crossline, counting people in/out/stay in, queue management, generate and export reports in periods of time |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

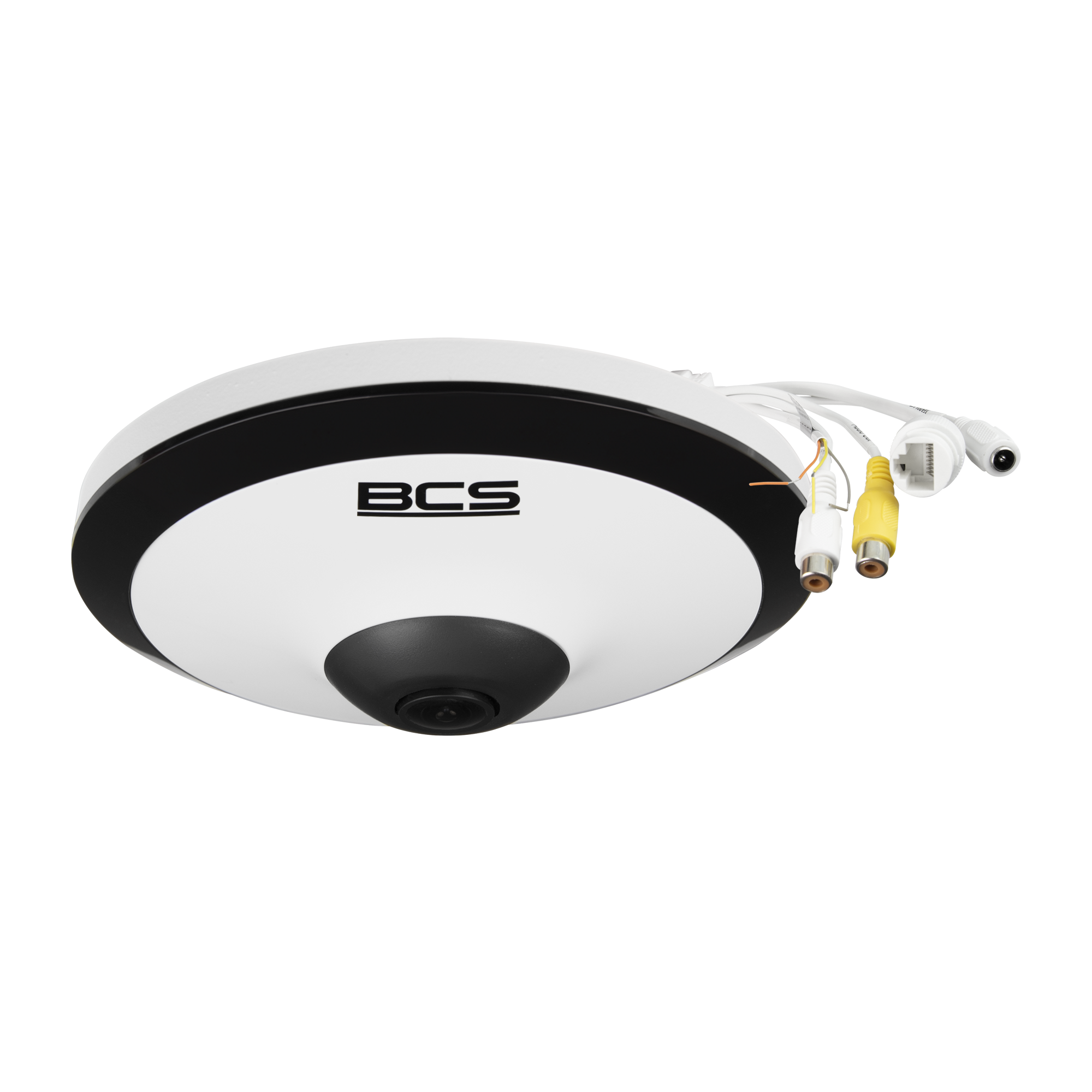

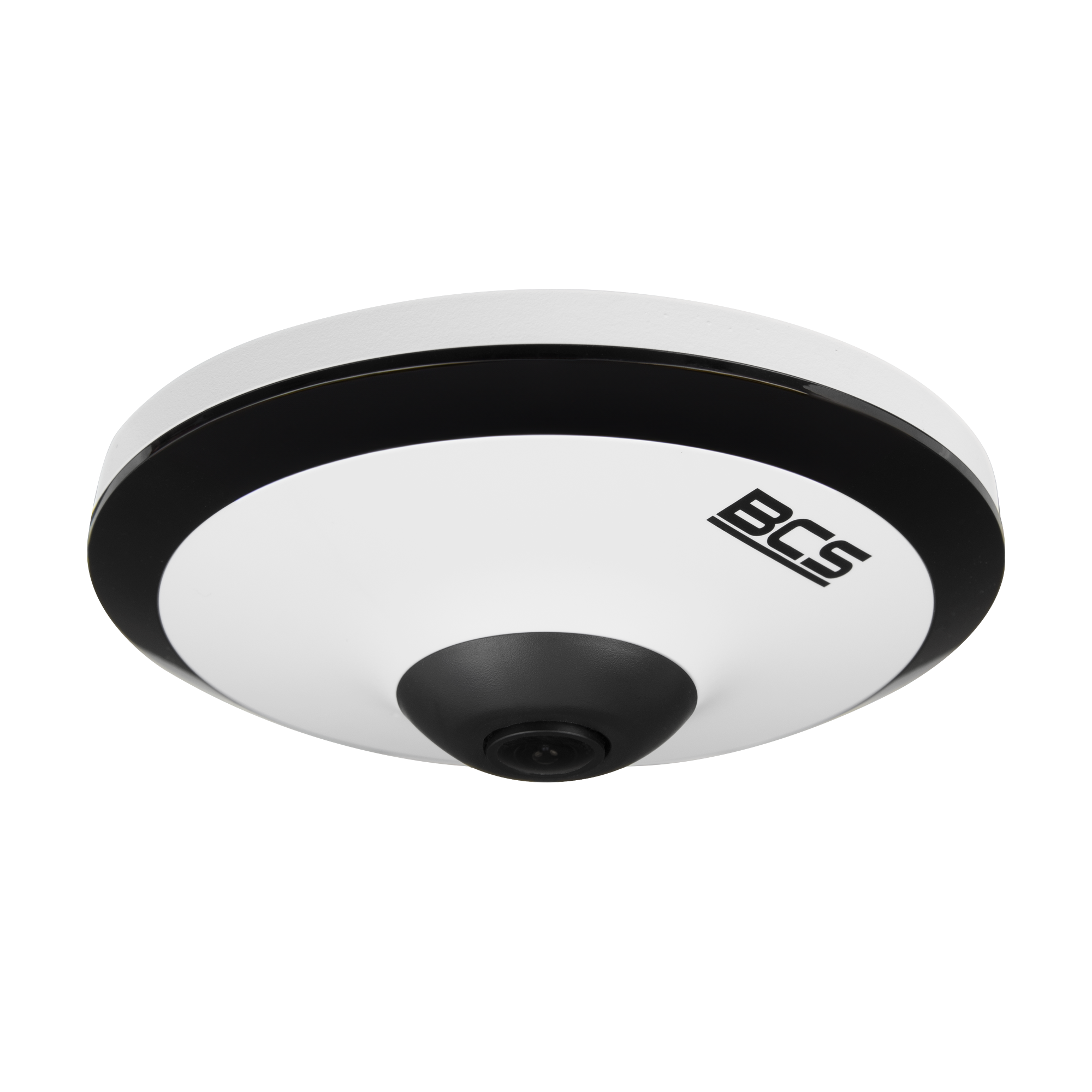

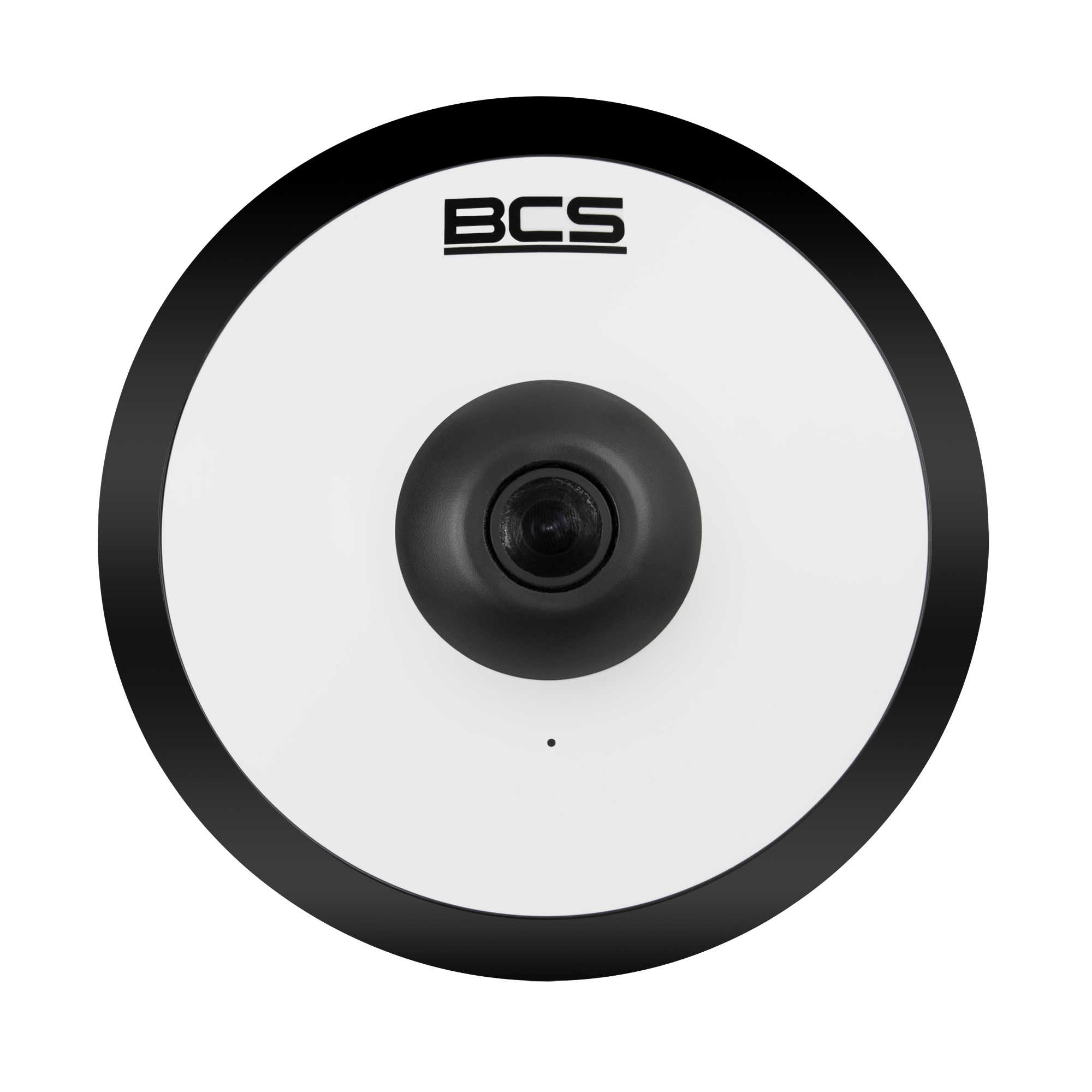

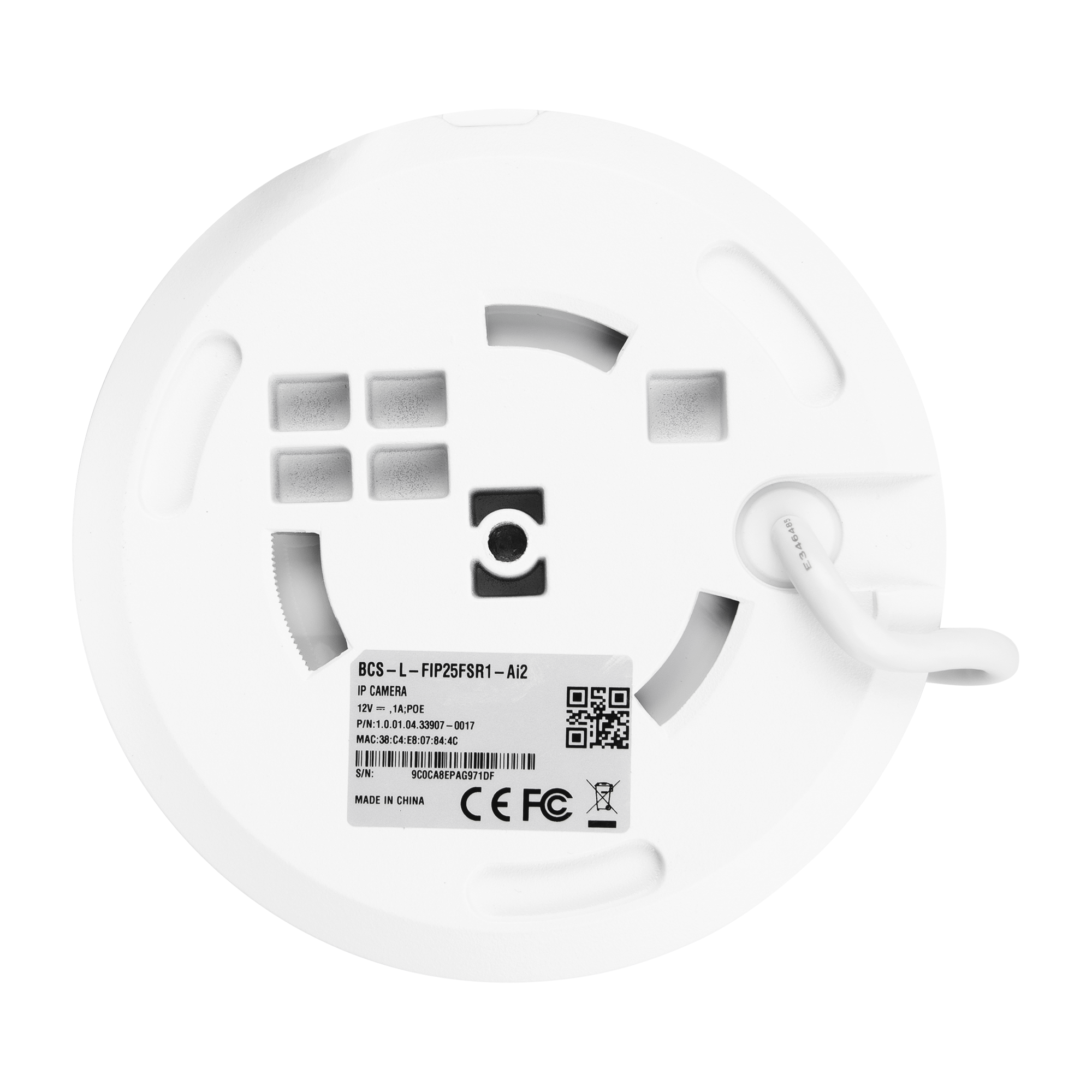

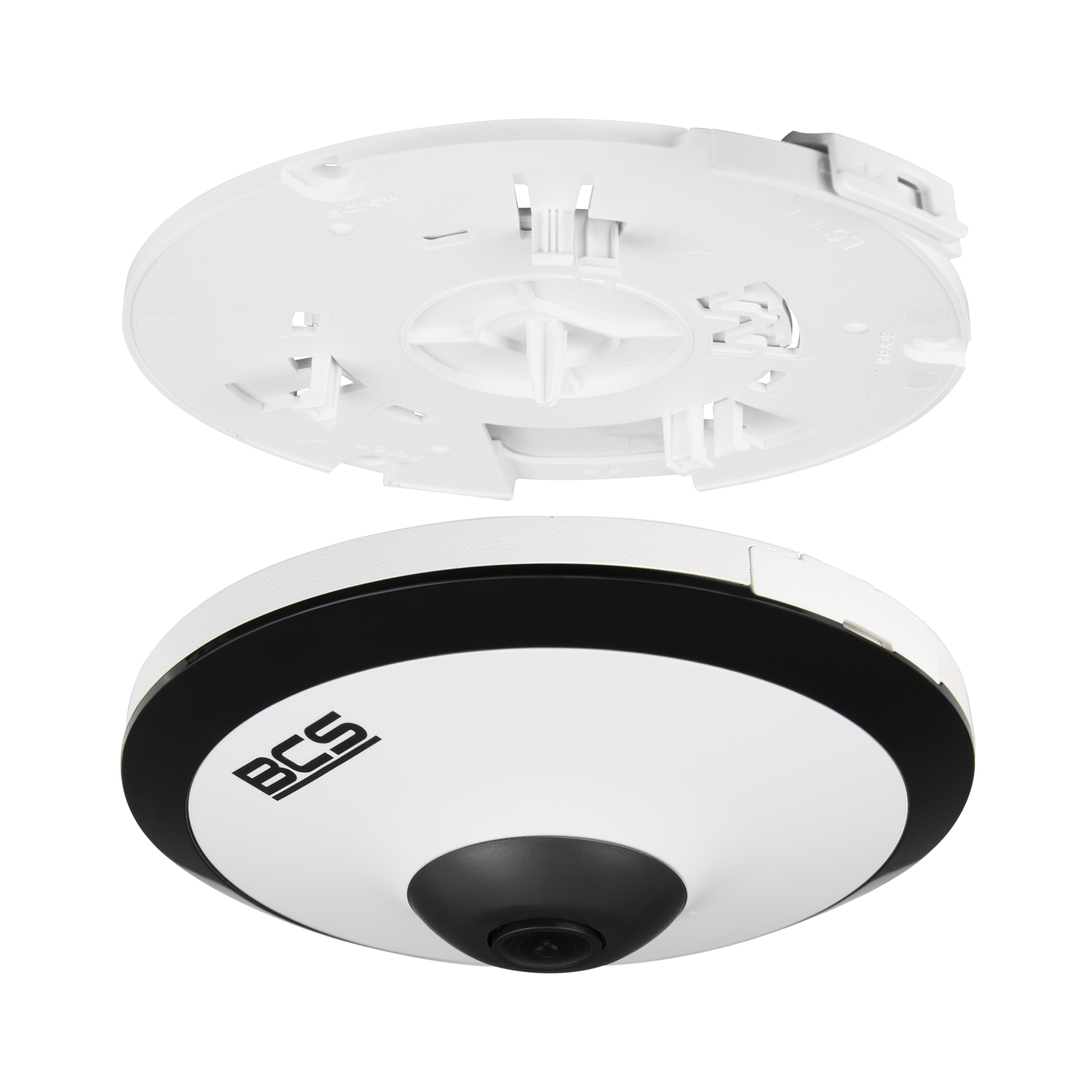

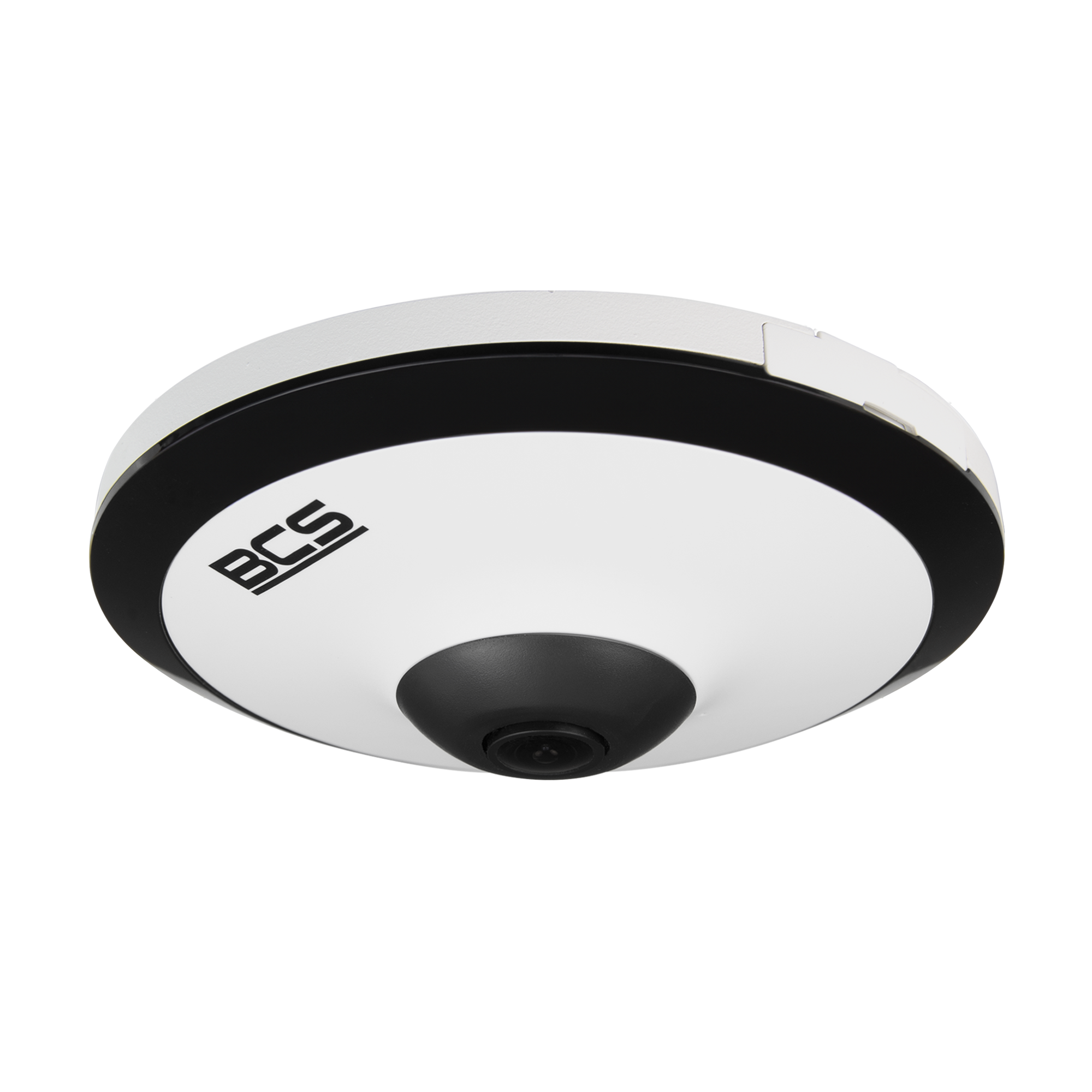

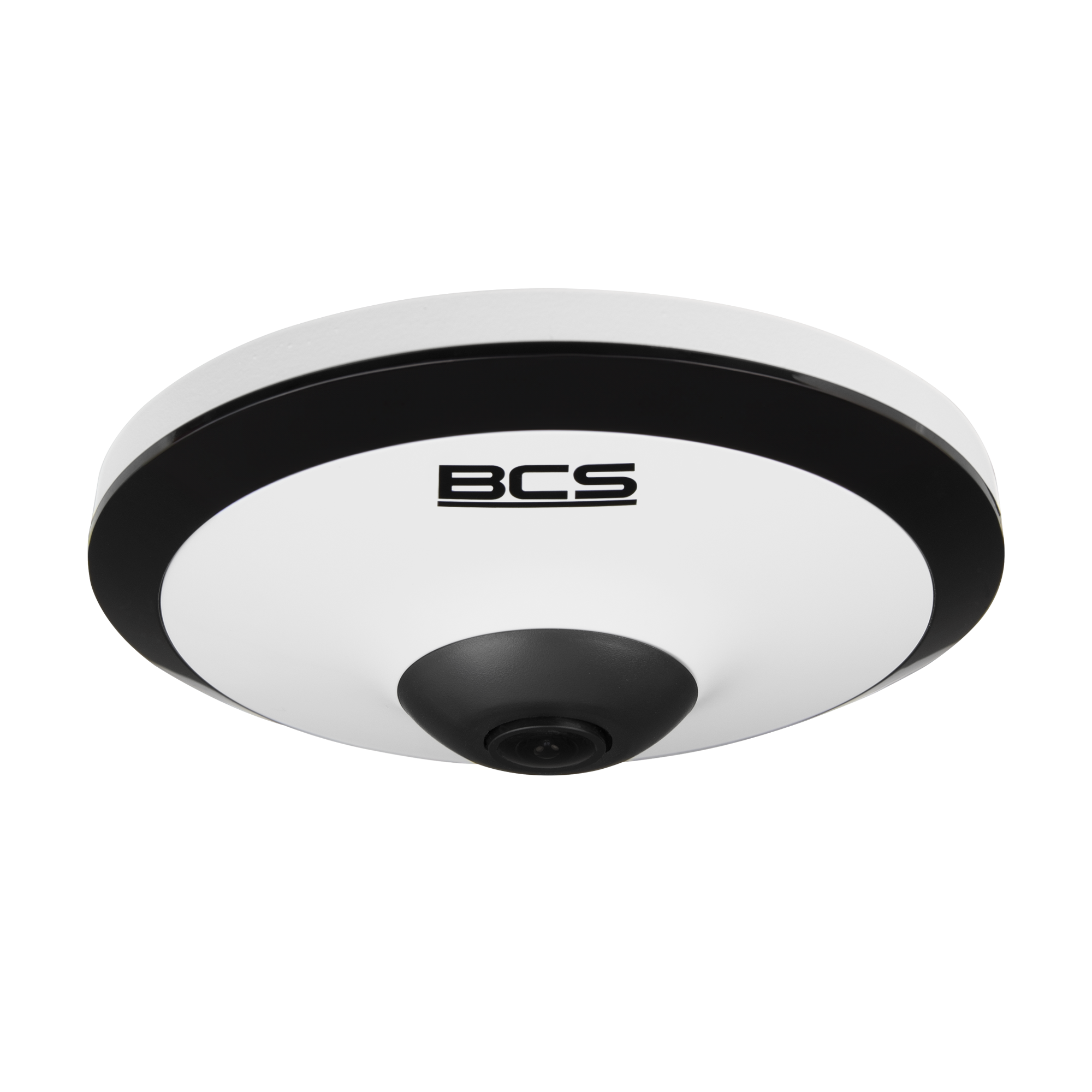

BCS-L-FIP25FSR1-Ai2
542,43 € gross
Out of Stock- 5Mpx IP camera
- 1/2.7" PS CMOS sensor
- SkyLight technology
- 1.4mm fisheye lens
- WDR 120dB
- IR 10m
- Alarm 1/1, audio 1/1, microphone, speaker
- Built-in smart features
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
