| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion reduces false alarms |
|---|---|
| Resolution | 6 Mpx |
| Scanning system | Progressive Scan |
| ROM | 4GB |
| Focus | fixed |
| Min illumination | 0.006Lux(Color,F2.0,30IRE) 0.0006Lux(B/W,F2.0,30IRE) 0Lux(IR) |
| Backlight compensation | BLC / HLC / WDR(120dB) / SSA |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Image rotate | 0°/180° |
| Product | BCS-L-FIP26FSR1-Ai2 |
| Camera type | Fisheye |
| Sensor | 1/2.5'' CMOS |
| Pixels | 2560(H)×2560(H) |
| RAM | 1GB |
| Lens | Fisheye |
| Focal length | 1.68 mm |
| Aperture | F2.0 |
| Iris | fixed |
| Angle of view | H: 185° V: 185° D: 185° |
| DORI | Detect 33.6m / Observe 13.4m / Recognize 6.7m / Identify 3.4m |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| RoI | Region of Interest |
| FishEye mode | |
| Stream support | 3 |
| Resolutions | |
| Main stream | 2560×2560@(1~25/30 fps) |
| Second stream | 1440×1440@(1~25/30 fps) |
| Third stream | 1440×1440@(1~25/30 fps) |
| Bitrate | H264: 3Kbps~16384Kbps H265: 3Kbps~16384Kbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG / Ai Coding |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 15m |
| Microphone | Yes |
| Loudspeaker | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.726 / PCM |
| Alarm in | 1 |
| Alarm out | 1 |
| Storage | FTP, SFTP, NAS |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P |
| Network security | |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 10.1W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | Ø122×53.3mm |
| Weight | 0.46 kg |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
| Ai - People counting | People counting for intrusion and crossline, counting people in/out/stay in, queue management, generate and export reports in periods of time |
| Ai - Heat map | Recording the movement of objects over a period of time, statistics of the time density of movement presented graphically in red/blue color tones |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

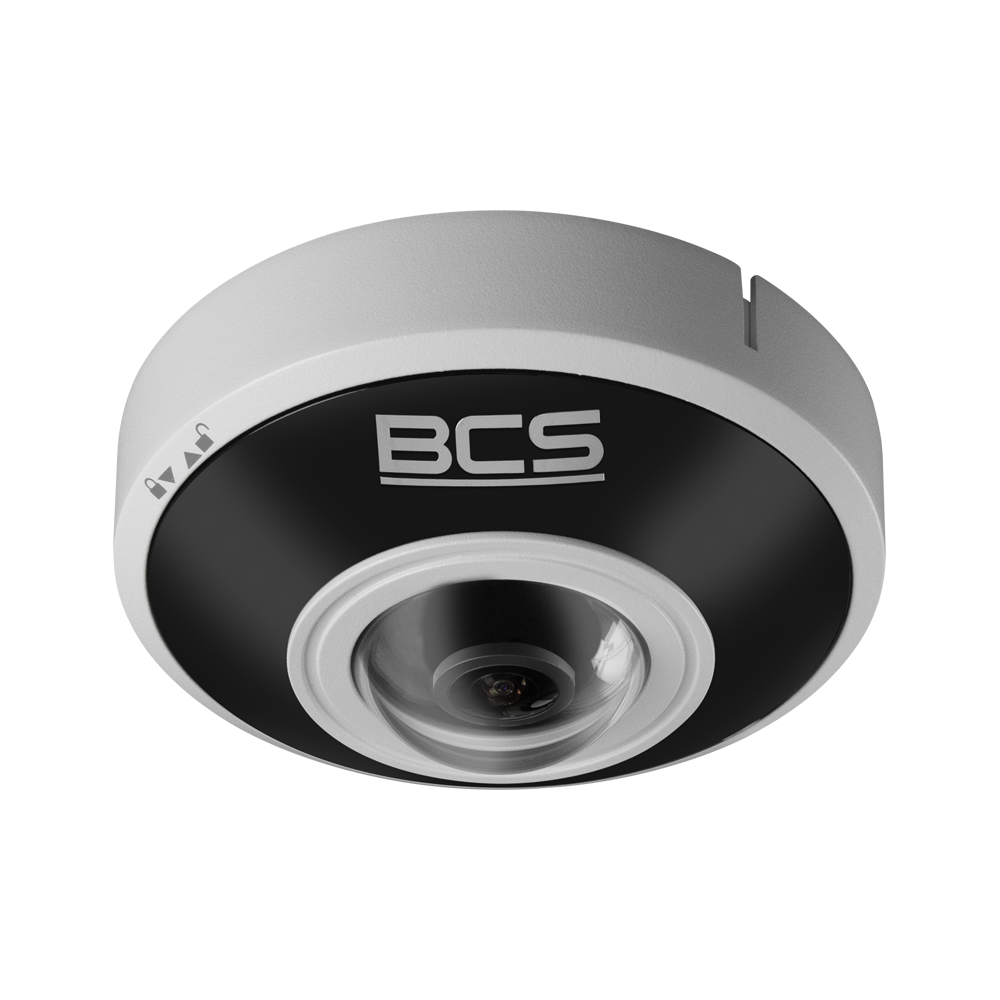

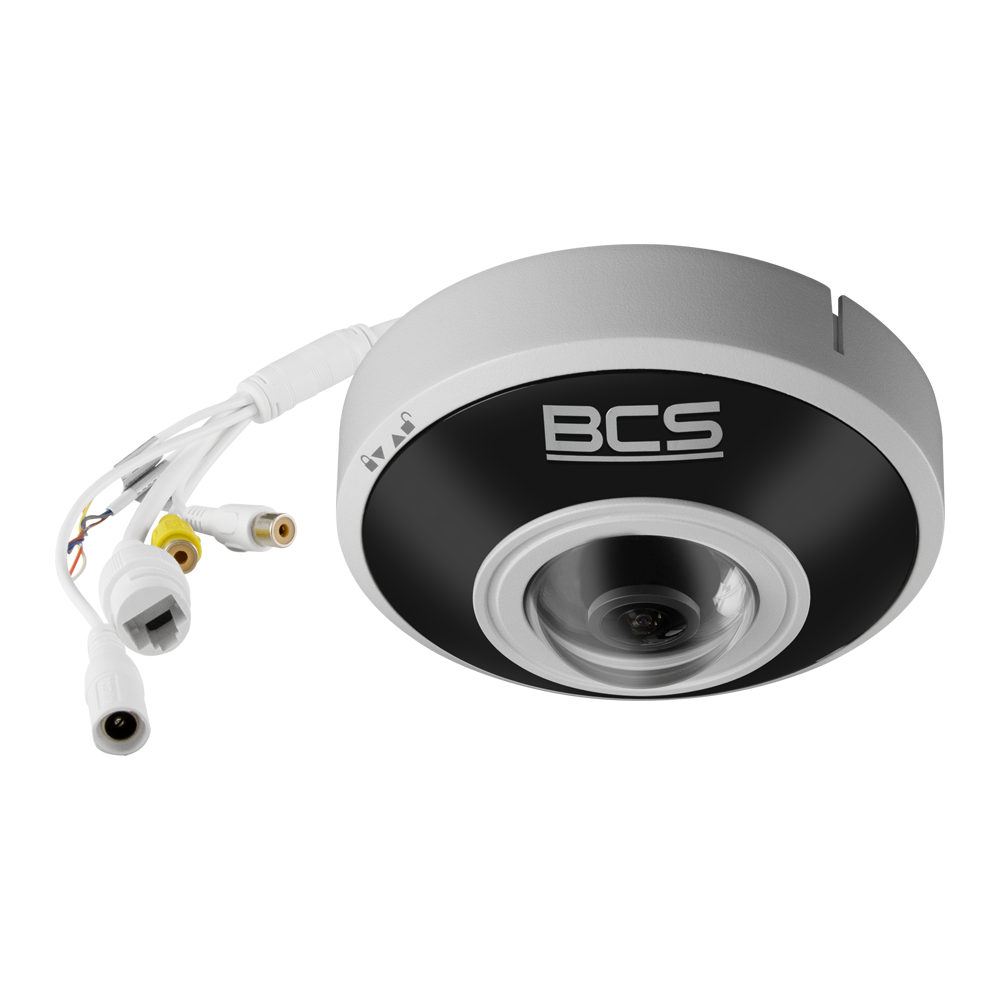

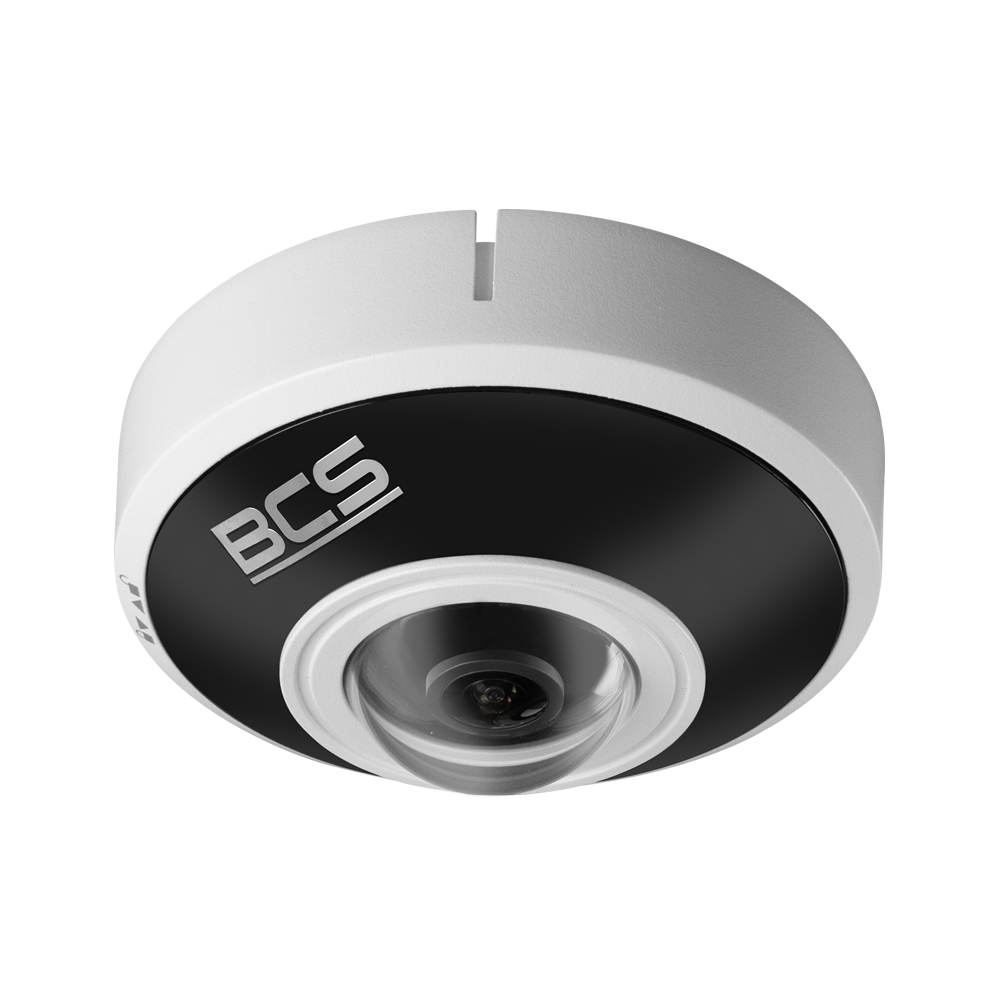

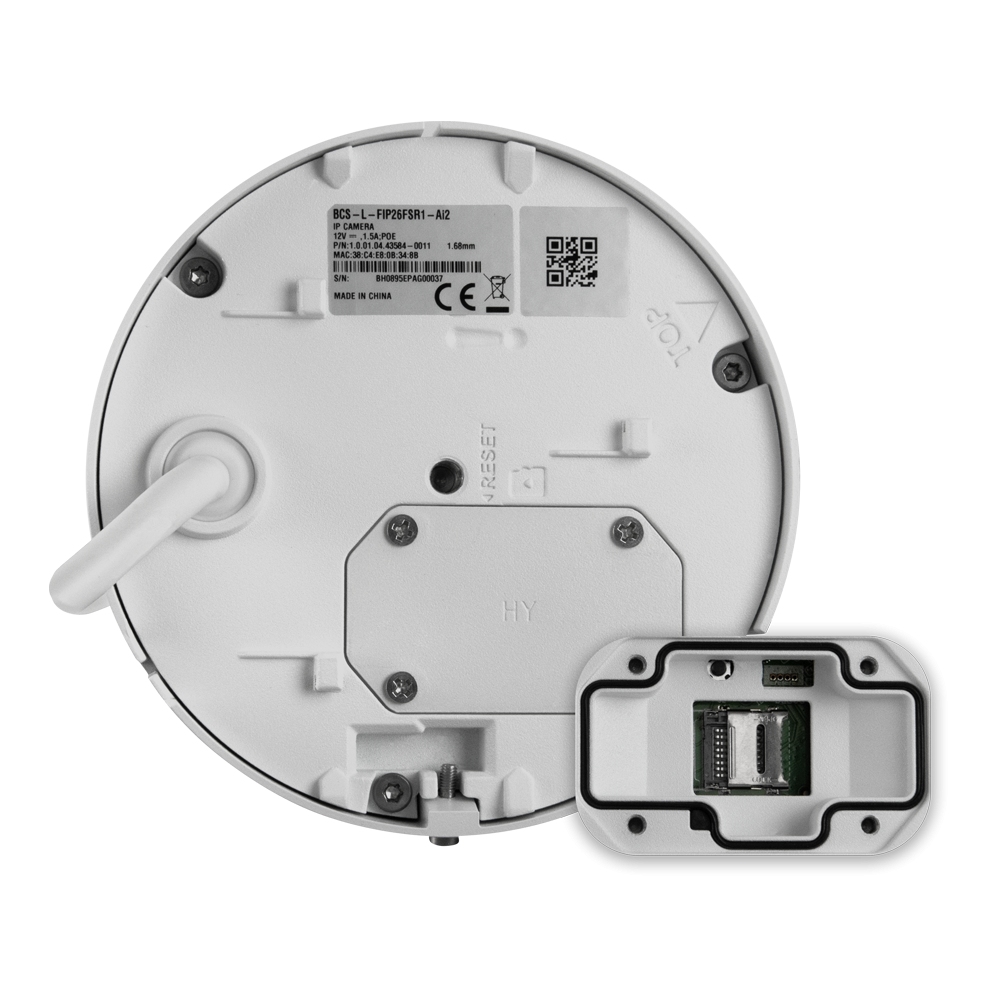

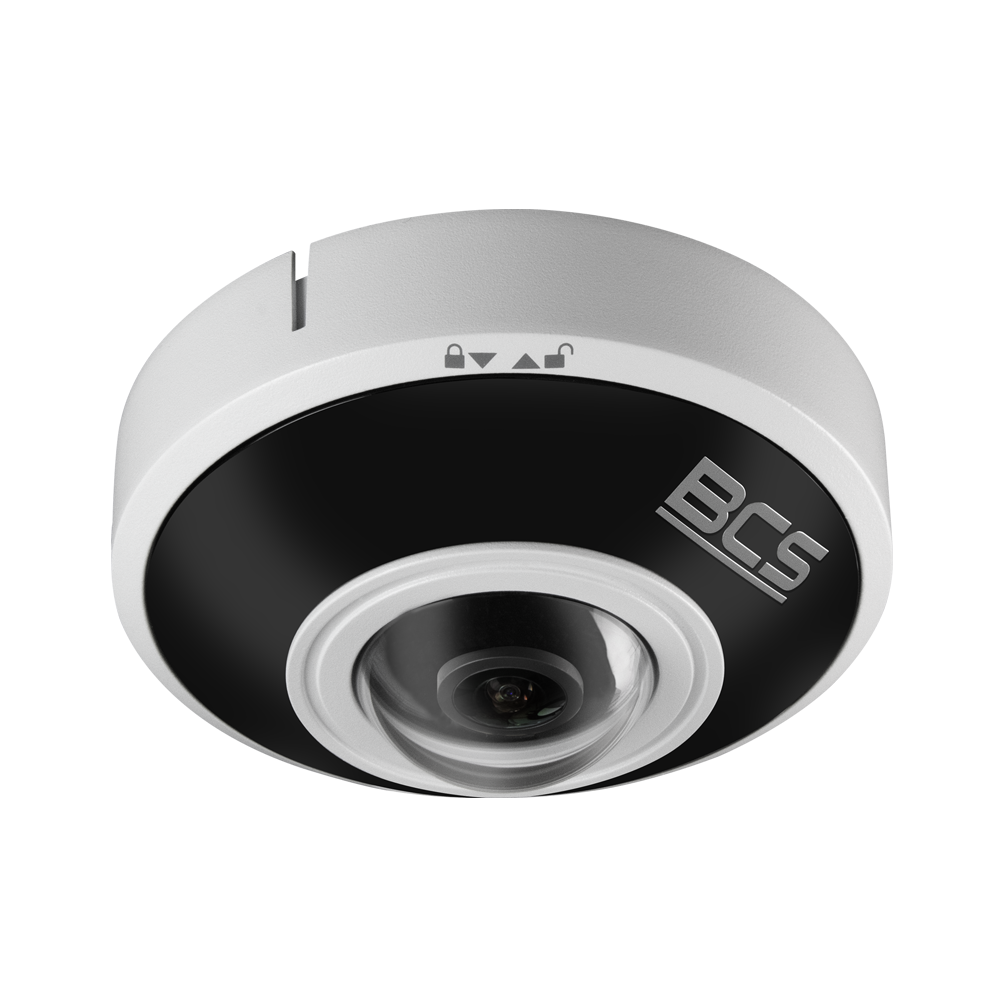

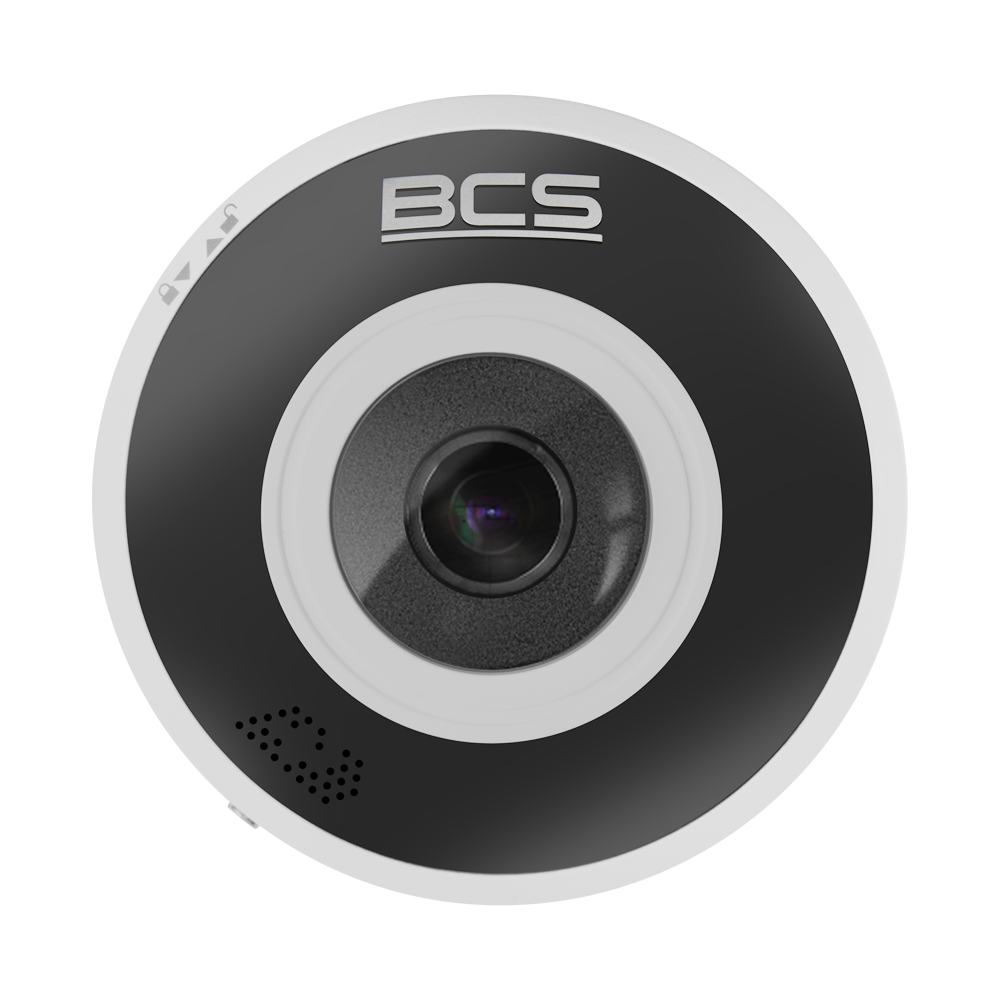

BCS-L-FIP26FSR1-Ai2
479,70 € gross
39 In Stock- 6Mpx IP camera
- 1/2.5" PS CMOS sensor
- SkyLight technology
- 1.68mm fisheye lens
- WDR 120dB
- IR 15m
- Alarm 1/1, audio 1/1, microphone, speaker
- Built-in smart features
39 in stock
