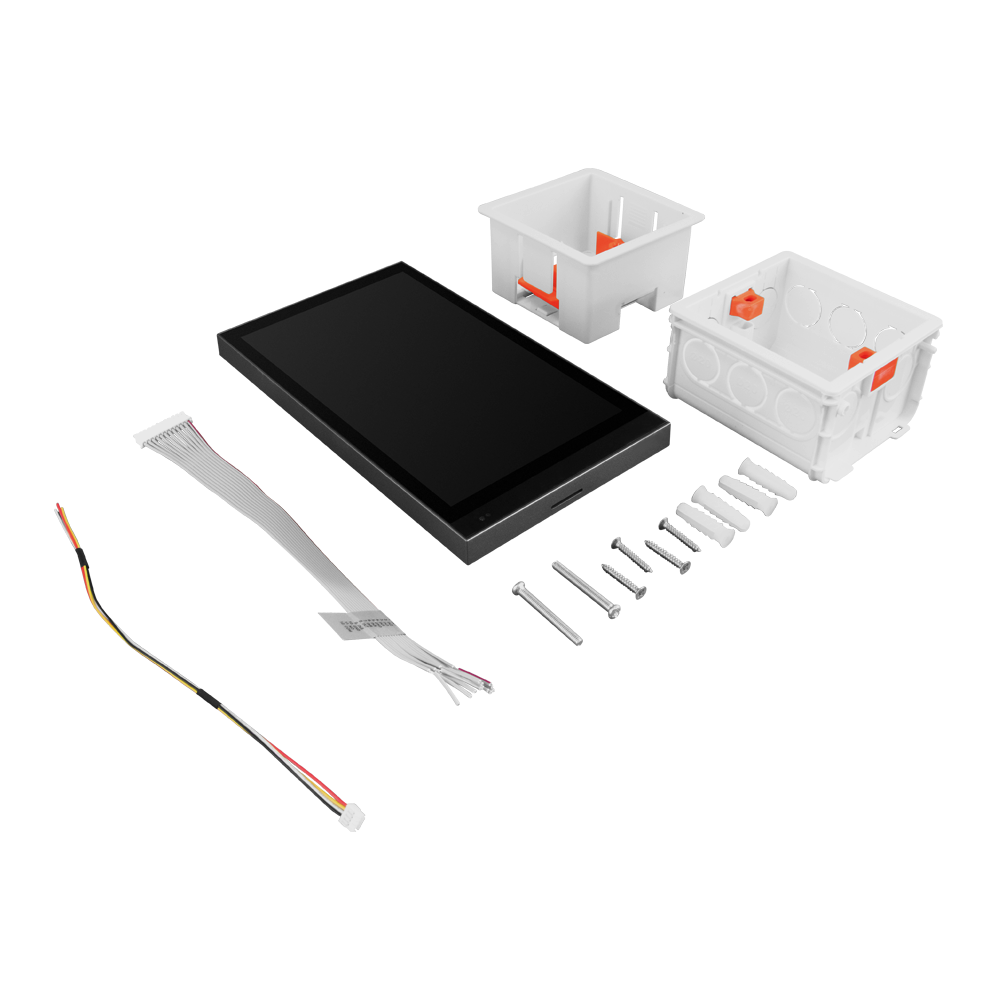

BCS Line series IP video monitor. Compact, super-slim housing with a narrow bezel, designed for flush-mounted installation. Modern interface, humidity and temperature sensor, light/dark theme. Black and graphite-coloured plastic housing. 7" IPS capacitive touchscreen with a resolution of 1024×600. Preview of BCS Line and ONVIF IP cameras, with support for H.265 encoding. Power supply: 12 V DC or PoE 802.3 at/af/passive (BCS switches recommended). Expandable to 10 monitors in a single premises for single-family systems and up to 5 for multi-family systems. MicroSD card slot (card not included, max capacity 512GB). RS485 output for supporting additional BCS-L-MON-RS485P relay modules, which can be controlled via widgets on the video monitor screen (feature in development). Flush-mounted wall installation (additional housing included). Built-in doorbell function.
BCS-L-MON7800G-S
552,27 € gross
92 In Stock- BCS Line IP Hands-Free Video Monitor
- Modern graphical user interface
- Operating system: Android 14
- 7" touchscreen
- Super-slim housing with a narrow bezel
- Compatible with all BCS Line external panels
- Built-in temperature and humidity sensor
- Flush-mounted
- Colour: black and graphite
92 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Product | BCS-L-MON7800G-S |
|---|---|
| pa_product-line | BCS LINE |
| Video compression | H.264, H.266 |
| Device type | Videomonitor |
| pa_programming | GUI + ConfigTool |
| System type | IP |
| Onvif compatibility | Yes |
| Ethernet | Built-in |
| Network connection | Ethernet 10/100 Mbps, wifi |
| Mounting type | Podtynkowy (obudowa w komplecie) |
| pa_videomonitor-operating-mo | Loudspeaker |
| Display type | Tactile, Capacitive |
| Screen diagonal size | 7'' |
| Screen resolution | 1024×600 |
| Operating system | Android 14 |
| CCTV IP camera preview | BCS Line/Point/View/Onvif |
| pa_max-quality-cctv-camera-s | 720p |
| pa_number-of-supported-camer | 32 |
| pa_videomonitor-power-supply | 12V DC / PoE(802.3at/af/passive) |
| Additional output | RS485 (do przyszłych zastosowań), 12VDC 200mA |
| Monitor color | Grafitowy |
| Monitor dimensions | 176.2 × 103.1 × 32.2 |
| Monitor weight (g) | 1230 |
| Built-in memory card | Nie, slot na kartę mSD (max 512 GB) |
| Additional input | 8x alarm IN (w tym przycisk dzwonka) |
| pa_built-in-web-server | Nie |
| pa_menu-language | PL, ENG, IT, ESP, DE, PT, TR, CZ, SL, GRE, LT |
| pa_mobile-app | BCS Line |
| pa_expansion | Jednorodzinne: 1x MON główny, 9x MON dodatkowy; Wielorodzinne: 1x MON główny, 4x MON dodatkowy |
| pa_additional-features | Czunik temperatury i wilgotności, widżety do otwierania drzwi, wbudowane aplikacje, automatyczna jasność |
| pa_relay-output | NO/COM |
