| Product | BCS-L-NVR0401-4KE-W(2L) |
|---|---|
| pa_product-line | BCS LINE |
| System | IP |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| Channels | 4 |
| HDD support | 1 |
| HDD capacity | 20 TB |
| Record mode | Continuous, manual, alarm, motion detection, schedule, Ai |
| Max recording resolution | 16 Mpx |
| Incoming bandwidth | 80Mbps |
| Outgoing bandwidth | 80Mbps(60Mbps Ai) |
| Recording bandwidth | 80Mbps |
| Display efficiency | 1×16M@30fps /2×8M@30fps /3×6M@30fps /4×5M@30fps Ai: 1×12M@30fps /2×6M@30fps /3×4M@30fps /4×3M@30fps |
| Recording resolutions | 16M / 12M / 8M / 6M / 5M / 4M / 3M / 2M / 1.3M / 720P / D1 / CIF / QCIF |
| Video compression | H.265+ / H265 / H.264+ / H.264 / MJPEG |
| HDMI out | HDMI4K |
| VGA out | VGA |
| HDMI display resolutions | 3840×2160 / 1920×1080 / 1280×1024 / 1280×720 |
| VGA display resolutions | 1920×1080 / 1280×1024 / 1280×720 |
| Synchronous playback | 1/4 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| User connections | 128 |

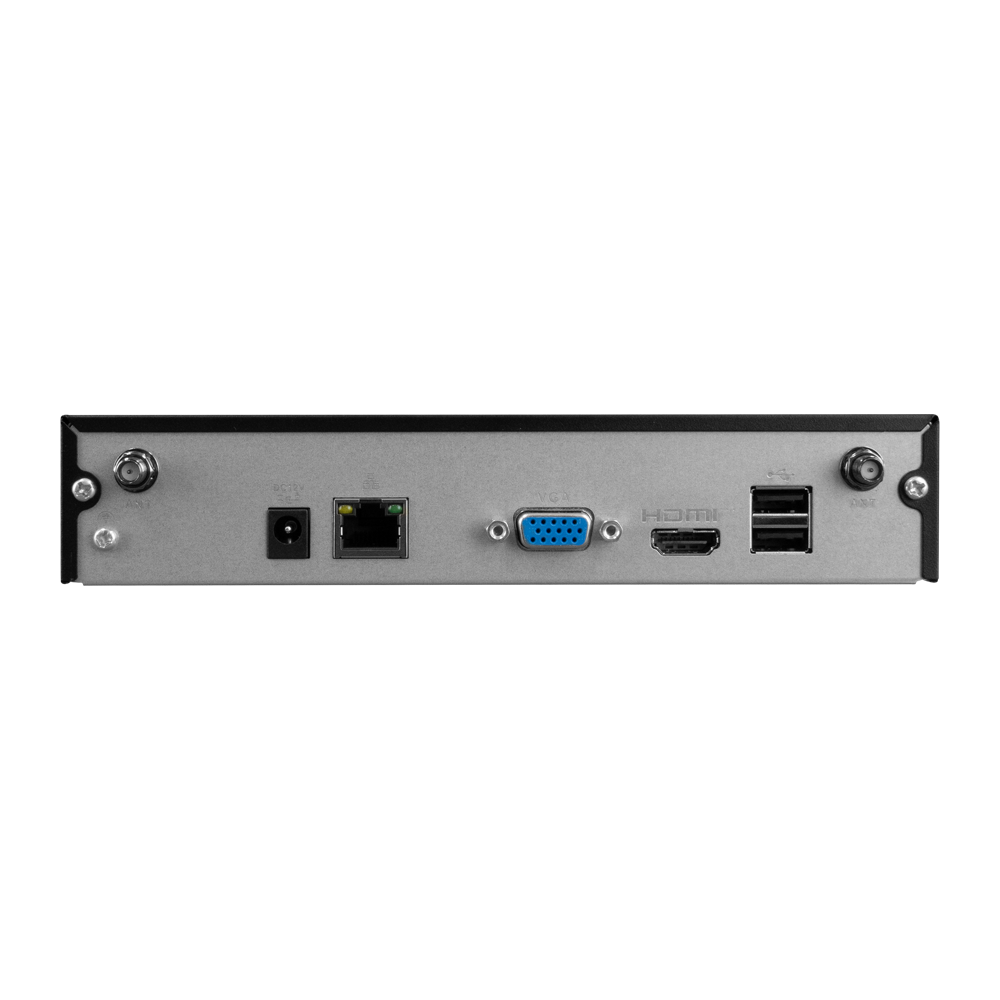

| Interfaces | 2×USB2.0 |
| Audio compression | G.711A / G.711U / G.726 / PCM |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | RJ-45 10/100Mbps |
| Wi-Fi | Wi-Fi 6 802.11b/g/n/a/ac/ax 2.4/5GHz |
| Compatibility | ONVIF(S/G/T) |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, IP Search, P2P, Auto Registration |
| Power supply | 12V DC |
| pa_power-consumption-without | max 6W |
| Working environment | -10°C~+45°C max 93% RH |
| Casing | 1U |
| pa_dimensions-mm-wxdxh | 197×234×41.5 |
| Weight (without HDD) | 0.57 kg |
| &Ai - SMD | Yes |
| pa_ai-intelligent-functions- | Perimeter protection, SMD |
| Ai - Perimeter protection | 4 channels from camera |
| pa_ai-smd-smart-motion-detec | 4 channels from the recorder (person/vehicle recognition), 4 channels from cameras |

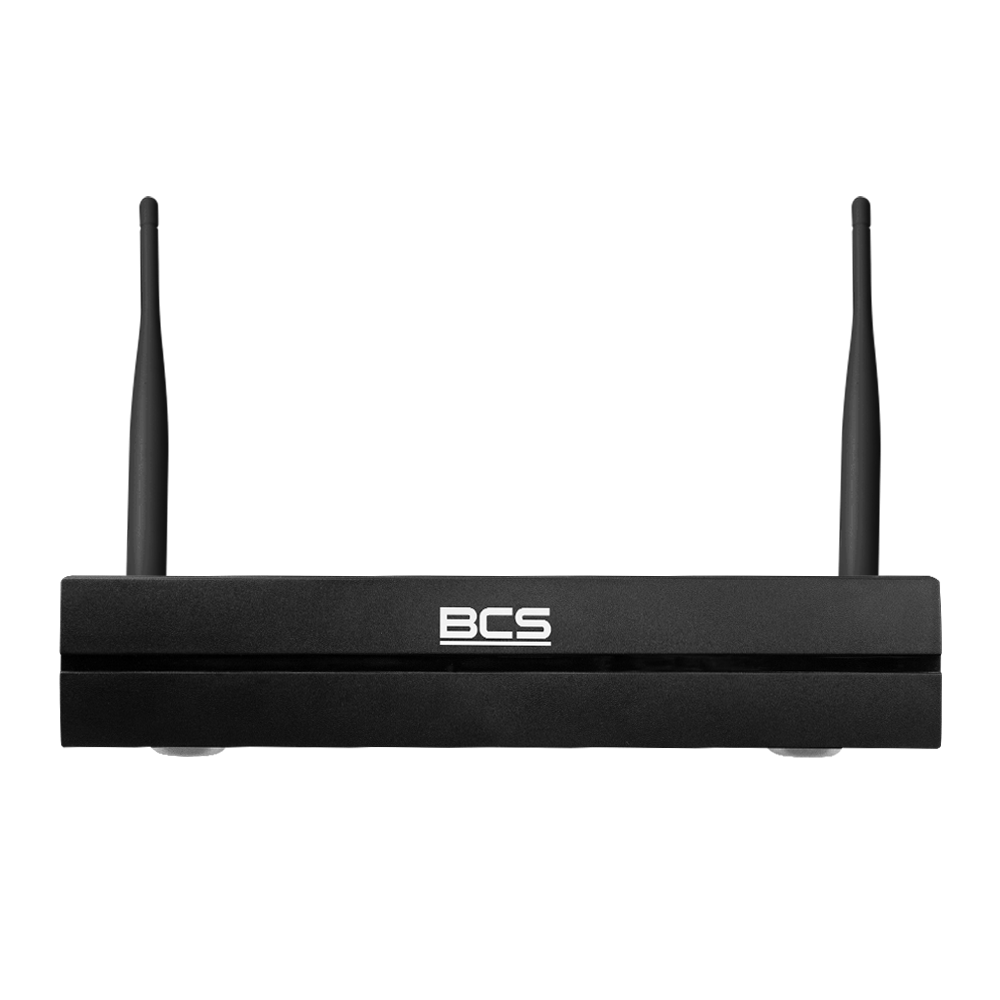

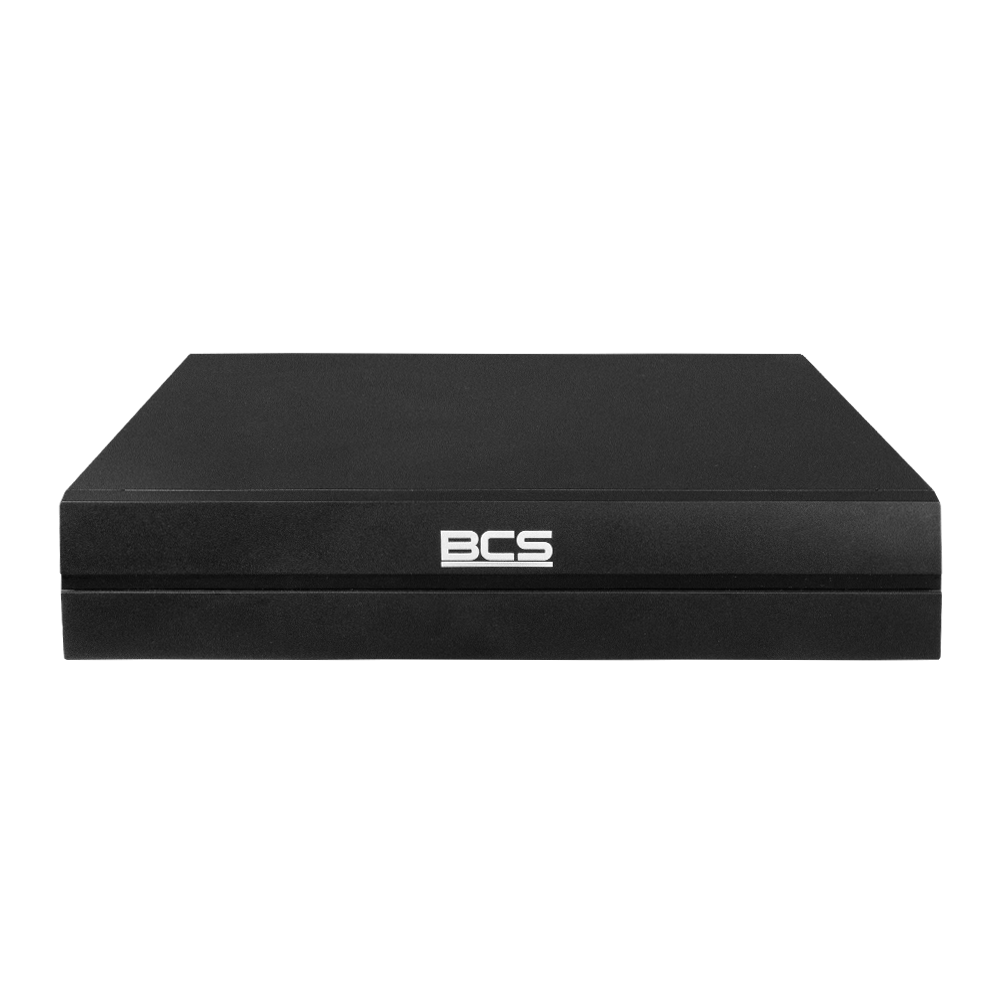

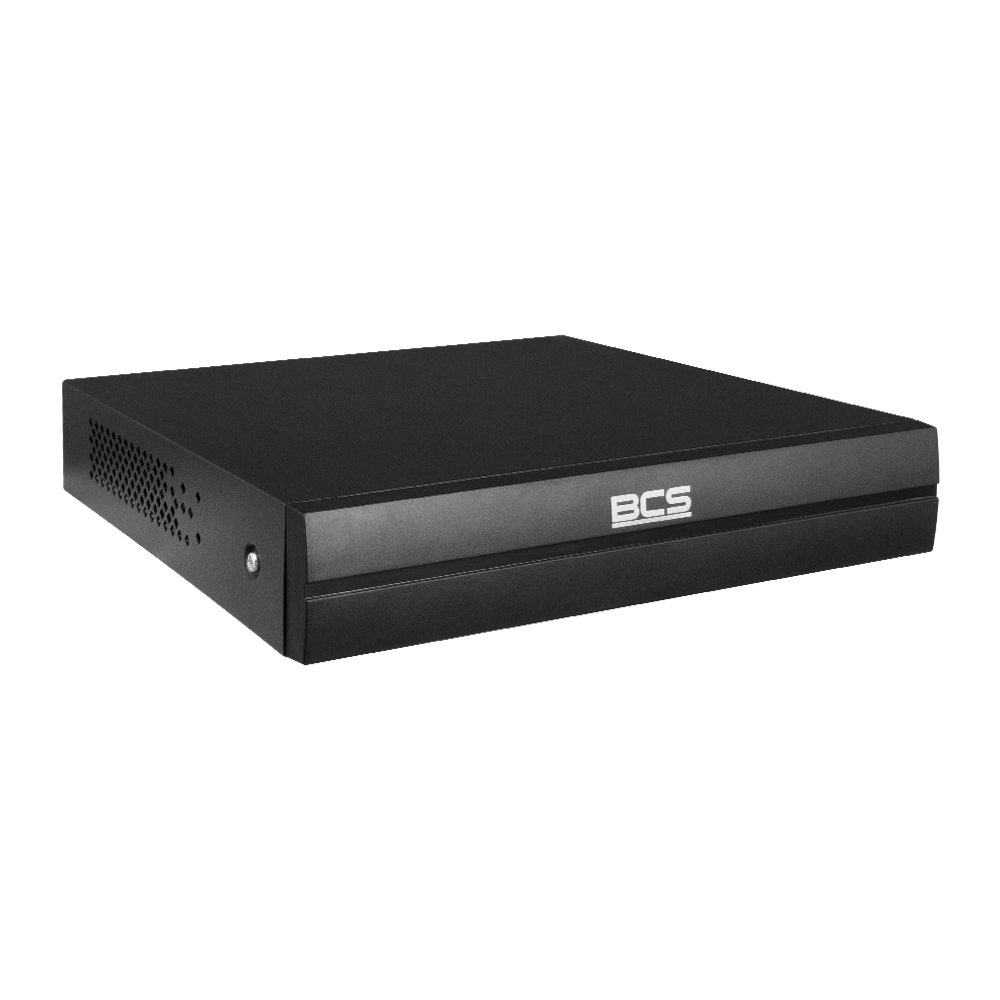

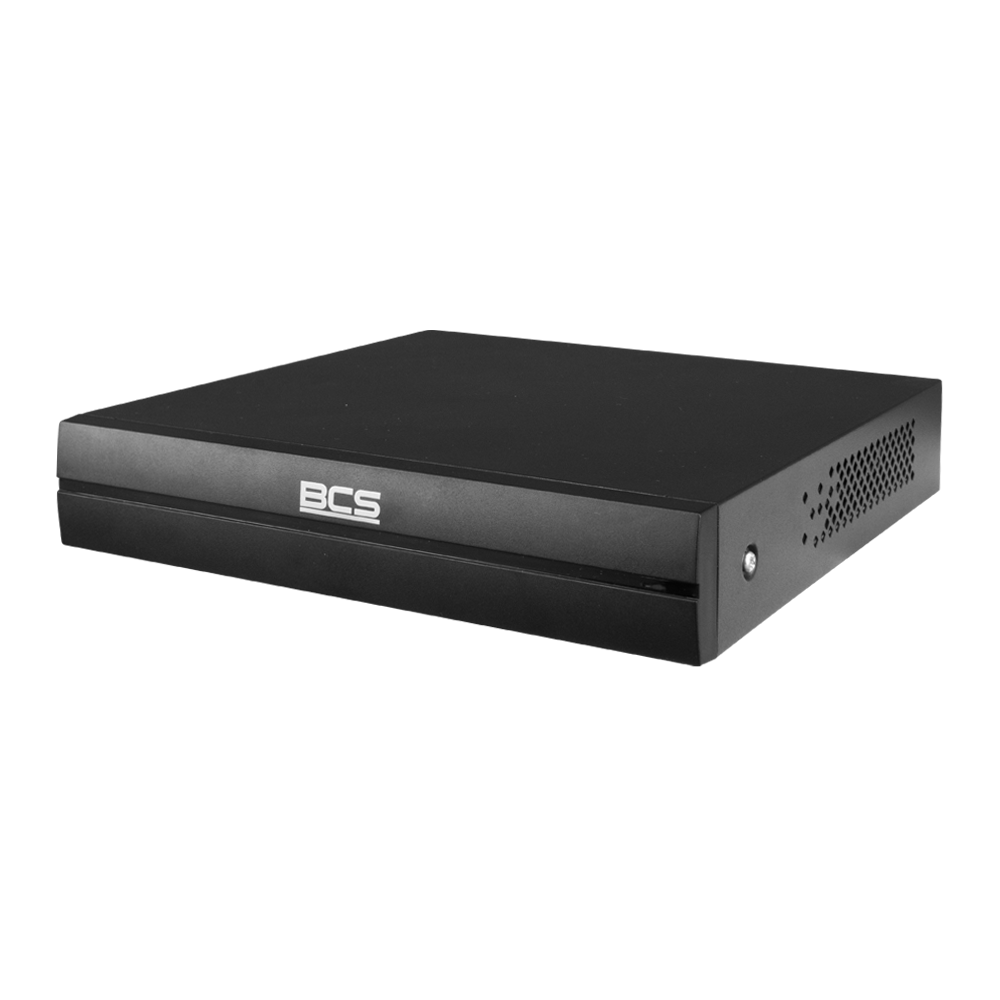

BCS-L-NVR0401-4KE-W(2L)
249,69 € gross
38 In Stock- 4-channel IP recorder
- Supports 1 hard drive
- Supports 16Mpx IP cameras
- Wi-Fi 6
- HDMI 4K/VGA output
- Support for smart camera features
