| Power consumption (without HDD) | max 18W |
|---|---|
| &Ai - Built-in intelligent functions | Yes |
| Ai - Intelligent functions from recorder | Face detection, face identification, metadata (person/vehicle recognition), perimeter protection, SMD Plus |
| Ai - Intelligent functions from camera | Face detection, face recognition, metadata (human/vehicle classification), SMD Plus, people gathering, people counting, ARTR, vehicle density, object monitoring |
| Ai - SMD - Smart Motion Detection | 32 channels from nvr / 64 channels from camera |
| Product | BCS-L-NVR12808XR-A-8K-Ai |
| System | IP |
| Appliance | IP recorder with industrial-class processor and Linux operating system |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| Channels | 128 |
| HDD support | 8 |
| HDD capacity | 20 TB |
| &RAID | Yes |
| RAID type | 0/1/5/6/10 Hot spare disk module |
| Hot swap | Yes |
| Record mode | Continuous, manual, alarm, motion detection, schedule, Ai |
| Max recording resolution | 32 Mpx |
| Incoming bandwidth | 1280Mbps(640Mbps Ai) |
| Outgoing bandwidth | 1024Mbps(512Mbps Ai) |
| Recording bandwidth | 1280Mbps(640Mbps Ai) |
| Display efficiency | |
| Recording resolutions | 32M / 24M / 16M / 12M / 8M / 6M / 5M / 4M / 3M / 2M / 1.3M / 720P / D1 / CIF |
| Video compression | H.265+ / H265 / H.264+ / H.264 / MJPEG / MPEG4 |
| HDMI out | HDMI8K/2×HDMI4K/HDMI |
| VGA out | 2×VGA |
| HDMI display resolutions | 7680×4320 / 3840×2160 / 1920×1080 / 1280×1024 / 1280×720 / 1024×768 |
| VGA display resolutions | 1920×1080 / 1280×1024 / 1280×720 / 1024×768 |
| Simultaneous display mode | VGA1 1080P ~ VGA2 1080P ~ HDMI1 4K ~ HDMI2 4K ~ HDMI3 8K ~ HDMI4 1080P |
| Heterogeneous display mode | VGA1 1080P ~ HDMI1 4K / VGA2 1080P ~HDMI2 4K / HDMI3 4K / HDMI4 1080P |
| Display split | 1/4/8/9/16/25/36/64 (second screen 1/4/8/9/16/25/36) |
| Recording | continuous recording, with motion detection (with recording before and after detection), alarm (with pre- and post-alarm recording), cyclic (overwriting), Ai |
| Synchronous playback | 1/4/9/16 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| User connections | 128 |

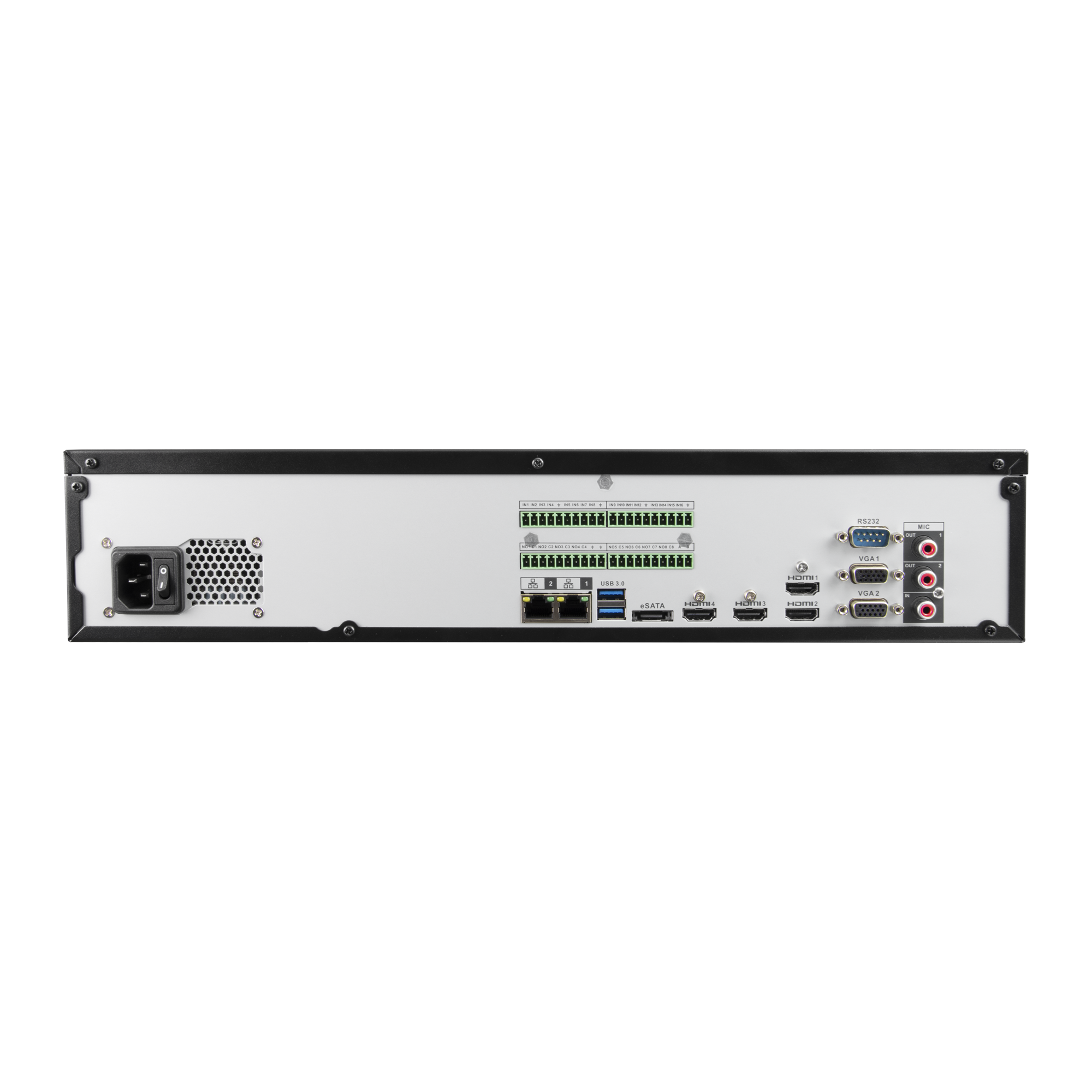

| Interfaces | 2×USB2.0, 2×USB3.0, eSATA |
| Serial port | RS232, RS485 |
| Audio in | 1 |
| Audio out | 2 |
| Audio compression | G.711A / G.711U / G.726 / PCM |
| Alarm in | 16 |
| Alarm out | 8 |
| Alarm | Motion detection, signal lost,, sabotage, scene change, PIR, IPC, Ai functions, offline, HDD, IP, MAC, login |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | 2×RJ-45 10/100/1000/2500Mbps |
| Compatibility | ONVIF(S/G/T), support third party cameras |
| PTZ control | Inteligent 3D positioning with PTZ cameras BCS LINE series. |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, DDNS, Alarm Server, IP Search, Multicast, P2P, Auto Registration, ISCSI |
| Cluster support | N+M |
| Power supply | 100~240V AC |
| Working environment | -10°C~+55°C max 93% RH |
| Casing | 2U |
| Dimensions (W×D×H) | 440×458×95mm |
| Weight (without HDD) | 6.4 kg |
| Ai - Perimeter protection | 32 channels from DVR in simultaneous HDMI mode, 24 channels from DVR in independent HDMI mode, 10 rules per channel / 64 channels from cameras |
| &Ai - Object classification | Yes |
| Ai - Face detection | |
| &Ai - SMD | Yes |
| Ai - Face recognition | |
| Ai - Metadata | |
| Ai - Smart search | AcuPick technology – intelligent search for human/vehicle objects in the recording history with camera with the AcuPick function |
| Ai - ARTR | 64 channels from camera / white and black list 20k records |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

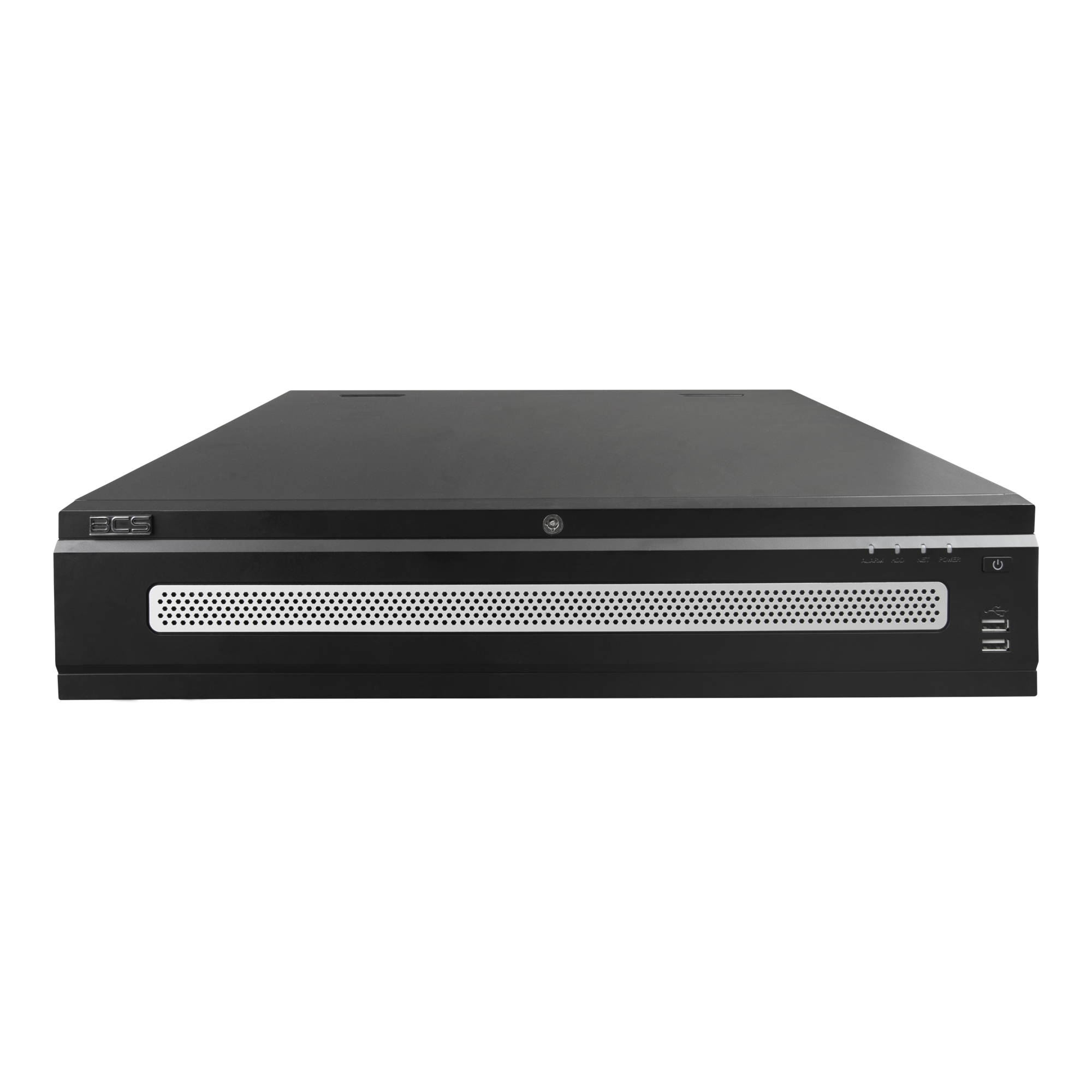

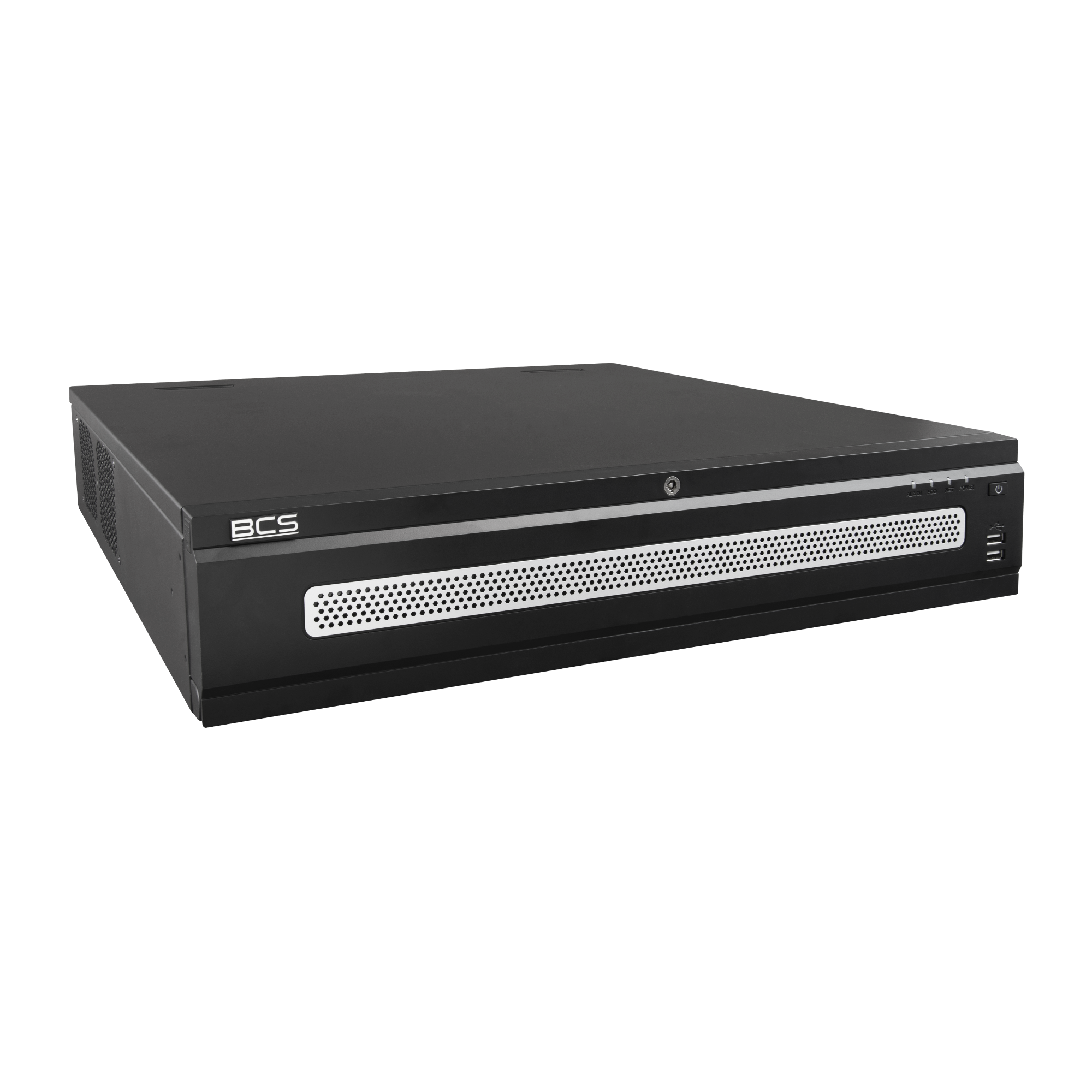

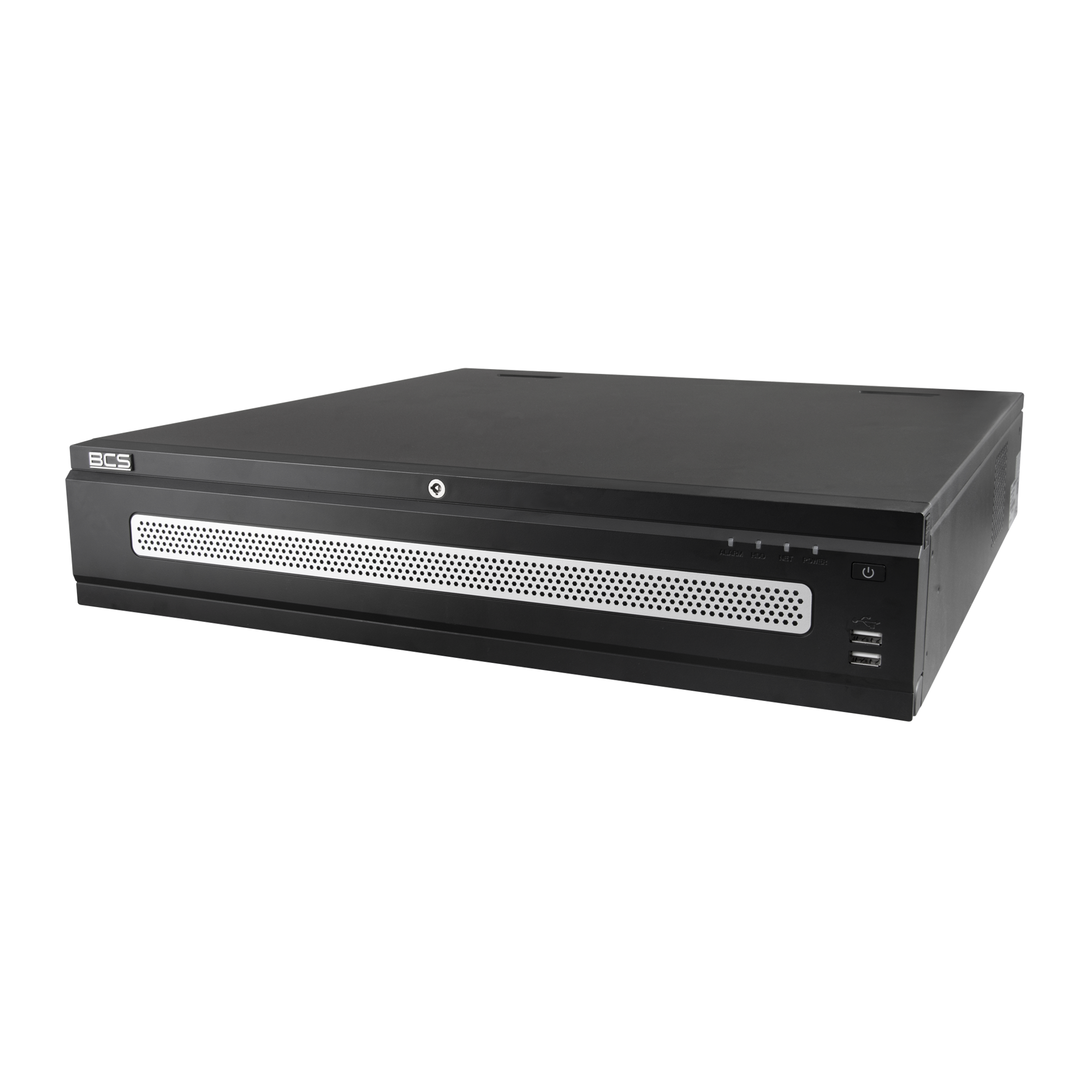

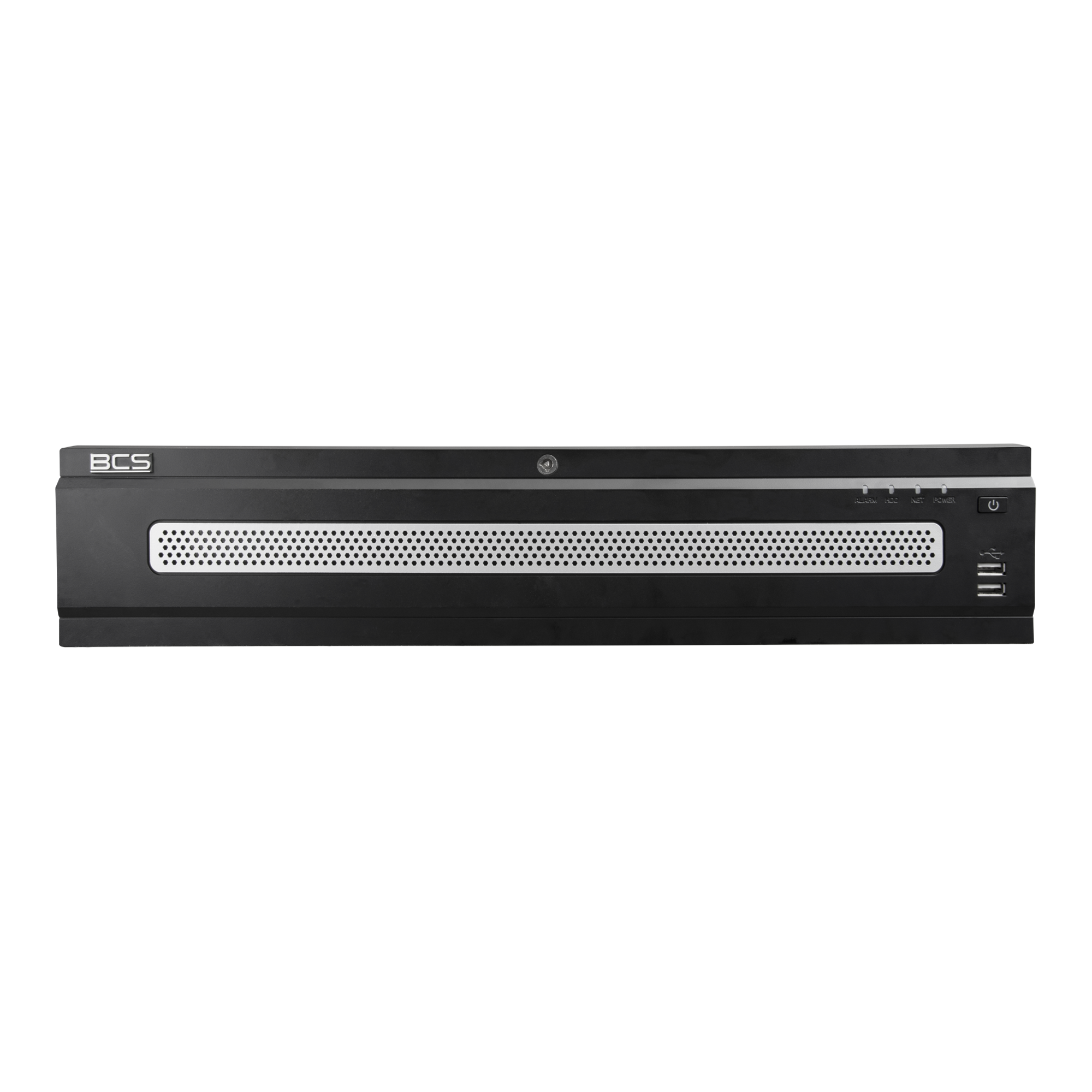

BCS-L-NVR12808XR-A-8K-Ai
8304,96 € gross
8 In Stock- 128-channel IP recorder
- AcuPick technology

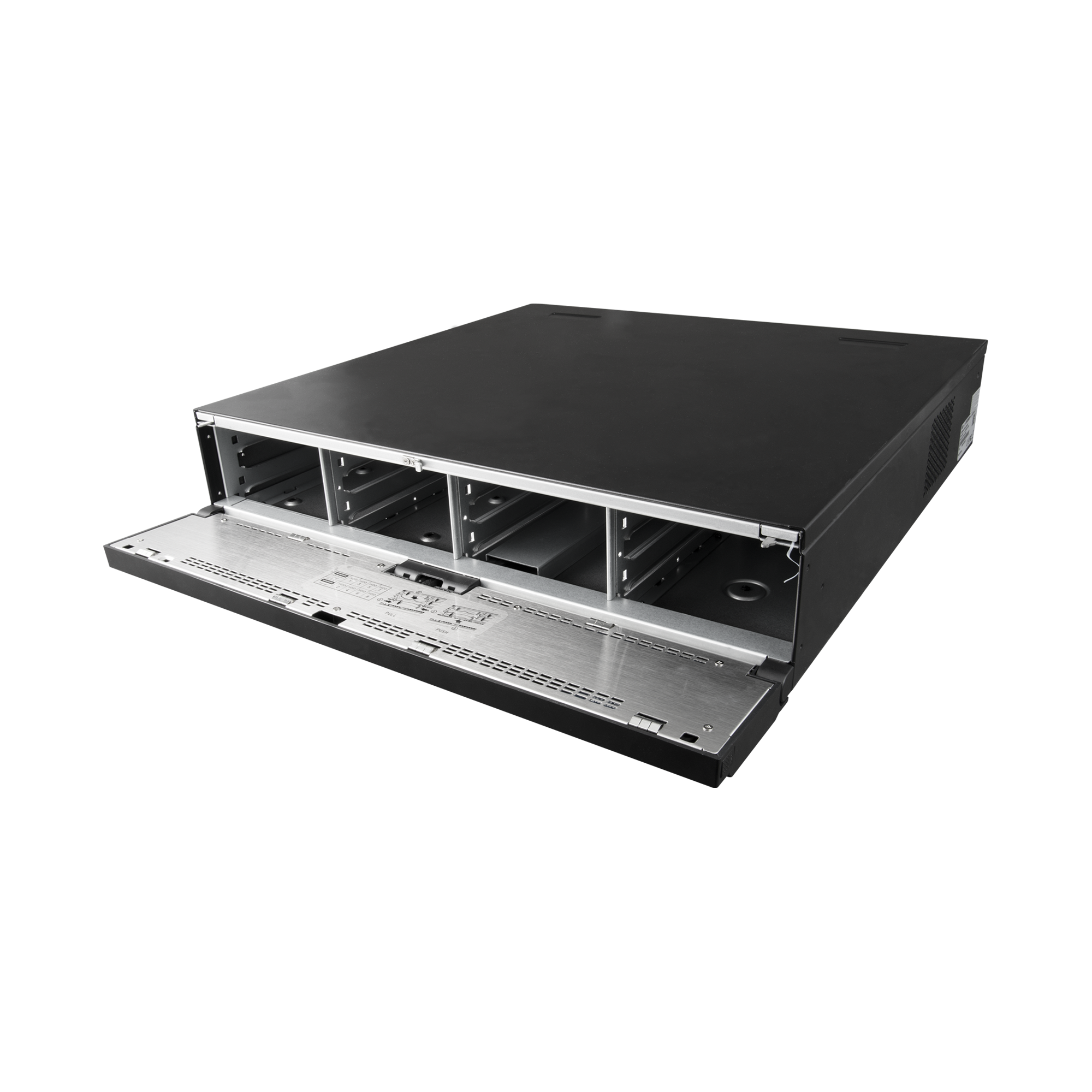

- Supports 8 hard drives
- RAID
- Support for 32Mpx IP cameras
- 16/8 alarm channels, 1/2 audio channels
- HDMI 8K output / 2×HDMI 4K / HDMI / 2×VGA
- Built-in smart features
8 in stock
