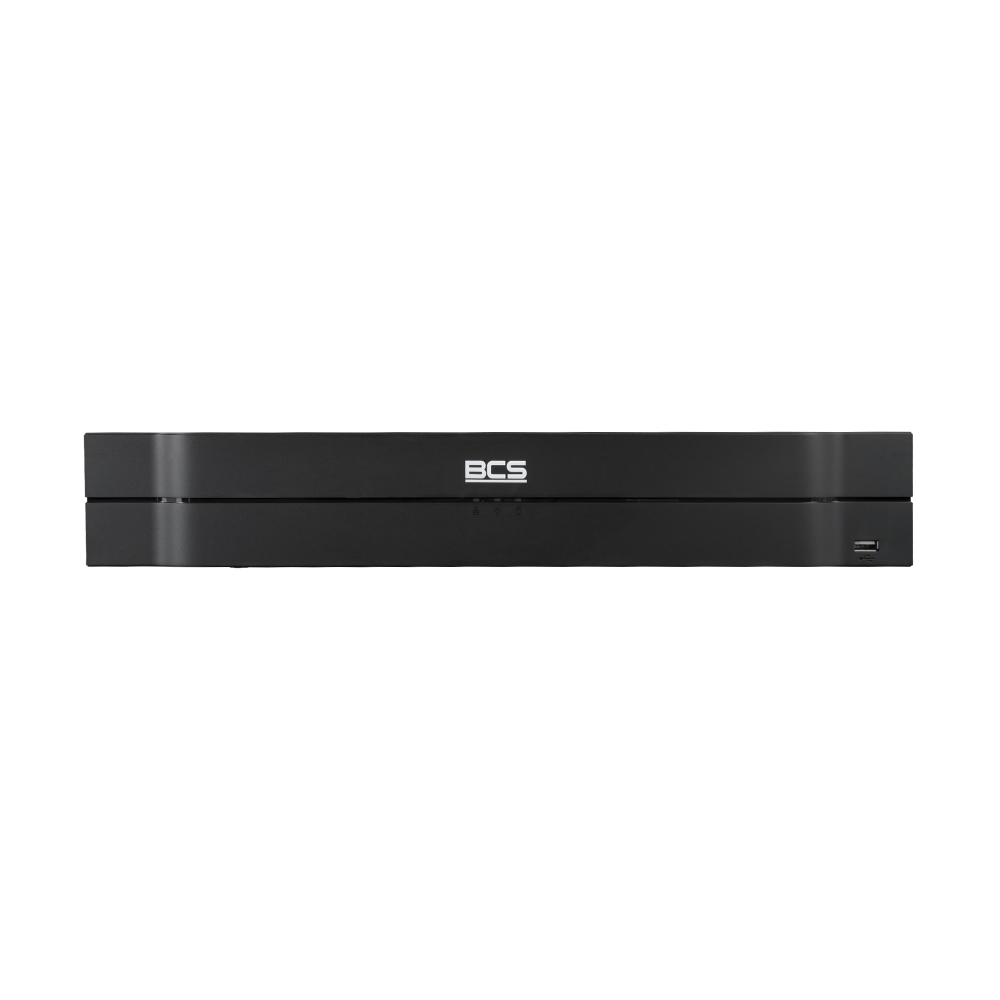

BCS-L-NVR1604-A-8K-16P-Ai2
BCS LINE

BCS-L-NVR1604-A-8K-16P-Ai2

2348,07 € gross

9 In Stock
  • 16-channel IP recorder
  • AcuPick technology
  • Supports 4 hard drives
  • Supports 32Mpx IP cameras
  • Built-in 200W PoE switch
  • 16/6 alarm channels, 1/2 audio channels
  • 2x HDMI 8K / 2x VGA outputs
  • Built-in smart features

9 in stock

  • DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
  • Official BCS e-commerce Business Partner
  • Technical support
SKU: 13024 Categories: , , ,
Power consumption (without HDD)

max 13W
&Ai - Built-in intelligent functions

Yes
Ai - Intelligent functions from recorder

Face detection, face identification, perimeter protection (person/vehicle recognition), metadata, SMD Plus
Ai - Intelligent functions from camera

Face detection, face recognition, metadata (human/vehicle classification), SMD Plus, people gathering, people counting, ARTR, vehicle density, object monitoring, heat map
Ai - SMD - Smart Motion Detection

16 channels from the recorder / 16 channels from cameras
Product

BCS-L-NVR1604-A-8K-16P-Ai2
System

IP
Pentaplex function

Live view / recording / playback / archiving / remote access
Channels

16
HDD support

4
HDD capacity

20 TB
Record mode

Continuous, manual, alarm, motion detection, schedule, Ai
Max recording resolution

32 Mpx
Incoming bandwidth

448Mbps(200Mbps Ai)
Outgoing bandwidth

448Mbps(200Mbps Ai)
Recording bandwidth

448Mbps(200Mbps Ai)
Display efficiency

2×32M@25fps /2×24M@25fps /5×16M@30fps /6×12M@30fps /10×8M@30fps /13×6M@30fps /16×5M@30fps Ai: 1×32M@25fps /2×24M@25fps /4×16M@30fps /5×12M@30fps /8×8M@30fps /10×6M@30fps /12×5M@30fps /16×4M@30fps
Recording resolutions

32M / 24M / 16M / 12M / 8M / 6M / 5M / 4M / 3M / 2M / 1.3M / 720P / D1 / CIF / QCIF
Video compression

H.265+ / H265 / H.264+ / H.264 / MJPEG
HDMI out

2×HDMI8K
VGA out

2×VGA
HDMI display resolutions

7680×4320 / 3840×2160 / 1920×1080 / 1280×1024 / 1280×720
VGA display resolutions

1920×1080 / 1280×1024 / 1280×720
Display split

Main screen: 1/4/8/9/16 Second screen: 1/4/8/9/16
Recording

continuous recording, with motion detection (with recording before and after detection), alarm (with pre- and post-alarm recording), cyclic (overwriting), Ai
Synchronous playback

1/4/9/16
Archiving

Possibility to download material to external media such as USB FLASH, USB HDD
User connections

128
Interfaces

1×USB2.0, 2×USB3.0, eSATA
Serial port

RS232, RS485
Audio in

1
Audio out

2
Audio compression

G.711A / G.711U / G.726 / PCM
Alarm in

16
Alarm out

6
Alarm

Motion detection, signal lost,, sabotage, scene change, PIR, IPC, Ai functions, offline, HDD, IP, MAC, login
Support

Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
Network

2×RJ-45 10/100/1000Mbps
Compatibility

ONVIF(S/G/T/M), support for cameras from other manufacturers
PTZ control

Inteligent 3D positioning with PTZ cameras BCS LINE series.
Protocols

HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, FTP, SFTP, DHCP, DNS, SMTP, UPnP, DDNS, SNMP, Alarm Server, IP Search, Multicast, P2P, Auto Registration, iSCSI
Standard

IEEE 802.3 af/at
Switch PoE power

200W max 25.5W/port
PoE channels

16
ePoE & EoC

Port 1~8
Power supply

100~240V AC
Working environment

-10°C~+55°C max 93% RH
Casing

1.5U
Dimensions (W×D×H)

440×416×76mm
Weight (without HDD)

4.56 kg
POS

Posnet
Ai - Perimeter protection

8 channels from the recorder, 10 rules per channel / 16 channels from cameras
&Ai - Object classification

Yes
Ai - Face detection

4 channels from the recorder (12 images/s) / 16 channels from cameras / facial attributes (gender, age, glasses, facial expression, mask, facial hair)
&Ai - SMD

Yes
Ai - Face recognition
Ai - Metadata
Ai - Smart search

AcuPick technology – intelligent search for human/vehicle objects in the recording history with camera with the AcuPick function
Ai - ARTR

16 camera channels / black and white list of 20,000 items
