| Ai - Face recognition | 6 channels from camera |
|---|---|
| Ai - SMD - Smart Motion Detection | 2 kanały z rejestratora (rozpoznawanie osoba/pojazd mechaniczny), 6 kanałów z kamer |
| Channels | 32 |
| Record mode | Continuous, manual, alarm, motion detection, schedule, Ai |
| Outgoing bandwidth | 60Mbps |
| Power consumption (without HDD) | max 10W |
| Ai - Intelligent functions from recorder | SMD Plus |
| Ai - Intelligent functions from camera | Face Detection, Face Identification, Perimeter Protection (Person/Vehicle Recognition), SMD Plus, People Counting, Heat Map |
| Video compression | H.265+ / H265 / H.264+ / H.264 / MJPEG |
| Product | BCS-L-NVR3202-A-4KE(2L) |
| HDD capacity | 20 TB |
| System | IP |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| HDD support | 2 |
| Max recording resolution | 12 Mpx |
| Incoming bandwidth | 160Mbps(80Mbps Ai) |
| Recording bandwidth | 128Mbps(80Mbps Ai) |
| Display efficiency | Ai Wył: 1× 12 M@30fps, 2× 8 M@30fps, 3× 5 M@30fps, 4× 4 M@30fps, 8× 1080p@30fps AI Wł: 1× 12 M@30fps, 1× 8 M@30fps, 2× 5 M@30fps, 3× 4 M@30fps, 7× 1080p@30fps |
| Recording resolutions | 12 M / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / 960p / 720p / D1 / CIF / QCIF |
| HDMI out | HDMI4K |
| VGA out | VGA |
| HDMI display resolutions | Simultaneous with VGA: 3840×2160 / 1920×1080 / 1280×1024 / 1280×720 Independent VGA: 1920×1080 / 1280×1024 / 1280×720 |
| VGA display resolutions | 1920×1080 / 1280×1024 / 1280×720 |
| Display split | Main screen: 1/4/8/9/16/25/36 Second screen: 1/4/8/9/16 Ai: Main screen: 1/4/8/9/16 Second screen: 1/4/8/9/16 |
| Recording | continuous recording, with motion detection (with recording before and after detection), alarm (with pre- and post-alarm recording), cyclic (overwriting), Ai |
| Synchronous playback | 1/4/9/16 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| Interfaces | 2×USB2.0 |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U / G.726 / PCM |
| Alarm in | 4 |
| Alarm out | 2 |
| Alarm | Motion detection, signal lost,, sabotage, scene change, PIR, IPC, Ai functions, offline, HDD, IP, MAC, login |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | RJ-45 10/100/1000Mbps |
| Compatibility | ONVIF(S/G/T), support third party cameras |
| PTZ control | Inteligent 3D positioning with PTZ cameras BCS LINE series. |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration, IP Search |
| Power supply | 12V DC |
| Working environment | -10°C~+55°C max 93% RH |
| Casing | 1U |
| Dimensions (W×D×H) | 375×282×53mm |
| Weight (without HDD) | 1.49 kg |
| Ai - Perimeter protection | 6 channels from camera |
| Ai - Face detection | 6 channels from camera |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
Save 62%
BCS LINE

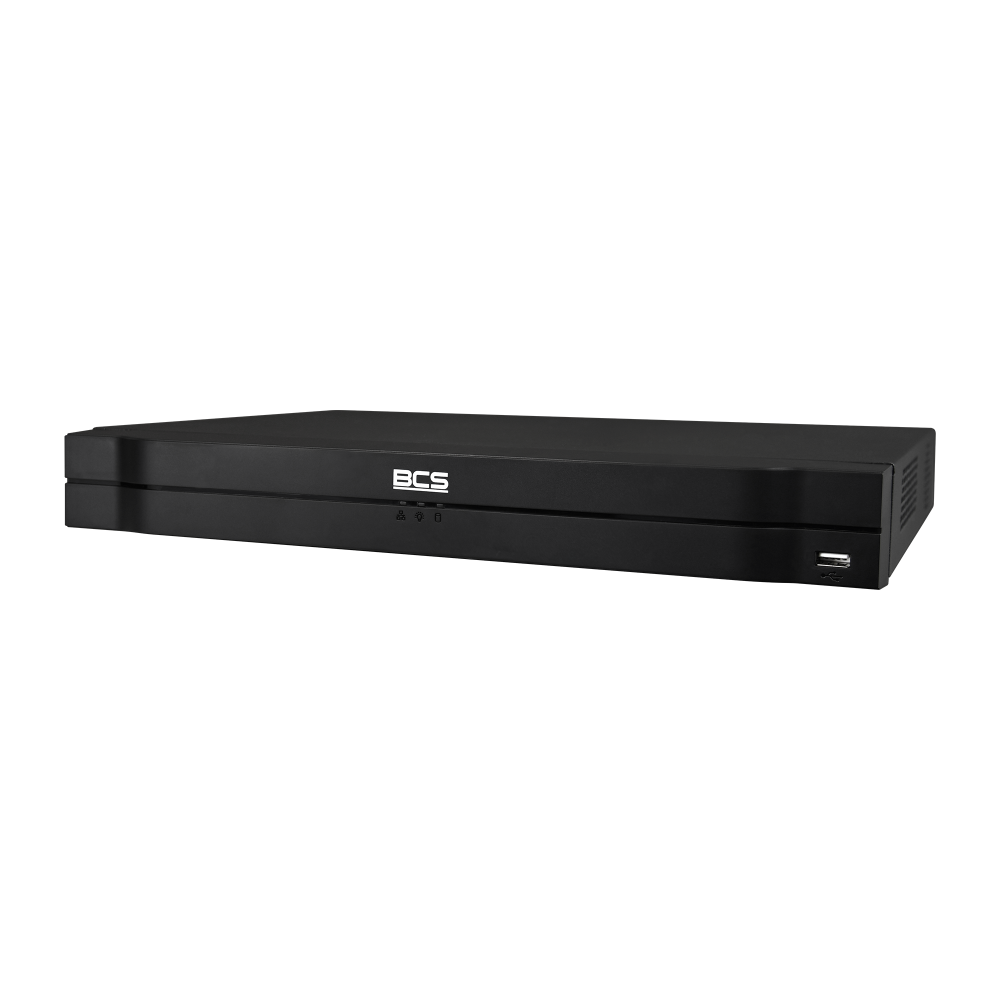

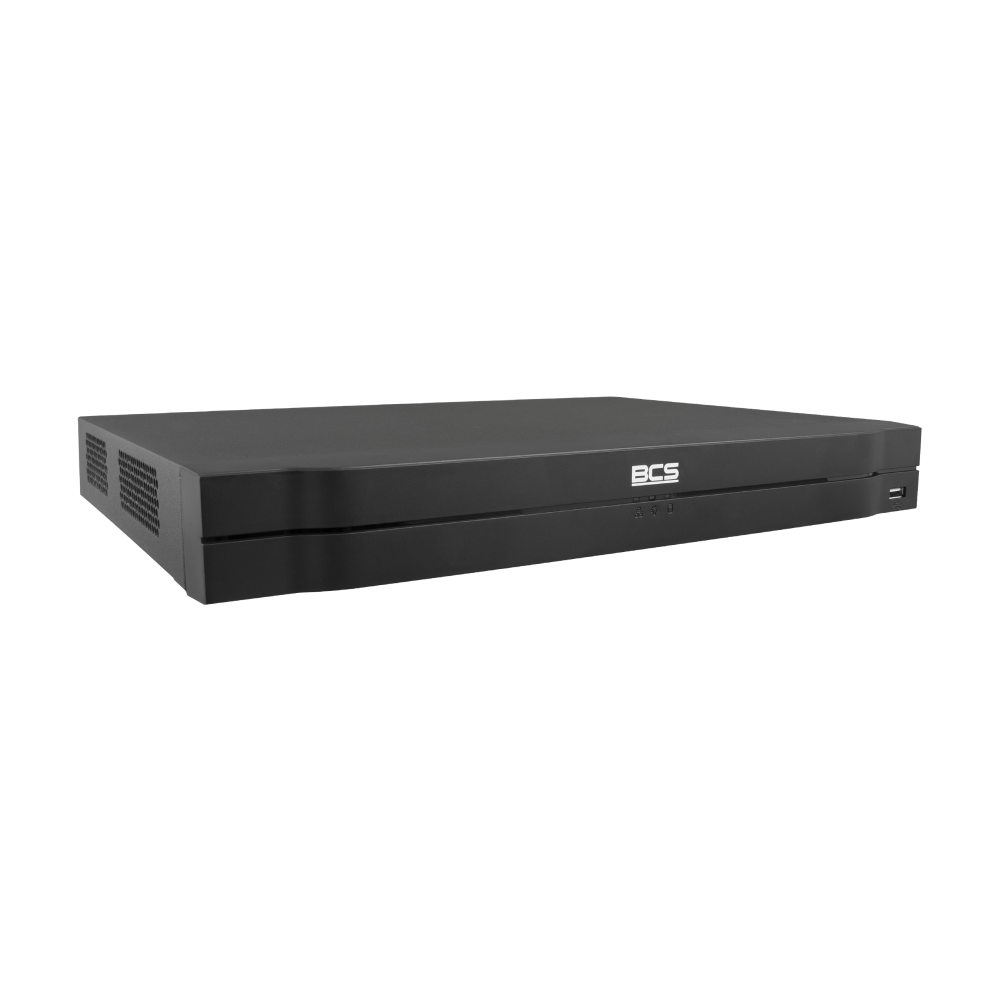

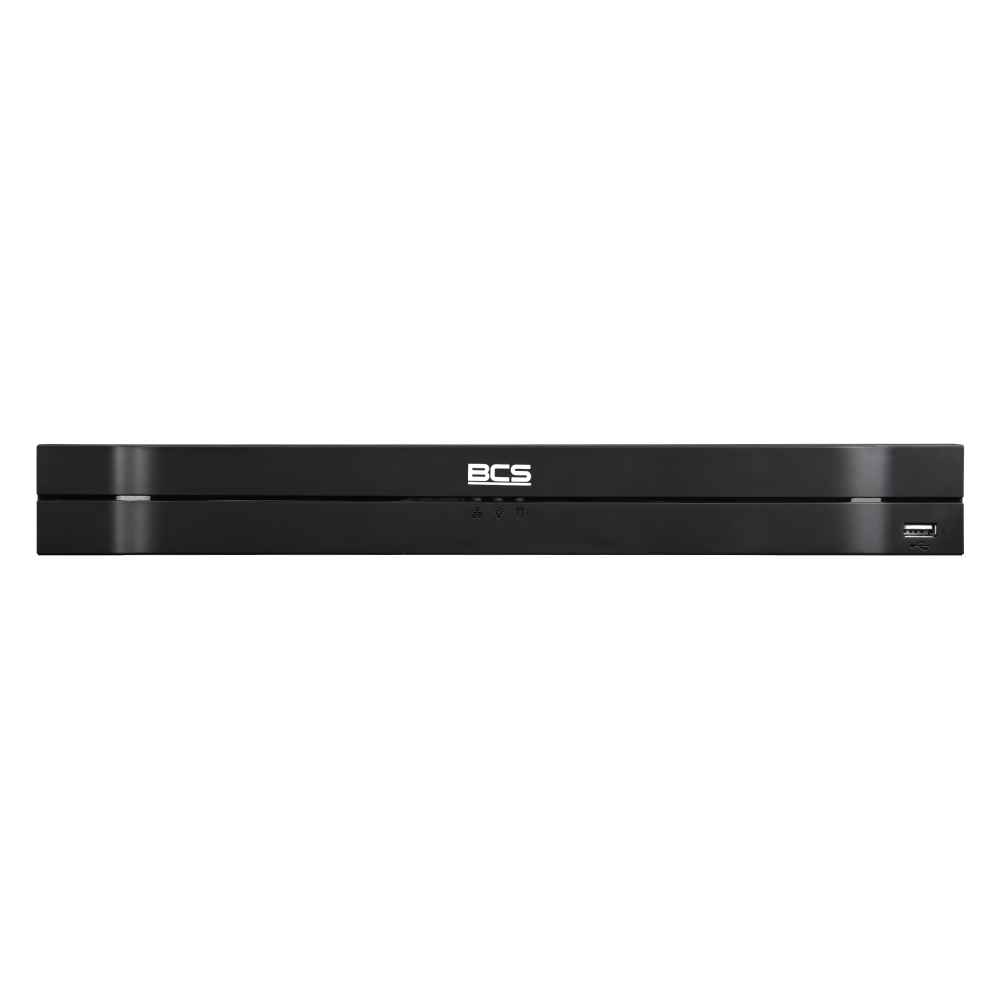

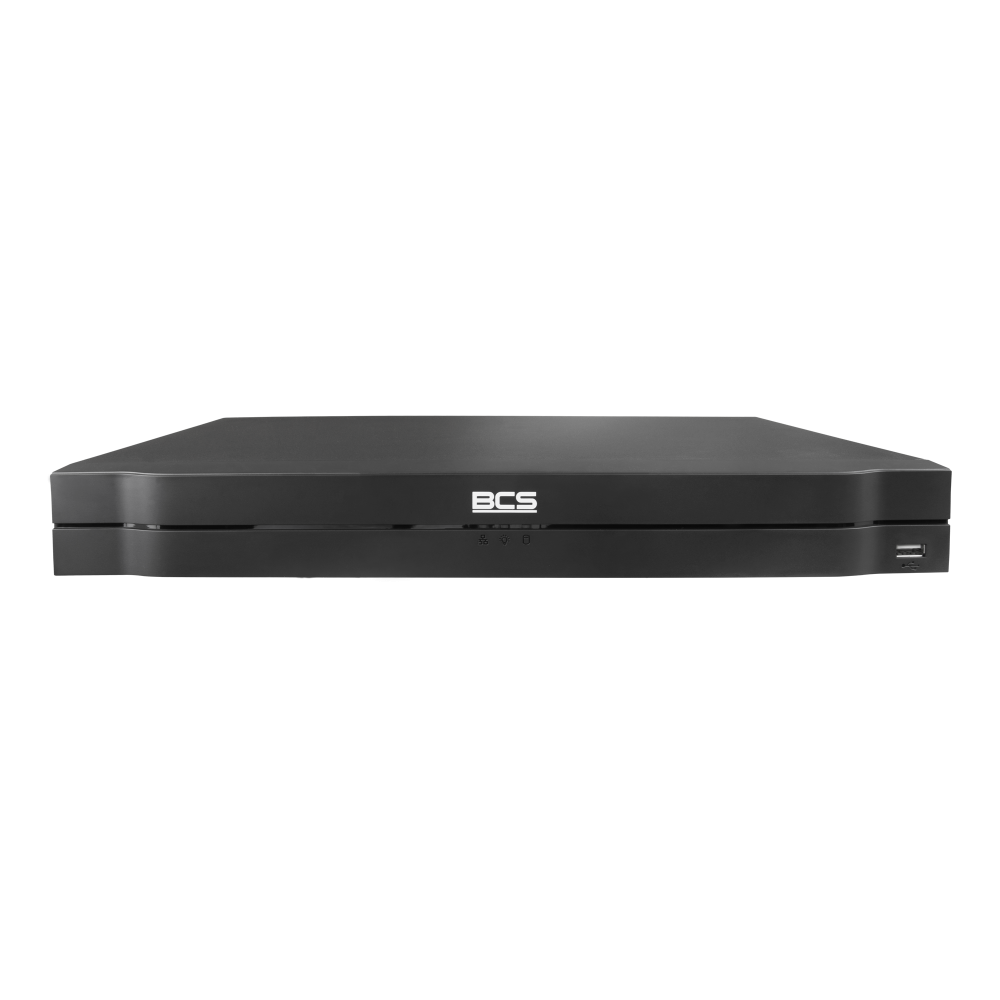

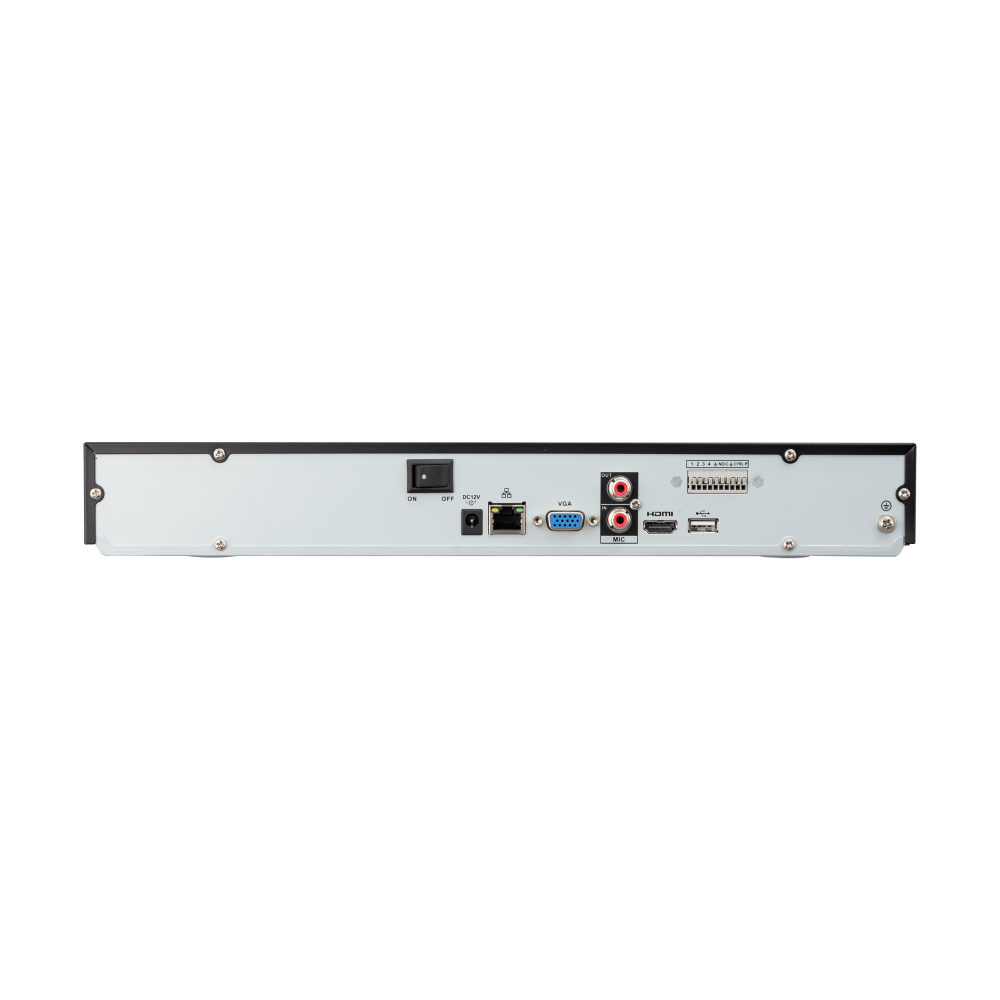

BCS-L-NVR3202-A-4KE(2L)
228,74 € gross
100 In Stock- 32-channel IP network video recorder
- Supports 2 hard drives
- Supports 12Mpx IP cameras
- 4/2 alarm channels, 1/1 audio channels
- HDMI 4K/VGA output
100 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
