| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion and fast moving reduces false alarms |
|---|---|
| Product | BCS-L-PCIP44FSR2-Ai2 |
| Camera type | Multi-sensor |
| Sensor | 2×1/2.8'' CMOS |
| RAM | 1GB |
| Aperture | F1.6 |
| Angle of view | H: 95° V: 52° D: 114° |
| White balance | (AWB) Auto / manual |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Noise reduction | 3D DNR |
| Flag | TO ORDER |
| Resolution | 4 Mpx |
| Scanning system | Progressive Scan |
| Pixels | 2560(H)×1440(V) |
| ROM | 4GB |
| Lens | fixed |
| Focal length | 2 x 2.8 mm |
| Focus | fixed |
| Iris | fixed |
| Digital zoom | 16× |
| DORI | Detect 64m/ Observe 25m/ Recognize 13m/ Identify 6m |
| Min illumination | 0.005Lux(F1.6,30IRE) 0.0005Lux(B/W,F1.6,30IRE) 0Lux(IR) |
| S/N ratio | 56dB |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) / SSA |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Stream support | 3 |
| Resolutions | 4M(2560×1440) / 3M(2304×1296)(2048×1536) /2M(1920×1080) / 1.3M(1280×960) / 720P(1280×720) / VGA(640×480) / D1(704×576/704×480) / CIF(352×288/352×240) |
| Main stream | 2560×1440(1~25/30fps) |
| Second stream | 704×576(1~25fps) / 704×480(1~30fps) |
| Third stream | 1920×1080(1~25/30fps) |
| Bitrate | H.264: 32Kbps~8192Kbps H.265: 12Kbps~8192Kbps |
| Video compression | H.265+ / H.264+ / H.265 / H.264 / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 20m |
| Microphone | Yes |
| Loudspeaker | Yes |
| Audio in | 2 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / PCM |
| Alarm in | 2 |
| Alarm out | 2 |
| Memory card slot | microSD 512GB |
| Other interfaces | RS485, BNC |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100/1000 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, SNMP, P2P |
| Power supply | PoE |
| Power supply type | 12VDC / PoE(802.3af) |
| Power consumption | max12.9 W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Working environment | -40°C~+60°C max 95% RH |
| Dimensions | 204×78×62mm |
| Weight | 0.82 kg |
| Ai - Perimeter protection | Intrusion, crossline, fast moving, loitering, people gathering, parking detection |
| Ai - Smart object detection | Intelligent detection missing/abandoned objects |
| &Ai - Object classification | Yes |
| Ai - People counting | People counting for intrusion and crossline, counting people in/out/stay in, queue management, generate and export reports in periods of time |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE
BCS-L-PCIP44FSR2-Ai2
1327,17 € gross

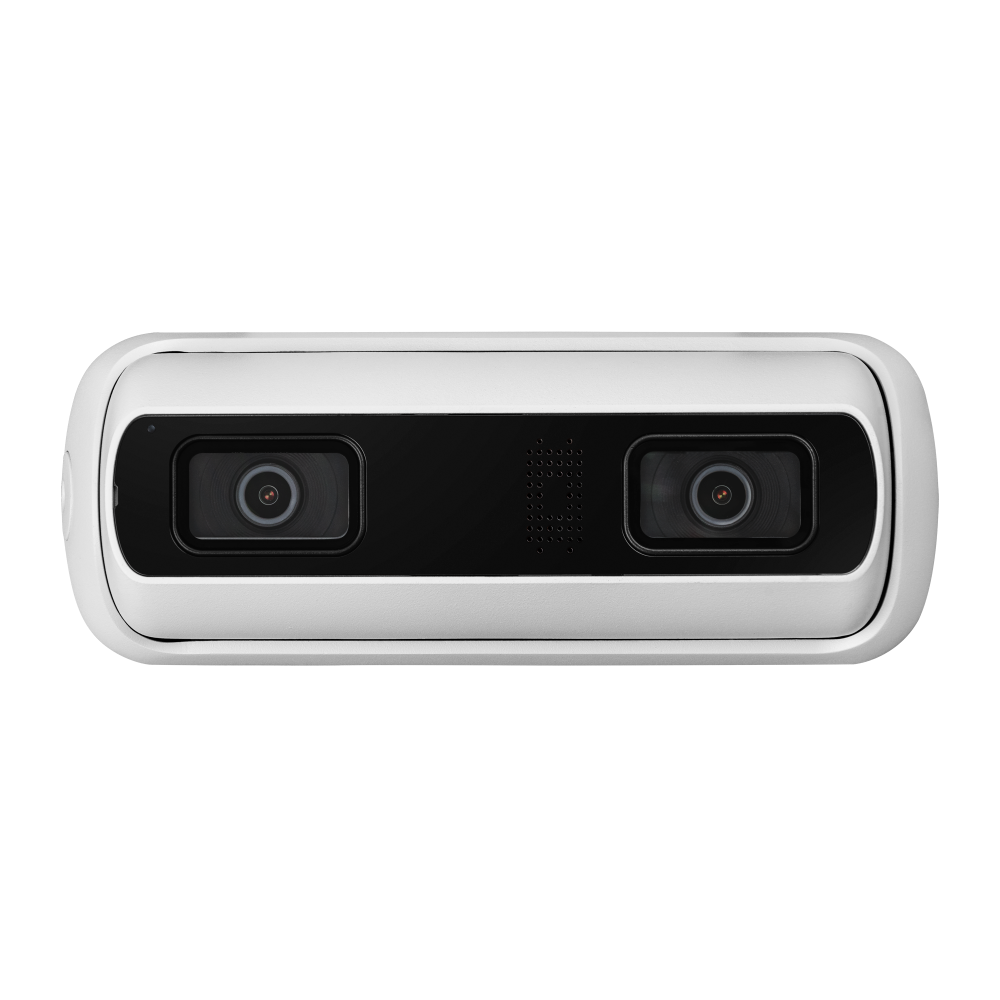

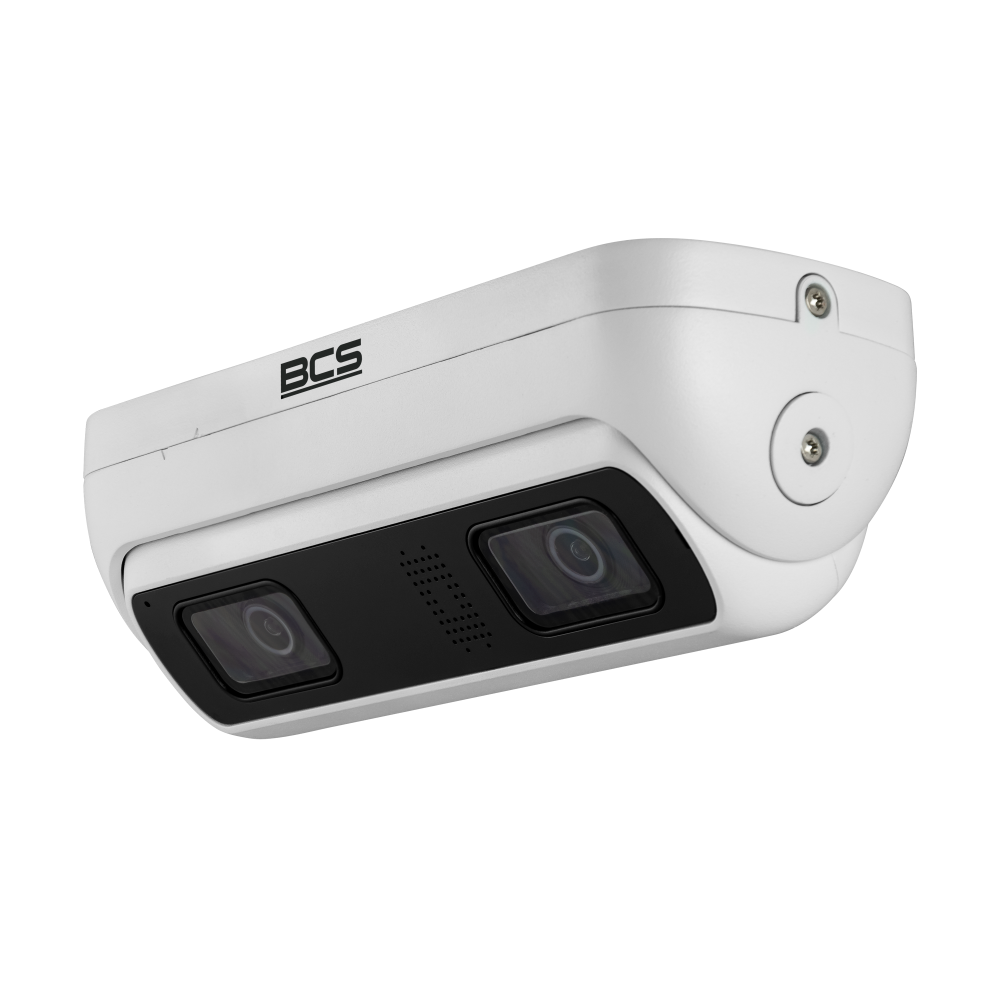

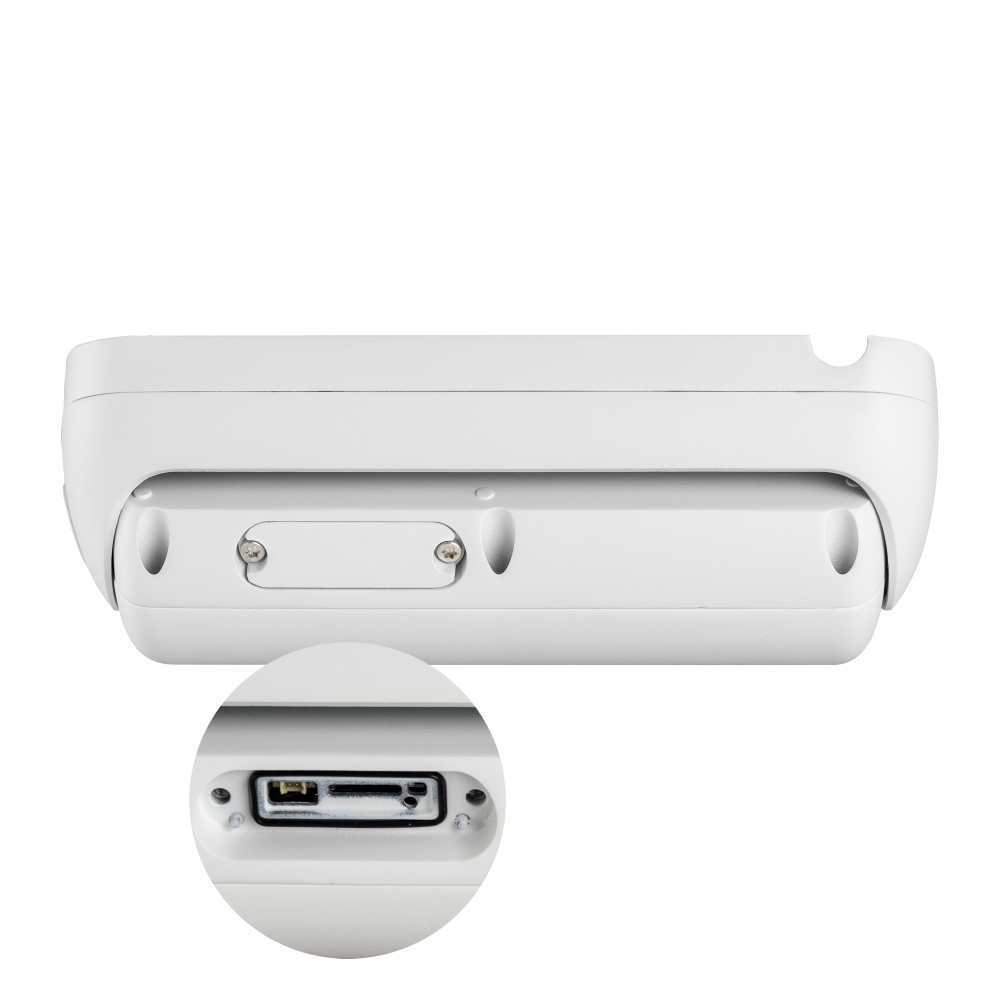

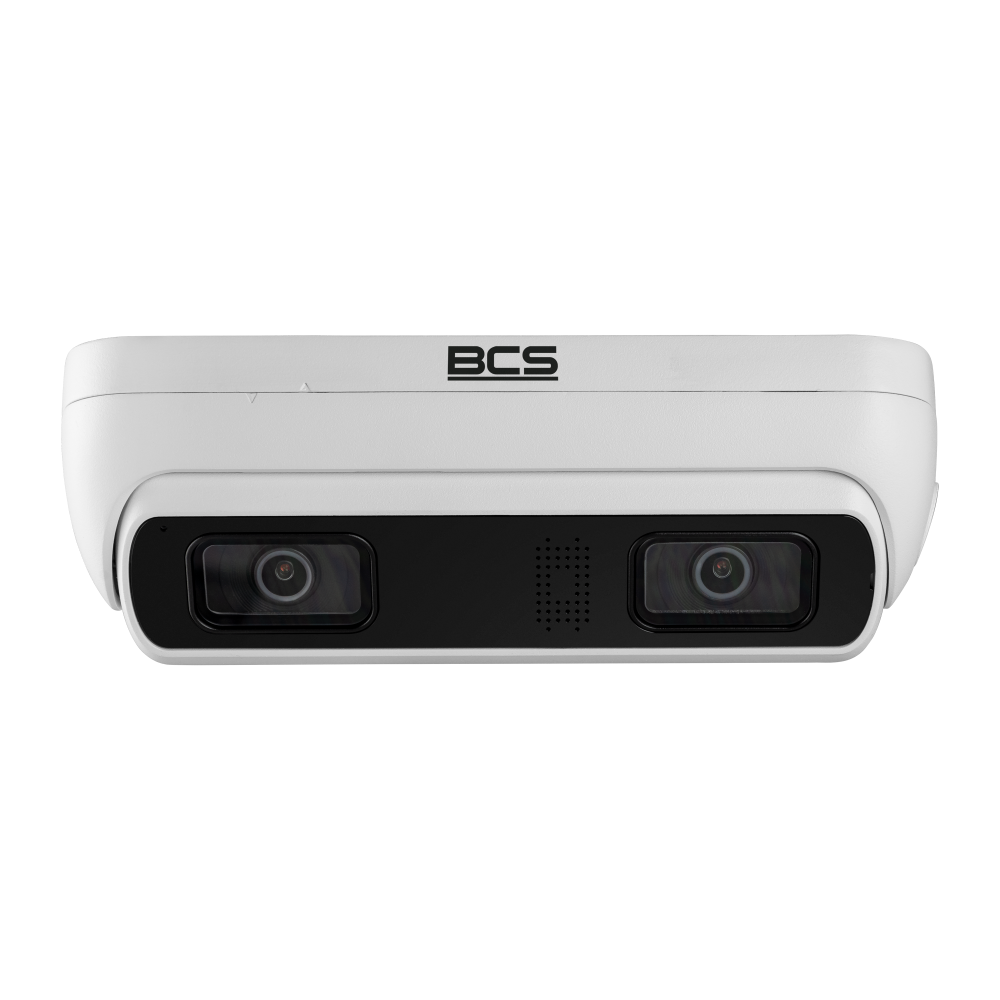

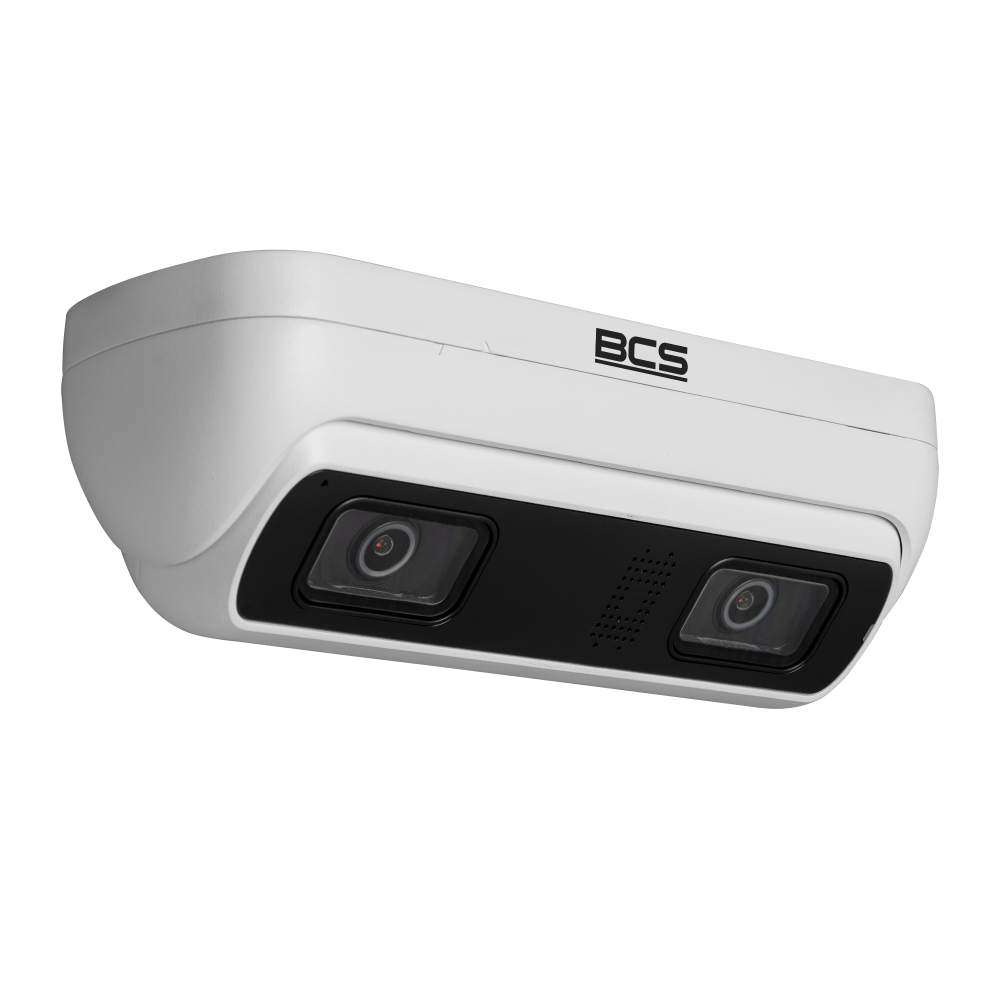

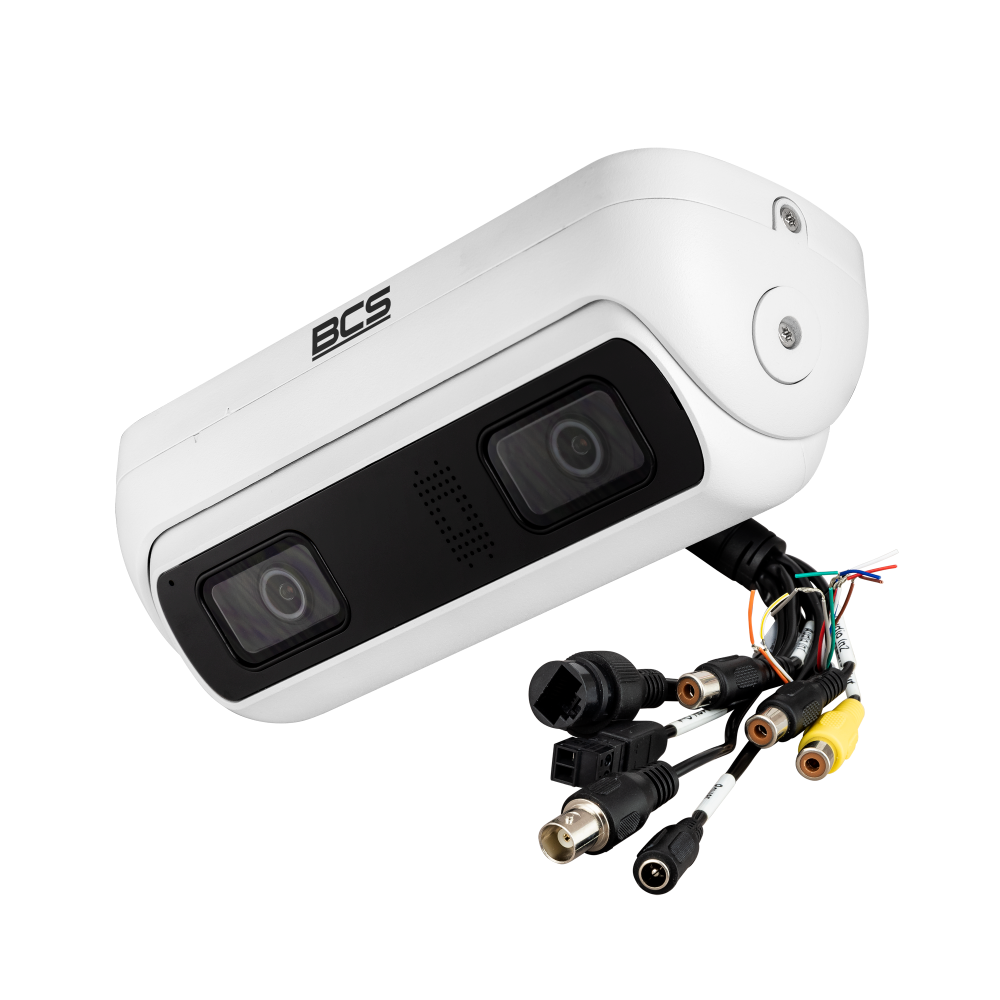

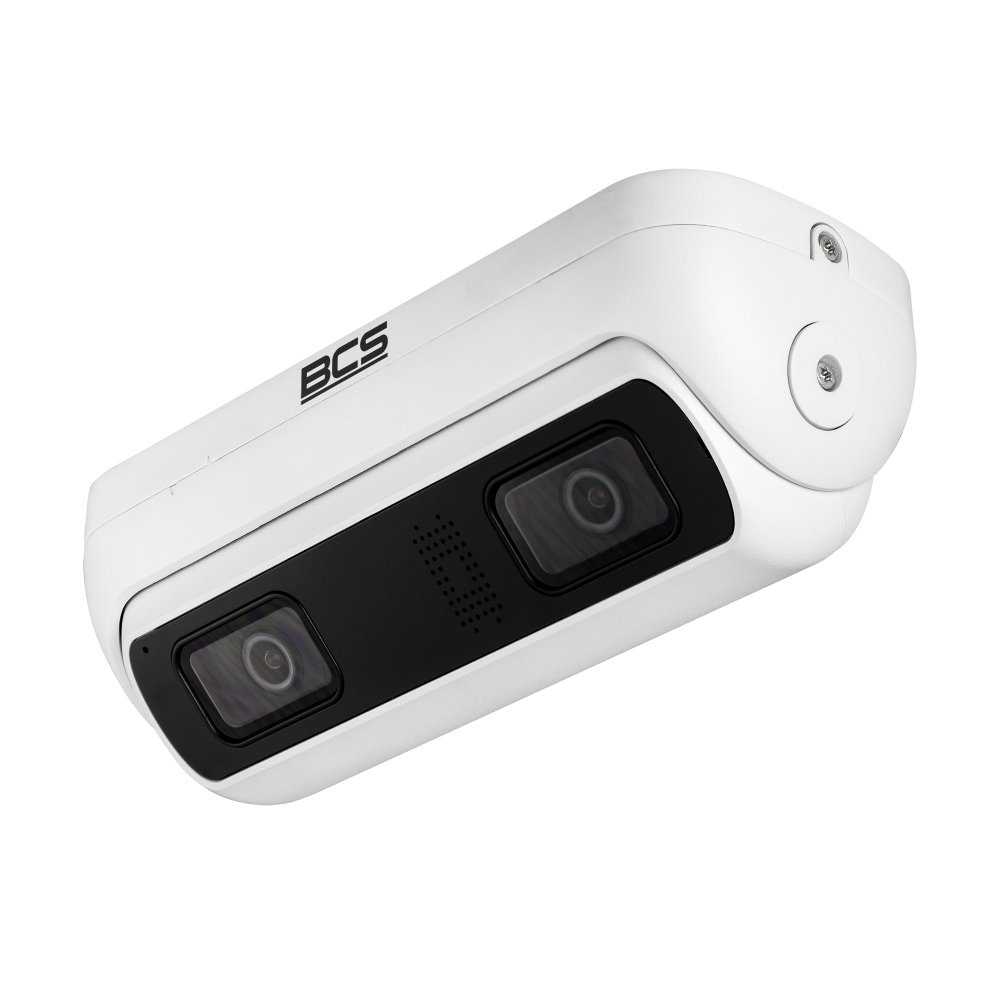

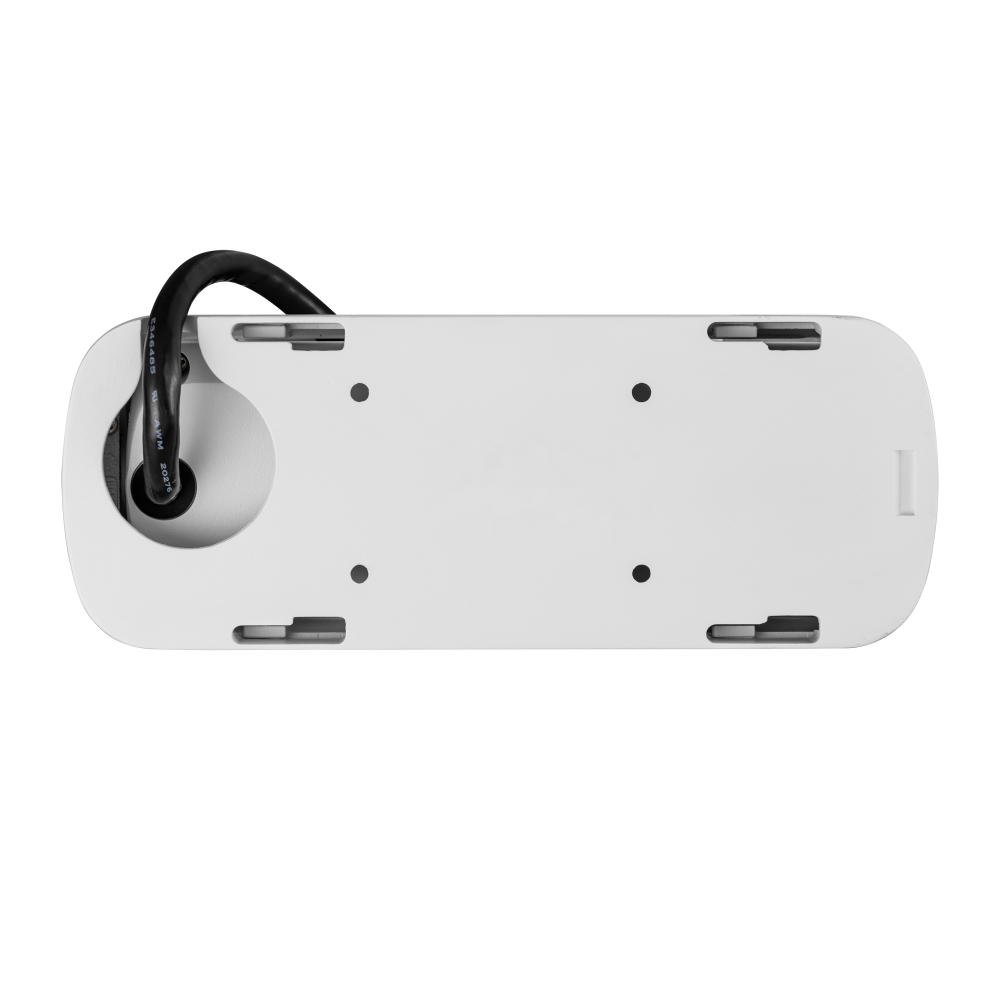

Out of Stock- 4Mpx dual-sensor IP camera
- For people counting
- 2x 1/2.8" PS CMOS sensors
- SkyLight technology
- 2x 2.8mm fixed lenses
- WDR 120dB
- IR 20m
- Alarm 2/2, audio 2/1, microphone, speaker
- IP67 housing. IK10
- Built-in smart features
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
