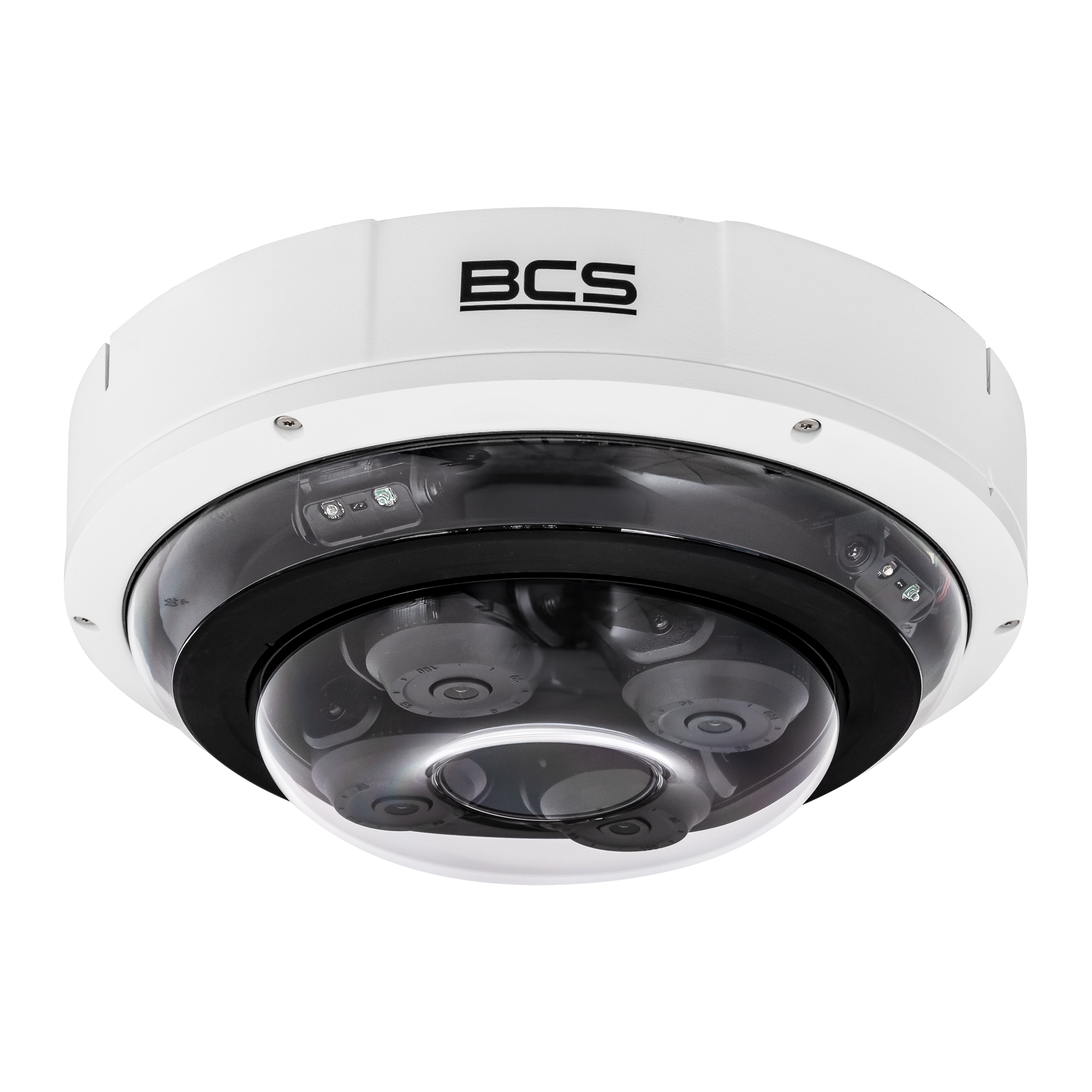

Dome IP camera, sensor 4 x 1/2.7″ 5 Megapixel progressive scan CMOS, video compression H.265 + / H.264 / MJPEG, support for three video streams, resolution when combined images 8M (3296 x 2472), 25 fps at 2592 × 1944, combined stream: 25fps at 1080p, third stream 25fps at 8MP, extended dynamics function 4 x WDR 120dB, BLC HLC, ICR Day / Night support, built-in IR LED illuminator – range up to 30 meters, Smart IR
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
Save 70%
BCS LINE
BCS-L-PDIP4X5VSR3-Ai2
994,75 € gross
1 In Stock- 5Mpx multi-sensor dome IP camera
- 4x 1/2.7" PS CMOS sensors
- SkyLight technology
- 4x 2.8–12 mm motorised zoom lens
- IR range: 30m
- Alarm 3/2, audio 1/1
- IP67, IK10 housing
- Built-in smart features
1 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Ai - People counting | People counting for intrusion and crossline, counting people in/out/stay in, queue management, generate and export reports in periods of time |
|---|---|
| Resolution | 5 Mpx |
| Scanning system | Progressive Scan |
| ROM | 8 GB |
| Focus | Auto / manual |
| Angle of view | H: 100°~42° V: 74°~32° D: 133° ~53° |
| White balance | (AWB) Auto / manual |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Noise reduction | 3D DNR |
| Product | BCS-L-PDIP4X5VSR3-Ai2 |
| Camera type | Panoramic |
| Sensor | 4×1/2.7'' CMOS |
| Pixels | 2592(H)×1944(V) |
| RAM | 4 GB |
| Lens | motozoom |
| Focal length | 2.8~12 mm |
| Aperture | F1.7 |
| Iris | Auto |
| Optical zoom | 4× |
| Digital zoom | 16× |
| DORI | Detect 66~140m / Observe 26~56m / Recognize 13~29m / Identify 7~14m |
| Min illumination | 0.005Lux(Color,F1.7,30IRE) 0.0005Lux(B/W,F1.7,30IRE) 0Lux(IR) |
| S/N ratio | 56dB |
| WDR | DWDR |
| Backlight compensation | BLC / HLC / DWDR |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Second stream | SINGLE: 704×576(1~25fps) 704×480(1~30fps) FLEX: 704×576(1~25fps) 704×480(1~30fps) |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Stream support | 3 |
| Main stream | SINGLE: 2592×1944(1~25/30fps) FLEX: 1600×1200(1~25/30fps) |
| Third stream | SINGLE: 1920×1080(1~25/30fps) FLEX: 3296×2472(1~25/30fps) |
| Bitrate | H264: 32Kbps~17152Kbps H265: 12Kbps~10240Kbps |
| Video compression | H.265 / H.264 / H.264B / H.264H / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 30m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / PCM |
| Alarm in | 3 |
| Alarm out | 2 |
| Memory card slot | microSD 256GB |
| Other interfaces | RS485 |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 8 |
| Network | RJ-45 10/100/1000 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3at) |
| Power consumption | max 24.7W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Anti-corrosion | Optional |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | 286.1×111.3mm |
| Weight | 2.75 kg |
| Ai - Perimeter protection | Crossline, intrusion |
| Ai - Smart object detection | Intelligent detection missing/abandoned objects |
| &Ai - Object classification | Yes |
| Ai - Face detection | Face detection and tracking, snapshot, attributes and expression recognition |
| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion reduces false alarms |
