| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion reduces false alarms |
|---|---|
| Ai - SMD - Smart Motion Detection | SMD 4.0 |
| Product | BCS-L-PEIP2X4FCR2L2-Ai1 |
| Camera type | Dome |
| Sensor | 2×1/2.7'' CMOS |
| RAM | 1GB |
| Aperture | F1.4 |
| Active deterrence function ADC | Sound-optical alarm |
| Angle of view | H: 180° V: 86° |
| WDR | 120dB |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| RoI | Region of Interest |
| Resolution | 8 Mpx |
| Scanning system | Progressive Scan |
| Pixels | 4096(H)×1860(V) |
| ROM | 128MB |
| Lens | fixed |
| Focal length | 2×2.8 mm |
| Focus | fixed |
| Iris | fixed |
| Digital zoom | 16× |
| DORI | Detect 51m / Observe 20m / Recognize 10m / Identify 5m |
| Min illumination | 0.005Lux(Color,F1.4,30IRE) 0.0005Lux(B/W,F1.4,30IRE) 0Lux(IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| Backlight compensation | BLC / HLC / WDR(120dB) / SSA |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Defog | Electronic |
| Stream support | 3 |
| Resolutions | 4096×1860 /3632×1632 /3040×1368 /1200×530 /1920×860 /960×432 |
| Main stream | 4096×1860(1~20fps) |
| Second stream | 1200×530(1~20fps) |
| Third stream | 1920×860(1~20fps) |
| Bitrate | H264: 6Kbps~16384Kbps H265: 6Kbps~16384Kbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / H.264H / H.264B / MJPEG / Ai Coding |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED + WhiteLight |
| IR range | 25m |
| WhiteLight range | 20m |
| NightColor | Yes |
| Microphone | Yes |
| Loudspeaker | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / PCM |
| Alarm in | 1 |
| Alarm out | 1 |
| Storage | FTP, SFTP, NAS |
| Memory card slot | microSD 256GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P |
| Network security | |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 11W |
| Housing color | White |
| IP class | IP67 |
| Working environment | -40°C~+60°C max 95% RH |
| Dimensions | Ø122×135.2mm |
| Weight | 0.99 kg |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

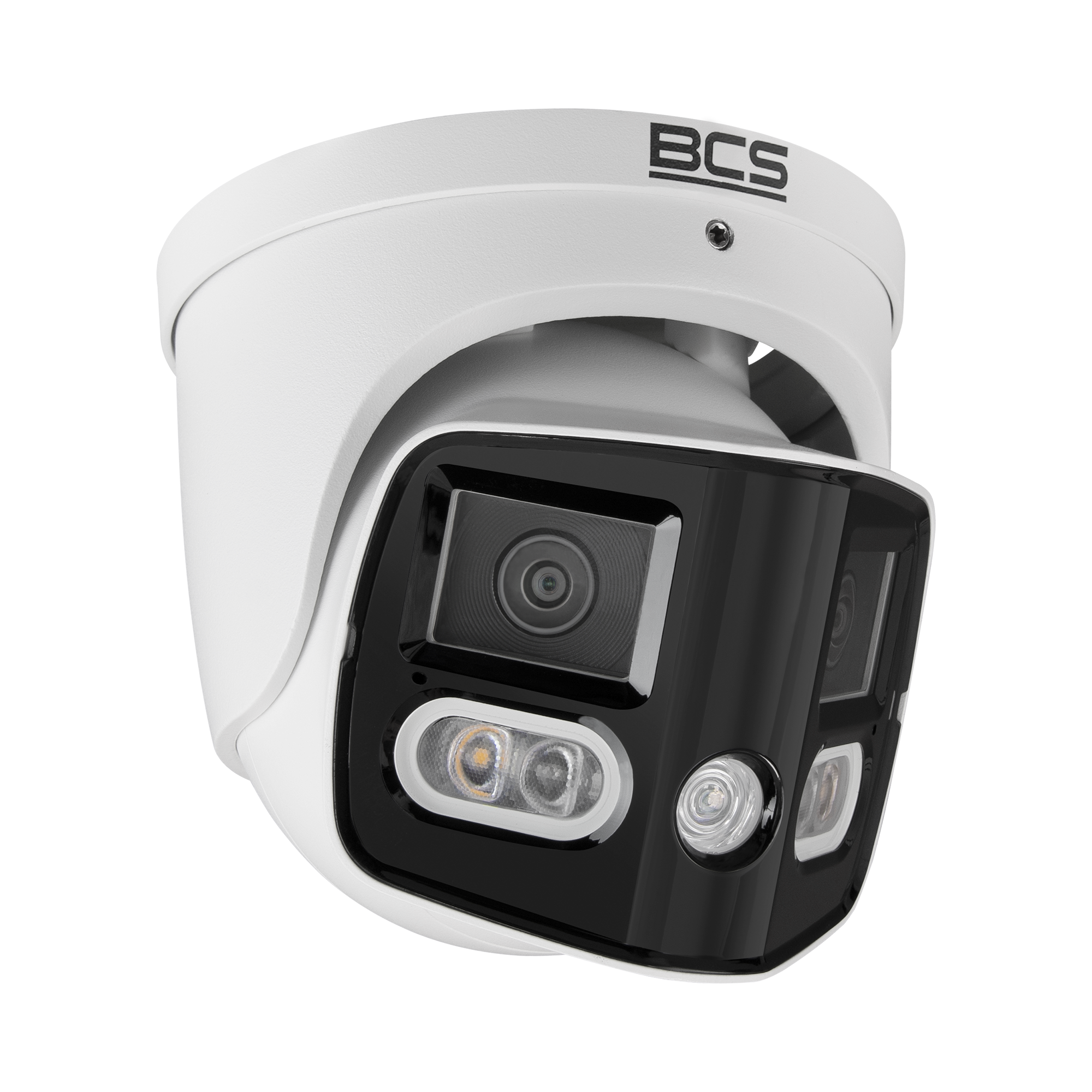

BCS-L-PEIP2X4FCR2L2-Ai1
681,42 € gross
19 In Stock- 8Mpx IP dome camera
- 2×1/2.7" PS CMOS sensor
- Panoramic image, horizontal field of view: 180°
- NightColor technology
- ADC technology
- 2x 2.8mm fixed lens
- WDR 120 dB
- IR 25m, WhiteLight 20m
- Alarm 1/1, audio 1/1, microphone, speaker
- IP67-rated housing
- Built-in smart features
19 in stock
