| Ai - Perimeter protection | Crossline, intrusion |
|---|---|
| Resolution | 4 Mpx |
| Scanning system | Progressive Scan |
| ROM | 128MB |
| Focus | fixed |
| DORI | Detect 61m/ Observe 24m/ Recognize 12m/ Identify 6m |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Product | BCS-L-PIP14FW |
| Camera type | Pinhole |
| WDR | 120dB |
| Sensor | 1/3'' CMOS |
| Pixels | 2688(H)×1520(V) |
| RAM | 128MB |
| Lens | fixed |
| Focal length | 2.8 mm |
| Aperture | F2.0 |
| Iris | fixed |
| Digital zoom | 16× |
| Angle of view | H: 96° V: 55° D: 110° |
| Min illumination | 0.01Lux(Color,F2.0,30IRE) 0.001Lux(F2.0,IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Image rotate | Mirror, Flip 0°/90°/180°/270° |
| Stream support | 2 |
| Resolutions | 4M(2688×1520)(2560×1440) /3M(2304×1296) /2M(1920×1080) /1.3M(1280×960) /720P(1280×720) /D1(704×576/704×480) /VGA(640×480) /CIF(352×288/352×240) |
| Main stream | 2688×1520(1~20fps) 2560×1440(1~25/30fps) |
| Second stream | 704×576(1~25fps) 704×480(1~30fps) |
| Bitrate | H.264: 3Kbps~6144Kbps H.265: 3Kbps~6144Kbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Microphone | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.726 / PCM |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/T) |
| Protocols | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, Bonjour |
| Power supply | 12V DC |
| Power supply type | 12V DC |
| Power consumption | max 1.8W |
| Housing color | Black |
| Working environment | -40°C~+60°C max 95% RH |
| Dimensions | 31× 31×30mm |
| Weight | 81g |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

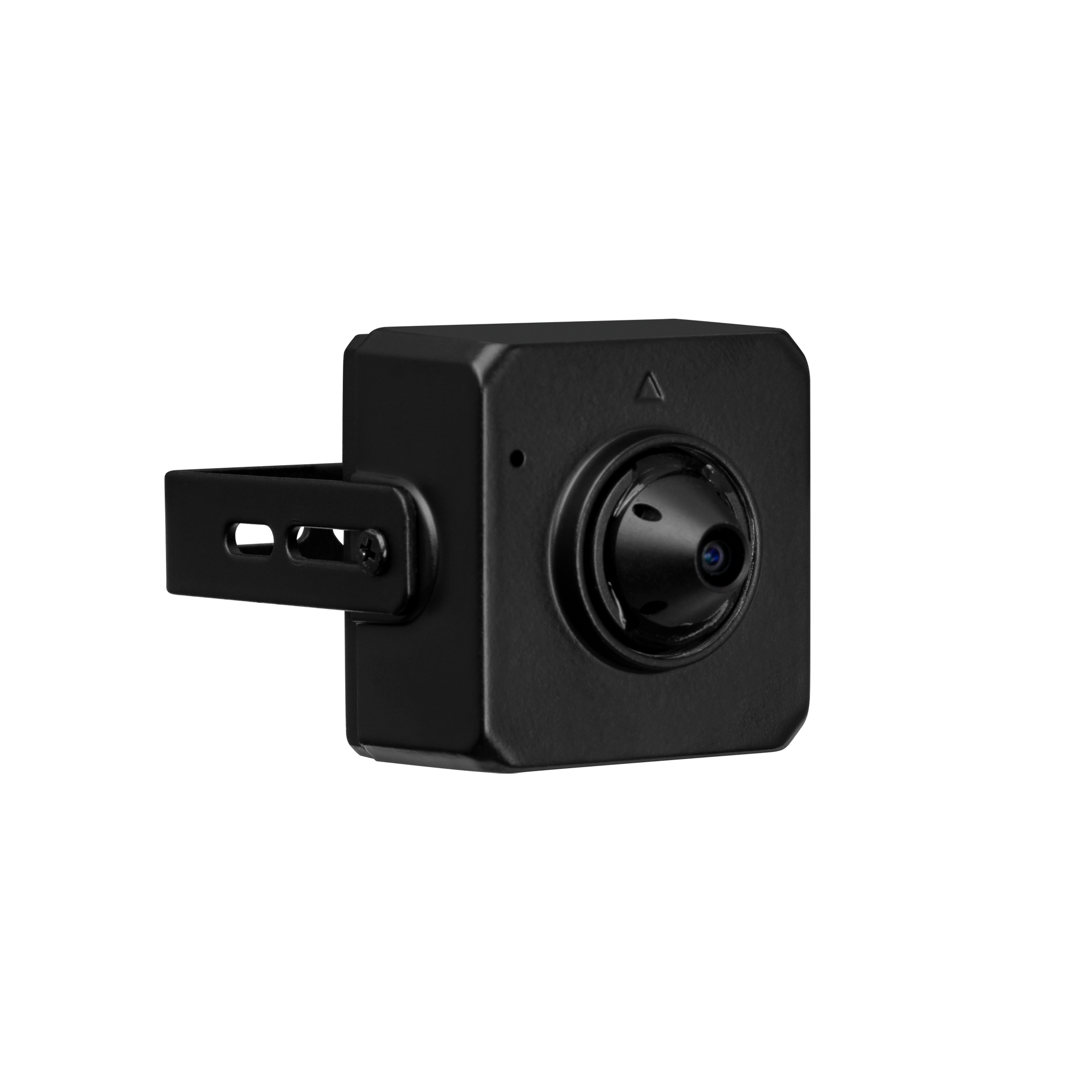

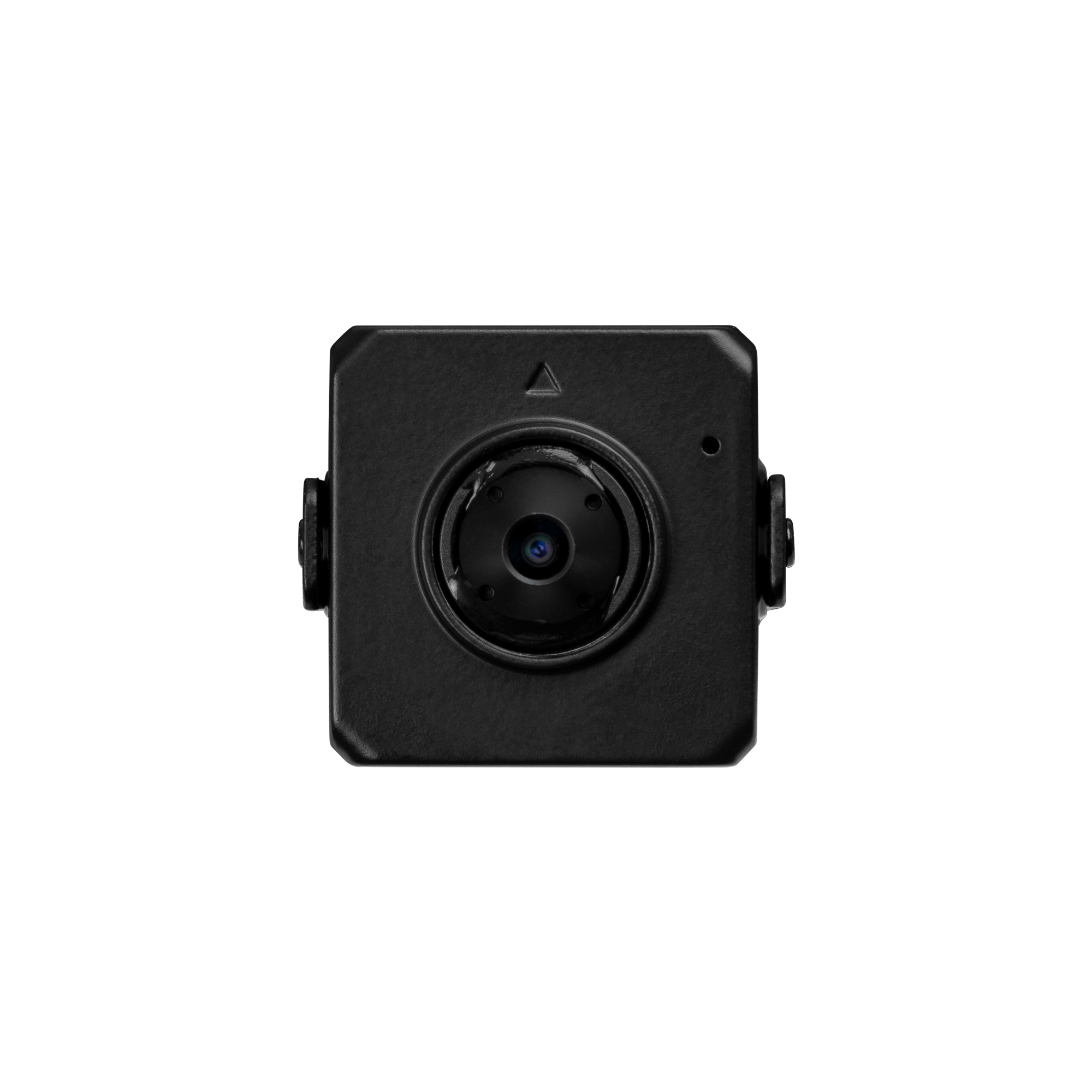

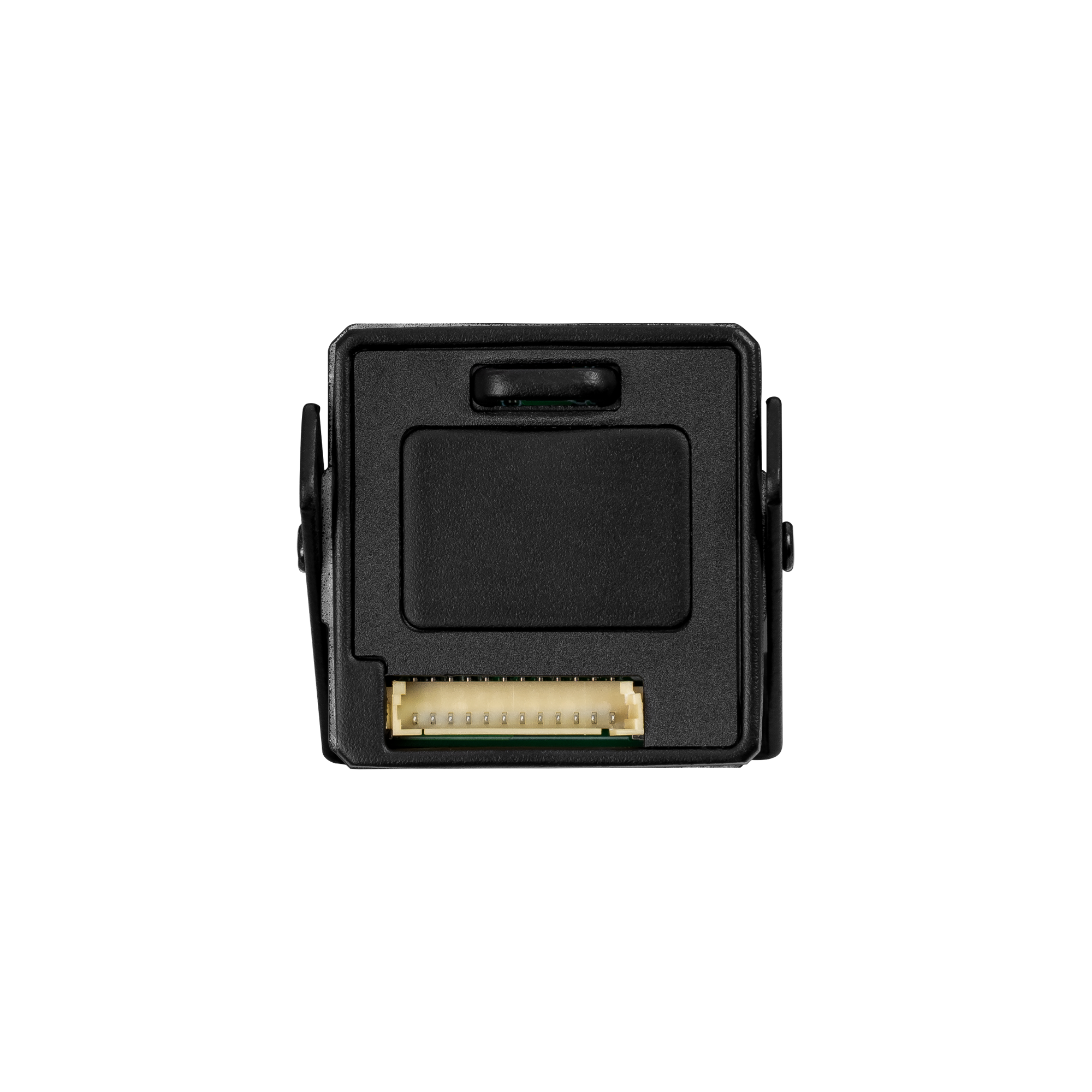

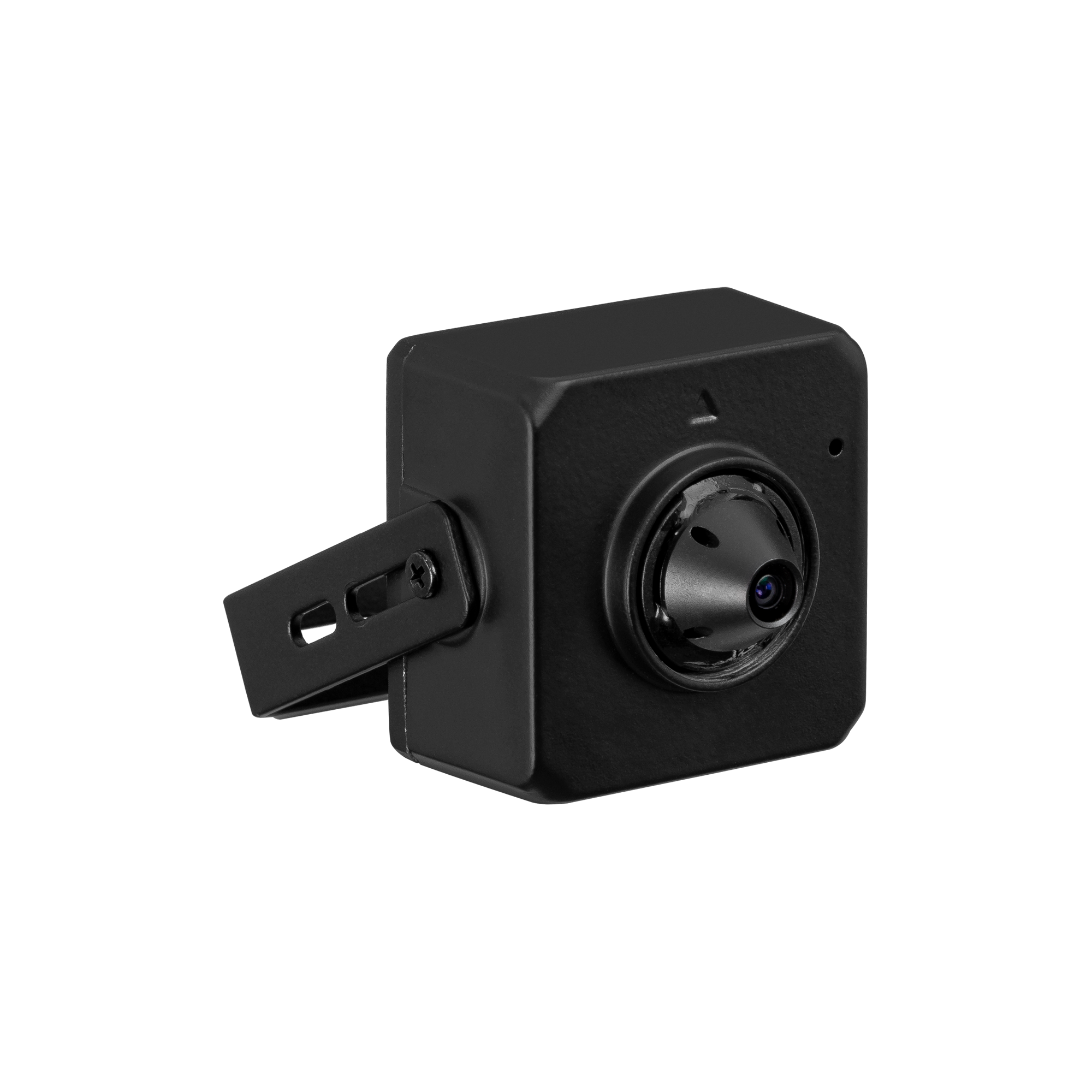

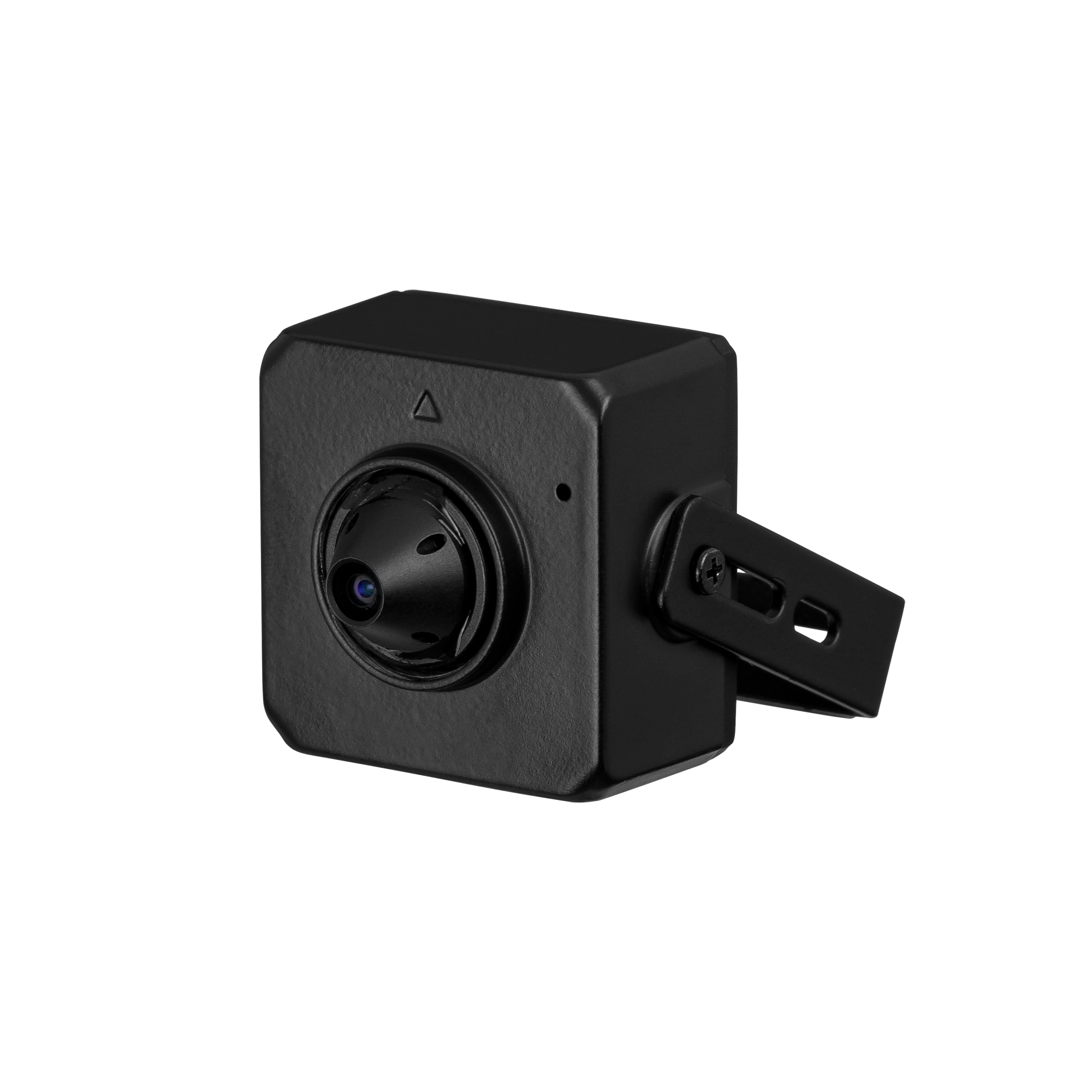

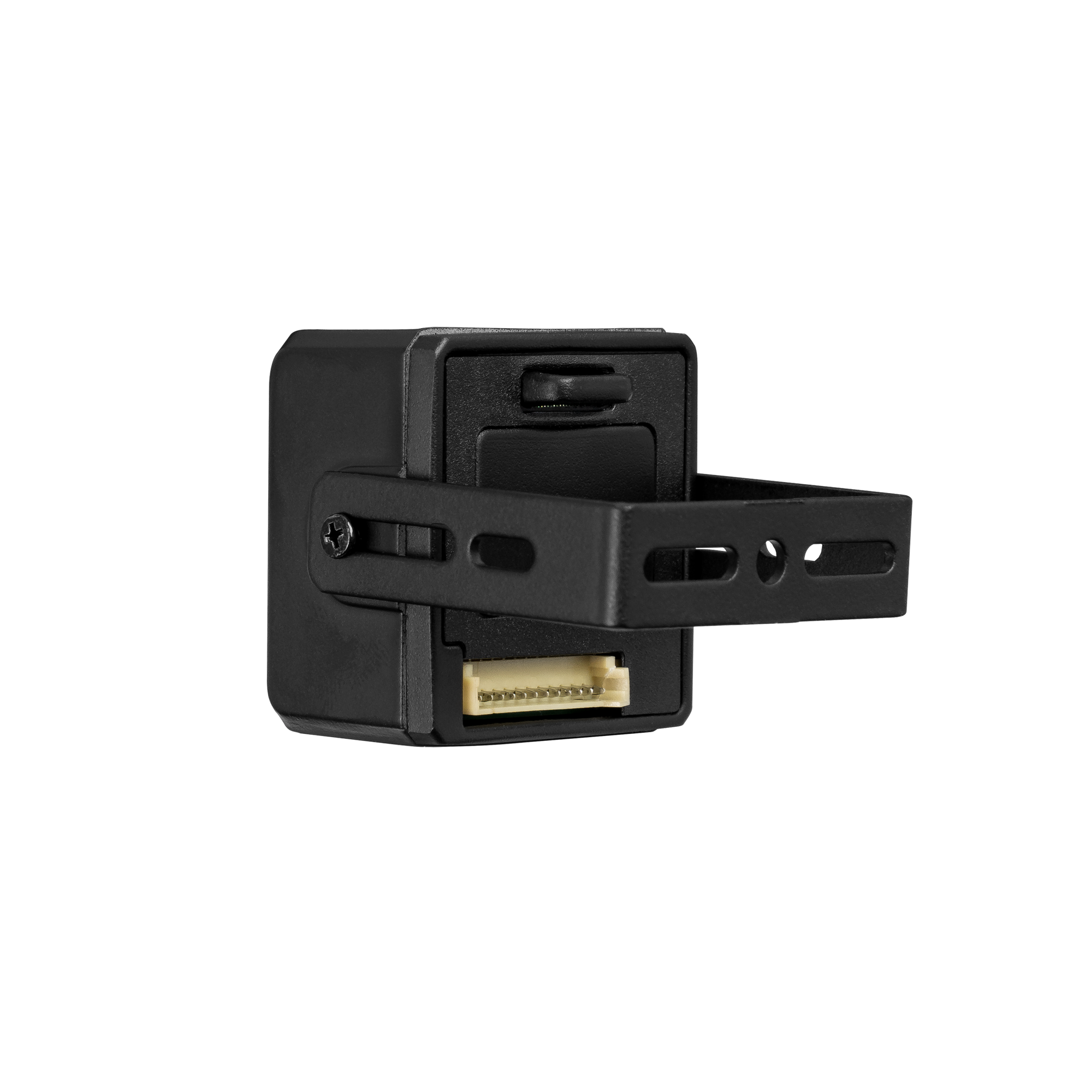

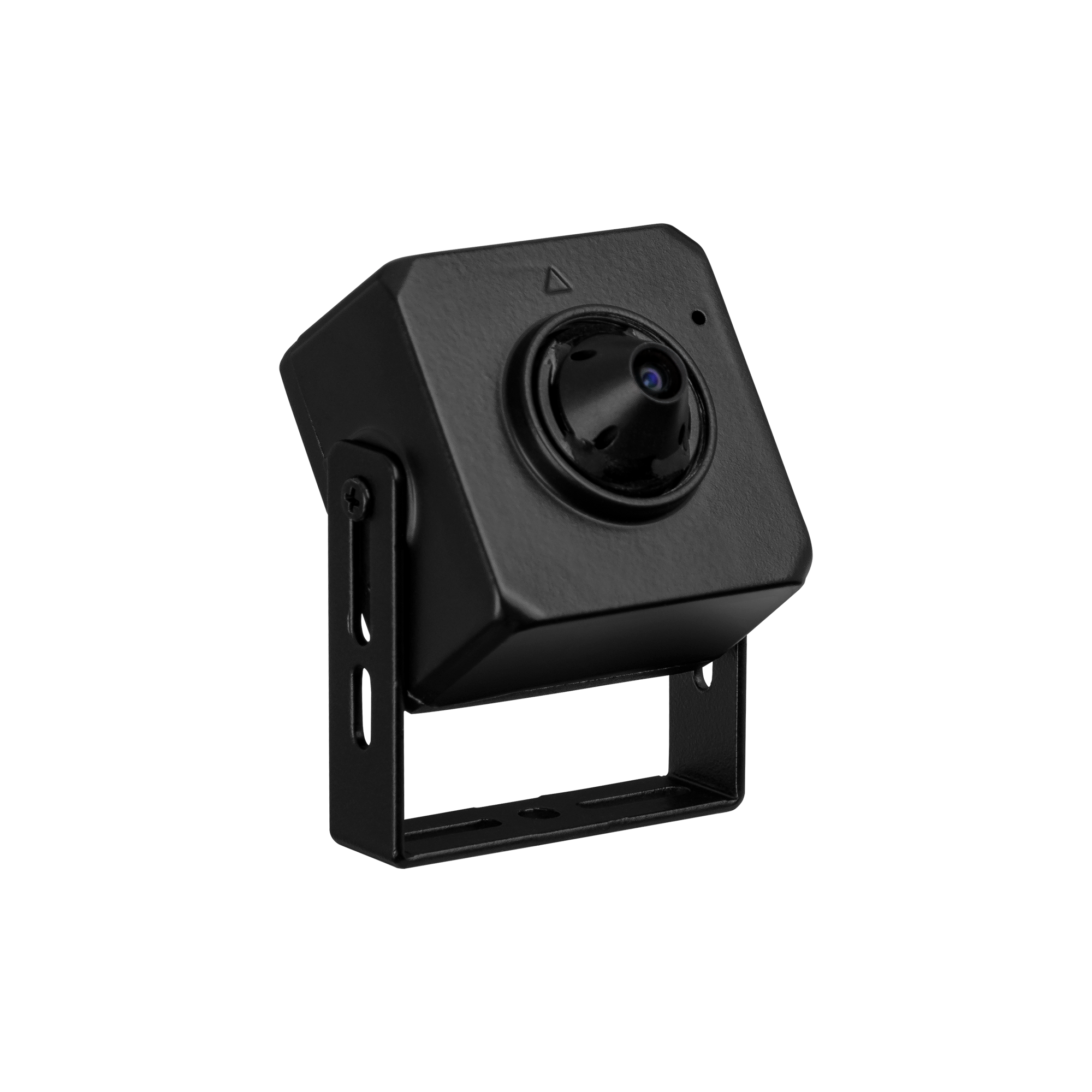

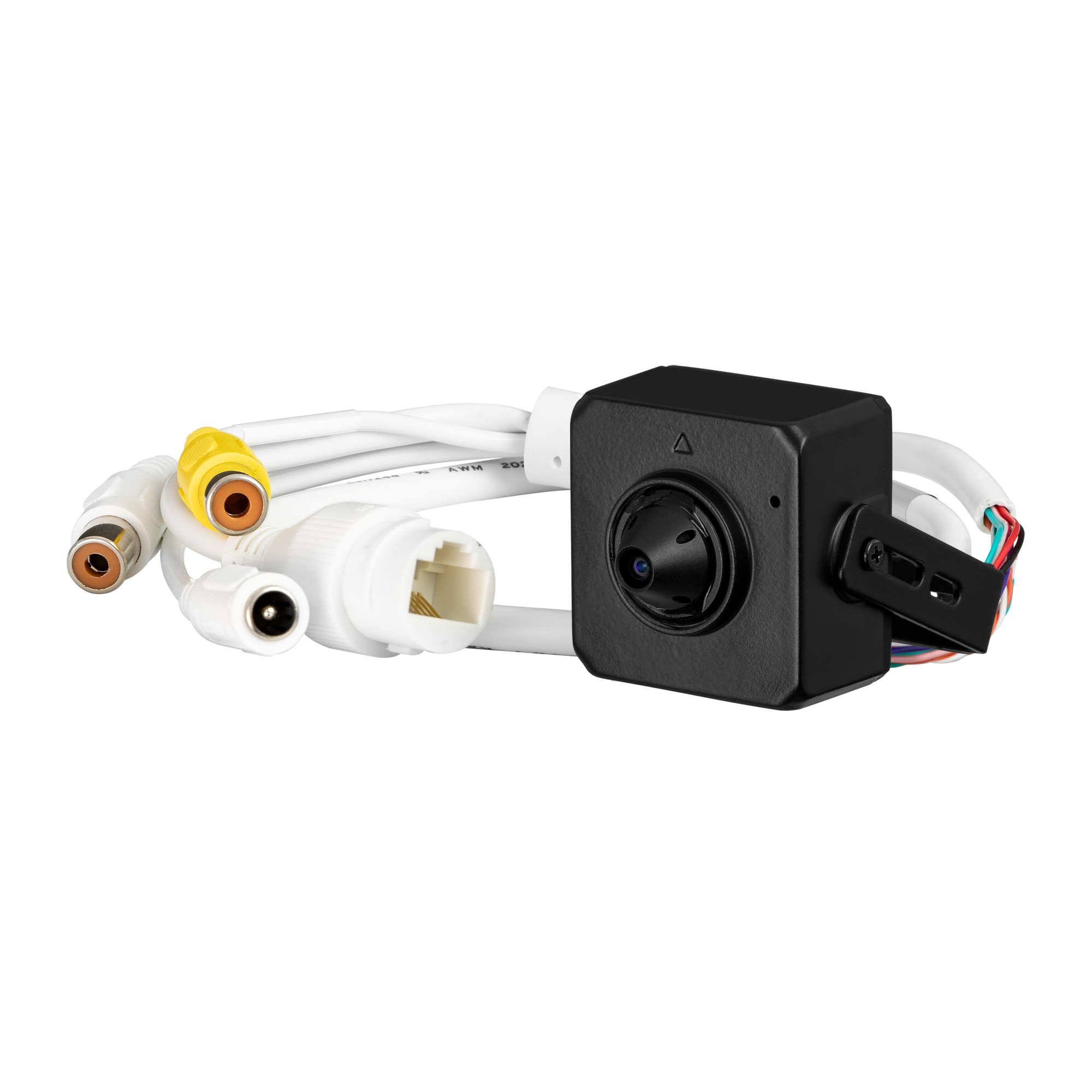

BCS-L-PIP14FW
394,83 € gross
100 In Stock- 4Mpx pinhole IP camera
- 1/3" PS CMOS sensor
- 2.8mm fixed lens
- WDR 120dB
- Audio 1/1, microphone
- Dimensions 31×31×30mm
- Power supply: 12V DC
100 in stock
