| Accessories included | Wall mount, PTZ adapter, 36VDC power supply |
|---|---|
| Second stream overview camera | 1344×368/D1/VGA/CIF@25/30fps |
| Min illumination overview camera | Color: 0.001 lux@F1.0 B/W: 0.0001 lux@F1.0 0 lux (IR light on) |
| Angle of view overview camera | H: 200° V: 50° |
| Illuminator type overview camera | WhiteLight |
| WhiteLight range overview camera | 30m |
| Active deterrence function ADC | Sound-optical alarm |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Flag | TO ORDER |
| Product | BCS-L-PSIP98842SCR30L3-Ai3 |
| Camera type | PTZ+fixed |
| Resolution | 8 Mpx |
| Resolution overview camera | 8 Mpx |
| Sensor | 1/1.8'' CMOS |
| Sensor overview camera | 1/1.8'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 3840(H)×2160(V) |
| Pixels overview camera | 5376(H)×1520(V) |
| RAM | 4GB |
| RAM overview camera | 8GB |
| ROM | 8GB |
| ROM overview camera | 8GB |
| Lens | motozoom |
| Focal length | 5.5~231 mm |
| Focal lenght overview camera | 2.8 mm |
| Aperture | F1.4~4.5 |
| Aperture overview camera | F1.0 |
| Focus | Auto / manual |
| Iris | Auto / manual |
| Optical zoom | 42× |
| Digital zoom | 16× |
| Angle of view | H: 61.8°~2.2° V: 36.3°~1.3° D: 69.2°~2.4 |
| DORI | Detect 4620m / Observe 1825m / Recognize 924m / Identify 462m |
| Min illumination | Color: 0.005 lux@F1.4 B/W: 0.0005 lux@F1.4 0 lux (IR light on) |
| S/N ratio | 55dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| WDR overview camera | DWDR |
| Backlight compensation | BLC / HLC |
| Shutter | Auto / manual 1~1/30000s |
| Shutter overview camera | Auto / manual 1~1/30000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| RoI | Region of Interest |
| Image Stabilization | Electronic (EIS) |
| Defog | Panorama: Electronic PTZ: Optical |
| Image rotate | Flip 180° |
| Resolutions | 8M(3840×2160) / 4M(2560×1440) / 3M(2304×1296) / 1080p(1920×1080) / 1.3M(1280×960) / 720p(1280×720) / D1(704×576/704×480) / VGA(640×480) / CIF(352×288/352×240) |
| Resolutions overview camera | 8M(5376×1520) / 2688×752 / 1344×368 / 1080p(1920×1080) / 1.3M(1280×960) / 720p(1280×720) / D1(704×576/704×480) / VGA(640×480) / CIF(352×288/352×240) |
| Main stream | 8M(3840×2160) / 4M(2560×1440) / 3M(2304×1296) / 1080P/1.3M/720p @25/30fps |
| Main stream overview camera | 5376 × 1520) @(1–25/30 fps) |
| Second stream | D1/VGA/CIF@25/30fps |
| Third stream | 1080p/1.3M/720p@25/30fps |
| Third stream overview camera | 2688×752/1080p/1.3M/720p@25/30fps |
| Bitrate | H.264: 8kbps~16384kbps H.265: 3kbps~13568kbps |
| Bitrate overview camera | H.264: 8kbps~16384kbps H.265: 3kbps~13568kbps |
| Video compression | H.265 / H.265+ / H.264+ / H.264 / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED + WhiteLight |
| IR range | 300m |
| NightColor | Yes |
| Loudspeaker | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.726 / G.722.1 / G.723 / G.729 / MPEG2-L2 / PCM |
| Alarm in | 7 |
| Alarm out | 2 |
| Storage | FTP, NAS |
| Memory card slot | microSD 512GB |
| Other interfaces | RS485 |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Network | RJ-45 10/100/1000 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | FTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, 802.1x, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, HTTP, SSL, DHCP, SMTP, Qos, RTSP, ARP |
| Power supply | PoE |
| Power supply type | 36VDC / PoE(802.3bt) |
| Power consumption | max 58W |
| Housing color | White |
| IP class | IP67 |
| Built-in heater | Yes |
| Working environment | -40°C~+70°C max 95% RH |
| Dimensions | 318.2×262×415mm |
| Weight | 8.8 kg |
| PAN speed | 0.1°/s~240°/s(240°/s preset) |
| TILT speed | 0.1°/s~100°/s(100°/s preset) |
| PAN range | 0°~360° |
| TILT range | -30°~90° , kamera stała 5°~17° |
| Auto tracking | Yes |
| Automatic functions | 300 presets, 8 tour(32 presety), 5 pattern, 5 auto scan |
| Ai - Perimeter protection | Intrusion, crossline, fast moving, loitering, people gathering, parking detection |
| &Ai - Object classification | Yes |
| Ai - Face recognition | Identyfikacja twarzy i porównywanie z bazą danych, max. 5 baz danych, 10 tyś pozycji |
| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion and fast moving reduces false alarms |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

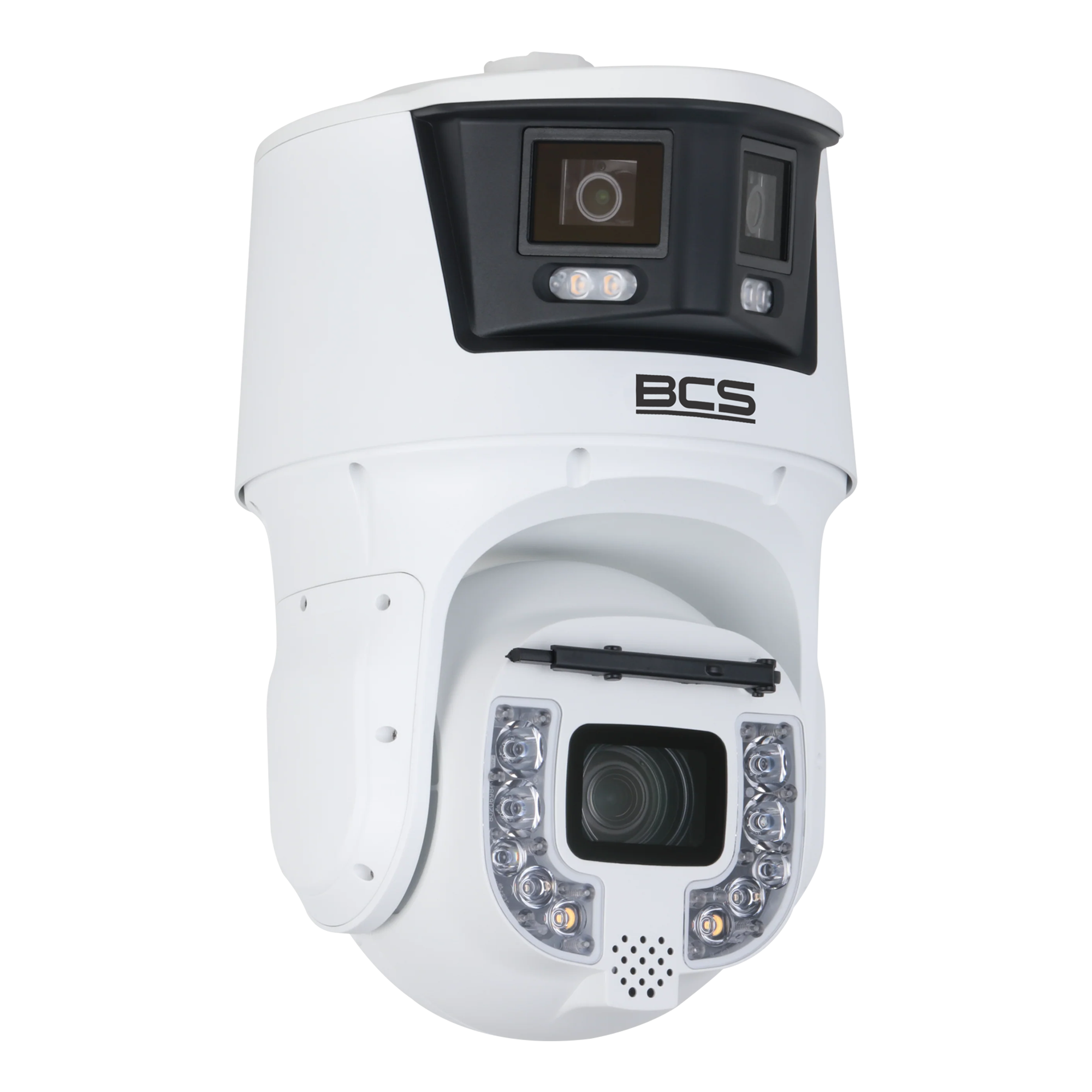

BCS-L-PSIP98842SCR30L3-Ai3
0,00 € gross
Out of Stock- 8Mpx pan-tilt IP camera
- Built-in 8Mpx fixed panoramic camera
- NightColor technology
- ADC technology
- 5.5–231 mm motorised zoom lens
- 42x optical zoom
- WDR 120dB
- IR 300m WhiteLight 30m
- Warning lights and loudspeaker
- Alarm 7/2, audio 1/1
- IP66 housing
- Built-in smart features
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
