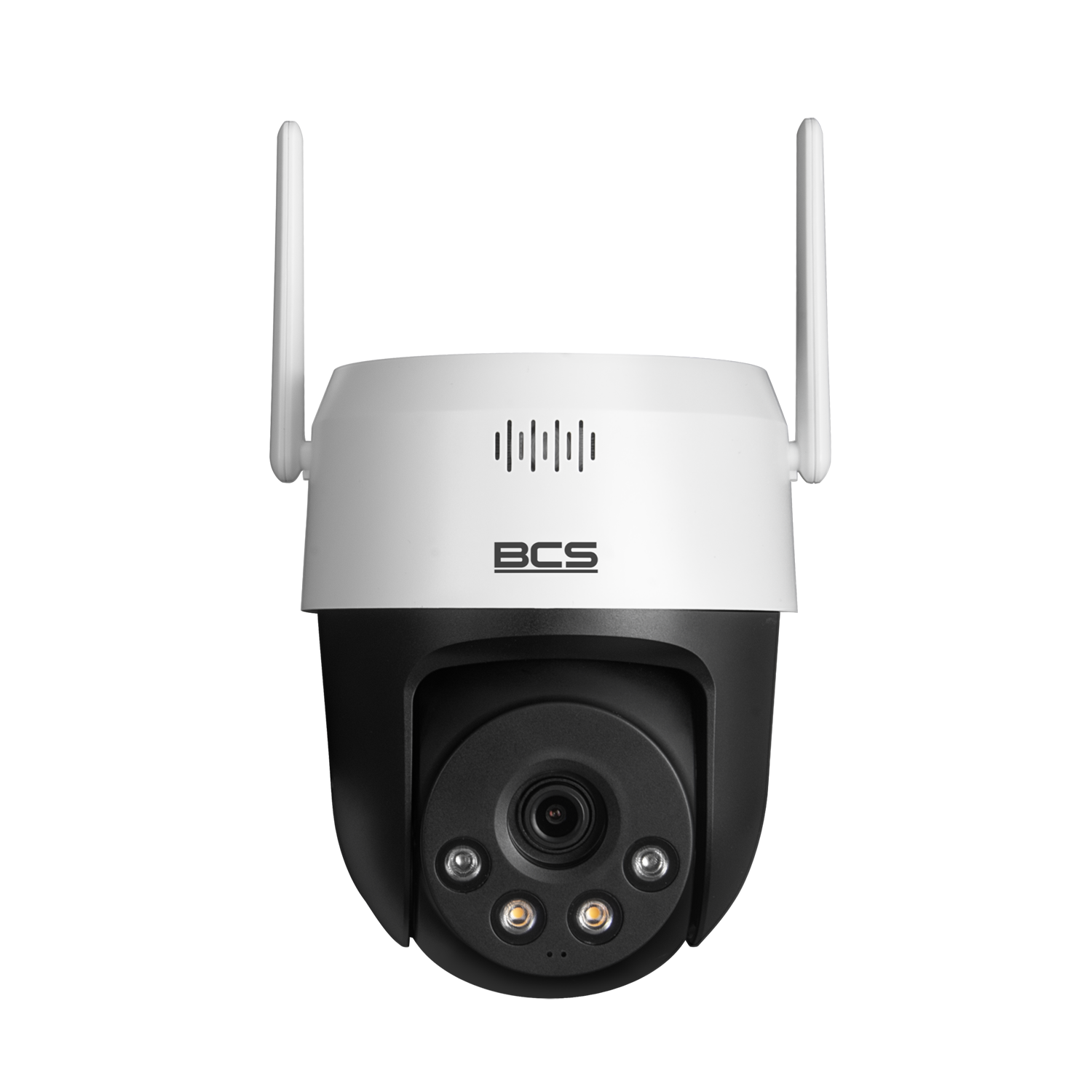

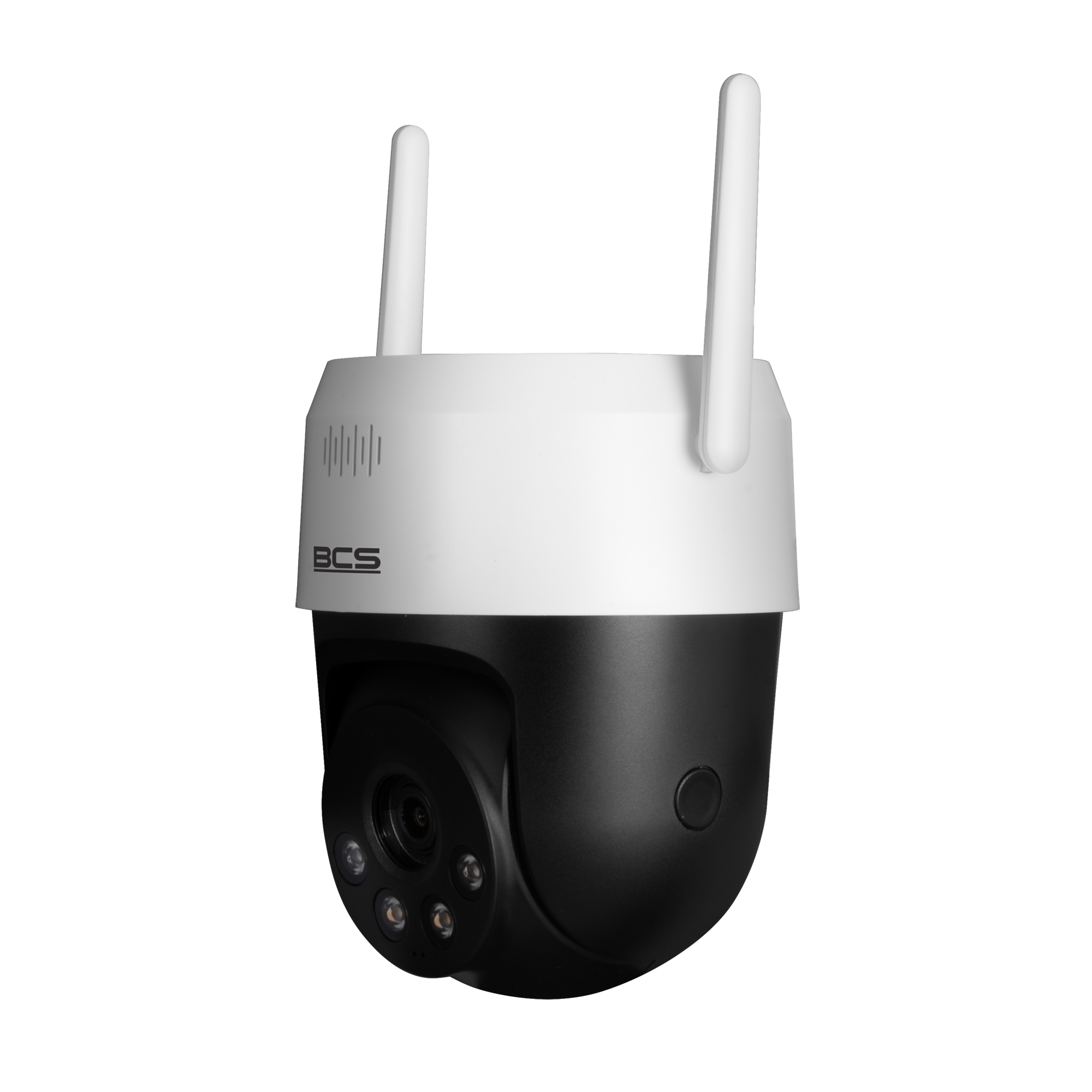

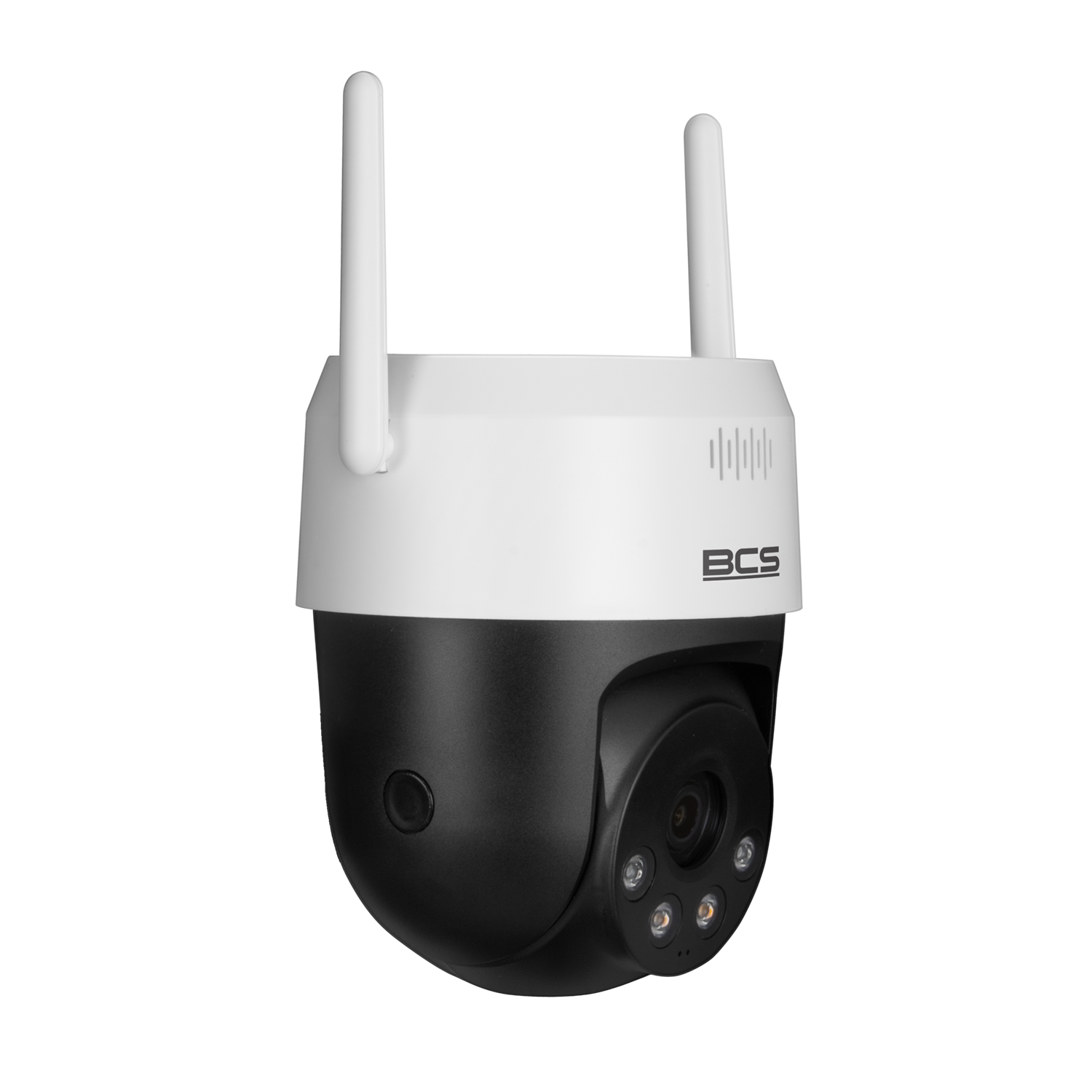

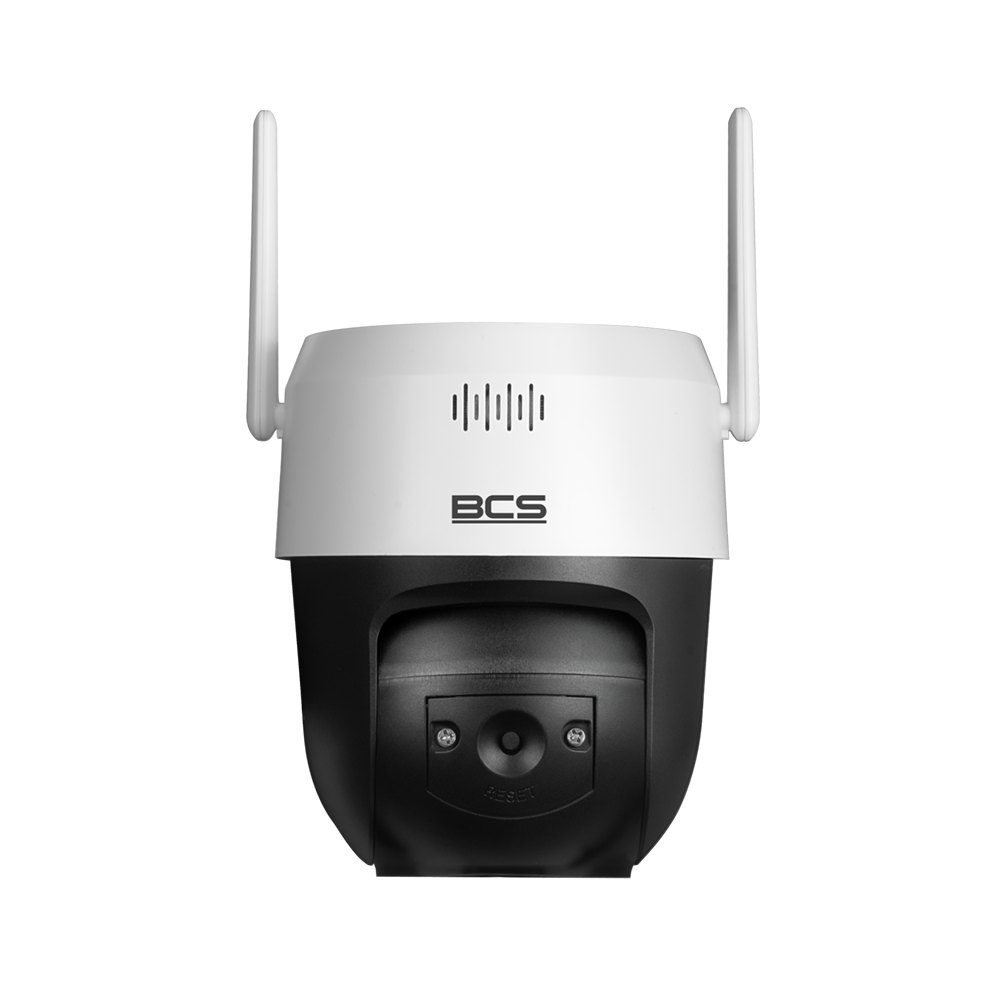

The camera uses a 1/2.8″ CMOS sensor and provides a maximum resolution of 2560 × 1920. Its fixed 4 mm lens has an F1.6 aperture and provides an 80.4° horizontal, 58.1° vertical and 104.8° diagonal field of view. Image functions include automatic white balance, DWDR, automatic or manual shutter control from 1 to 1/100000 second and 180° image flip.
Two video streams are available at up to 25 or 30 frames per second. The main stream supports resolutions from 2560 × 1920 to 1280 × 720, while the secondary stream supports D1, VGA and CIF resolutions. Supported video compression formats include H.265, H.265+, H.264+, H.264 and MJPEG.
The day and night system uses a mechanical infrared-cut filter and combines IR LEDs with white light. The specified IR illumination range is 30 metres. The active deterrence function provides an optical and acoustic alarm, with white light used for warning illumination.

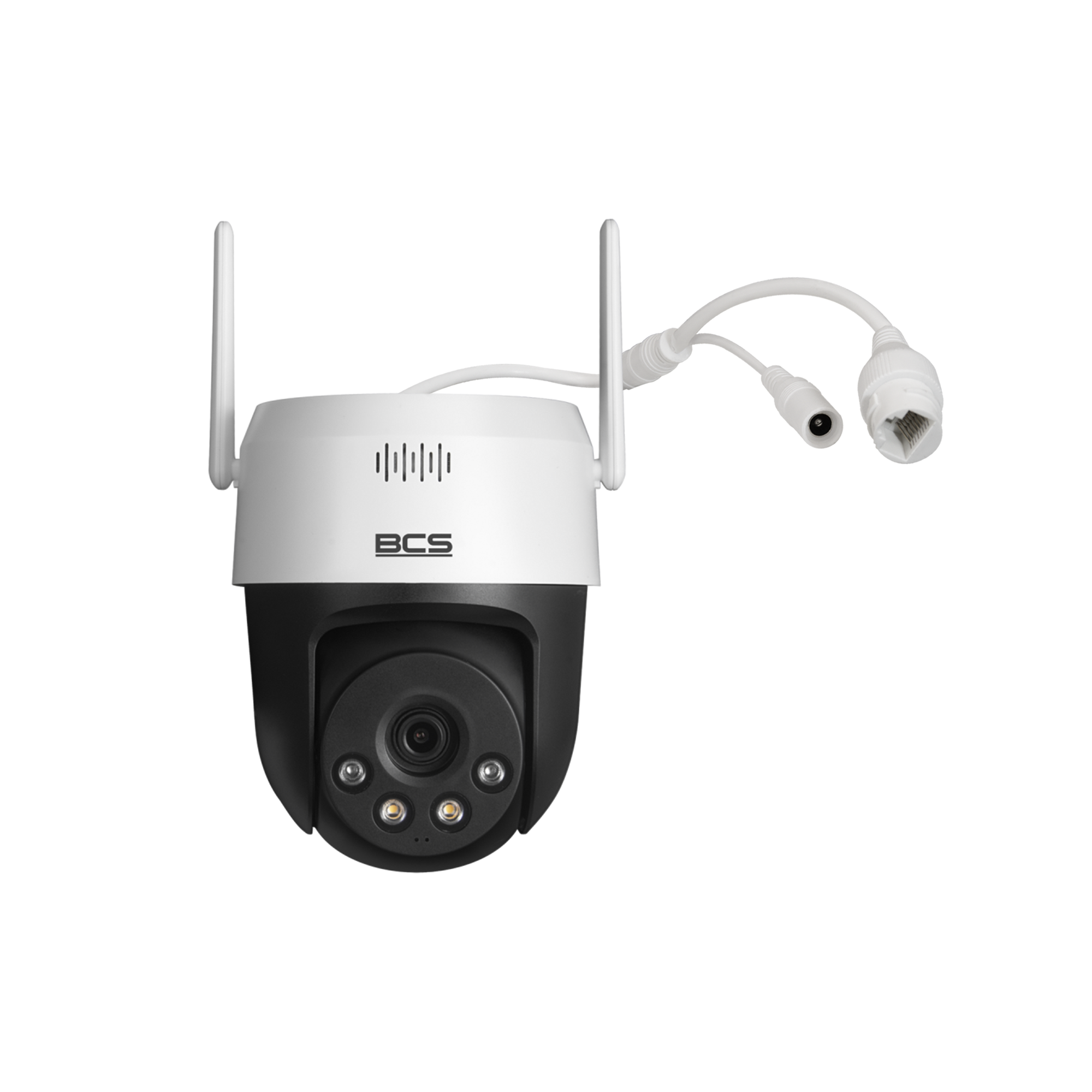

The built-in microphone and speaker support audio communication using PCM, G.711a, G.711Mu or G.726 compression. Recordings can be stored through FTP or on a microSD card with a capacity of up to 256 GB. Access is available through a web service and a mobile application for iOS and Android. The camera connects through a 10/100 Mbps RJ-45 interface or 2.4 GHz Wi-Fi supporting IEEE 802.11b/g/n.
The camera provides a pan range of 0° to 345° and a tilt range of 0° to 80°. It supports automatic tracking and up to 300 presets. AI functions include human and motor vehicle detection, SMD 3.0 intelligent motion detection, area intrusion detection and line-crossing detection.

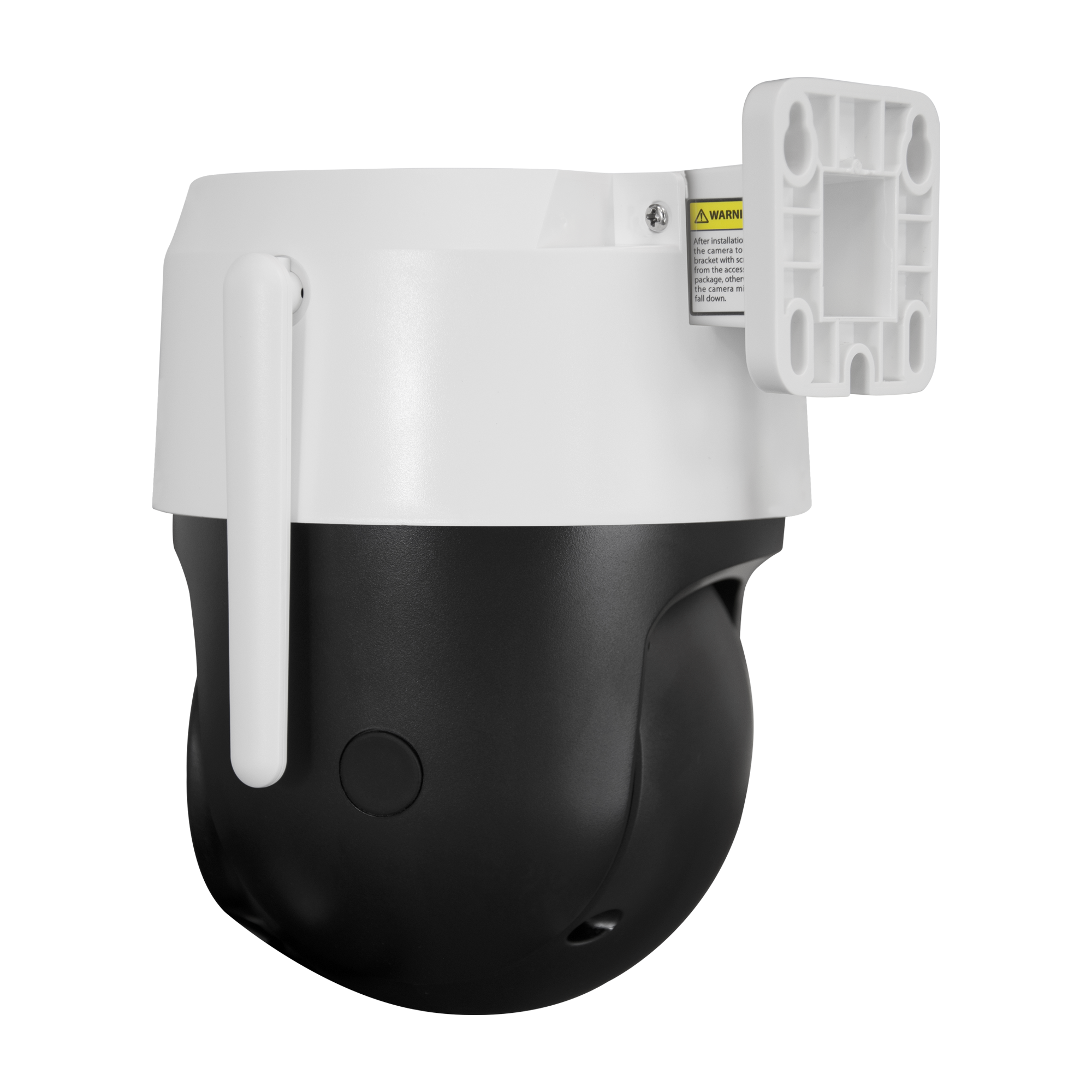

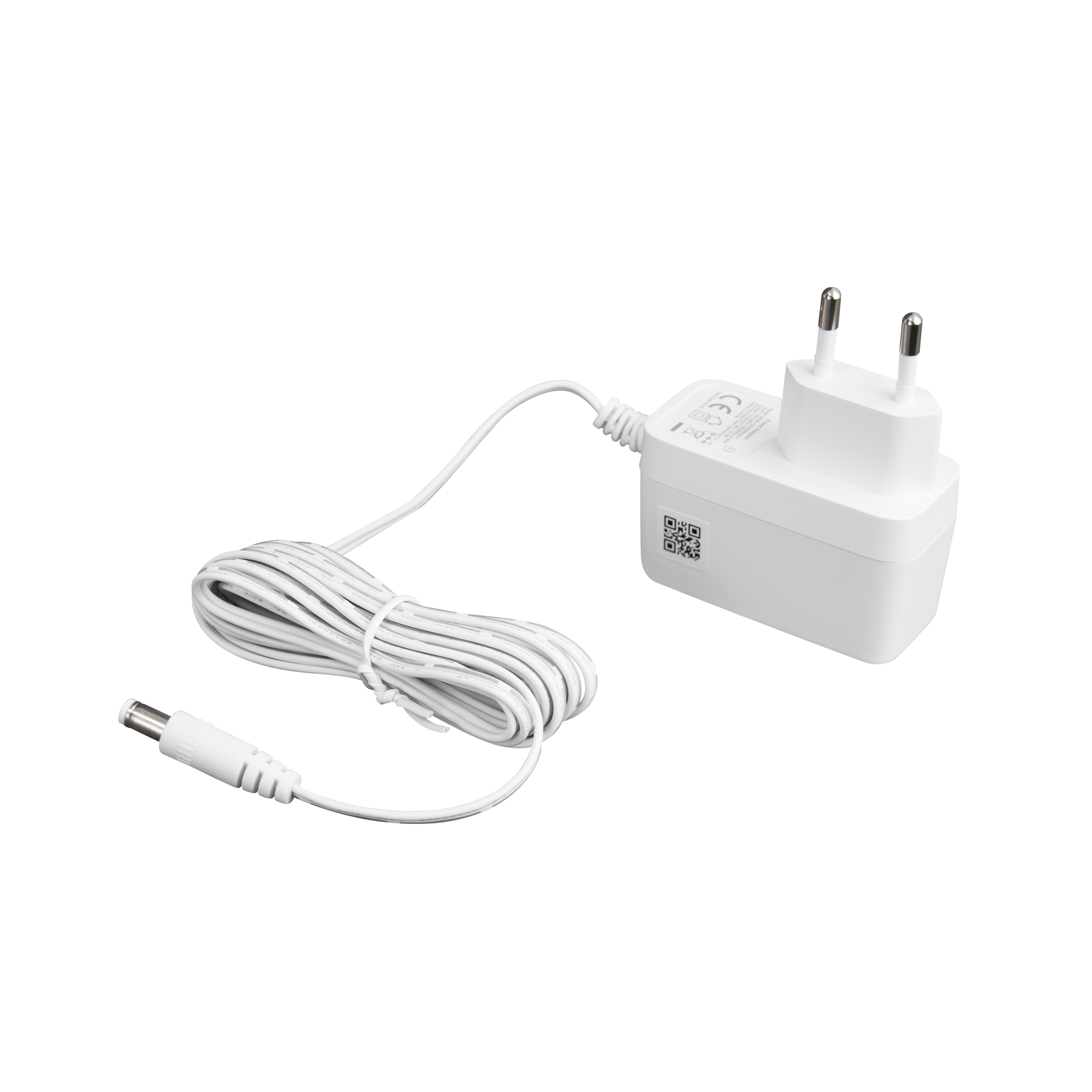

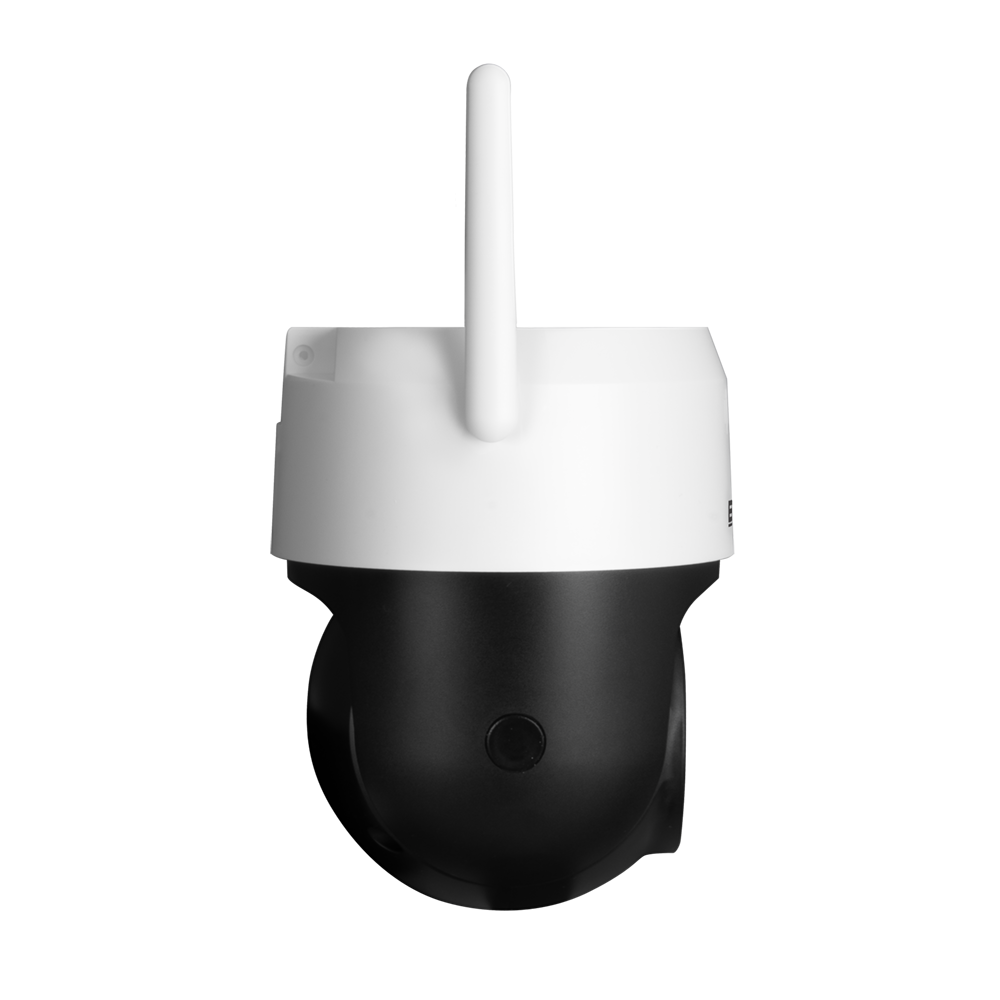

The white IP66 enclosure measures Ø111 × 140.5 mm and weighs 1 kg. The specified operating range is from −30°C to +55°C at a maximum relative humidity of 95%. The camera is powered by 12 V DC at 1 A and is supplied with a power adapter.
