| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
|---|---|
| Ai - SMD - Smart Motion Detection | SMD |
| Product | BCS-L-PTIP2X4FCL4-Ai2 |
| Camera type | Panoramic |
| Resolution | 8 Mpx |
| Sensor | 2×1/1.8'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 4096(H)×1800(V) |
| RAM | 1GB |
| ROM | 128MB |
| Lens | fixed |
| Focal length | 2×3.6 mm |
| Aperture | F1.0 |
| Focus | fixed |
| Iris | fixed |
| Digital zoom | 16× |
| Angle of view | H: 180° V: 148° |
| DORI | Detect 70m/ Observe 28m/ Recognize 14m/ Identify 7m |
| Min illumination | 0.0005Lux(Color,F1.0,30IRE) 0.0002Lux(B/W,F1.0,30IRE) 0Lux(IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| WDR | 140dB |
| Backlight compensation | BLC / HLC / WDR(140dB) / SSA |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Defog | Electronic |
| Stream support | 3 |
| Resolutions | 8M(4096×1800) /6.5M(3840×1680) /4M(3840×1080) /4M(2880×1264) /1.6M(1920×832) /0.7M(1280×560) /0.5M(1024×452) |
| Main stream | 4096×1800(1~25fps) / WDR: 20fps |
| Second stream | 1024×452(1~25fps) / WDR: 20fps |
| Third stream | 1920×832(1~25fps) / WDR: 20fps |
| Bitrate | H.264: 9 kbps~8192 kbps H.265: 9 kbps~8192 kbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / Ai Coding |
| Illuminator type | WhiteLight |
| WhiteLight range | 40m |
| NightColor | Yes |
| Microphone | Yes |
| Loudspeaker | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / PCM |
| Alarm in | 1 |
| Alarm out | 1 |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP,TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, Bonjour |
| Power supply type | 12V DC / PoE(802.3at) / ePoE |
| Power consumption | max 11.8W |
| Housing color | White |
| IP class | IP67 |
| Working environment | -40°C~+60°C max 95% RH |
| Dimensions | 301×128×120mm |
| Weight | 1.42 kg |
| Ai - Perimeter protection | Intrusion, crossline, fast moving, loitering, people gathering, parking detection |
| Ai - Smart object detection | Intelligent detection missing/abandoned objects |
| &Ai - Object classification | Yes |
| &Ai - SMD | Yes |
| Ai - People counting | People counting for intrusion and crossline, counting people in/out/stay in, queue management, generate and export reports in periods of time |
| Ai - Heat map | Recording the movement of objects over a period of time, statistics of the time density of movement presented graphically in red/blue color tones |
| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion and fast moving reduces false alarms |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

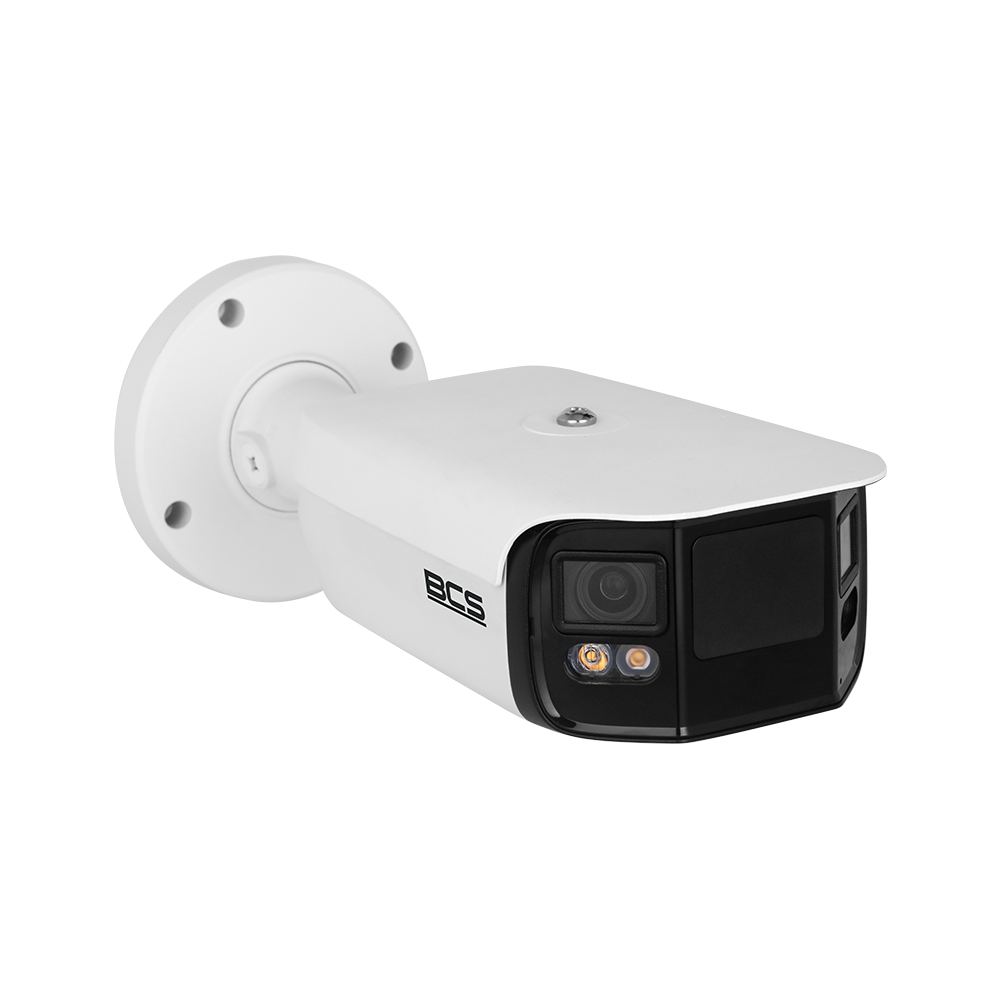

BCS-L-PTIP2X4FCL4-Ai2
1758,90 € gross
11 In Stock- 8Mpx panoramic IP camera
- 2x 1/1.8" PS CMOS sensor
- NightColor technology
- exPoE technology
- 2x 3.6mm fixed lenses
- WDR 140dB
- WhiteLight 40m
- Alarm 1/1, audio 1/1, microphone, speaker
- IP67 housing
- Built-in smart features
11 in stock
