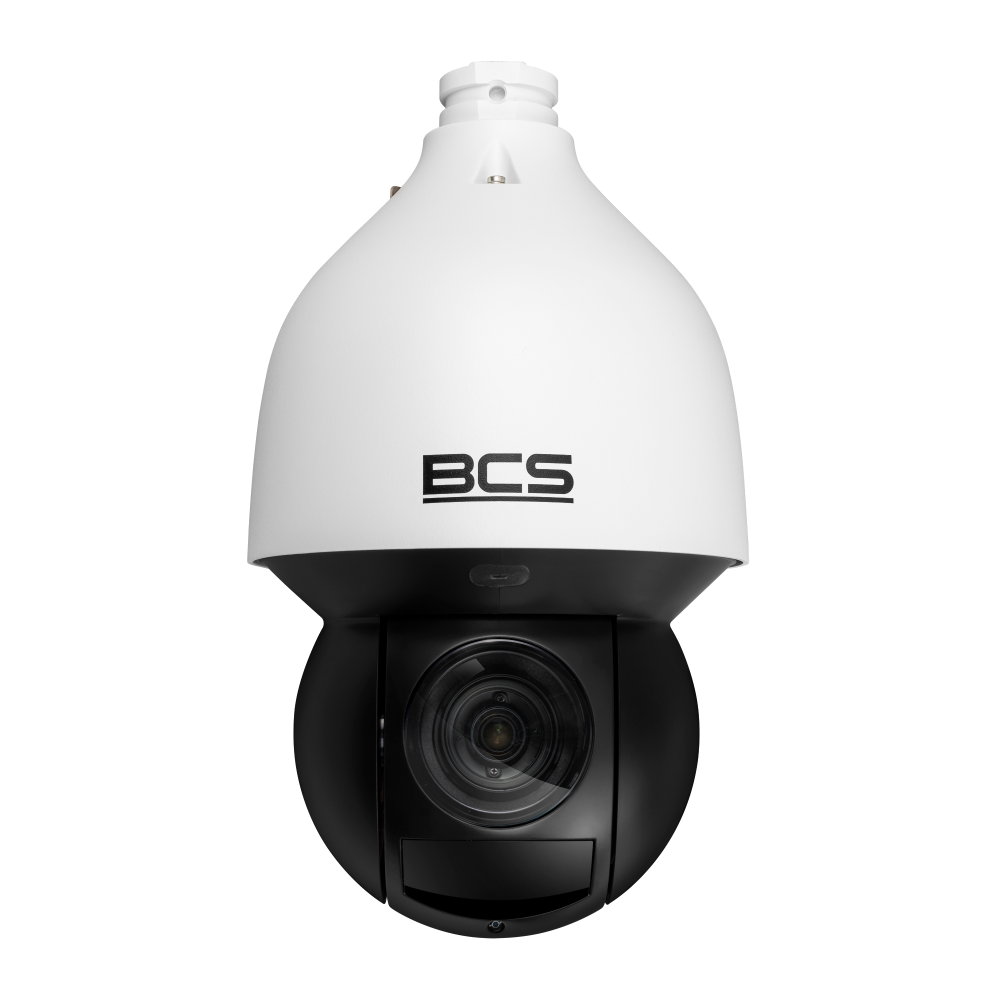

BCS-L-SIP4432SR15-AI2(3)

Flag	COMING SOON
Product	BCS-L-SIP4432SR15-AI2(3)
^Product line	BCS LINE
Camera type	PTZ
Resolution	4 Mpx
Sensor	1/2.8'' CMOS
Scanning system	Progressive Scan
Pixels	2560(H)×1440(V)
Lens	motozoom
Focal length	4.8~154 mm
Aperture	F 1.6~4.0
Focus	Auto / manual
Iris	Auto / manual
Optical zoom	32×
Digital zoom	16×
Angle of view	H:55.81°~2.37° V:31.92°~1.34° D:63.71°~2.71°
DORI	Detect 96~3080m / Observe 38.4~1232m / Recognize 19.2~616m / Identify 9.6~308m
Min illumination	0.005Lux(Color,F1.6) 0.0005Lux(F1.6,B/W) 0Lux(B/W,IR)
S/N ratio	55dB
White balance	(AWB) Auto / manual
WDR	120dB
Backlight compensation	BLC / HLC / WDR(120dB)
Shutter	Auto / manual 1~1/30000s
Gain control	(AGC) Auto / manual
Noise reduction	2D/3D DNR
RoI	Region of Interest
Image Stabilization	Electronic (EIS)
Defog	Electronic
Image rotate	180°
Stream support	3
Resolutions	4M(2560×1440) / 3M(2048×1536) / 2M(1920×1080) / 1.3M(1280×960) / 720P(1280×720) / D1(704×576)(704×480) / VGA(640×480) / CIF(352×288)(352×240)
Main stream	2560×1440 / 2048×1536 / 1920×1080 / 1280×960 / 1280×720(25/30fps)
Second stream	704×576 / 704×480 / 640×480 / 352×288 / 352×240 (25/30fps)
Third stream	1920×1080 / 1280×960 / 1280×720 (25/30fps)
Bitrate	H.264: 96 kbps~14848 kbps H.265: 38 kbps~8960 kbps
Video compression	H.265 / H.265+ / H.264 / H.264+ / MJPEG
Day/night	ICR mechanical infrared filter
Illuminator type	IR LED
IR range	150m
Audio in	1
Audio out	1
Audio compression	G.711A / G.711Mu / G.726 / AAC / G.722.1 / G.723 / G.729 / MPEG2-L2
Alarm in	2
Alarm out	1
Storage	FTP, NAS
Memory card slot	microSD 512GB
Support	Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
Motion detect	Yes
Privacy masking	32
Network	RJ-45 10/100 Mbps
Compatibility	ONVIF(S/G/T/M)
Protocols	HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, ICMP, SNMP, IGMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, NFS
&Power supply	PoE
Power supply type	24V DC / PoE(802.3at)
Power consumption	max 22W
Housing color	White
IP class	IP67
IK10	Yes
Built-in heater	Yes
Surge protection	TVS 6kV
Working environment	-40°C~+70°C max 95% RH
Dimensions	Ø190×332mm
Weight	4.7 kg
PAN speed	0.1°/s~300°/s(400°/s preset)
TILT speed	0.1°/s~140°/s(240°/s preset)
PAN range	0°~360°
TILT range	-15°~90° auto-flip
Auto tracking	Yes
Automatic functions	300 presets, 8 tour(32 presety), 5 pattern, 5 auto scan
^Box dimensions in mm (W×D×H)	269×269×521
&Ai - Perimeter protection	Yes
&Ai - Object classification	Yes
&Ai - Face detection	Yes
&Ai - SMD	Yes
&Ai - People counting	Yes
&Ai - Metadata	Yes
&Ai - Smart search	Yes
^Ai - Built-in intelligent functions	Built-in intelligent algorithm of image analisis
Ai - Perimeter protection	Intrusion, crossline, fast moving, loitering, people gathering, parking detection
Ai - Human/vehicle detection	Human/vehicle classification for crossline and intrusion reduces false alarms
Ai - Face detection	Face detection and tracking, snapshot, attributes and expression recognition
Ai - People counting	People counting for intrusion and crossline, counting people in/out/stay in, queue management, generate and export reports in periods of time
Ai - Metadata	People attributes (gender, clothes, color, bag, hat, umbrella), face attributes (gender, age, expression, glasses, mask, beard), vehicle attributes (type, color, logo, seat belts, smoking, calling)
^Ai - SMD - Smart Motion Detection	SMD 4.0
Ai - Smart search	AcuPick technology – intelligent search for human/vehicle objects in the recording history with a recorder with the AcuPick function
^Ai - Large Scale Models	Perimeter protection: increased detection range, reduced false alarms
^Ai - Wiztracking	Large Scale Models Wiztracking: Increased object tracking accuracy and reliability
Accessories included	Wall mount, power supply 24VDC
