| Active deterrence function ADC | Sound-optical alarm |
|---|---|
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Ai - SMD - Smart Motion Detection | SMD 4.0 |
| Flag | COMING SOON |
| Product | BCS-L-SIP5245CR25L10-Ai2 |
| Camera type | PTZ |
| Resolution | 2 Mpx |
| Sensor | 1/2.8'' CMOS STARVIS |
| Scanning system | Progressive Scan |
| Pixels | 1920(H)×1080(V) |
| RAM | 2GB |
| ROM | 4GB |
| Lens | motozoom |
| Focal length | 3.95~177.25 mm |
| Aperture | F 1.6~4.95 |
| Focus | Auto / manual |
| Iris | Auto / manual |
| Optical zoom | 45× |
| Digital zoom | 16× |
| Angle of view | H: 65.7°~1.9° V: 39.4°~1.1° D: 73.1°~2.1° |
| DORI | Detect 54.5~2451.7m / Observe 21.5~968.4m / Recognize 10.9~490.3m / Identify 5.5~245.2m |
| Min illumination | 0.005Lux(Color,F1.6) 0.0005Lux(F1.6,B/W) 0Lux(B/W,IR) |
| S/N ratio | 55dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1~1/30000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| RoI | Region of Interest |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Image rotate | Flip 180° |
| Stream support | 3 |
| Resolutions | 2M(1920×1080) / 1.3M(1280×960) / 720P(1280×720) / VGA(640×480) / D1(704×576/704×480) / CIF(352×288/352×240) |
| Main stream | 1920×1080 / 1280×960 / 1280×720(50/60fps) |
| Second stream | 704×576 / 704×480 / 640×480 / 352×288 / 352×240 (25/30fps) |
| Third stream | 1920×1080 / 1280×960 / 1280×720 (25/30fps) |
| Bitrate | H.264: 64 kbps~11264 kbps H265: 25 kbps~6912 kbps |
| Video compression | H.265 / H.265+ / H.264+ / H.264 / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED + WhiteLight |
| IR range | 250m |
| WhiteLight range | 100m |
| NightColor | Yes |
| Microphone | Yes |
| Loudspeaker | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | PCM / G.711a / G.711Mu / G.726 / MPEG2-Layer2 / G722.1 / G729 / G723 |
| Alarm in | 7 |
| Alarm out | 2 |
| Storage | FTP, SFTP, NAS |
| Memory card slot | microSD 512GB |
| Other interfaces | RS485 |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Privacy masking | 24 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, ICMP, SNMP, IGMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, SMB, NFS |
| Power supply | PoE |
| Power supply type | 24V DC / PoE(802.3at) |
| Power consumption | max 12W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Surge protection | TVS 6kV |
| Working environment | -40°C~+70°C max 95% RH |
| Dimensions | 208×202×325mm |
| Weight | 4.45 kg |
| PAN speed | 0.1°/s~260°/s(300°/s preset) |
| TILT speed | 0.1°/s~140°/s(200°/s preset) |
| PAN range | 0°~360° |
| TILT range | -20°~90° auto-flip |
| Auto tracking | Yes |
| Automatic functions | 300 presets, 8 tour(32 presety), 5 pattern, 5 auto scan |
| Ai - Perimeter protection | Intrusion, crossline, fast moving, loitering, people gathering, parking detection |
| Ai - Smart object detection | Intelligent detection missing/abandoned objects |
| &Ai - Object classification | Yes |
| Ai - Face detection | Face detection and tracking, photo face. |
| &Ai - SMD | Yes |
| Ai - Metadata | People attributes (gender, clothes, color, bag, hat, umbrella), face attributes (gender, age, expression, glasses, mask, beard), vehicle attributes (type, color, logo, seat belts, smoking, calling) |
| Ai - Smart search | AcuPick technology – intelligent search for human/vehicle objects in the recording history with a recorder with the AcuPick function |
| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion and fast moving reduces false alarms |
| Accessories included | Wall mount, power supply 24VDC |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

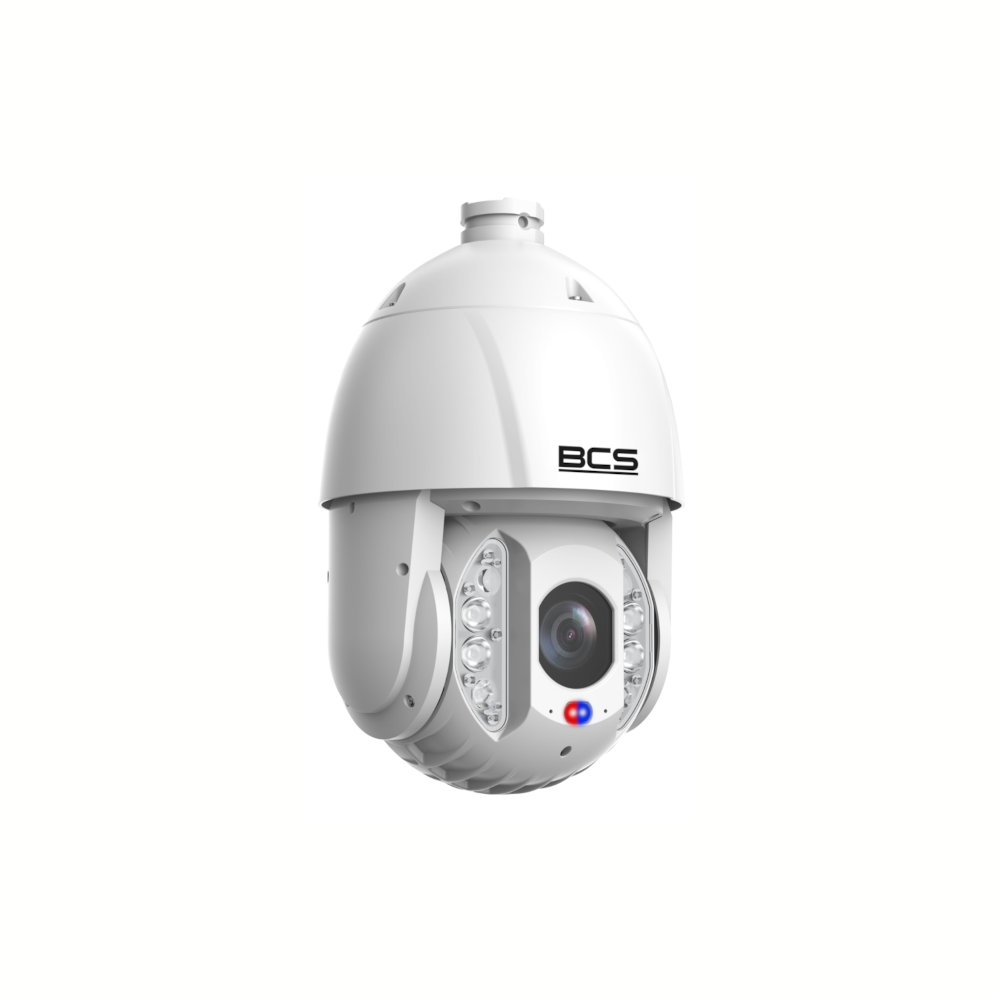

BCS-L-SIP5245CR25L10-Ai2
2760,12 € gross
4 In Stock- 2Mpx pan-tilt IP camera
- 1/2.8" STARVIS PS CMOS sensor
- NightColor technology
- ADC active deterrence technology
- AcuPick technology
- 3.95–177.25 mm motorised zoom lens
- 45x optical zoom
- WDR 120 dB
- IR 250m, WhiteLight 100m
- Alarm 7/2, audio 1/1, microphone, speaker
- IP67, IK10 housing
- Built-in smart features
4 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
