| Active deterrence function ADC | Sound alarm |
|---|---|
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Ai - SMD - Smart Motion Detection | SMD 4.0 |
| Flag | TO ORDER |
| Product | BCS-L-SIP9833SR50-Ai3 |
| Camera type | PTZ |
| Resolution | 8 Mpx |
| Sensor | 1/1.8'' CMOS STARVIS |
| Scanning system | Progressive Scan |
| Pixels | 3840(H)×2160(V) |
| RAM | 2GB |
| ROM | 4GB |
| Lens | motozoom |
| Focal length | 6.5~214.5 mm |
| Aperture | F 1.6~4.9 |
| Focus | Auto / manual |
| Iris | Auto / manual |
| Optical zoom | 33× |
| Digital zoom | 16× |
| Angle of view | H:63.9°~2.1° V:37.3°~1.2° D:71.2°~2.4° |
| DORI | Detect 3808m / Observe 1504m / Recognize 762m / Identify 381m |
| Min illumination | 0.001Lux(Color,F1.6) 0.0001Lux(F1.6,B/W) 0Lux(B/W,IR) |
| S/N ratio | 55dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1~1/30000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Image rotate | Flip 180° |
| Stream support | 3 |
| Resolutions | 8M(3840×2160) / 4M(2560×1440) /3M(2048×1536) / 2M(1920×1080) / 1.3M(1280×960) / 720P(1280×720) / D1(704×576) / CIF(352×288) |
| Main stream | 3840×2160 / 2560×1440 / 2048×1536 / 1920×1080 / 1280×960 / 1280×720(25/30fps) |
| Second stream | 704×576 / 352×288(25/30fps) |
| Third stream | 1920×1080 / 1280×960 / 1280×720(25/30fps) |
| Bitrate | H264: 128 kbps~16384 kbps H265: 51 kbps~11776 kbps |
| Video compression | H.265 / H.265+ / H.264+ / H.264 / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 500m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.726 / AAC / G.722.1 / G.723 / G.729 / PCM / MPEG2-L2 |
| Alarm in | 7 |
| Alarm out | 2 |
| Storage | FTP, SFTP, NAS |
| Memory card slot | microSD 512GB |
| Other interfaces | RS485 |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 24 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | FTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, 802.1x, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, HTTP, SSL, DHCP, SMTP, Qos, RTSP, ARP |
| Power supply | PoE |
| Power supply type | 36V DC / PoE(802.3bt) |
| Power consumption | max 33W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Built-in heater | Yes |
| Surge protection | TVS 8kV |
| Working environment | -40°C~+70°C max 95% RH |
| Dimensions | Ø262mm×416mm |
| Weight | 8.5 kg |
| PAN speed | 0.1°/s~240°/s(240°/s preset) |
| TILT speed | 0.1°/s~100°/s(100°/s preset) |
| PAN range | 0°~360° |
| TILT range | -30°~90° auto-flip |
| Auto tracking | Yes |
| Automatic functions | 300 presets, 8 tour(32 presety), 5 pattern, 5 auto scan |
| Ai - Perimeter protection | Intrusion, crossline, fast moving, loitering, people gathering, parking detection |
| &Ai - Object classification | Yes |
| Ai - Face detection | Face detection and tracking, snapshot, attributes and expression recognition |
| &Ai - SMD | Yes |
| Ai - Metadata | People attributes (gender, clothes, color, bag, hat, umbrella), face attributes (gender, age, expression, glasses, mask, beard), vehicle attributes (type, color, logo, seat belts, smoking, calling) |
| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion and fast moving reduces false alarms |
| Accessories included | Wall mount, power supply 36VDC |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

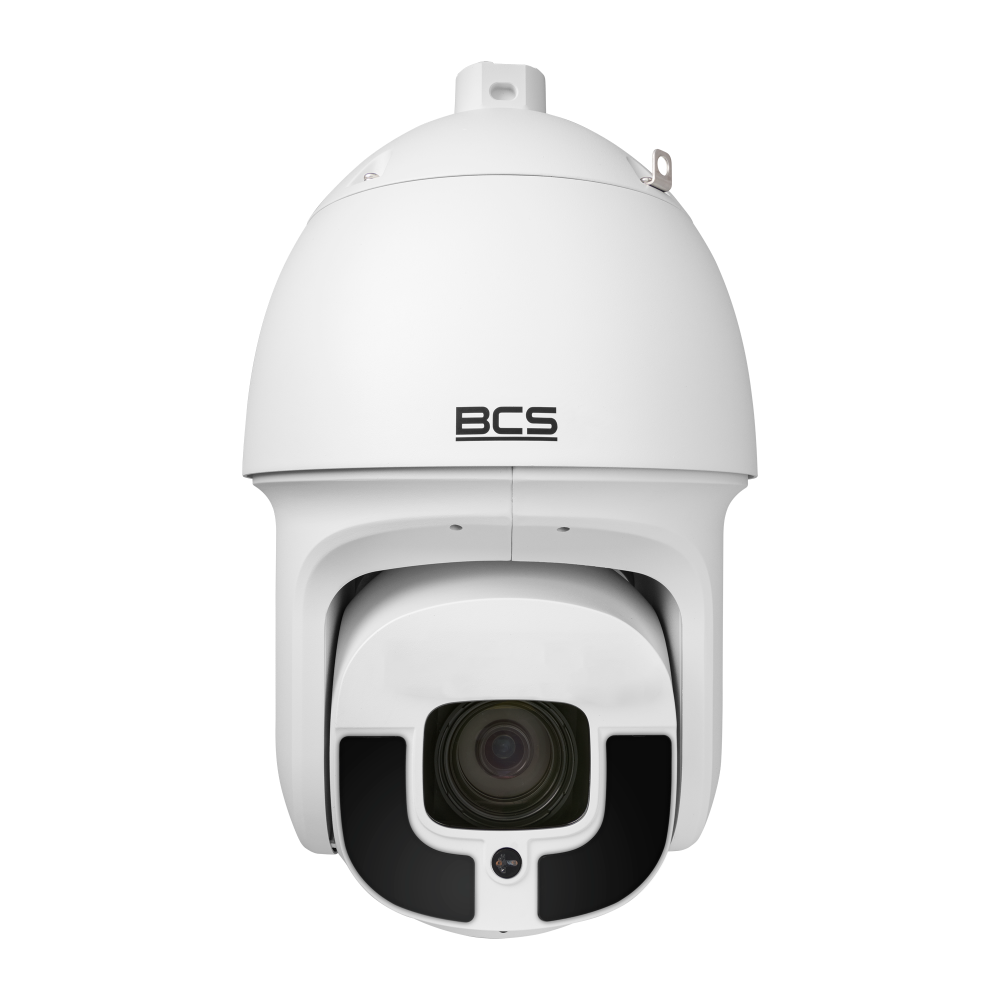

BCS-L-SIP9833SR50-Ai3
5731,80 € gross
Out of Stock- 8Mpx pan-tilt IP camera
- 1/1.8" STARVIS PS CMOS sensor
- SkyLight technology
- ADC technology – audible alarm
- 6.5–214.5 mm motorised zoom lens
- 33x optical zoom
- WDR 120dB
- IR 500m
- Alarm 7/2, audio 1/1
- IP67, IK10 housing
- Built-in smart features
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
