| Accessories included | Wall mount, power supply 36VDC |
|---|---|
| Product | BCS-L-SIP9840SR50-Ai3 |
| Camera type | PTZ |
| Sensor | 1/1.8'' CMOS STARVIS |
| RAM | 2GB |
| Aperture | F 1.4~4.5 |
| Digital zoom | 16× |
| S/N ratio | 55dB |
| Gain control | (AGC) Auto / manual |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Flag | TO ORDER |
| Main stream | 3840×2160 / 2560×1440 / 1920×1080 / 1280×960 / 1280×720(25/30fps) |
| Resolution | 8 Mpx |
| Scanning system | Progressive Scan |
| Pixels | 3840(H)×2160(V) |
| ROM | 8GB |
| Lens | motozoom |
| Focal length | 5.6~223 mm |
| Focus | Auto / manual |
| Iris | Auto / manual |
| Optical zoom | 40× |
| Angle of view | H:63.9°~2.0° V:37.3°~1.1° D:71.2°~2.3° |
| DORI | Detect 4400m / Observe 1740m / Recognize 880m / Identify 440m |
| Min illumination | 0.005Lux(Color,F1.4) 0.0005Lux(F1.4,B/W) 0Lux(B/W,IR) |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1/3~1/30000s |
| Noise reduction | 2D/3D DNR |
| Defog | Optical |
| Image rotate | Flip 180° |
| Stream support | 3 |
| Resolutions | 8M(3840×2160) / 4M(2560×1440) / 2M(1920×1080) / 1.3M(1280×960) / 720P(1280×720) / D1(704×576) / CIF(352×288) |
| Second stream | 704×576 / 352×288(25/30fps) |
| Third stream | 1920×1080 / 1280×960 / 1280×720(25/30fps) |
| Bitrate | H264: 512 kbps~16384 kbps H265: 256 kbps~10240 kbps |
| Video compression | H.265 / H.265+ / H.264+ / H.264 / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 500m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.726 / AAC / G.722.1 / G.723 / G.729 / MPEG2-L2 |
| Alarm in | 7 |
| Alarm out | 2 |
| Storage | FTP |
| Memory card slot | microSD 512GB |
| Other interfaces | RS485, BNC |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 24 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMPv1/v2c/v3(MIB-2), DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ARP, RTCP, RTMP |
| Power supply | PoE |
| Power supply type | 36V DC / PoE(802.3bt) |
| Power consumption | max 48W |
| Housing color | White |
| IP class | IP67 |
| Surge protection | TVS 6kV |
| Working environment | -40°C~+70°C max 95% RH |
| Dimensions | Ø262mm×416mm |
| Weight | 10 kg |
| PAN speed | 0.1°/s~240°/s(240°/s preset) |
| TILT speed | 0.1°/s~100°/s(120°/s preset) |
| PAN range | 0°~360° |
| TILT range | -30°~90° auto-flip |
| Auto tracking | Yes |
| Automatic functions | 300 presets, 8 tour(32 presety), 5 pattern, 5 auto scan |
| Ai - Perimeter protection | Intrusion, crossline, fast moving, loitering, people gathering, parking detection |
| Ai - Smart object detection | Intelligent detection missing/abandoned objects |
| &Ai - Object classification | Yes |
| Ai - Face detection | Face detection and tracking, snapshot, attributes and expression recognition |
| Ai - Metadata | People attributes (gender, clothes, color, bag, hat, umbrella), face attributes (gender, age, expression, glasses, mask, beard), vehicle attributes (type, color, logo, seat belts, smoking, calling) |
| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion and fast moving reduces false alarms |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

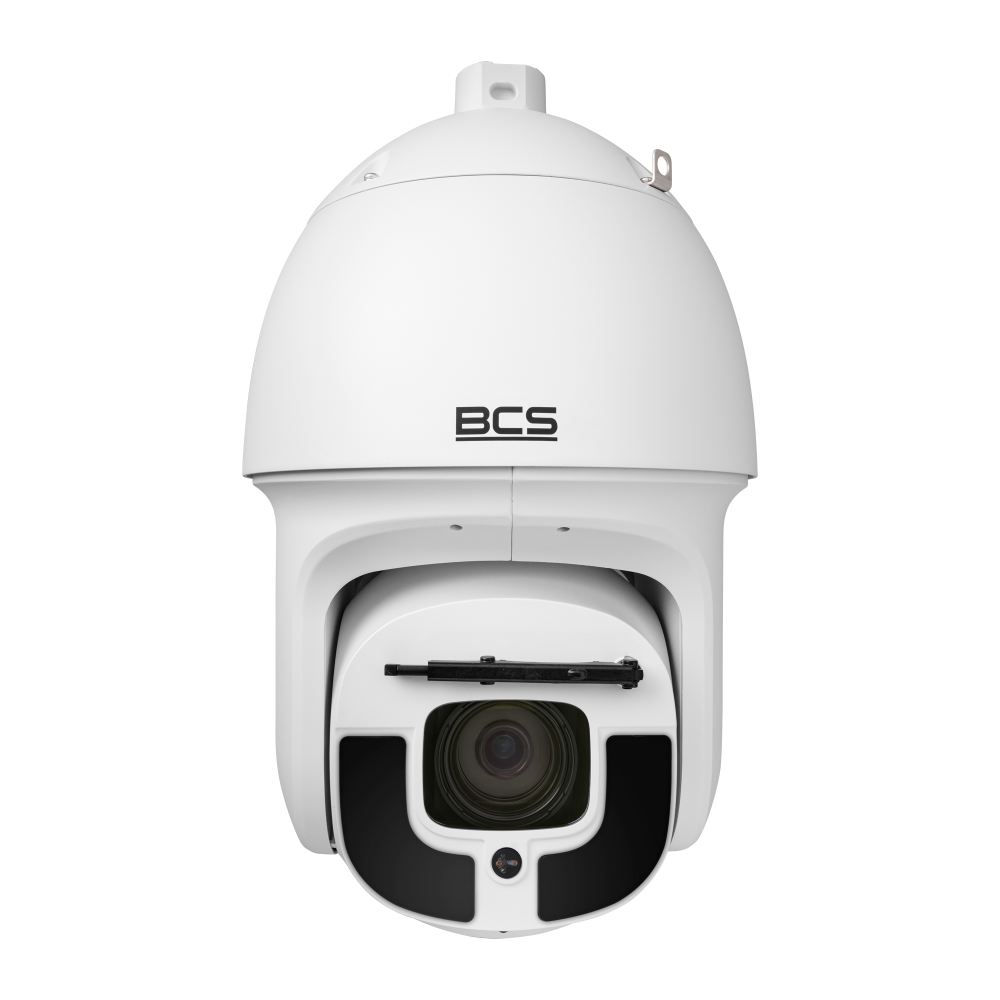

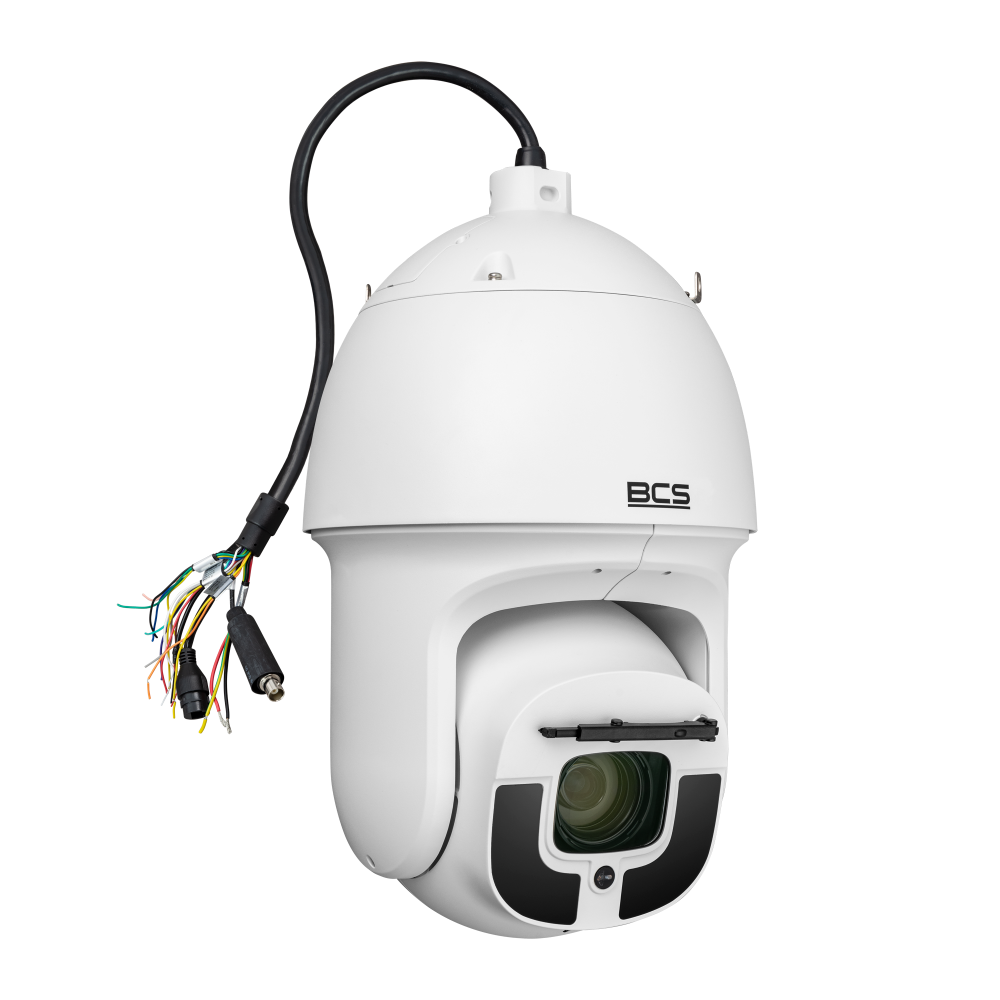

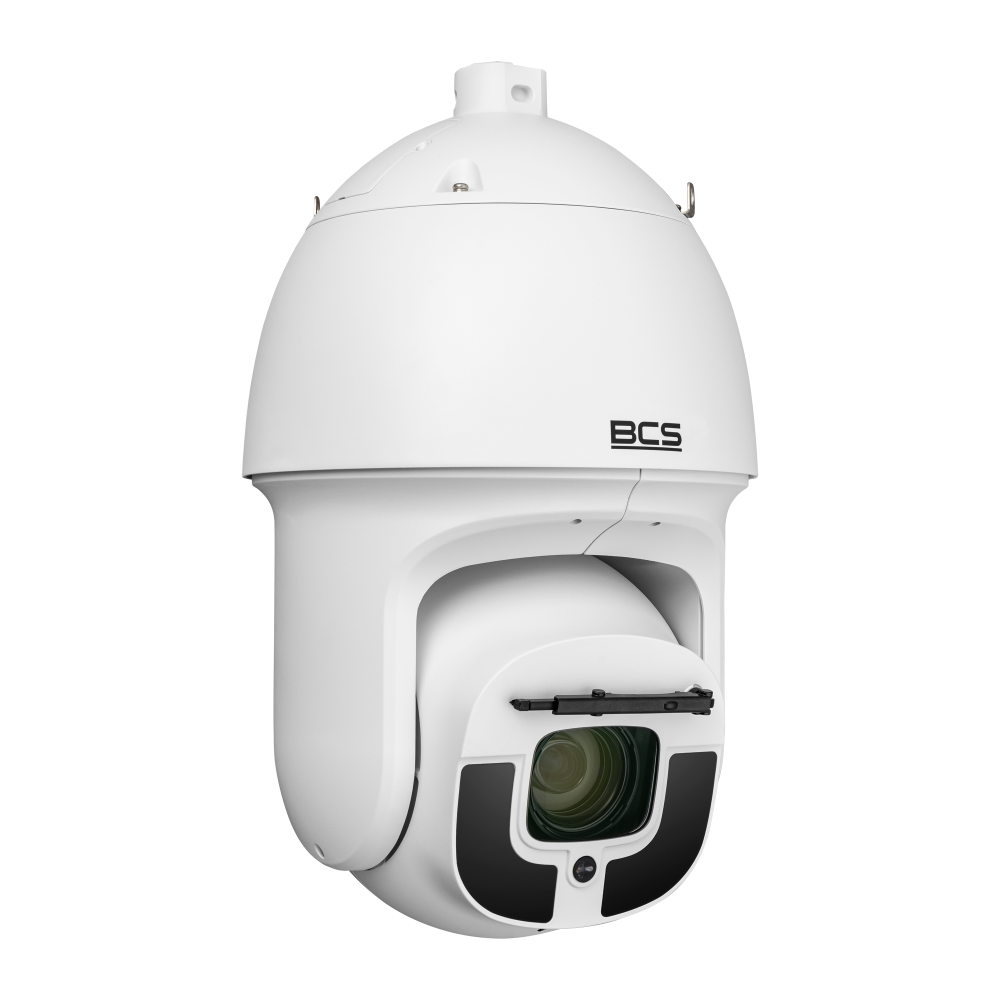

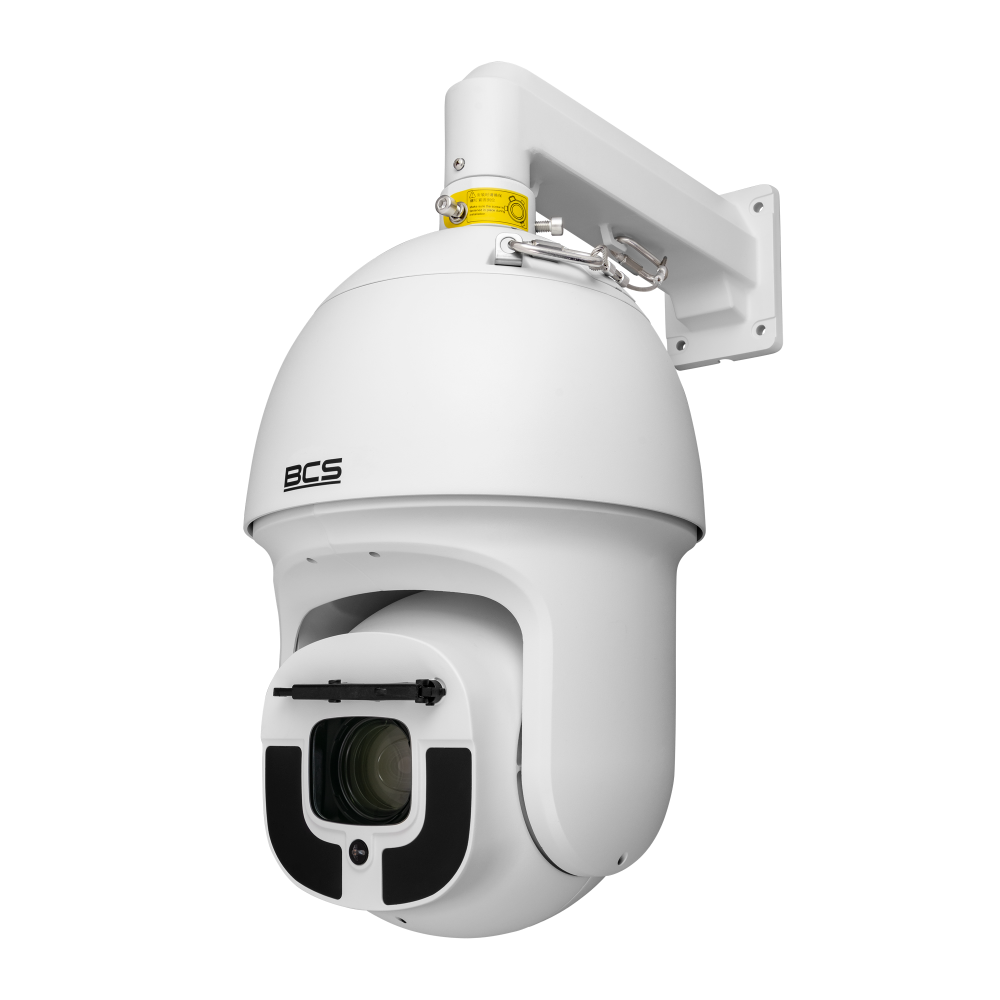

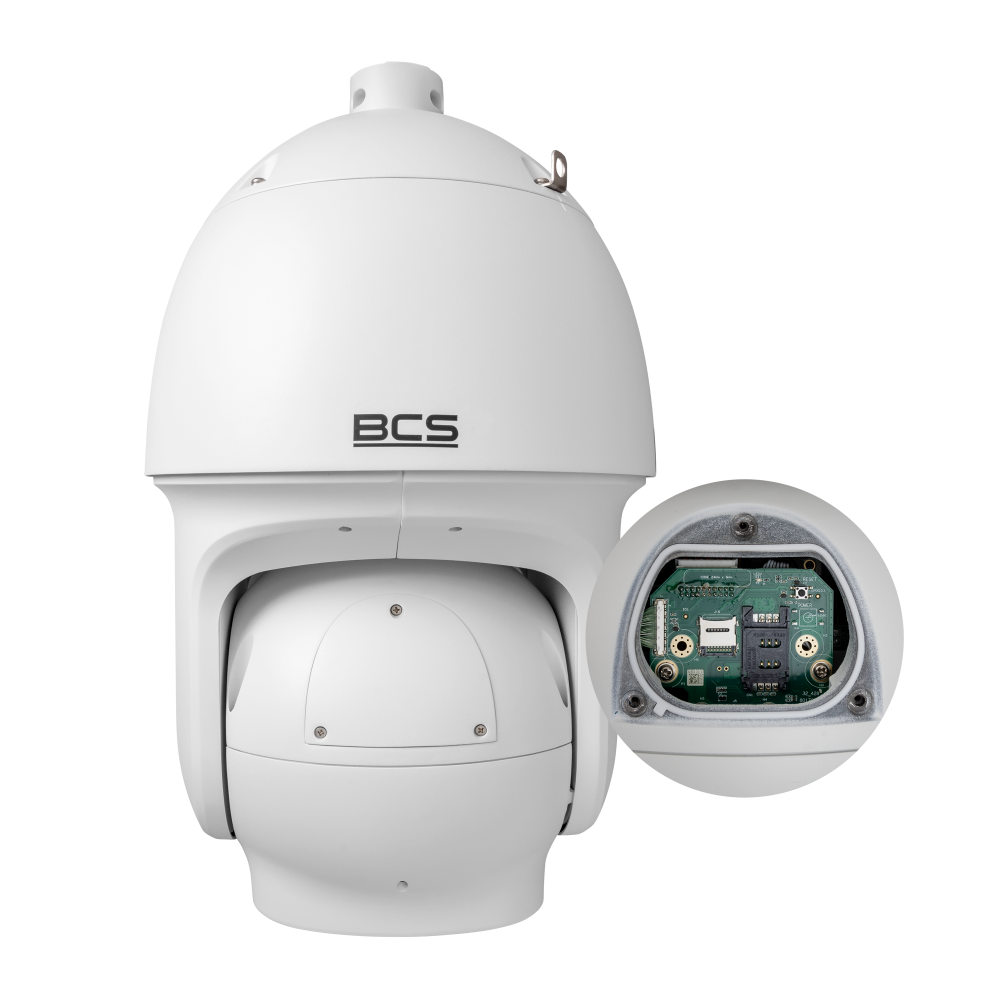

BCS-L-SIP9840SR50-Ai3
5772,39 € gross
Out of Stock- 8Mpx pan-tilt IP camera
- 1/1.8" STARVIS PS CMOS sensor
- SkyLight technology
- 5.6–223 mm motorised zoom lens
- 40x optical zoom
- WDR 120dB
- IR 500m
- Alarm 7/2, audio 1/1
- IP67-rated housing
- Built-in smart features
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
