| Ai - Perimeter protection | 4 channels from cameras |
|---|---|
| Ai - SMD - Smart Motion Detection | 4 channels from camera / 4 channels from recorder (people / vehicle recognition) |
| Product | BCS-L-SNVR0801-4KE(2) |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| HDD capacity | 20 TB |
| Power consumption (without HDD) | max 10W |
| Incoming bandwidth | 80Mbps |
| Ai - Intelligent functions from recorder | SMD Plus |
| Ai - Intelligent functions from camera | Perimeter protection, SMD Plus |
| Flag | PROMOTION |
| System | IP |
| Channels | 8 |
| HDD support | 1 |
| Record mode | Continuous, manual, alarm, motion detection, schedule, Ai |
| Max recording resolution | 12 Mpx |
| Video compression | H.265+ / H265 / H.264+ / H.264 / MJPEG |
| Outgoing bandwidth | 60Mbps |
| Recording bandwidth | 80Mbps |
| Display efficiency | 1×12M@30fps /1×8M@30fps /2×5M@30fps /3×4M@30fps /6×2M@30fps /1×8M Ai@30fps /1×5M Ai@30fps /2×4M Ai@30fps /4×2M Ai@30fps |
| Recording resolutions | 12M / 8M / 5M / 4M / 3M / 2M / 720P / D1 |
| HDMI out | HDMI4K |
| VGA out | VGA |
| HDMI display resolutions | 3840×2160 / 1920×1080 / 1280×1024 / 1280×720 |
| VGA display resolutions | 1920×1080 / 1280×1024 / 1280×720 |
| Display split | 1/4/8/9 |
| Synchronous playback | 1/4/8 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| User connections | 128 |
| Interfaces | 2×USB2.0 |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U / G.726 / PCM |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF(S/G/T), support third party cameras |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, IP Search, P2P, Auto Registration |
| Power supply | 12V DC |
| Working environment | -10°C~+55°C max 93% RH |
| Casing | smart |
| Dimensions (W×D×H) | 205×205×45mm |
| Weight (without HDD) | 0.5 kg |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

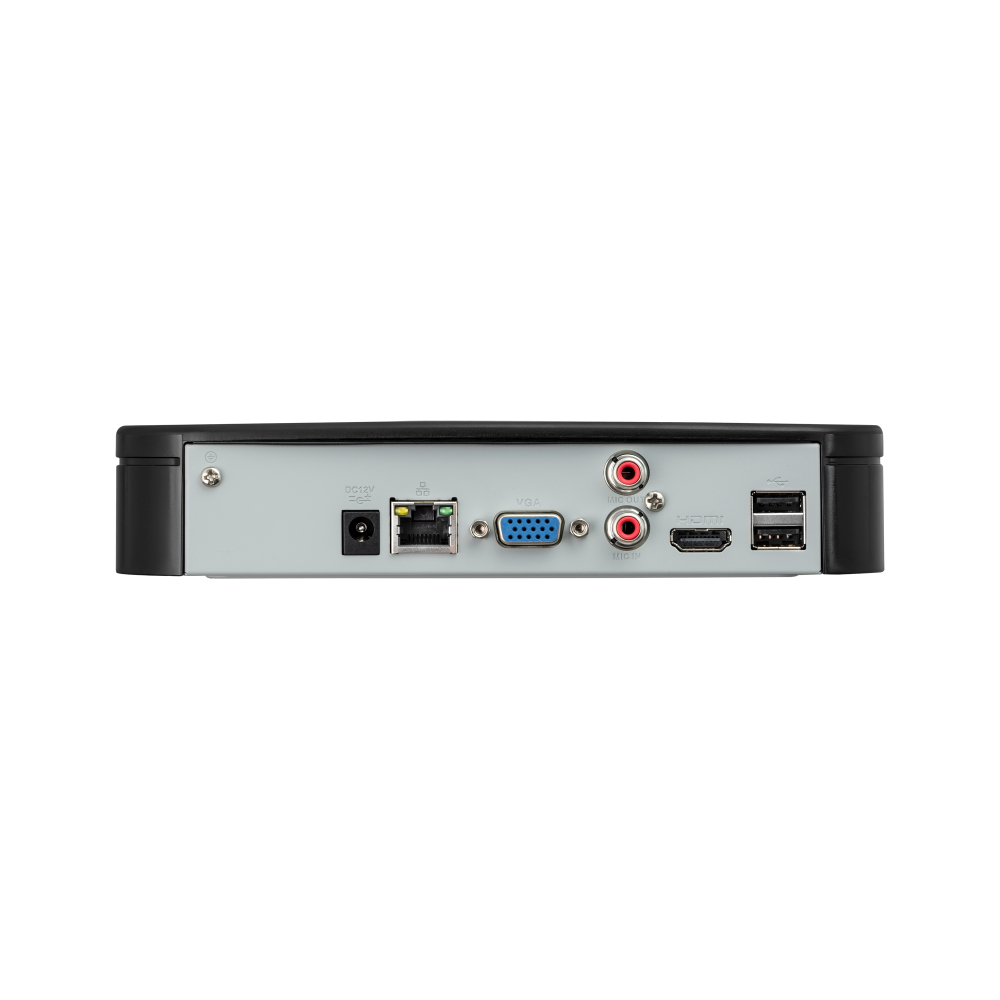

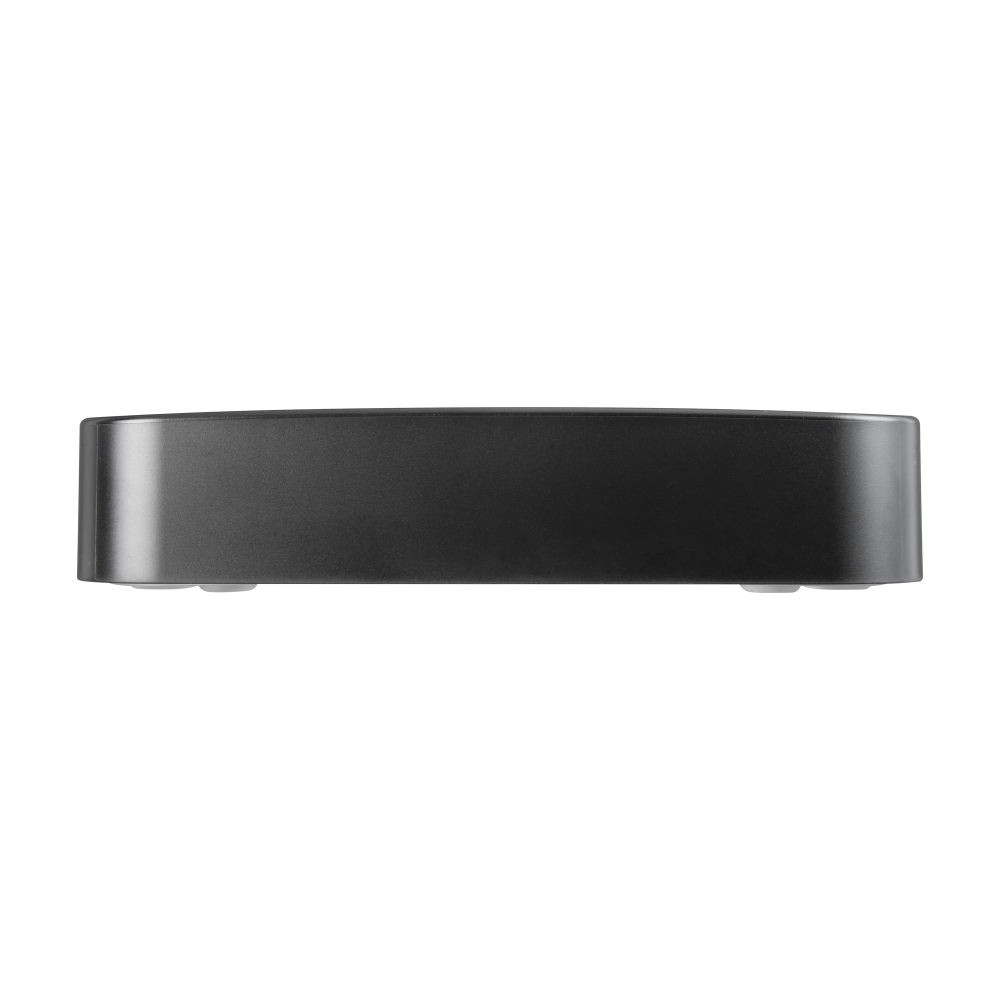

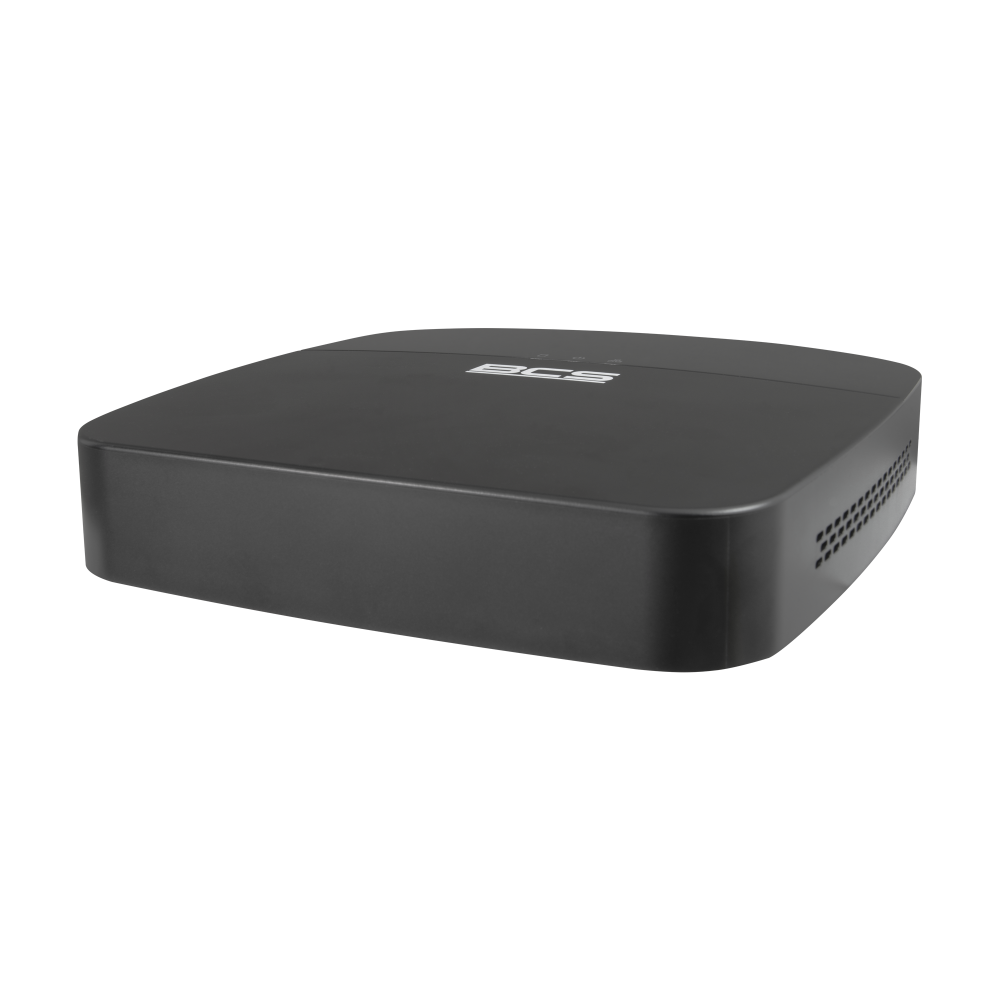

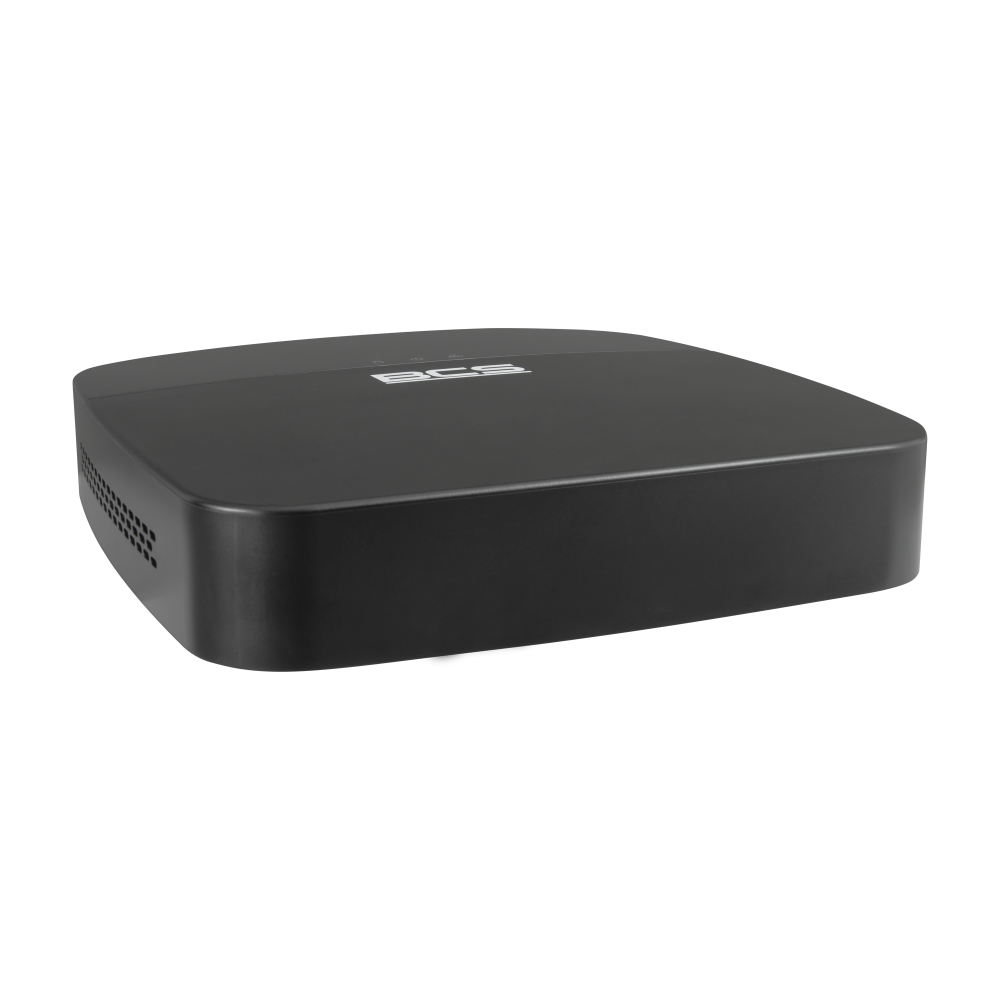

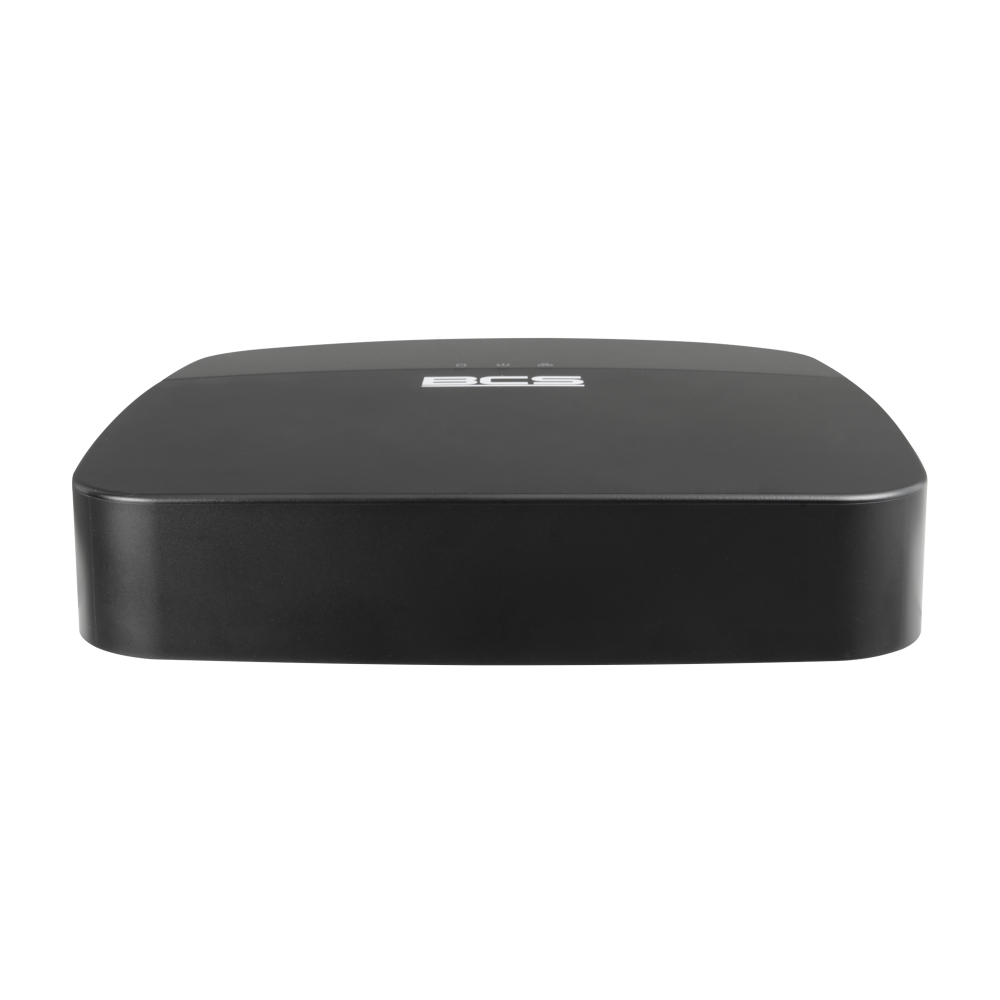

BCS-L-SNVR0801-4KE(2)
199,26 € gross
100 In Stock- 8-channel IP recorder
- SMART housing
- Supports 1 hard drive
- Supports 12Mpx IP cameras
- HDMI 4K/VGA output
- Audio 1/1
100 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
