| Product | BCS-L-TIP16FSR3L3-Ai |
|---|---|
| pa_product-line | BCS LINE |
| Camera type | Bullet |
| Resolution | 6 Mpx |
| Sensor | 1/2.7'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 3200(H)×1800(V) |
| RAM | 256MB |
| ROM | 128MB |
| Lens | fixed |
| Focal length | 2.8 mm |
| Aperture | F1.8 |
| Focus | fixed |
| Iris | fixed |
| Angle of view | H: 110° V: 58° D: 132° |
| DORI | Detect 63.6m/ Observe 25.4m/ Recognize 12.7m/ Identify 6.4m |
| Min illumination | 0.007Lux(Color,F1.6,30IRE) 0.0007Lux(F1.6,B/W,30IRE) 0Lux(IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| WDR | DWDR |
| Backlight compensation | BLC / HLC / DWDR |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| RoI | Region of Interest |
| Image rotate | Mirror, Flip 0°/90°/180°/270° |
| Stream support | 2 |
| Resolutions | 6M(3200×1800) 4M(2880×1620/2688×1520) 3M(2048×1536/2304×1296) 1080P(1920×1080) 1.3M(1280×960) 720P(1280×720) D1(704×576/704×480) VGA(640×480) CIF(352×288/352×240) |
| Main stream | 3200×1800(1~20fps) 2688×1520(1~25/30fps) |
| Second stream | 704×576(1~25fps) 704×480(1~30fps) |
| Bitrate | H.264: 32 kbps~8192kbps H.265: 12 kbps~8192kbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED + WhiteLight |
| IR range | 30m |
| WhiteLight range | 30m |
| NightColor | Yes |
| Microphone | Yes |
| Audio compression | G.711A / G.711Mu / G.726 / PCM |
| Storage | FTP |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, P2P |
| Network security | Video encryption,Configuration encryption,Digest,WSSE,Account lockout,Security logs,Generation and importing of X.509 certification,HTTPS,Trusted boot,Trusted execution,Trusted upgrade |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 5.3W |
| Housing color | White |
| IP class | IP67 |
| Working environment | -40°C~+60°C max 95% RH |
| Dimensions | 173.3×70×70mm |
| Weight | 0.44 kg |
| pa_ai-built-in-intelligent-f | Built-in intelligent algorithm of image analisis |
| &Ai - SMD | Yes |
| pa_ai-smd-smart-motion-detec | Intelligent motion detection with human recognition |

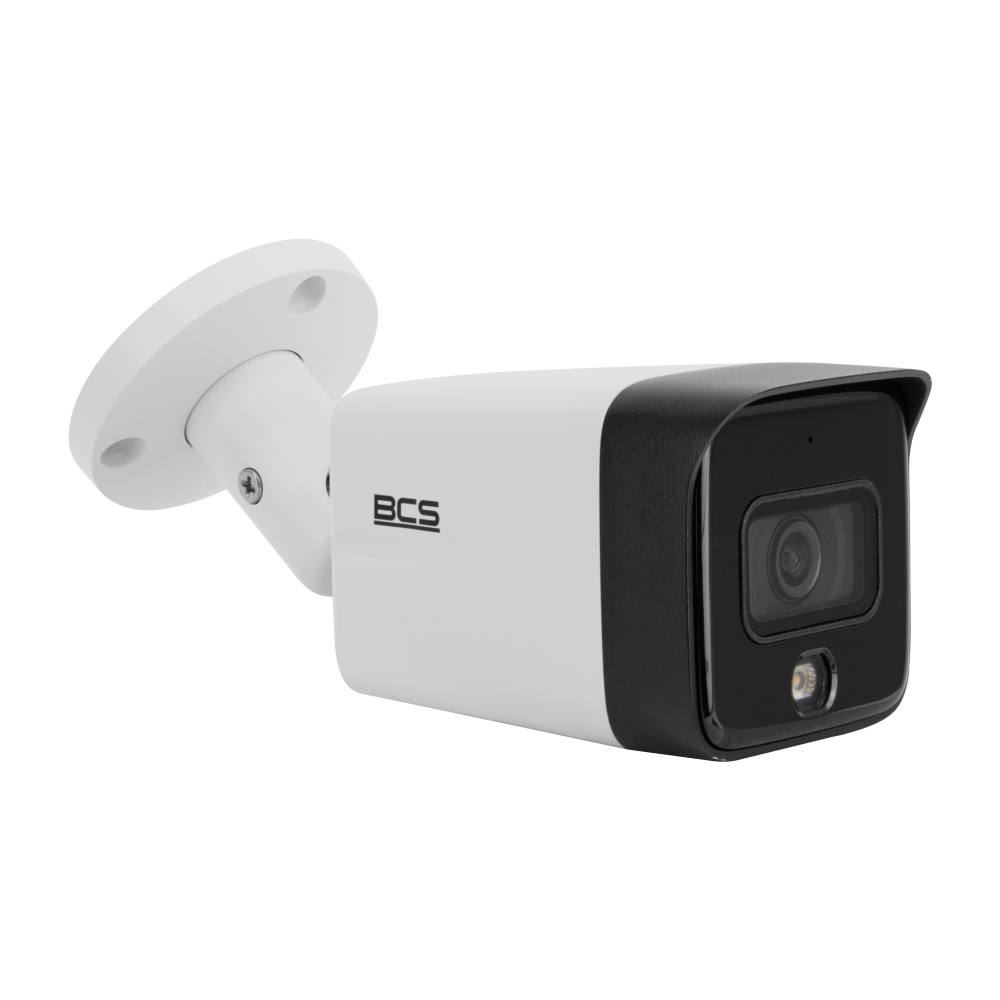

BCS-L-TIP16FSR3L3-Ai
232,47 € gross
100 In Stock- 6Mpx Bullet IP Camera
- 1/2.7″ PS CMOS Sensor
- NightColor Technology
- 2.8mm Fixed Lens
- Microphone
- 30m IR Illuminator
- 30m Whitelight
- IP67 Housing
- Intelligent Motion Detection with Human Recognition
100 in stock
