| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion reduces false alarms |
|---|---|
| Resolution | 2 Mpx |
| Scanning system | Progressive Scan |
| ROM | 4GB |
| Focus | fixed |
| Min illumination | |
| Backlight compensation | BLC / HLC / DWDR / SSA |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Product | BCS-L-TIP3x2FSR10-Ai1 |
| Defog | Electronic |
| Iris | fixed |
| Camera type | Bullet |
| Sensor | 3×1/2.8'' CMOS |
| Pixels | 1920(H)×1080(V) |
| RAM | 2GB |
| Lens | fixed |
| Focal length | 3.6/12/25 mm |
| Aperture | F1.4/F2.0/F2.8 |
| Angle of view | 3.6mm: H: 100.4°, V: 85.9°, D: 46.7° 12mm: H: 29.5°, V: 25.7°, D: 14.4° 25mm: H: 14.9°, V: 13°, D: 7.4° |
| DORI | 3.6mm: Detect 54m / Observe 21m / Recognize 11m / Identify 5m 12mm: Detect 172m / Observe 69m / Recognize 35m / Identify 17m 25mm: Detect 331m / Observe 132m / Recognize 66m / Identify 33m |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| WDR | DWDR |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| RoI | Region of Interest |
| Stream support | 2 |
| Resolutions | 2M(1920×1080) /D1(704×576) |
| Main stream | 1920×1080(1~25 fps) |
| Second stream | 704×576(1~25fps) |
| Bitrate | H.264: 3 Kbps~8192 Kbps H.265: 3 Kbps~8192 Kbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 120m |
| Microphone | Yes |
| Loudspeaker | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / PCM |
| Alarm in | 2 |
| Alarm out | 2 |
| Storage | FTP, SFTP, NAS |

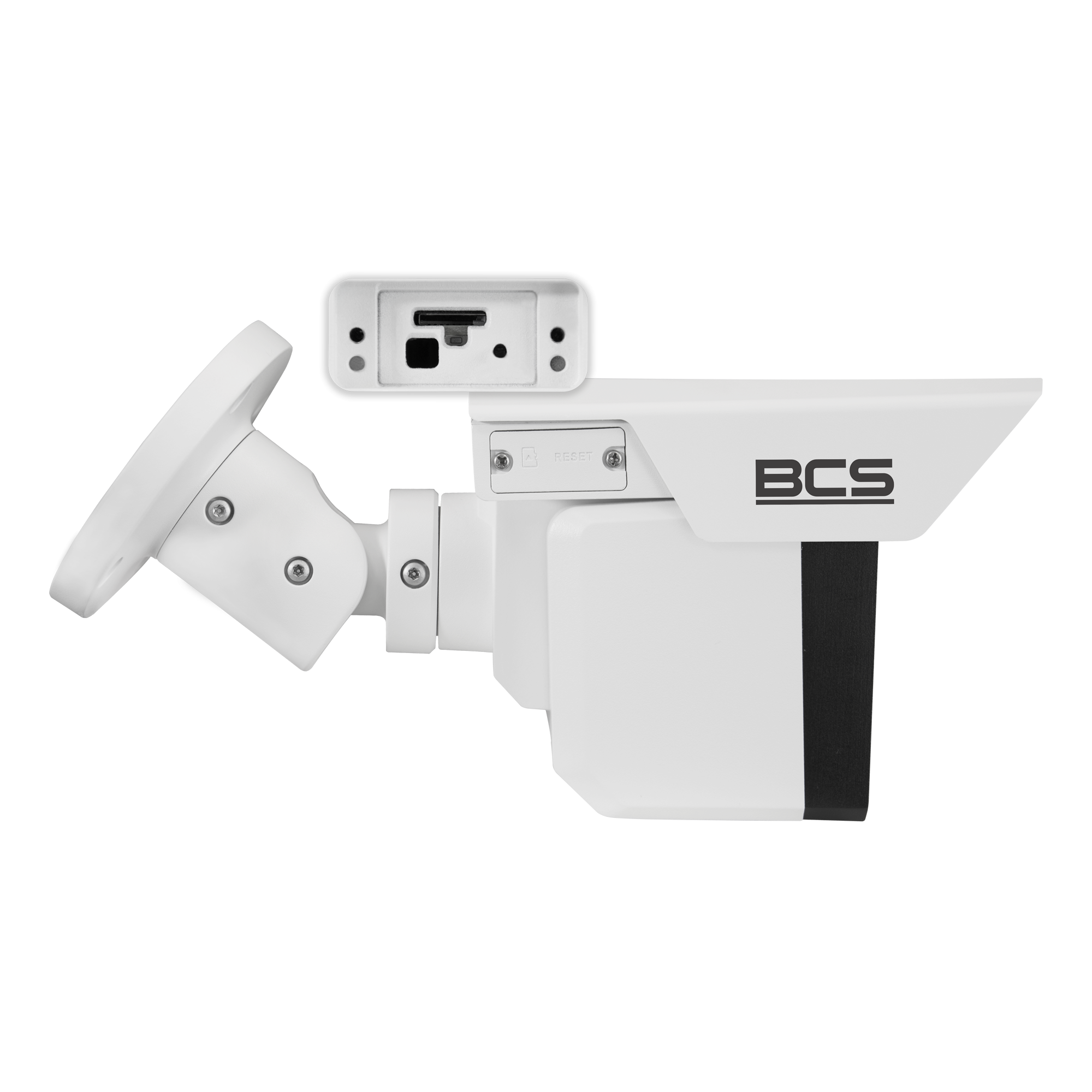

| Memory card slot | microSD 1TB |
| Other interfaces | RS485 |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T/M) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Bonjour |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3at) / ePoE |
| Power consumption | max. 23.6W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Working environment | -40°C~+60°C max 95% RH |
| Dimensions | 278.6×124×140.4mm |
| Weight | 2 kg |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE
BCS-L-TIP3x2FSR10-Ai1
1350,54 € gross

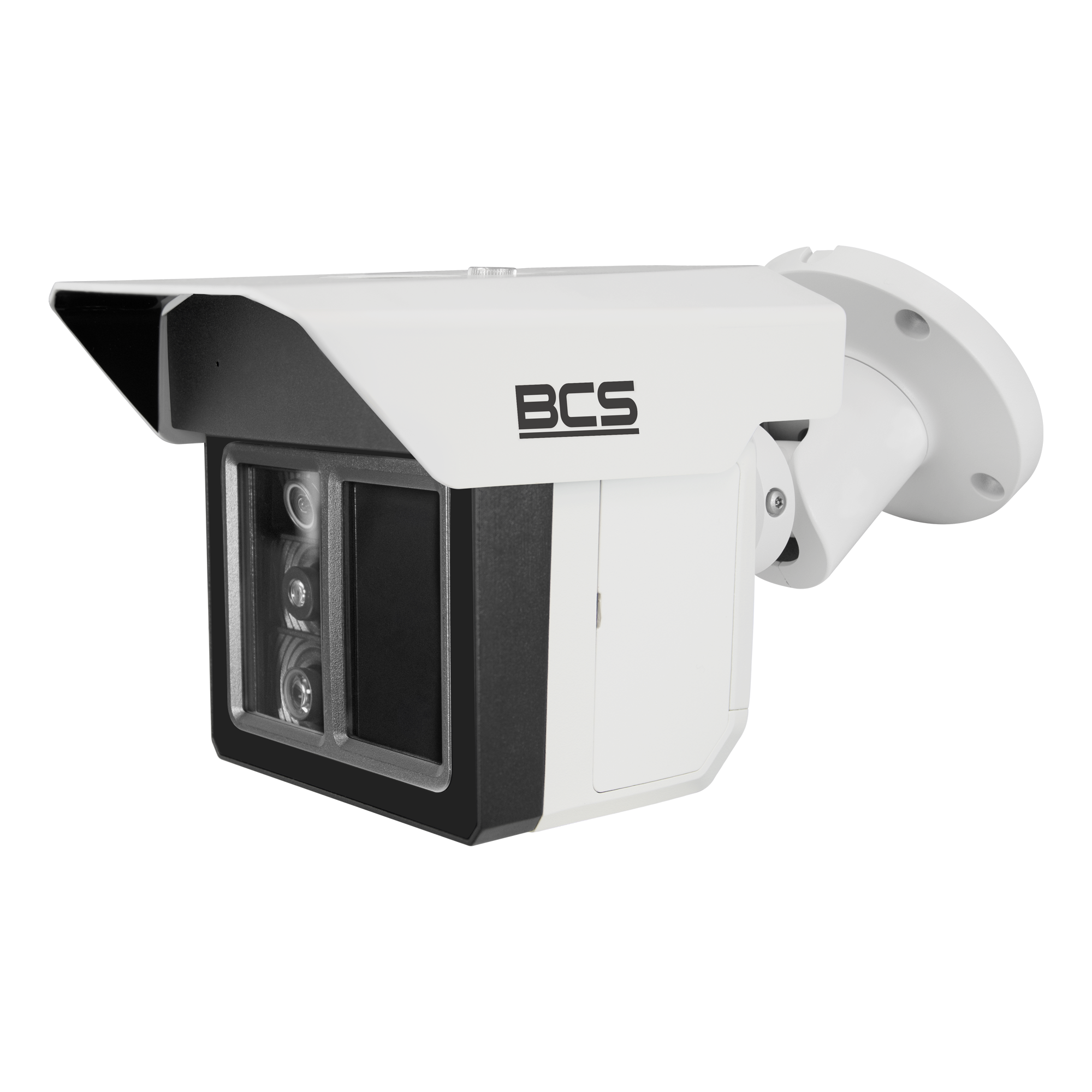

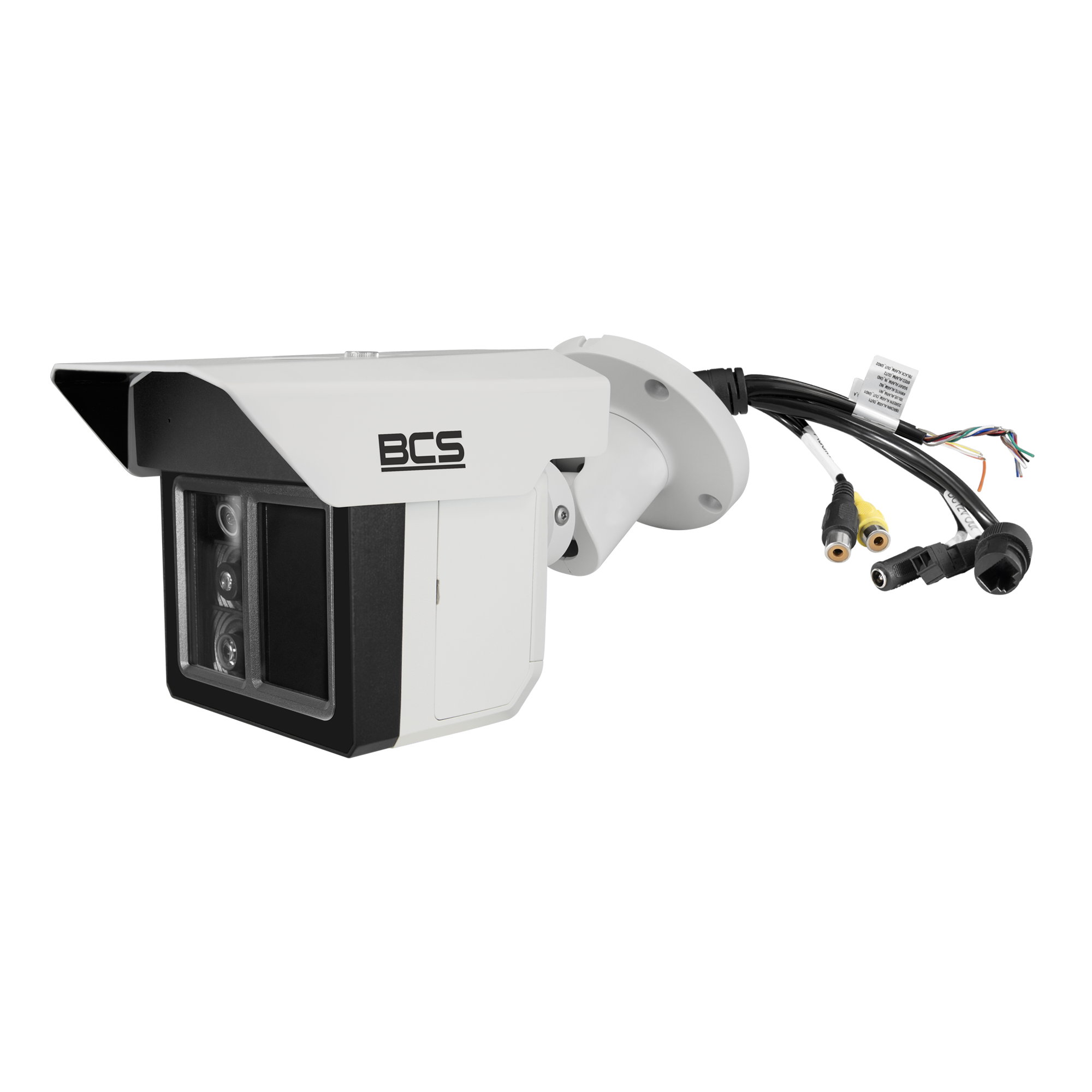

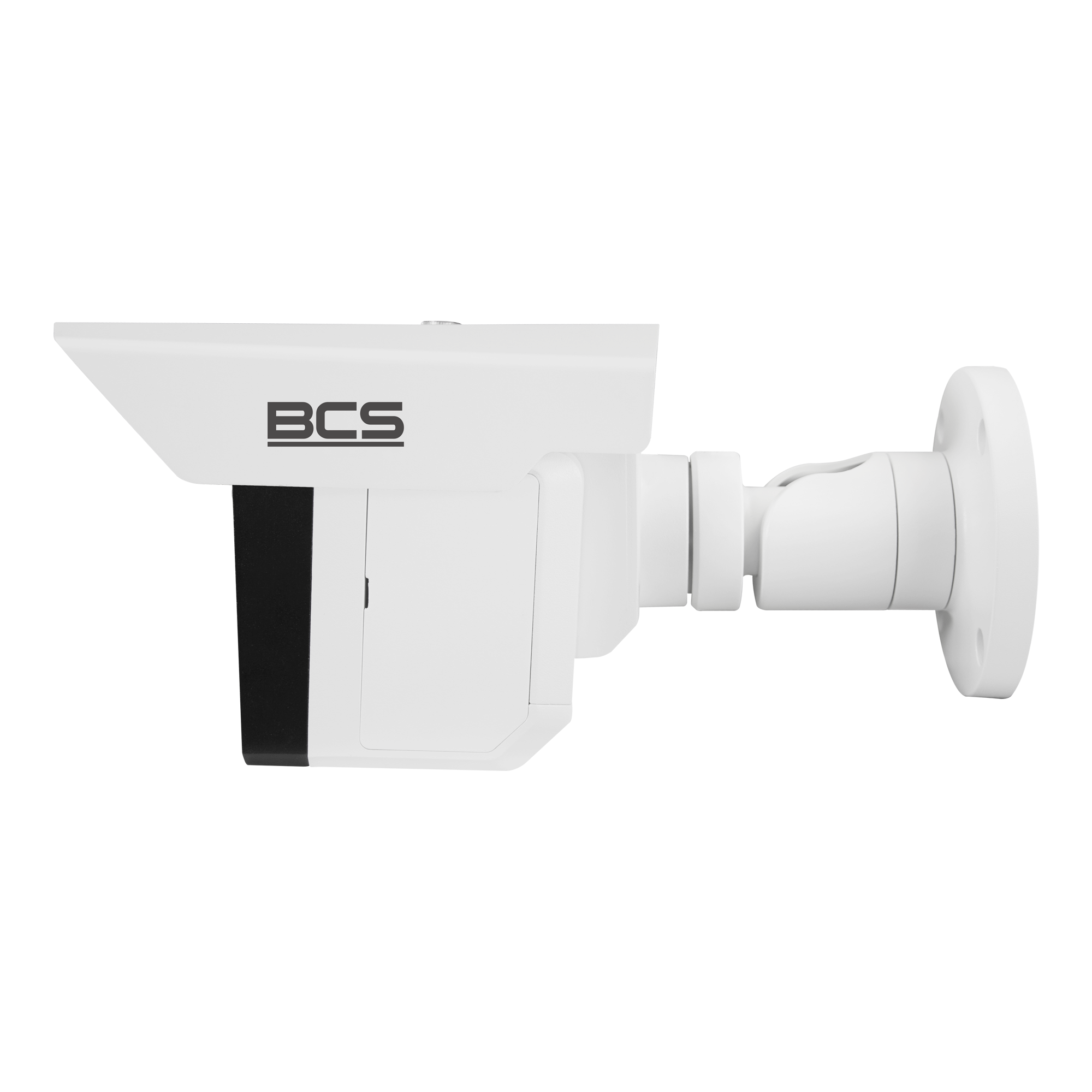

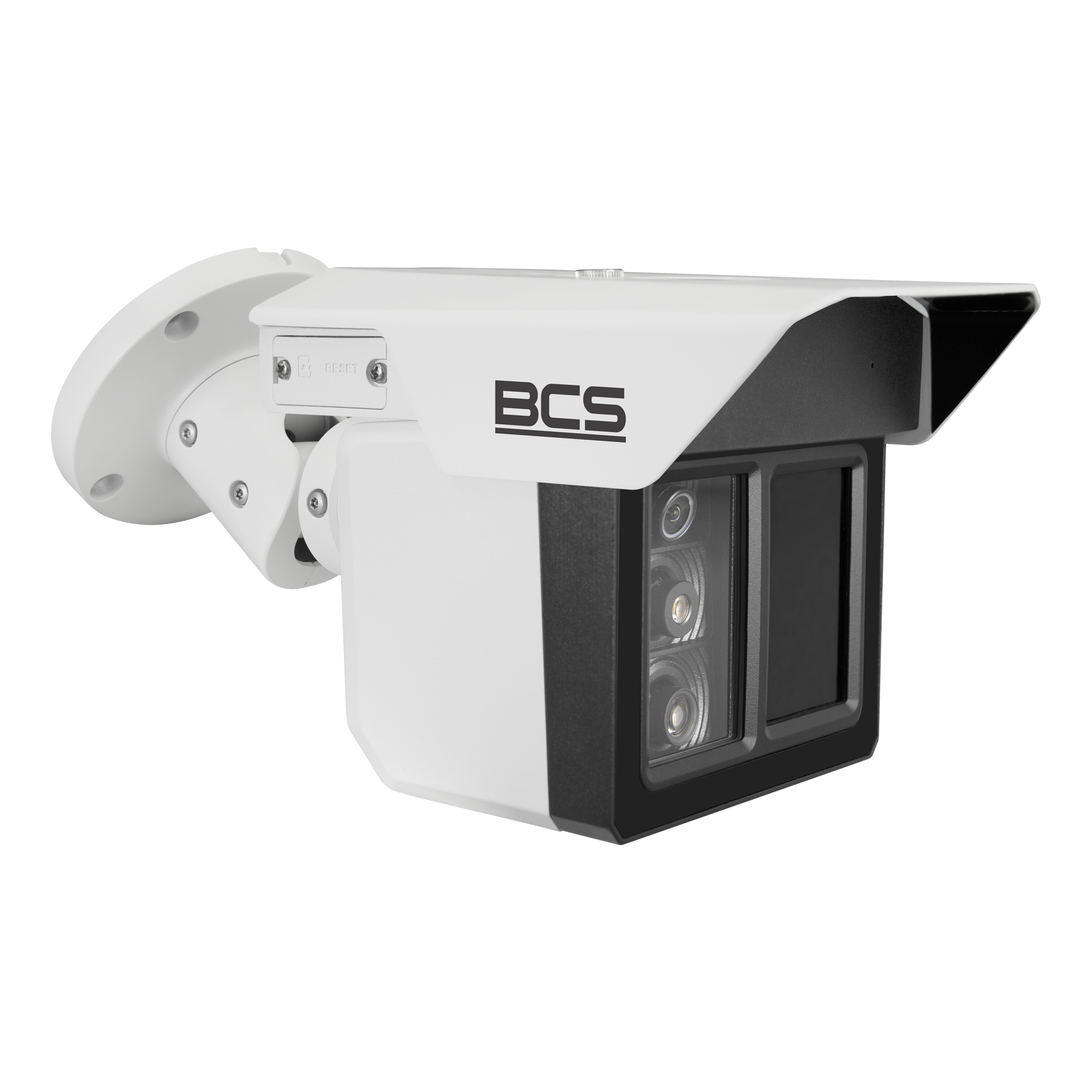

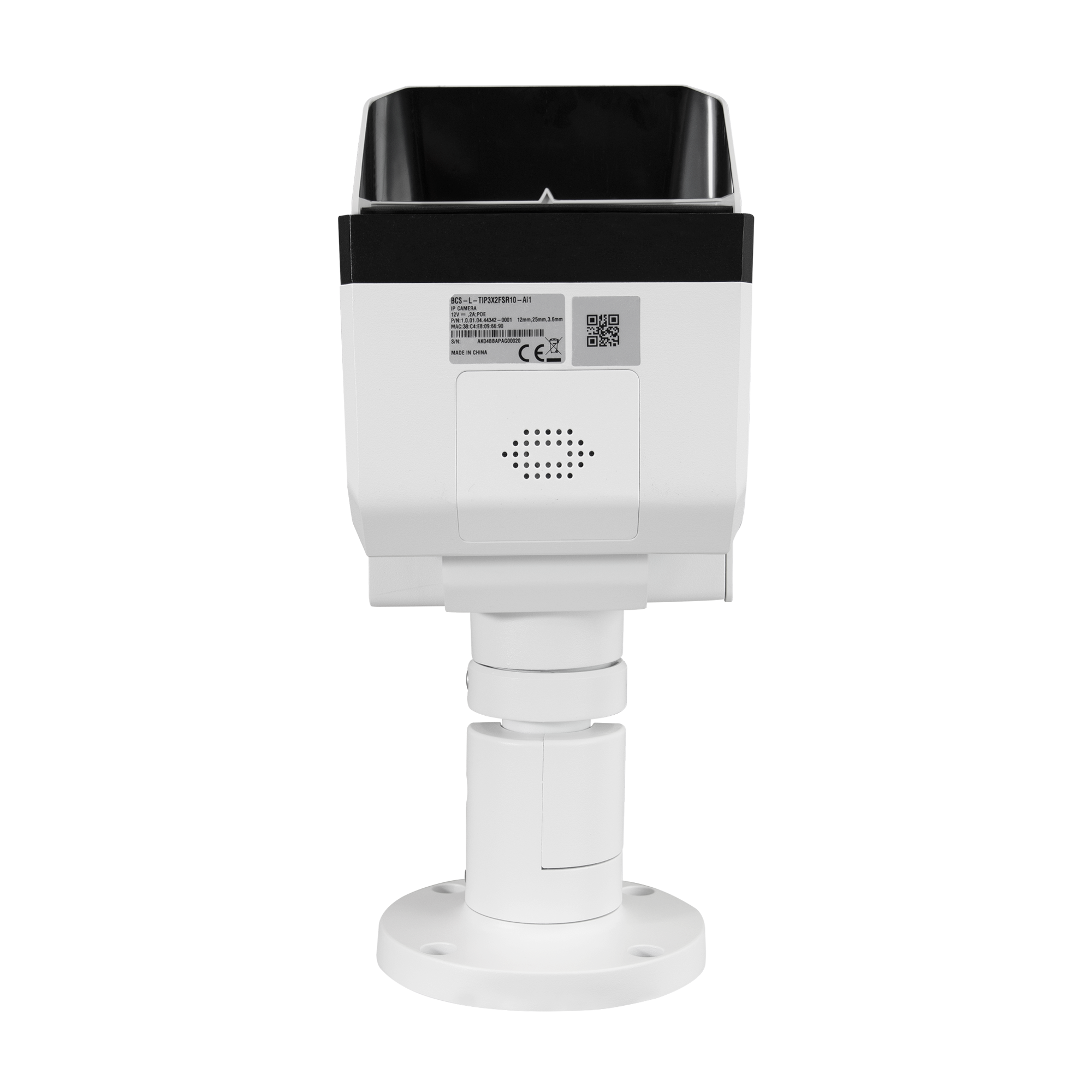

5 In Stock- Multi-sensor IP bullet camera
- 3x 1/2.8" PS CMOS sensors
- SkyLight technology

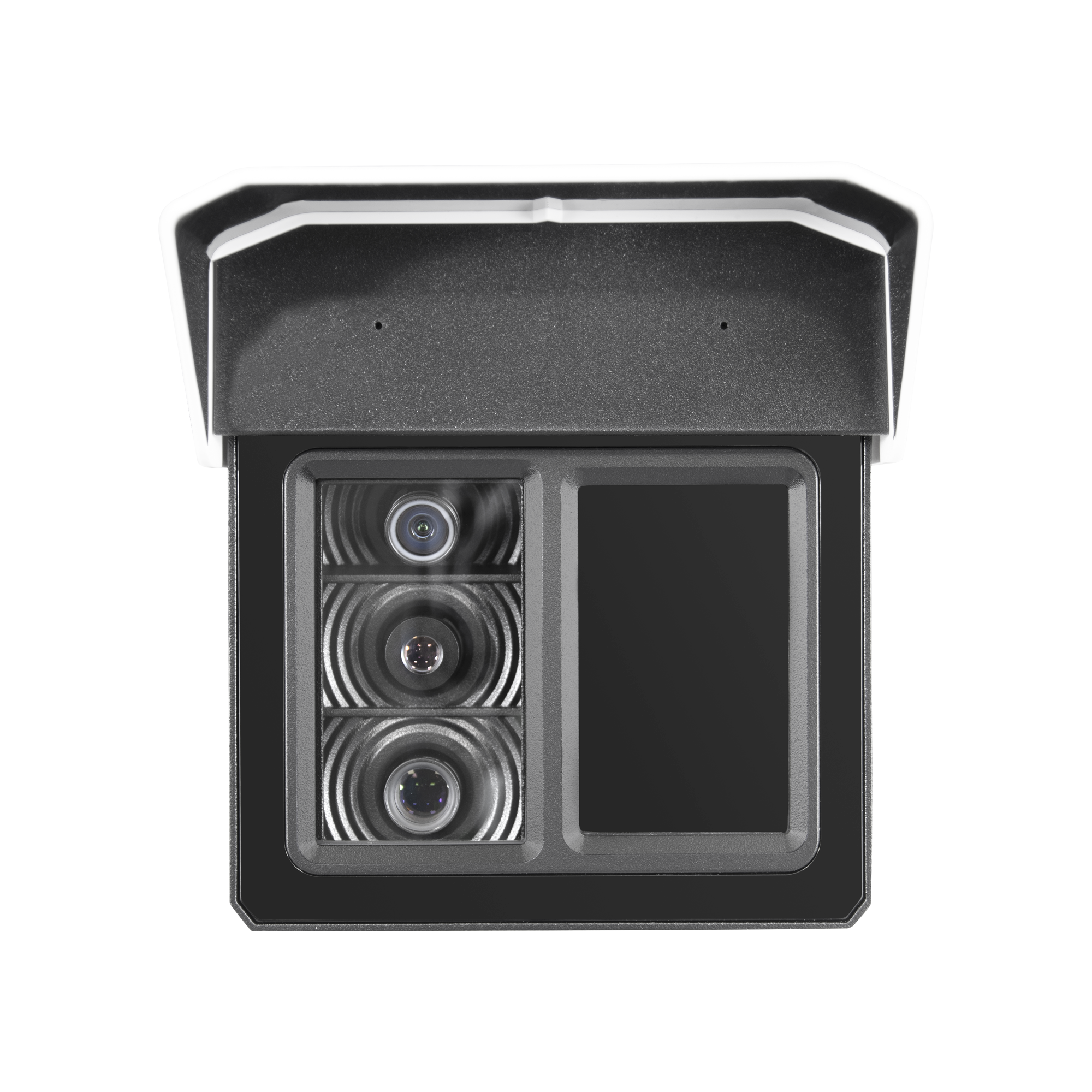

- 3 lenses: 3.6/12/25mm
- Multi-zone illuminator control technology, IR max 120m
- Alarm 2/2, audio 1/1, built-in microphone and speaker
- IP67, IK10 housing
- microPTZ function: Tilt: -5°–10°
- Built-in smart functions
- Wide-range perimeter protection with a range of up to 140m
