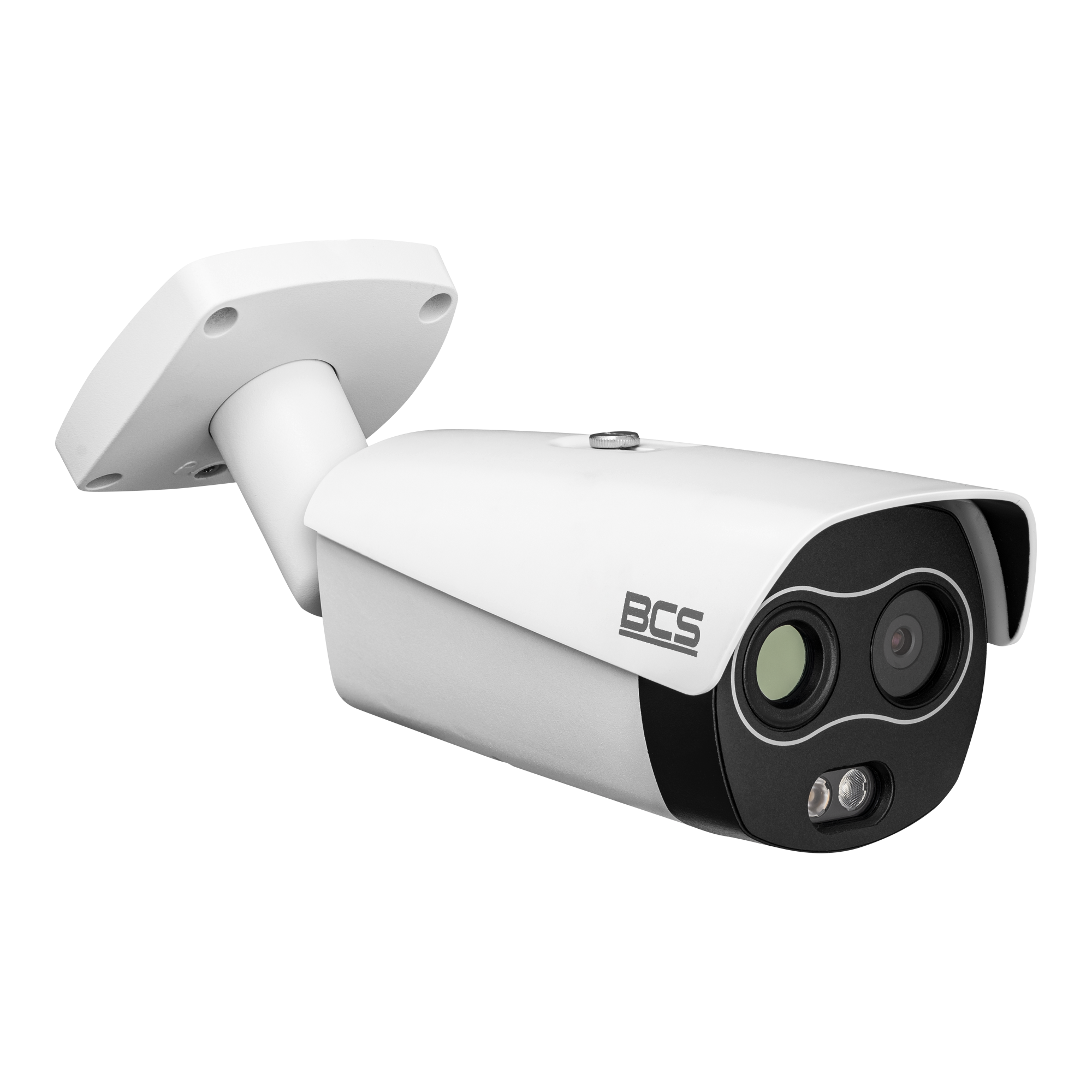

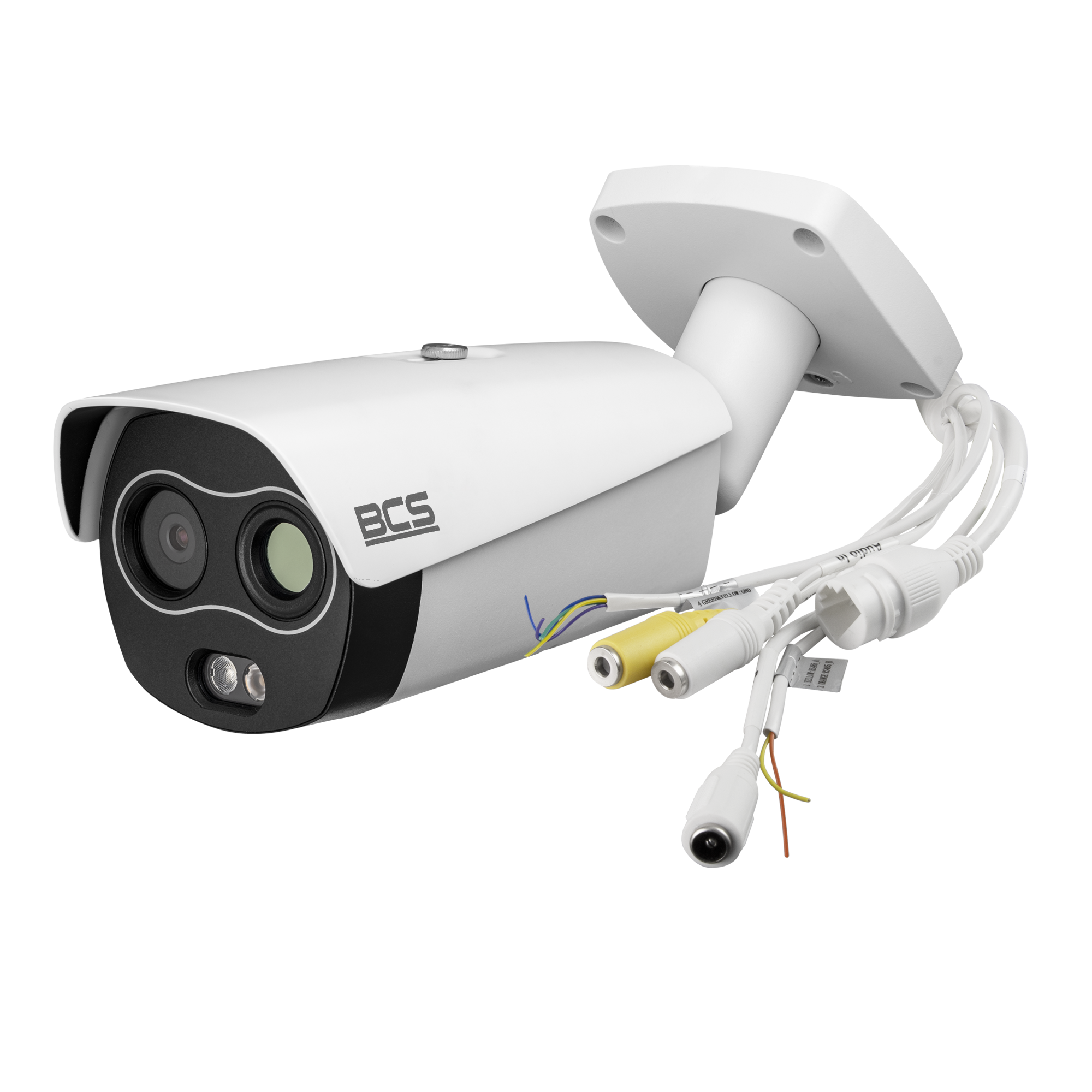

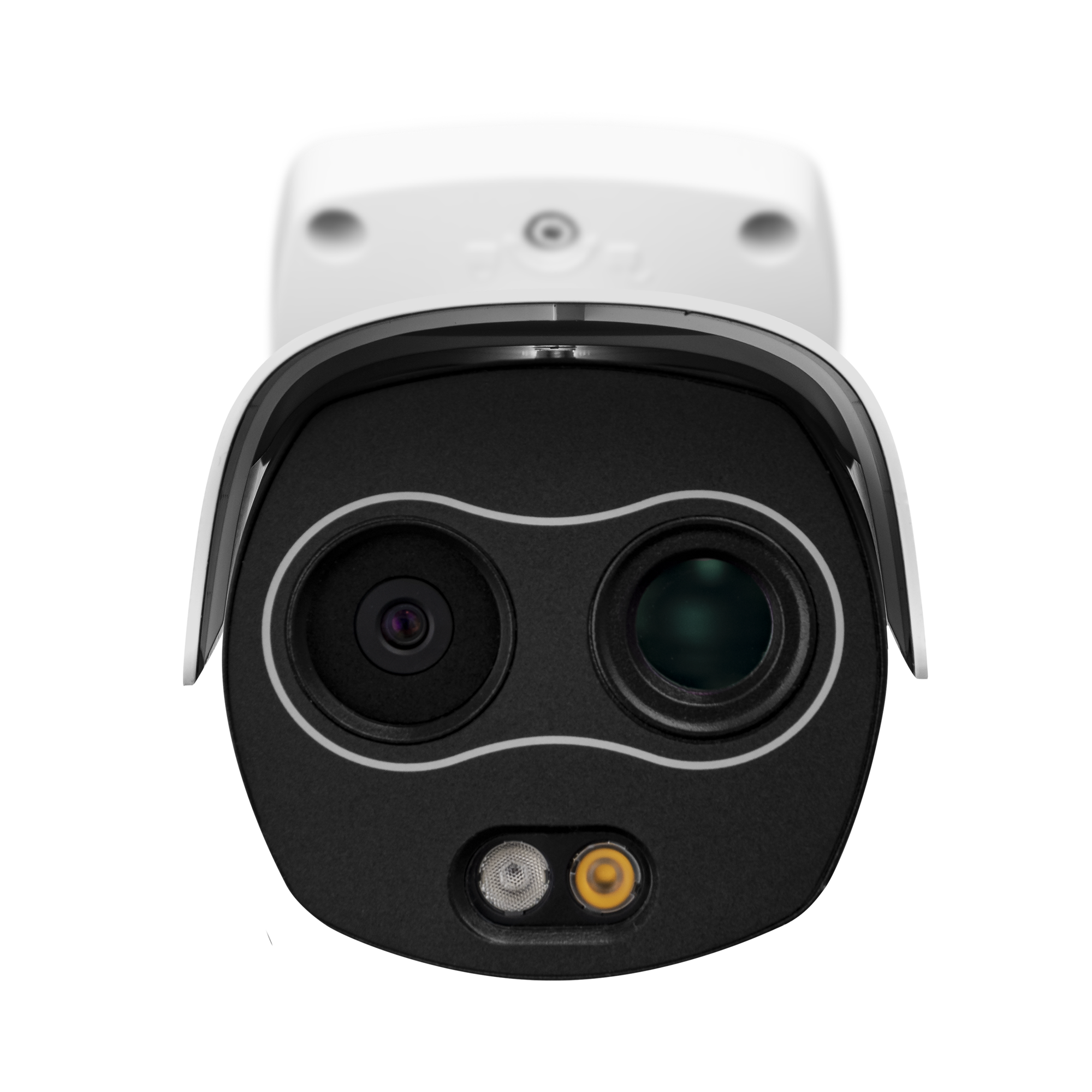

Tube IP camera, dual sensor with temperature measurement, thermal 256 × 192 / vision 4Mpx with 7mm thermal lens and 8mm vision lens. Video compression: H.265 / H.264M / H.264H / H.264B / MJPEG, illuminator – 50m, alarm – 1/1, audio – 1/1, additional interface – RS485, DORI, fire detection and alarm, function fusion, perimeter protection, object recognition, built-in microSD memory card slot – 256GB. White IP67 housing. Power supply: DC 12V / PoE (802.3af).
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE
BCS-L-TIP542FR5-THT-Ai1(0807)
2330,85 € gross
9 In Stock- Thermal imaging tube IP camera
- 256×192 thermal sensor with a 7mm lens
- 4 Mpx video camera with an 8mm lens
- IR 50m
- Alarm 1/1, audio 1/1
- IP67-rated housing
- Built-in smart features
- Fire detection and alarm
- Fusion function
- Temperature measurement
9 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Ai - Phone call detection | Detecting person talking on the phone |
|---|---|
| Pixel size | 12um |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Temperature Measurement Range | 3~8m |
| Temperature measurement accuracy | Max (±2°C, ±2%) |
| Temperature measurement environment | -20°C~+60°C |
| Product | BCS-L-TIP542FR5-THT-Ai1 |
| Camera type | Thermal |
| Resolution | 4 Mpx |
| Sensor | 1/2.7'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 2336(H)×1752(V) |
| Lens | fixed |
| Focal length | 8 mm |
| Aperture | F2.0 |
| Focus | fixed |
| Iris | fixed |
| Digital zoom | 16× |
| Angle of view | H: 33.4° V: 25° |
| Min illumination | 0.05Lux 0.005Lux(B/W) 0Lux(IR) |
| S/N ratio | 55dB |
| White balance | (AWB) Auto / manual |
| WDR | DWDR |
| Backlight compensation | BLC / HLC / DWDR |
| Shutter | Auto / manual 1~1/30000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| Image rotate | Flip 90° / 180° / 270° |
| Stream support | 2 |
| Resolutions | 4M(2336×1752) / 2M(1920×1080) / 720P(1280×720) /D1(704×576) / CIF(252×288) |
| Main stream | 2336×1752(25/30fps) 1920×1080(25/30fps) 1280×720(25/30fps) 704×576(25/30fps) |
| Second stream | 1280×720(25/30fps) 704×576(25/30fps) 352×288(25/30fps) |
| Video compression | H.265 / H.264M / H.264H / H.264B / MJPEG |
| Day/night | ICR |
| Illuminator type | IR LED |
| IR range | 50m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711a / G.711mu / PCM |
| Alarm in | 1 |
| Alarm out | 1 |

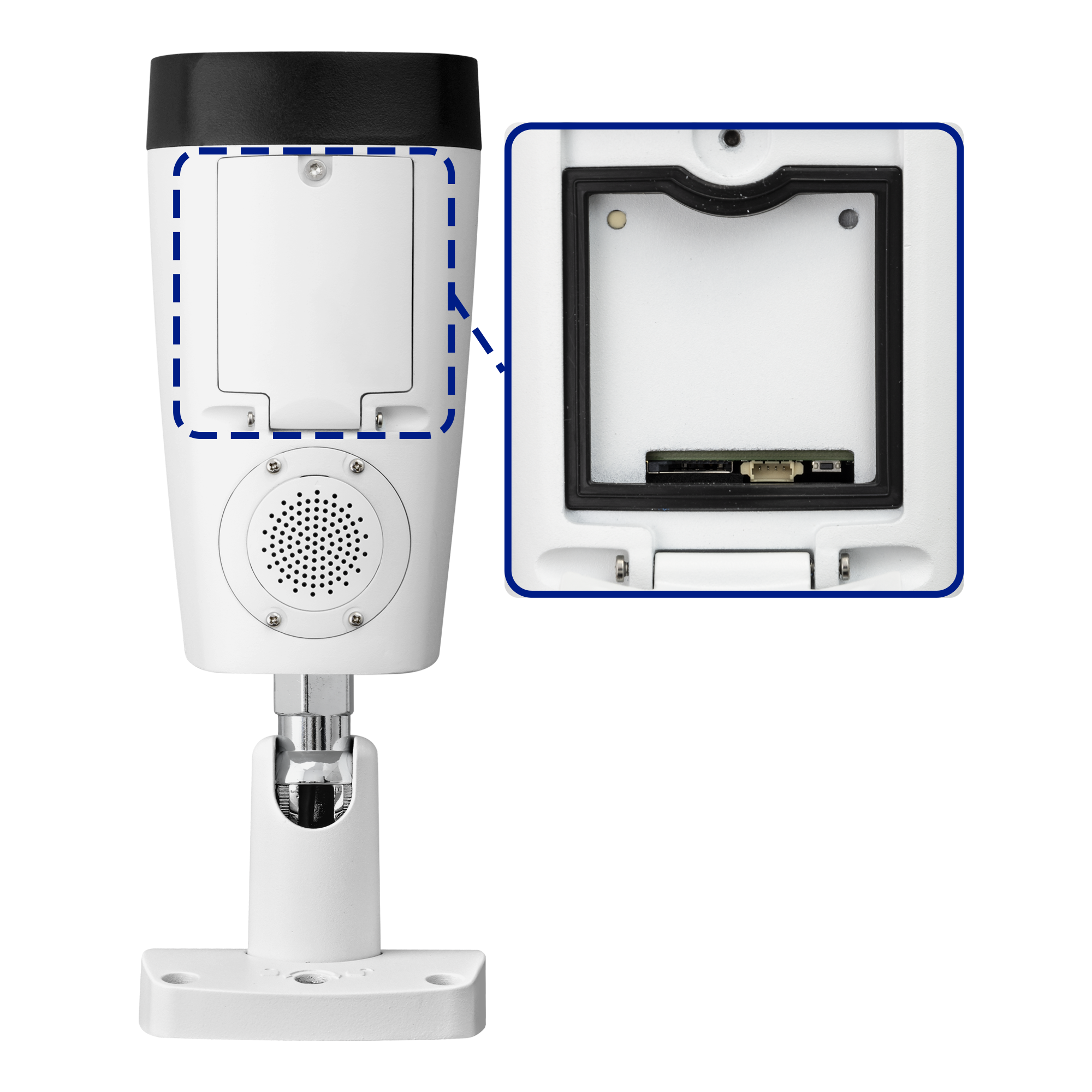

| Memory card slot | microSD 256GB |
| Other interfaces | RS485 |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF |
| Protocols | HTTPS, HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP, NTP |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 12W |
| Housing color | White |
| IP class | IP67 |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | 279.9×103.8×95.8mm |
| Weight | 1.4 kg |
| Ai - Perimeter protection | Intrusion, crossline |
| &Ai - Object classification | Yes |
| Thermal camera sensor | Focal plane detector microbolometric sensor with active absorbing material Vox |
| Thermal camera resolution | 256(H)×192(V) |
| Thermal camera main stream | 1280×960(25/30fps) 1024×768(25/30fps) 640×480(25/30fps) 256×192(25/30fps) |
| Thermal camera second stream | 640×480(25/30fps) 256×192(25/30fps) |
| Thermal camera lens | 7 mm |
| Thermal camera aperture | F1.0 |
| Thermal camera angle of view | H: 24° V: 18° |
| Thermal camera DORI | Person(vehicle) Detect 292(778)m / Recognize 75(194)m / Identify 38(97)m |
| Temperature measurement | Yes |
| Fire detection distance | max 86m |
| Temperature measurement mode | Spot 12 / Line 12 / Area 12 |
| Fire detection and alarm | Yes |
| Cold and Hot Spot Trace | Tracking the coldest and warmest temperature points on screen |
| Fusion function | Yes |
| Thermal sensitivity | 50mK |
| Spectral range | 8~14um |
| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion and fast moving reduces false alarms |
| &Ai - Smoking detection | Tak |
