| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion reduces false alarms |
|---|---|
| Ai - SMD - Smart Motion Detection | SMD 4.0 |
| Product | BCS-L-TIP55FCR3L3-Ai1-G(3) |
| Camera type | Bullet |
| Sensor | 1/2.7'' CMOS |
| RAM | 256MB |
| Aperture | F1.0 |
| Active deterrence function ADC | Sound-optical alarm |
| Angle of view | H: 97° V: 70° D: 128° |
| WDR | 120dB |
| LDC | Lens Distortion Correction |
| ROM | 1GB |
| Resolution | 5 Mpx |
| Scanning system | Progressive Scan |
| Pixels | 2960(H)×1688(V) |
| Lens | fixed |
| Focal length | 2.8 mm |
| Resolutions | 5M(2960×1668)(2880×1620) /4M(2688×1520)(2560×1440) /3M(2048×1536)(2304×1296) /2M(1920×1080) /1.3M(1280×960) /720P(1280×720) /D1(704×576/704×480) /VGA(640×480) /CIF(352×288/352×240) |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Focus | fixed |
| Iris | fixed |
| Digital zoom | 16× |
| DORI | Detect 66m/ Observe 26m/ Recognize 13m/ Identify 7m |
| Min illumination | 0.003Lux(Color,F1.0,30IRE) 0.0003Lux(F1.0,B/W,30IRE) 0Lux(IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| Backlight compensation | BLC / HLC / WDR(120dB) / SSA |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| RoI | Region of Interest |
| Defog | Electronic |
| Image rotate | Mirror, Flip 0°/90°/180°/270° |
| Stream support | 3 |
| Main stream | 2960×1668(1~20fps) 2880×1620(1~20fps) 2688×1520(1~30fps) |
| Second stream | 704×576/704×480(1~25/30fps) |
| Third stream | 1920×1080(1~25/30fps) |
| Bitrate | H.264: 3 kbps~16384 kbps H.265: 3 kbps~16384 kbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG / Ai Coding |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED + WhiteLight |
| IR range | 30m |
| WhiteLight range | 30m |
| NightColor | Yes |
| Microphone | Yes |
| Loudspeaker | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / PCM |
| Alarm in | 1 |
| Alarm out | 1 |
| Storage | FTP, SFTP, NAS |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP , RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, SNMP, P2P |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 8.8W |
| Housing color | Graphite |
| IP class | IP67 |
| Working environment | -40°C~+60°C max 95% RH |
| Dimensions | 288.4×94.4×84.7mm |
| Weight | 1 kg |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
| &Ai - SMD | Yes |
| Ai - Smart search | AcuPick technology – intelligent search for human/vehicle objects in the recording history with a recorder with the AcuPick function |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
Save 58%
BCS LINE

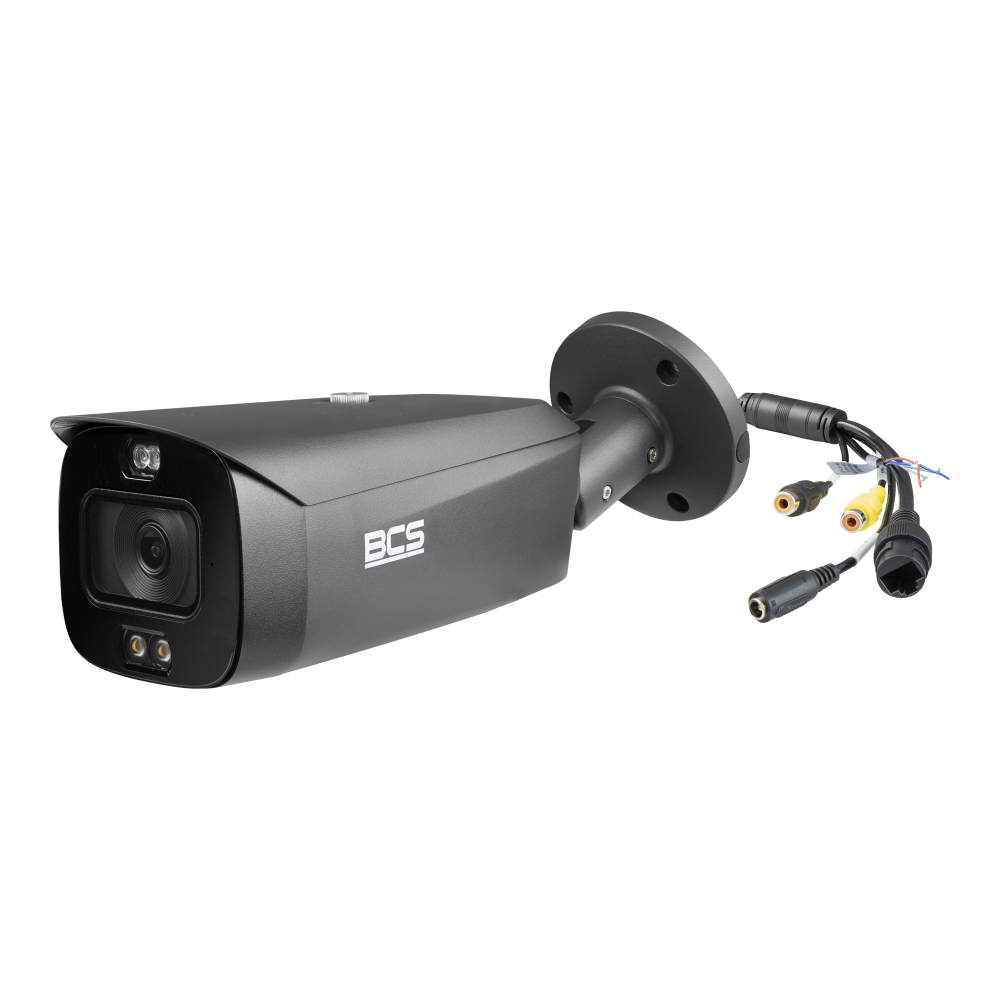

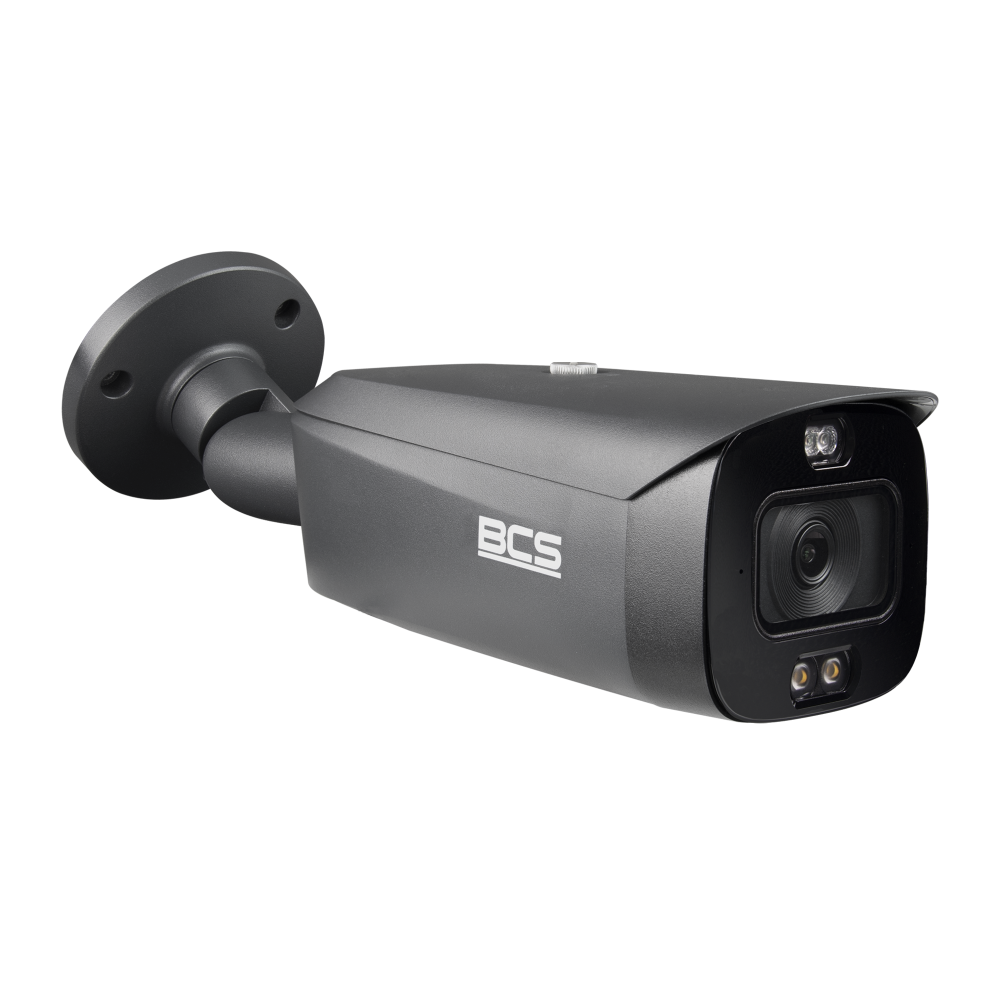

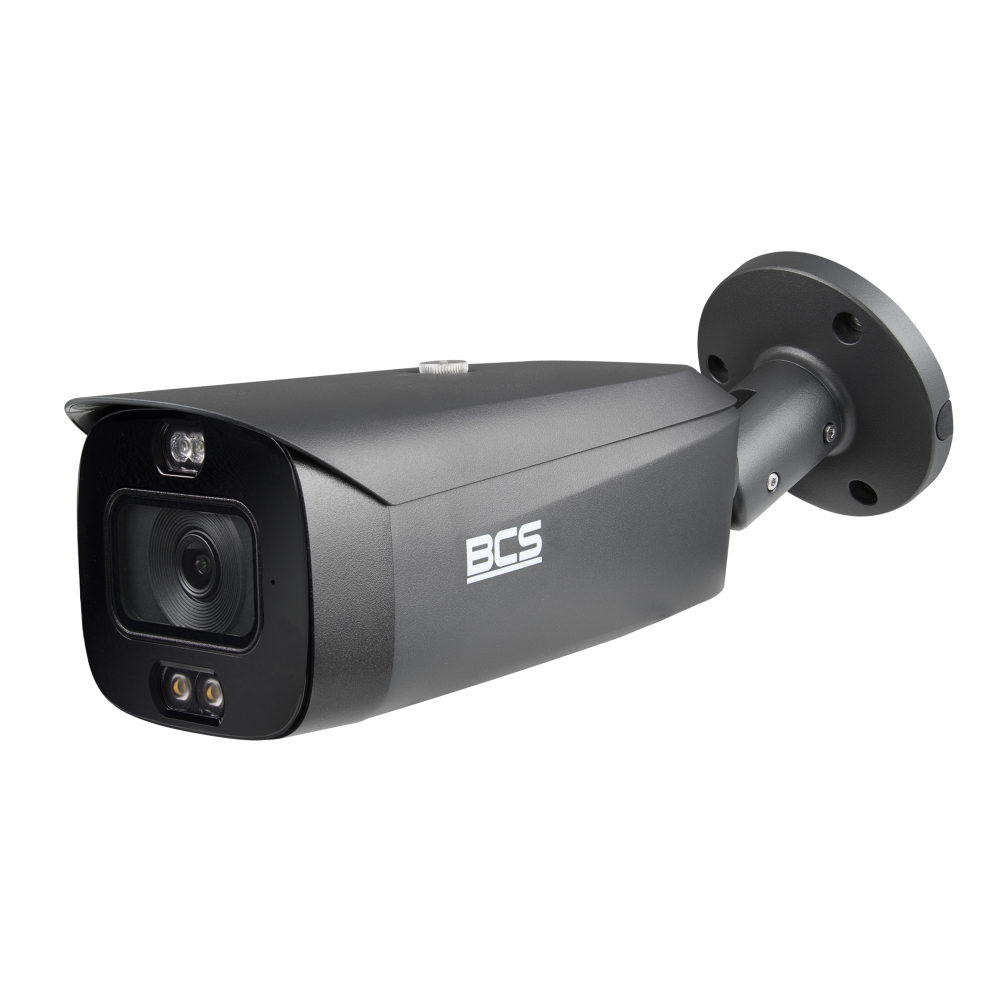

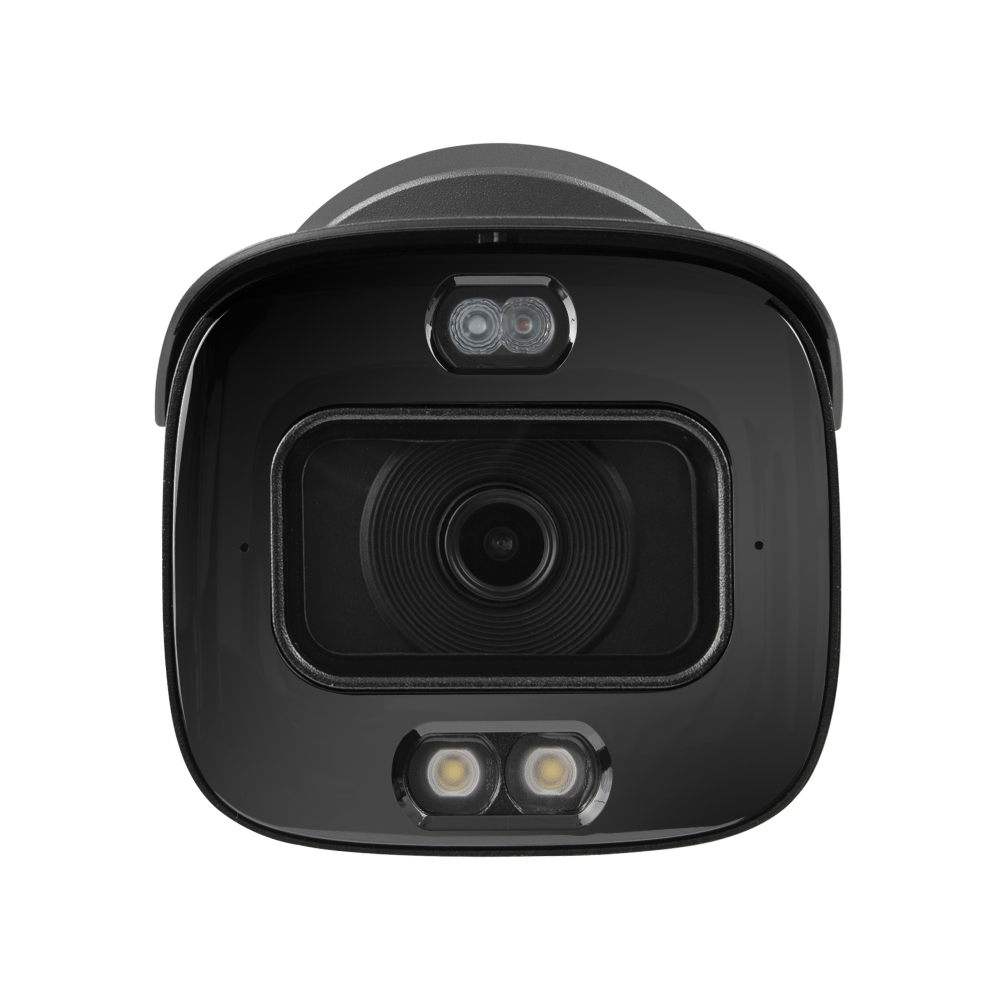

BCS-L-TIP55FCR3L3-Ai1-G(3)
216,71 € gross
12 In Stock- 5Mpx IP bullet camera
- 1/2.7" PS CMOS sensor
- NightColor technology
- ADC technology
- 2.8mm fixed lens
- WDR 120dB
- IR 30m, WhiteLight 30m
- Alarm 1/1, audio 1/1, microphone, speaker
- IP67-rated housing
- Built-in smart features
12 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
