| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
|---|---|
| Ai - SMD - Smart Motion Detection | SMD 4.0 |
| Flag | TO ORDER |
| Product | BCS-L-TIP64VCR12L8-Ai2(0832) |
| Camera type | Bullet |
| Resolution | 4 Mpx |
| Sensor | 1/1.8'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 2688(H)×1520(V) |
| RAM | 2GB |
| ROM | 4GB |
| Lens | motozoom |
| Focal length | 8~32 mm |
| Aperture | F1.6 |
| Focus | Auto / manual |
| Iris | Auto |
| Optical zoom | 4× |
| Digital zoom | 16× |
| Angle of view | H: 41°~9° V: 23°~16° D: 48°~18° |
| DORI | Detect 154.5~389m / Observe 61.8~155.6m / Recognize 30.9~77.8m / Identify 15.4~38.9m |
| Min illumination | 0.0007Lux(Color,F1.8,30IRE) 0.0004Lux(F1.8,B/W,30IRE) 0Lux(IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| WDR | 140dB |
| Backlight compensation | BLC / HLC / WDR(140dB) / SSA |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| LDC | Lens Distortion Correction |
| RoI | Region of Interest |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Image rotate | Mirror, Flip 0°/90°/180°/270° |
| Stream support | 4 |
| Resolutions | 4M(2688×1520/2560×1440) 3M(2048×1536/2304×1296) 1080p(1920×1080) 1.3M(1280×960) 720p(1280×720) D1(704×576/704×480) VGA(640×480) CIF(352×288/352×240) |
| Main stream | 2688×1520(1~25/30fps) |
| Second stream | 704×576(1~25fps) 704×480(1~30fps) |
| Third stream | 1920×1080(1~25/30fps) |
| Fourth stream | 1280×720(1~25/30fps) |
| Bitrate | H.264: 3 kbps~16384kbps H.265: 3 kbps~16384kbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / H.264H / H.264B / MJPEG / Ai Coding |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED + WhiteLight |
| IR range | 120m |
| WhiteLight range | 80m |
| NightColor | Yes |
| Microphone | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / PCM |
| Alarm in | 2 |
| Alarm out | 1 |
| Storage | FTP, SFTP, NAS |
| Memory card slot | microSD 1TB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 8 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T/M) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Auto Registration |
| Network security | |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3at) / ePoE |
| Power consumption | max 22.1W |
| Redundant power | Dual Power Backup |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Working environment | -40°C~+60°C max 95% RH |
| Dimensions | 279.8×96.7×94.9mm |
| Weight | 1.09 kg |
| Casing | Metal |
| Ai - Perimeter protection | Intrusion, crossline, fast moving, loitering, people gathering, parking detection |
| &Ai - Object classification | Yes |
| Ai - Face detection | Face detection and tracking, snapshot, attributes and expression recognition |
| &Ai - SMD | Yes |
| Ai - People counting | People counting for intrusion and crossline, counting people in/out/stay in, queue management, generate and export reports in periods of time |
| Ai - Metadata | People attributes (gender, clothes, color, bag, hat, umbrella), face attributes (gender, age, expression, glasses, mask, beard), vehicle attributes (type, color, logo, seat belts, smoking, calling) |
| Ai - Heat map | Recording the movement of objects over a period of time, statistics of the time density of movement presented graphically in red/blue color tones |
| Ai - Smart search | AcuPick technology – intelligent search for human/vehicle objects in the recording history with a recorder with the AcuPick function |
| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion and fast moving reduces false alarms |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

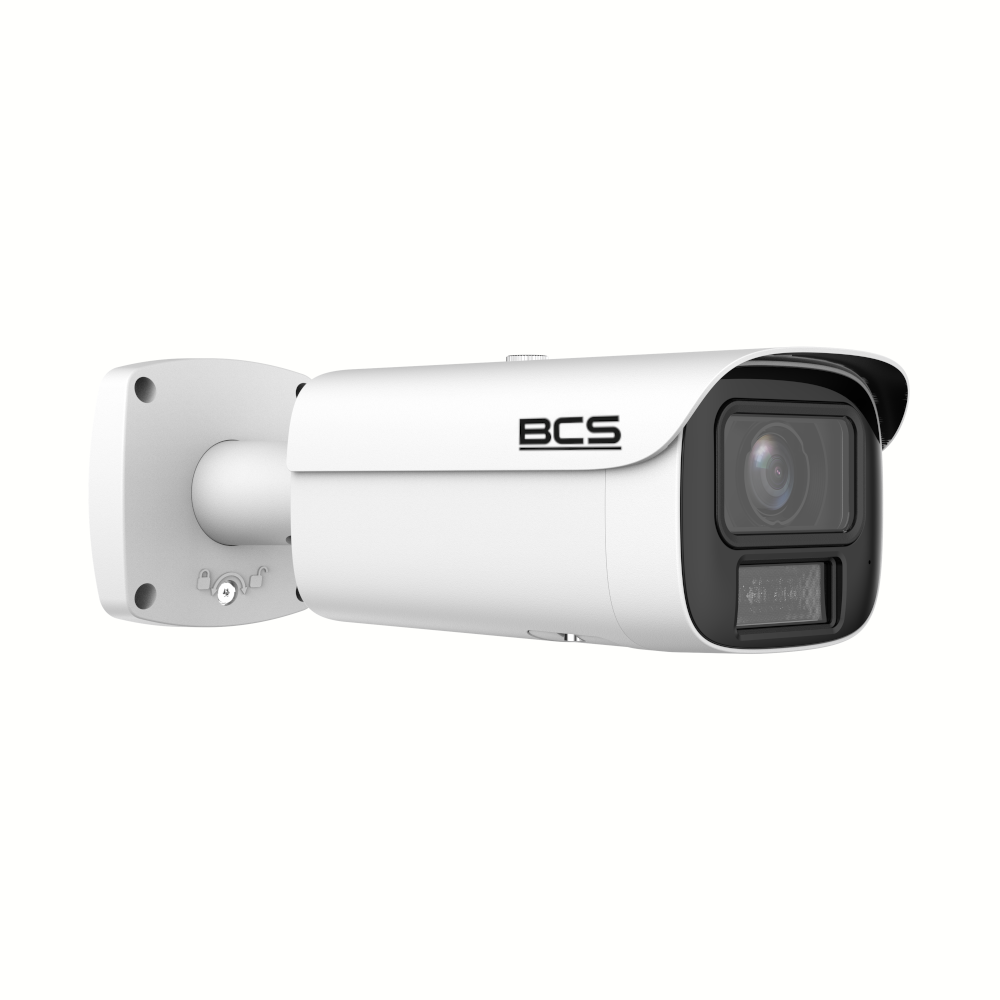

BCS-L-TIP64VCR12L8-Ai2(0832)
1612,53 € gross
Out of Stock- 4Mpx IP bullet camera
- 1/1.8" PS CMOS sensor
- NightColor technology
- exPoE technology
- AcuPick technology
- 8–32 mm motorised zoom lens
- WDR 140dB
- IR 120m, WhiteLight 80m
- Alarm 2/1, audio 1/1, microphone
- IP67, IK10 housing
- Built-in smart features
