BCS-L-TIP65VCR6L6-Ai2
BCS LINE

BCS-L-TIP65VCR6L6-Ai2

981,54 € gross

32 In Stock

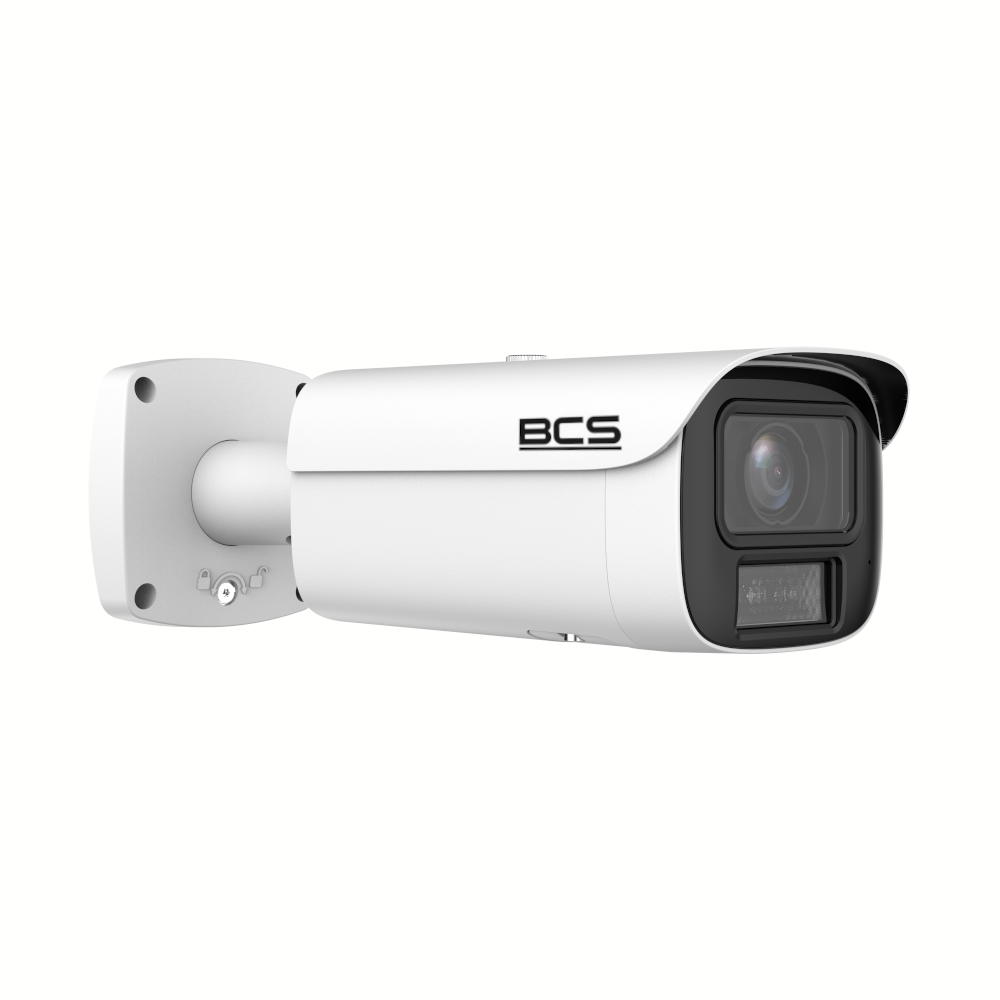

  • 5Mpx IP bullet camera
  • 1/2.7" PS CMOS sensor
  • NightColor technology
  • exPoE technology
  • AcuPick technology
  • 2.7–13.5 mm motorised zoom lens
  • WDR 120dB
  • IR 60m, WhiteLight 60m
  • Alarm 2/1, audio 1/1, microphone
  • IP67, IK10 housing
  • Built-in smart features

32 in stock

  • DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
  • Official BCS e-commerce Business Partner
  • Technical support
SKU: 13194 Categories: , , , ,
Ai - Built-in intelligent functions

Built-in intelligent algorithm of image analisis
Ai - SMD - Smart Motion Detection

SMD 4.0
Flag

COMING SOON
Product

BCS-L-TIP65VCR6L6-Ai2
Camera type

Bullet
Resolution

5 Mpx
Sensor

1/2.7'' CMOS
Scanning system

Progressive Scan
Pixels

2960(H)×1668(V)
RAM

2GB
ROM

4GB
Lens

motozoom
Focal length

2.7~13.5 mm
Aperture

F1.6
Focus

Auto / manual
Iris

Auto
Optical zoom

4×
Digital zoom

16×
Angle of view

H: 110°~32° V: 57°~18° D: 134° ~37°
DORI

Detect 65.4~202m / Observe 26.1~80.8m / Recognize 13.1~40.4m / Identify 6.5~20.2m
Min illumination

0.0009Lux(Color,F1.6,30IRE) 0.0005Lux(F1.6,B/W,30IRE) 0Lux(IR)
S/N ratio

56dB
White balance

(AWB) Auto / manual
WDR

120dB
Backlight compensation

BLC / HLC / WDR(120dB) / SSA
Shutter

Auto / manual 1/3~1/100000s
Gain control

(AGC) Auto / manual
Noise reduction

3D DNR
LDC

Lens Distortion Correction
RoI

Region of Interest
Image Stabilization

Electronic (EIS)
Defog

Electronic
Image rotate

Mirror, Flip 0°/90°/180°/270°
Stream support

4
Resolutions

5M(2960×1668/2880×1620) 4M(2688×1520/2560×1440) 3M(2048×1536/2304×1296) 1080p(1920×1080) 1.3M(1280×960) 720p(1280×720) D1(704×576/704×480) VGA(640×480) CIF(352×288/352×240)
Main stream

2960×1668(1~25/30fps)
Second stream

704×576(1~25fps) 704×480(1~30fps)
Third stream

1920×1080(1~25/30fps)
Fourth stream

1280×720(1~25/30fps)
Bitrate

H.264: 3 kbps~16384kbps H.265: 3 kbps~16384kbps
Video compression

H.265+ / H.265 / H.264+ / H.264 / H.264H / H.264B / MJPEG / Ai Coding
Day/night

ICR mechanical infrared filter
Illuminator type

IR LED + WhiteLight
IR range

60m
WhiteLight range

60m
NightColor

Yes
Microphone

Yes
Audio in

1
Audio out

1
Audio compression

G.711A / G.711Mu / G.723 / G.726 / PCM
Alarm in

2
Alarm out

1
Storage

FTP, SFTP, NAS
Memory card slot

microSD 1TB
Support

Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
Motion detect

4
Privacy masking

8
Network

RJ-45 10/100 Mbps
Compatibility

ONVIF(S/G/T/M)
Protocols

IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Auto Registration
Network security
Power supply

PoE
Power supply type

12V DC / PoE(802.3at) / ePoE
Power consumption

max 22.1W
Redundant power

Dual Power Backup
Housing color

White
IP class

IP67
IK10

Yes
Working environment

-40°C~+60°C max 95% RH
Dimensions

279.8×96.7×94.9mm
Weight

1.09 kg
Casing

Metal
Ai - Perimeter protection

Intrusion, crossline, fast moving, loitering, people gathering, parking detection
&Ai - Object classification

Yes
Ai - Face detection

Face detection and tracking, snapshot, attributes and expression recognition
&Ai - SMD

Yes
Ai - People counting

People counting for intrusion and crossline, counting people in/out/stay in, queue management, generate and export reports in periods of time
Ai - Metadata

People attributes (gender, clothes, color, bag, hat, umbrella), face attributes (gender, age, expression, glasses, mask, beard), vehicle attributes (type, color, logo, seat belts, smoking, calling)
Ai - Heat map

Recording the movement of objects over a period of time, statistics of the time density of movement presented graphically in red/blue color tones
Ai - Smart search

AcuPick technology – intelligent search for human/vehicle objects in the recording history with a recorder with the AcuPick function
Ai - Human/vehicle detection

Human/vehicle classification for crossline and intrusion and fast moving reduces false alarms
