| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion reduces false alarms |
|---|---|
| Ai - SMD - Smart Motion Detection | SMD 4.0 |
| Flag | COMING SOON |
| Resolution | 6 Mpx |
| Pixels | 3288(H)×1850(V) |
| Focal length | 2.7~12 mm |
| Optical zoom | 4× |
| Active deterrence function ADC | Sound-optical alarm |
| Min illumination | 0.0005Lux(Color,F1.2,30IRE) 0.0003Lux(F1.2,B/W,30IRE) 0Lux(IR) |
| Gain control | (AGC) Auto / manual |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Image rotate | Mirror, Flip 0°/90°/180°/270° |
| Product | BCS-L-TIP66VCR6L6-Ai1 |
| Camera type | Bullet |
| Sensor | 1/1.8'' CMOS |
| Scanning system | Progressive Scan |
| RAM | 1GB |
| ROM | 256MB |
| Lens | motozoom |
| Aperture | F1.2 |
| Focus | Auto / manual |
| Iris | Auto |
| Digital zoom | 16× |
| Angle of view | H: 112°~48° V: 58°~27° D: 137° ~55° |
| DORI | Detect 74.9~150.5m / Observe 29.9~63.8m / Recognize 15~31.9m / Identify 7.5~15.9m |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) / SSA |
| Shutter | Auto / manual 1/3~1/100000s |
| Noise reduction | 3D DNR |
| RoI | Region of Interest |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Stream support | 3 |
| Resolutions | 6M(3288×1850/3200×1800) 5M(2880×1620) 4M(2688×1520/2560×1440) 3M(2304×1296) 1080p(1920×1080) 720p(1280×720) D1(704×576/704×480) VGA(640×480) CIF(352×288/352×240) |
| Main stream | 3288×1850(1~25/30fps) |
| Second stream | 1920×1080(1~25/30fps) |
| Third stream | 1920×1080(1~25/30fps) |
| Bitrate | H.264: 3 kbps~16384kbps H.265: 3 kbps~16384kbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / H.264H / H.264B / MJPEG / Ai Coding |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED + WhiteLight |
| IR range | 60m |
| WhiteLight range | 60m |
| NightColor | Yes |
| Microphone | Yes |
| Loudspeaker | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / PCM |
| Alarm in | 1 |
| Alarm out | 1 |
| Storage | FTP, SFTP, NAS |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 8 |
| Network | RJ-45 10/100/1000 Mbps |
| Compatibility | ONVIF(S/G/T/M) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Bonjour, Auto Registration |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3at) |
| Power consumption | max 18.2W |
| Redundant power | Dual Power Backup |
| Housing color | White |
| IP class | IP67 |
| Working environment | -40°C~+60°C max 95% RH |
| Dimensions | 288.4×94.4×84.7mm |
| Weight | 1 kg |
| Casing | Metal + Plastik |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
| Ai - Face detection | Face detection and tracking, snapshot, attributes and expression recognition |
| &Ai - SMD | Yes |
| Ai - Smart search | AcuPick technology – intelligent search for human/vehicle objects in the recording history with a recorder with the AcuPick function |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

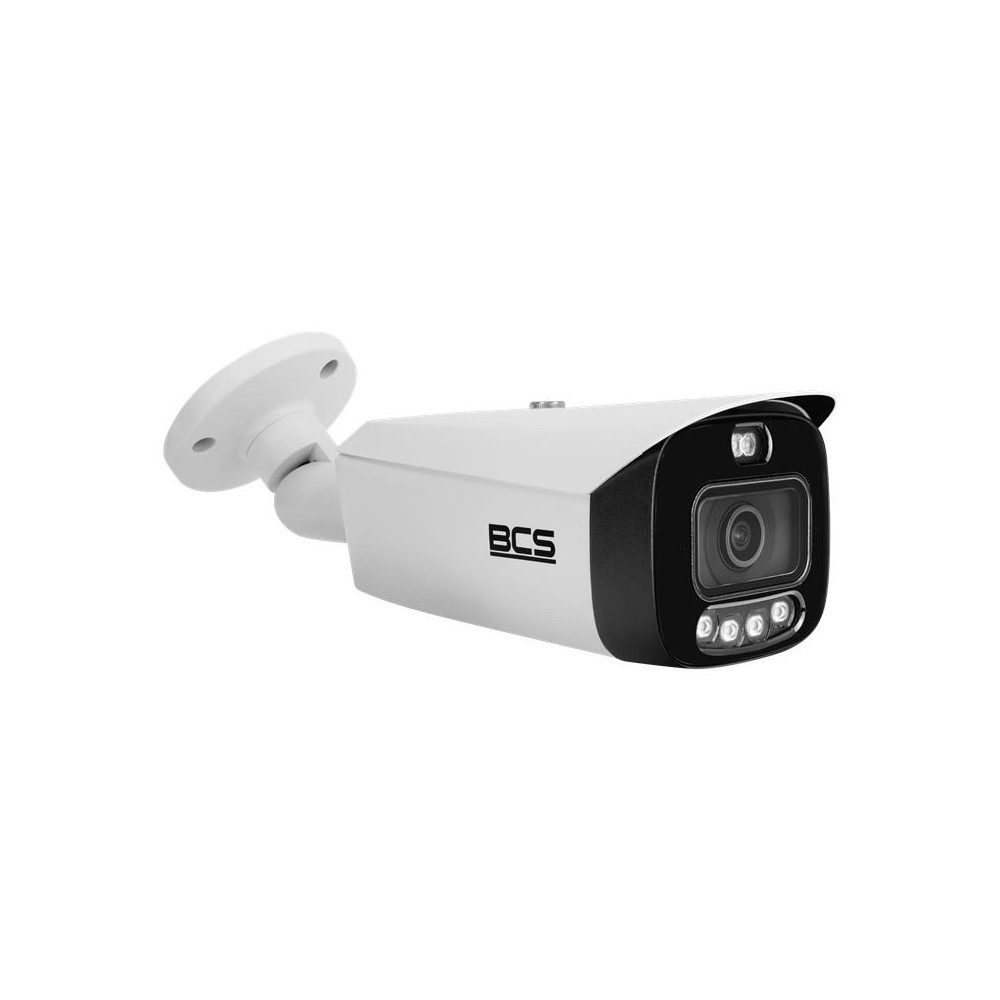

BCS-L-TIP66VCR6L6-Ai1
943,41 € gross
49 In Stock- 6Mpx IP bullet camera
- 1/1.8" PS CMOS sensor
- NightColor technology
- AcuPick technology
- ADC active deterrence technology
- 2.7–12 mm motorised zoom lens
- WDR 120dB
- IR 60m, WhiteLight 60m
- Alarm 1/1, audio 1/1, microphone, speaker
- IP67-rated housing
- Built-in smart features
