| Flag | PROMOTION |
|---|---|
| Product | BCS-L-XVR0801-AI |
| pa_product-line | BCS LINE |
| Transmission standard | HD-CVI / AHD / HD-TVI / ANALOG / IP |
| System | Analog HD + IP |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| Channels | 8 |
| HDD support | 1 |
| HDD capacity | 16 TB |
| Max recording resolution | 5 Mpx |
| Incoming bandwidth | 64Mbps |
| Outgoing bandwidth | 64Mbps |
| Recording bandwidth | 64Mbps |
| HD-CVI camera | 5 MP@25 fps, 5 MP@20 fps, 5 MP@10/12.5 fps, 4 MP@25/30 fps, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30fps |
| AHD camera | 5 MP@20 fps, 4 MP@25/30 fps, 1080p@25/30 fps, 720p@25/30 fps |
| HD-TVI camera | 5 MP(2560 × 1944)@20 fps, 5 MP(2960 ×1665)@20/25 fps, 4 MP@25/30 fps, 1080p@25/30 fps, 720p@25/30 fps. |
| ANALOG camera | CVBS PAL/NTSC |
| XVR - IP camera | 6M |
| XVR - IP channels | 8+4 |
| Recording resolutions | 5M / 5M Lite / 4M Lite / 1080P / 1080N / 720P / 960H / D1 / CIF |
| Basic mode | Strumień główny: Ch 1-2 5M-N@(1fps–25fps), pozostałe 5M-N@(1fps–12fps); Ch 1-2 4M-N/1080p@(1fps–25/30fps), pozostałe 4M-N/1080p@(1fps–15fps); 1080N/720p/960H/D1/CIF@(1fps–25/30fps); Strumień drugi: D1/CIF@(1fps–15fps) |
| Extended mode | Strumień główny: Ch 1-4 5M-N@(1fps–20fps), pozostałe 5M-N@(1fps–12fps); (4 ch 5MP@6fps) Ch 1-4 4M-N/1080p@(1fps–25fps), pozostałe 4MN@(1fps–15fps)/1080p@(1fps–12fps); 1080N/720p/960H/D1/CIF@(1fps–25/30fps); Strumień drugi: D1/CIF@(1fps–15fps); |
| Bitrate | 32Kbps~6144Kbps |
| Video compression | H.265+ / H265 / H.264+ / H.264 / Ai coding |
| HDMI out | HDMI |
| VGA out | VGA |
| HDMI display resolutions | 1920×1080 / 1280×1024 / 1280×720 |
| VGA display resolutions | 1920×1080 / 1280×1024 / 1280×720 |
| Display split | 1/4/8/9 (1/4/8/9/16 IP) |
| Synchronous playback | 1/4/9 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| User connections | 128 |
| Interfaces | 2×USB2.0 |
| Serial port | RS485 |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U / PCM |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Privacy masking | Tak |
| Network | RJ-45(10/100Mbps) |
| Compatibility | ONVIF |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration, IP Search |
| Power supply | 12V DC |
| pa_power-consumption-without | max 7W |
| Working environment | -10°C~+55°C max 90% RH |
| Casing | 1U |
| pa_dimensions-mm-wxdxh | 260×235×47 |
| Weight (without HDD) | 1 kg |
| pa_ai-built-in-intelligent-f | Yes |
| Ai - Perimeter protection | 4 channels analog HD |
| &Ai - Object classification | Yes |
| Ai - Face detection | 2 HD analog channels, facial attributes (sex, age, glasses, facial expression, mask, facial hair), max. 8 images per second |
| &Ai - SMD | Yes |
| Ai - Face recognition | 2 kanały analog HD, do 10 baz danych twarzy, 10 tyś obrazów |
| Ai - Smart search | AcuPick 2 kanały 1080P z rejestratora |
| pa_ai-intelligent-functions- | Perimeter protection (human/vehicle recognition), smart motion detection (human/vehicle recognition), face detection, face recognition |
| pa_ai-smd-smart-motion-detec | 8 kanałów z rejestratora, 12 kanałów z kamer |

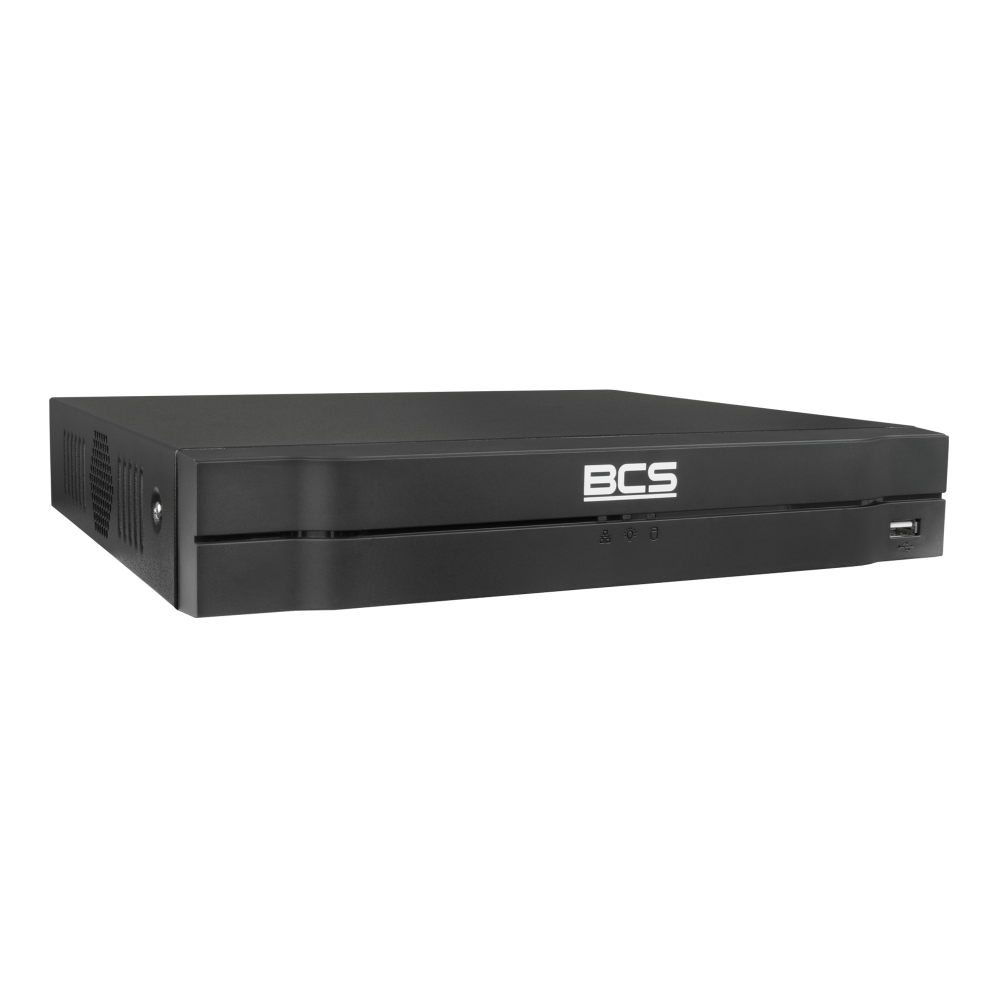

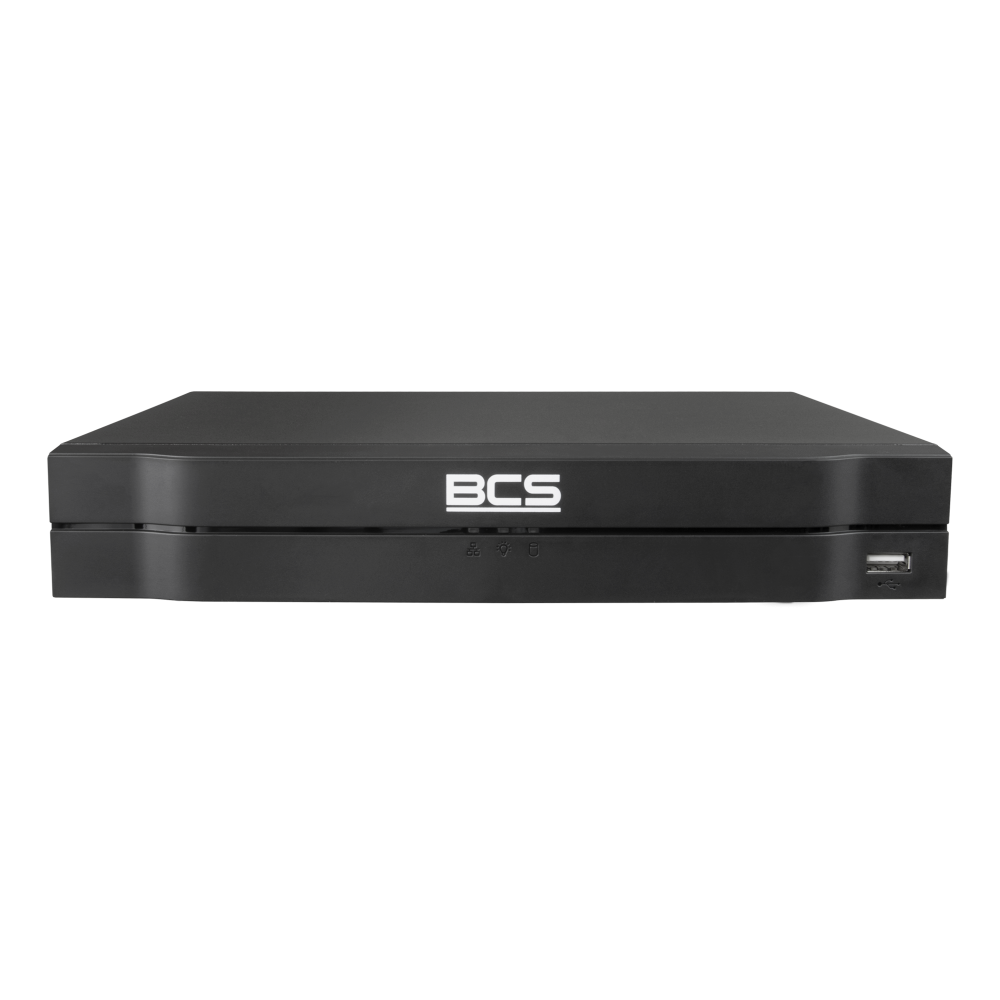

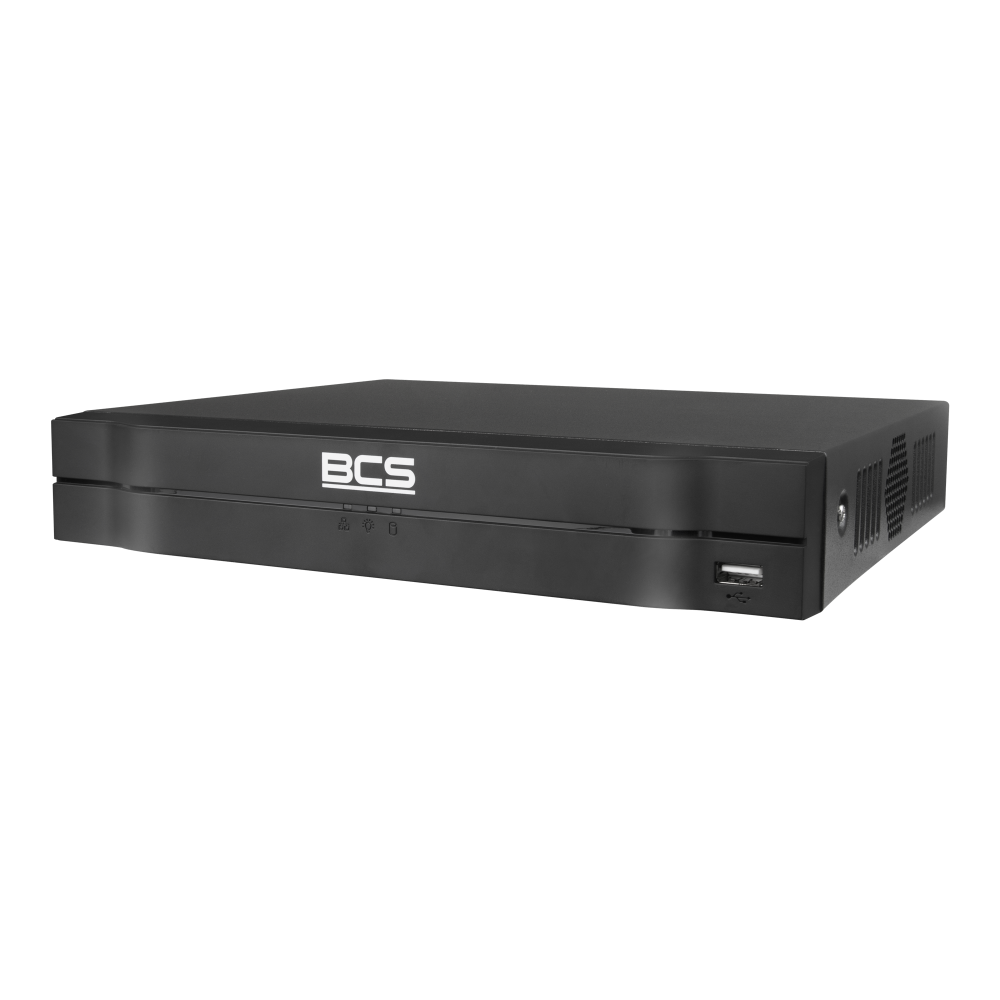

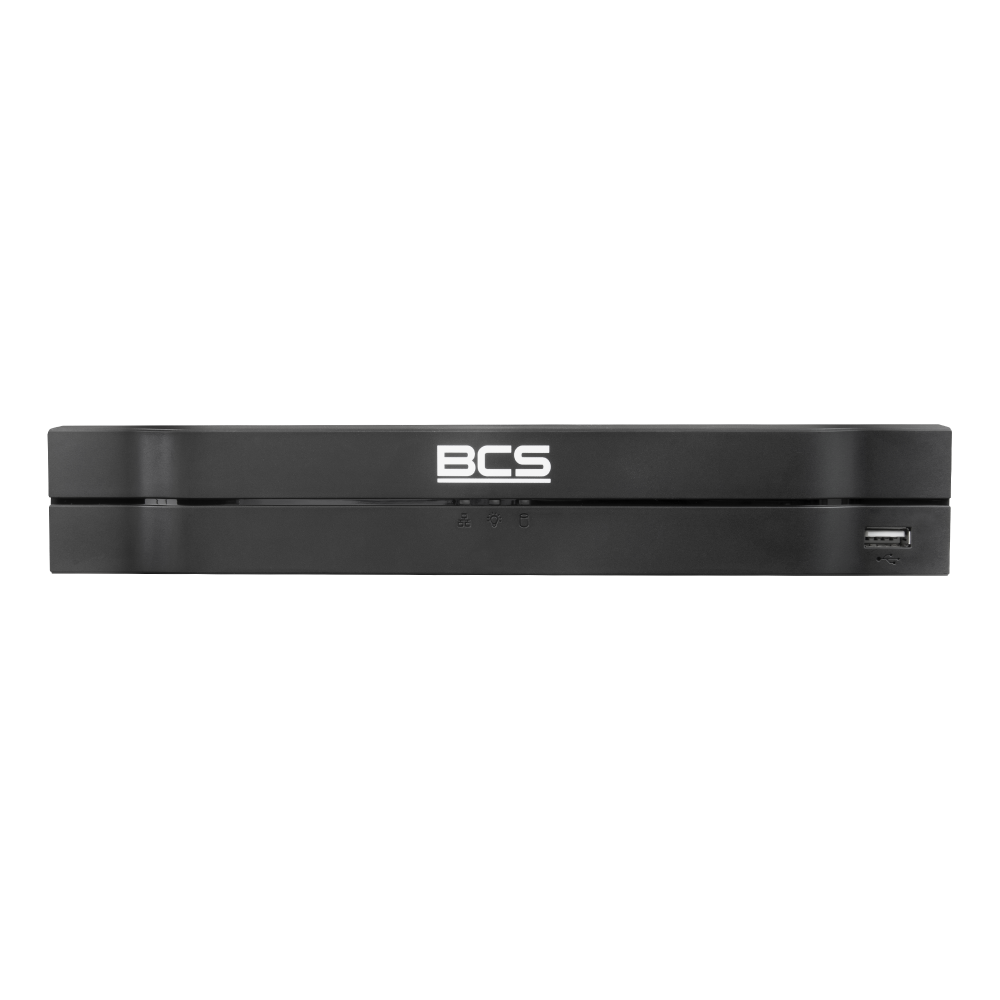

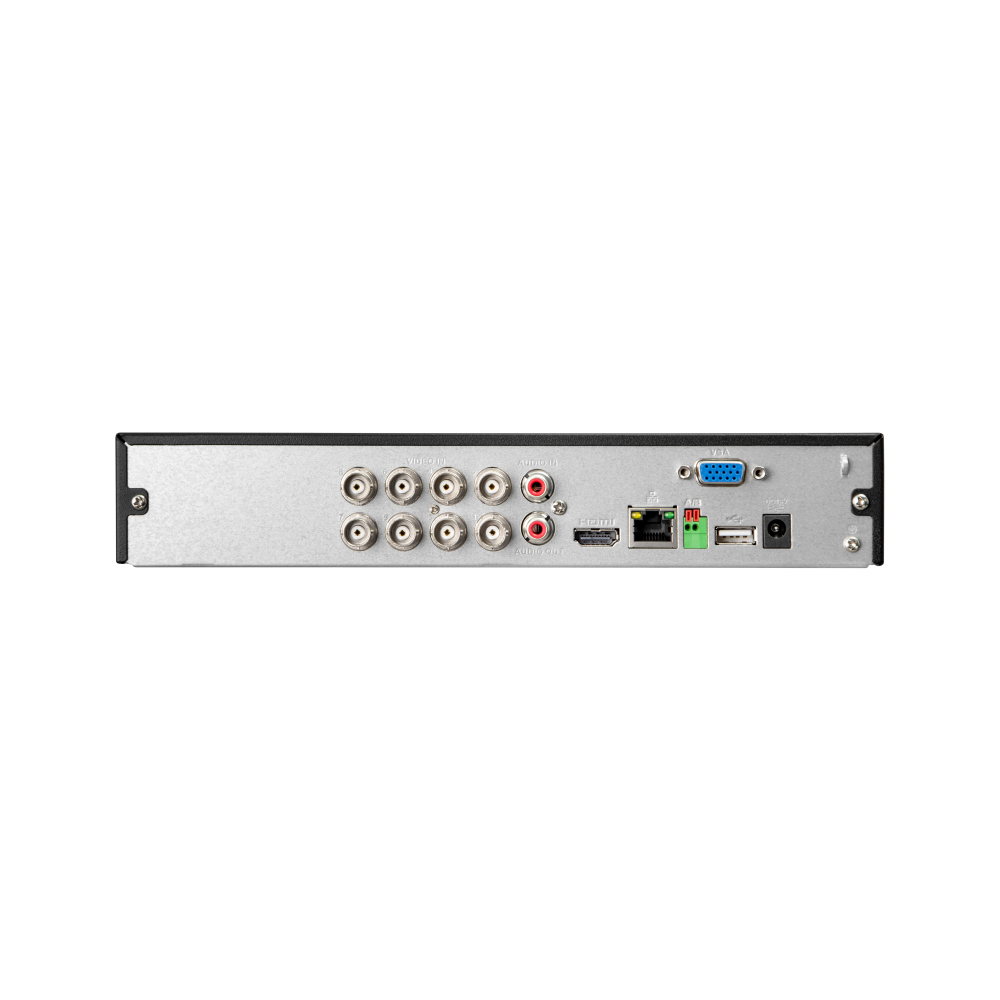

BCS-L-XVR0801-AI
355,47 € gross
100 In Stock- 8-channel, 5-system recorder
- HDCVI/AHD/TVI/ANALOGUE/IP
- Supports 1 hard drive
- Supports 5Mpx analogue HD and 6Mpx IP cameras.
- HDMI/VGA output
- Audio 1/1
- Built-in smart features
100 in stock
