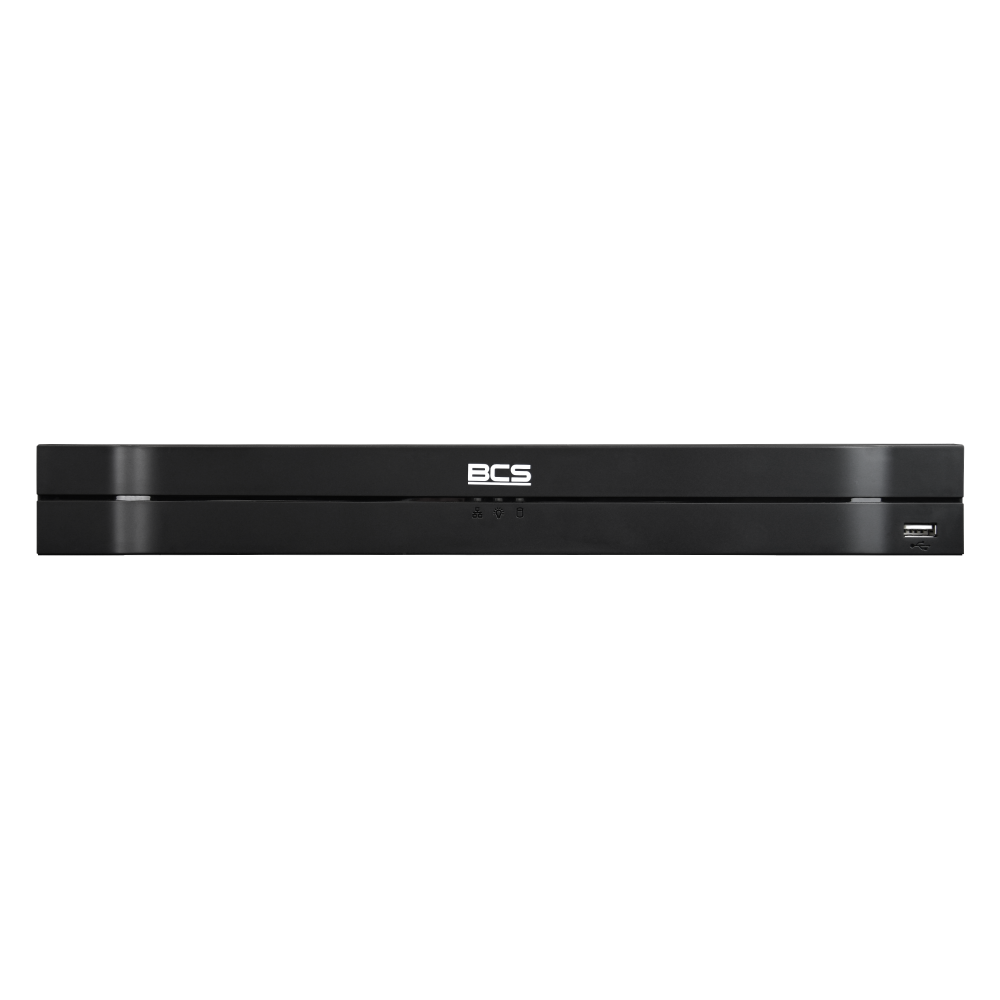

BCS-L-XVR1602-AI

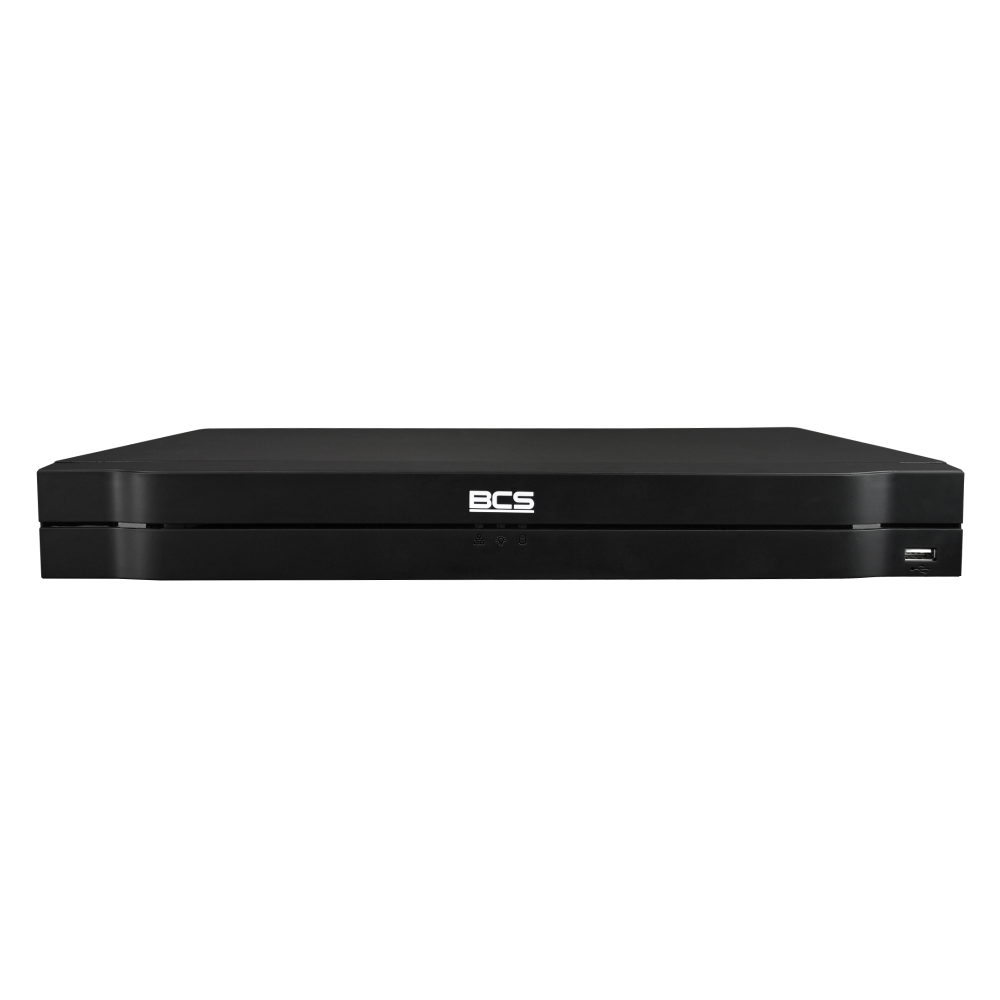

BCS-L-XVR1602-AI - Image 2

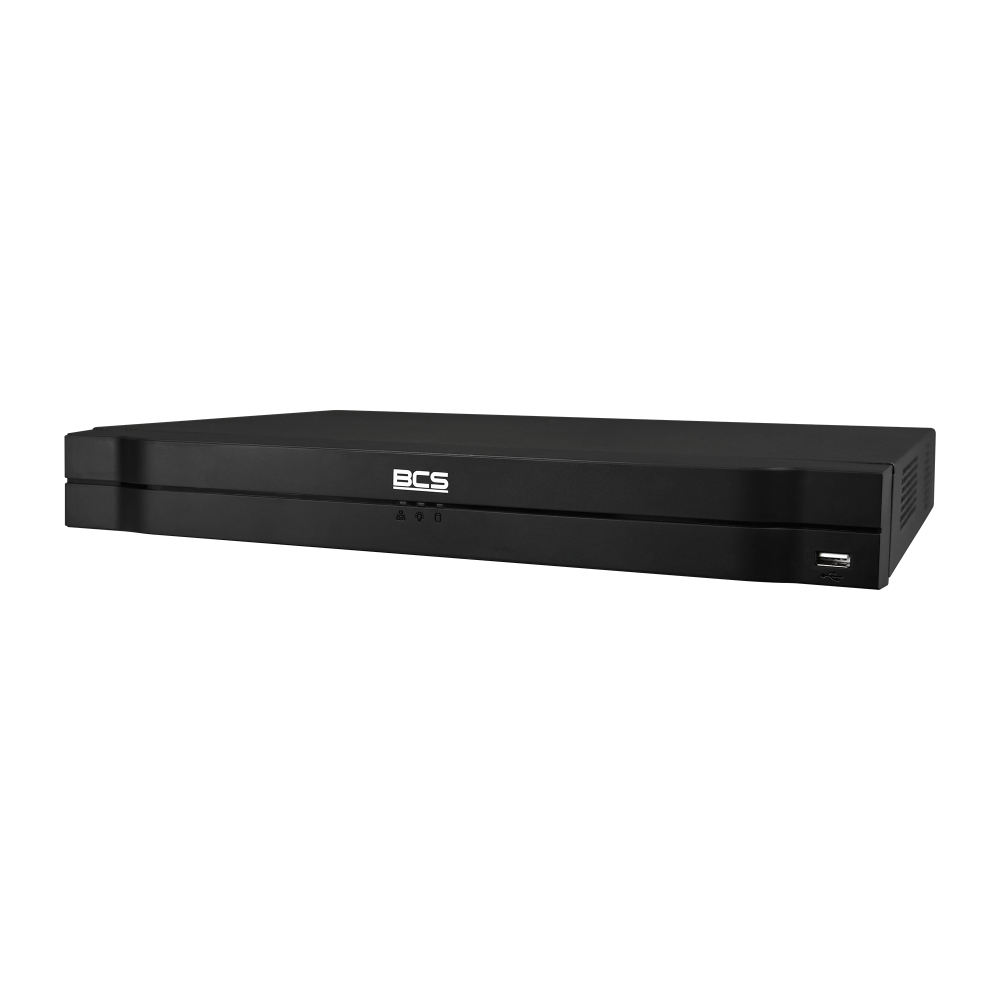

BCS-L-XVR1602-AI - Image 3

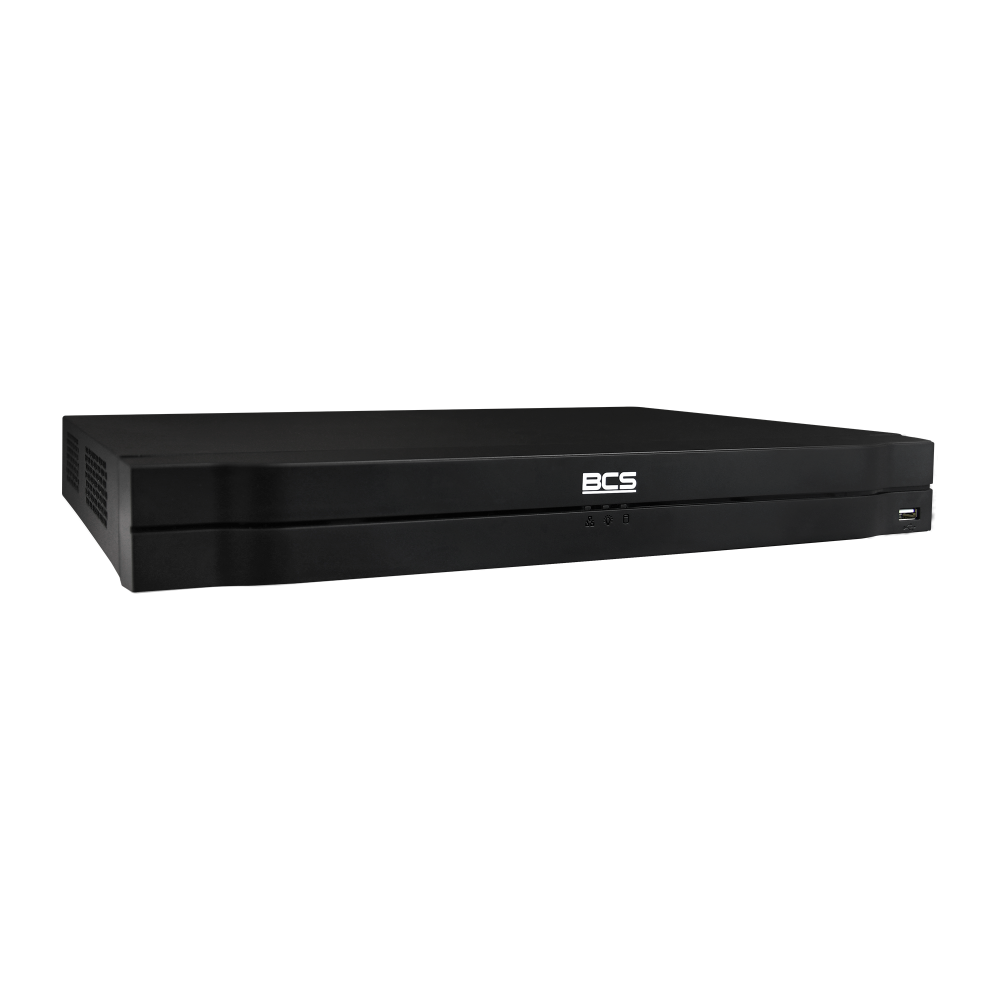

BCS-L-XVR1602-AI - Image 4

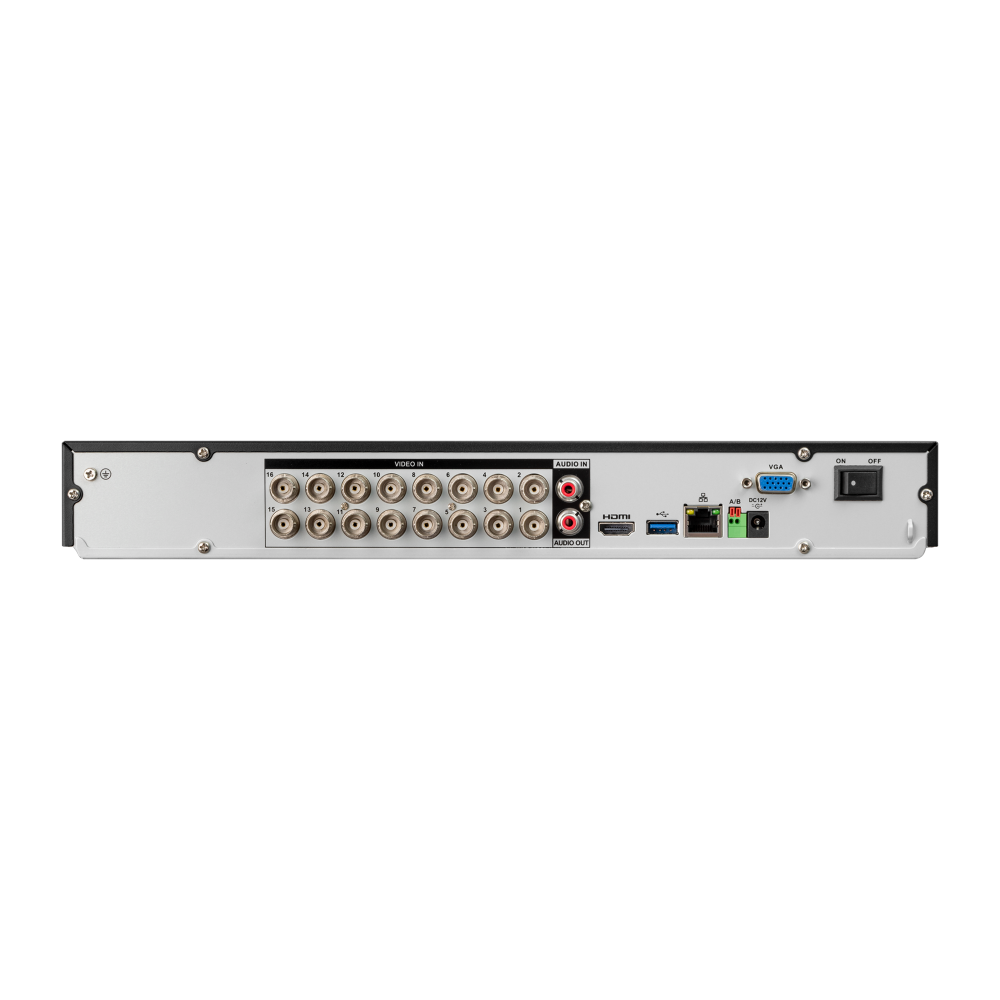

BCS-L-XVR1602-AI - Image 5

BCS-L-XVR1602-AI

585,48 € gross

66 In Stock
  • 16-channel, 5-system recorder
  • HDCVI/AHD/TVI/ANALOGUE/IP
  • Supports 2 hard drives
  • Supports 5Mpx analogue HD and 6Mpx IP cameras.
  • HDMI 4K/VGA output
  • Audio 1/1
  • Built-in smart features

66 in stock

  • DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
  • Official BCS e-commerce Business Partner
  • Technical support
SKU: 13207 Categories: , ,
Product

BCS-L-XVR1602-AI
pa_product-line

BCS LINE
Transmission standard

HD-CVI / AHD / HD-TVI / ANALOG / IP
System

Analog HD + IP
Pentaplex function

Live view / recording / playback / archiving / remote access
Channels

16
HDD support

2
HDD capacity

16 TB
Max recording resolution

5 Mpx
Incoming bandwidth

128Mbps
Outgoing bandwidth

128Mbps
Recording bandwidth

128Mbps
HD-CVI camera

5 MP@25 fps, 5 MP@20 fps, 5 MP@10/12.5 fps, 4 MP@25/30 fps, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30fps
AHD camera

5 MP@20 fps, 4 MP@25/30 fps, 1080p@25/30 fps, 720p@25/30 fps
HD-TVI camera

5 MP(2560 × 1944)@20 fps, 5 MP(2960 ×1665)@20/25 fps, 4 MP@25/30 fps, 1080p@25/30 fps, 720p@25/30 fps.
ANALOG camera

CVBS PAL/NTSC
XVR - IP camera

6M
XVR - IP channels

16+8
Recording resolutions

5M / 5M Lite / 4M Lite / 1080P / 1080N / 720P / 960H / D1 / CIF
Basic mode

Strumień główny: Ch 1-4 5M-N@(1fps–25fps), pozostałe 5M-N@(1fps–12fps); Ch 1-4 4M-N/1080p@(1fps–30fps), pozostałe 4MN/1080p@(1fps–15fps); 1080N/720p/960H/D1/CIF@(1fps–30fps); Strumień drugi: D1/CIF@(1fps–15fps);
Extended mode

Strumień główny: Ch 1-8 5M-N@(1fps–20fps), pozostałe 5M-N@(1fps-12fps); (4 ch 5MP@6fps) Ch 1-8 4M-N/1080p@(1fps–25fps), pozostałe 4MN/1080p@(1fps–15fps); 1080N/720p/960H/D1/CIF@(1fps–30fps); Strumień drugi: D1/CIF@(1fps–15fps);
Bitrate

32Kbps~6144Kbps
Video compression

H.265+ / H265 / H.264+ / H.264 / Ai coding
HDMI out

HDMI4K
VGA out

VGA
HDMI display resolutions

3840×2160 / 1920×1080 / 1280×1024 / 1280×720
VGA display resolutions

1920×1080 / 1280×1024 / 1280×720
Display split

1/4/8/9/16 (1/4/8/9/16/25/36 IP)
Synchronous playback

1/4/9/16
Archiving

Possibility to download material to external media such as USB FLASH, USB HDD
User connections

128
Interfaces

1×USB2.0, 1×USB3.0
Serial port

RS485
Audio in

1
Audio out

1
Audio compression

G.711A / G.711U / PCM
Support

Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
Motion detect

Yes
Privacy masking

Tak
Network

RJ-45(10/100/1000Mbps)
Compatibility

ONVIF
Protocols

HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration, IP Search
Power supply

12V DC
pa_power-consumption-without

max 12W
Working environment

-10°C~+55°C max 90% RH
Casing

1U
pa_dimensions-mm-wxdxh

375×289×53
Weight (without HDD)

1.8 kg
pa_ai-built-in-intelligent-f

Yes
Ai - Perimeter protection

4 channels analog HD
&Ai - Object classification

Yes
Ai - Face detection

2 channel analog HD, face attributes (gender, age, glasses, expression, mask, beard), max 12 pictures for second
&Ai - SMD

Yes
Ai - Face recognition

2 kanały analog HD, do 10 baz danych twarzy, 10 tyś obrazów
Ai - Smart search

AcuPick 2 kanały 1080P z rejestratora
pa_ai-intelligent-functions-

Perimeter protection (human/vehicle recognition), smart motion detection (human/vehicle recognition), face detection, face recognition
pa_ai-smd-smart-motion-detec

16 kanałów z rejestratora, 24 kanałów z kamer
