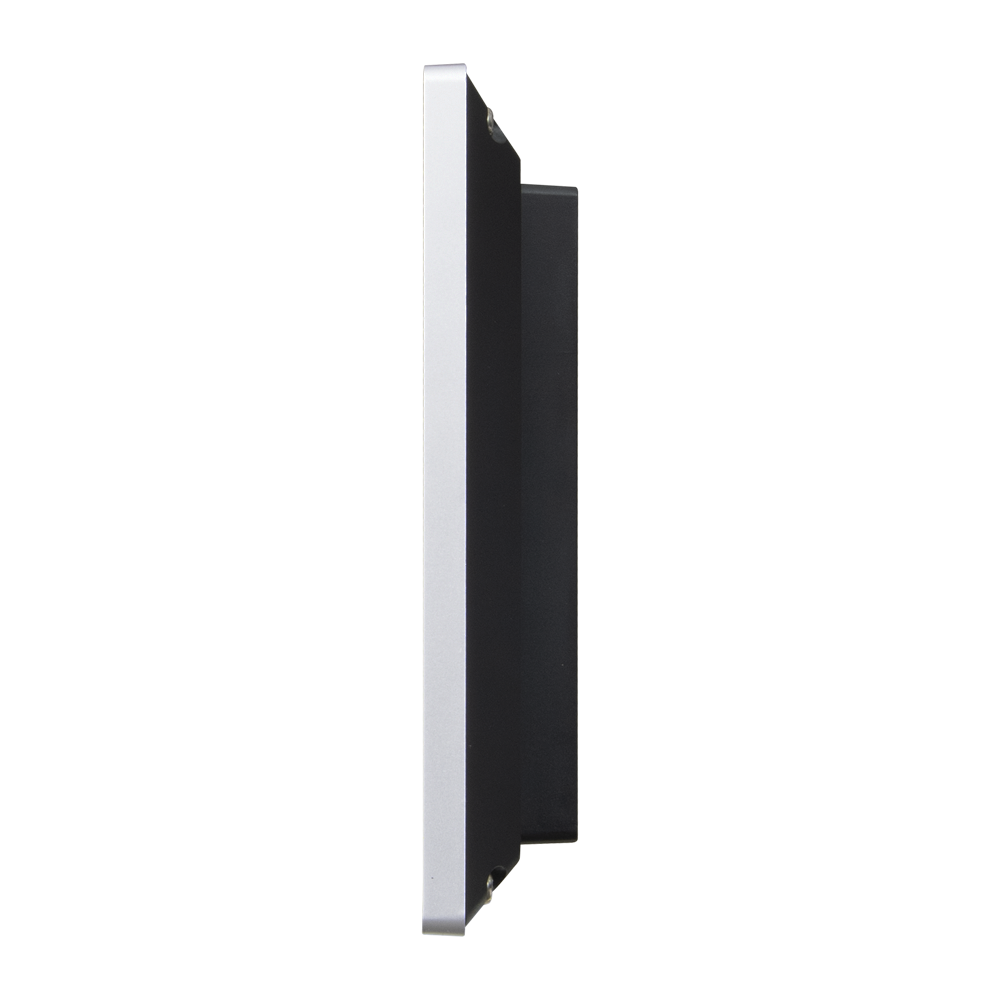

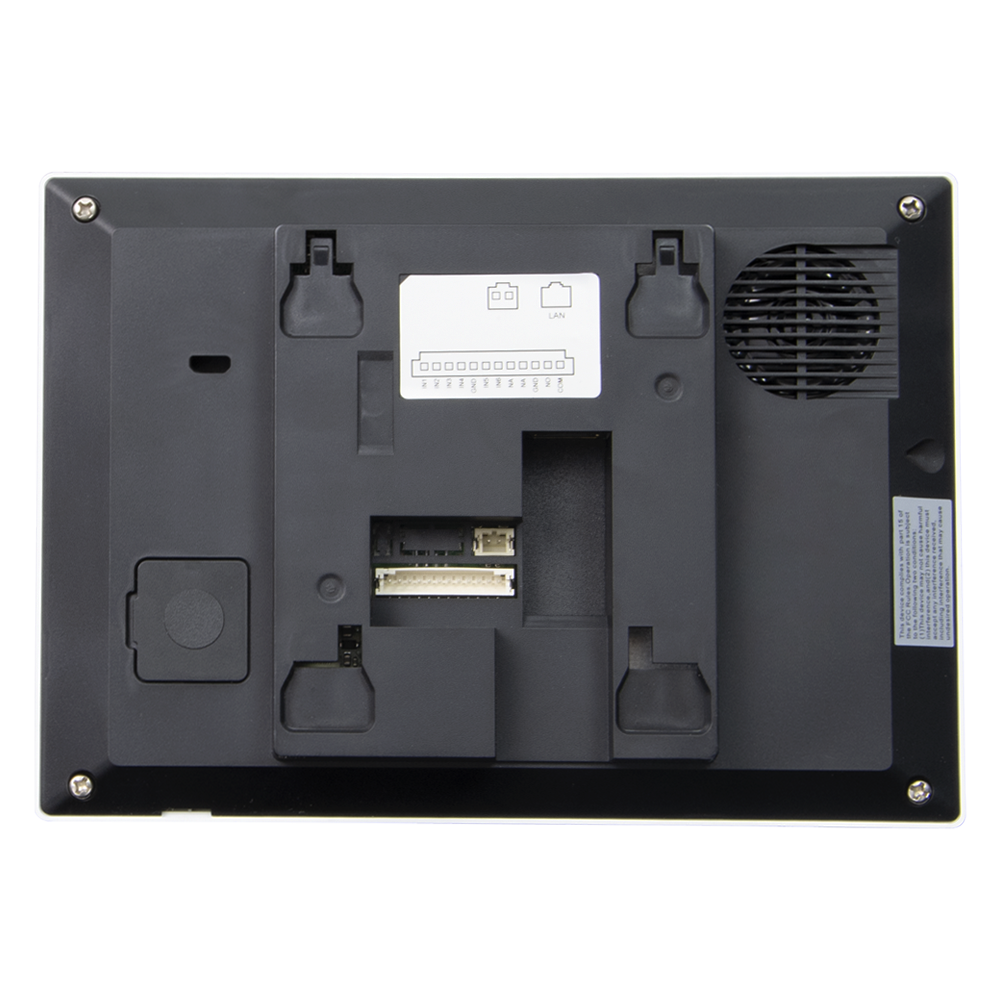

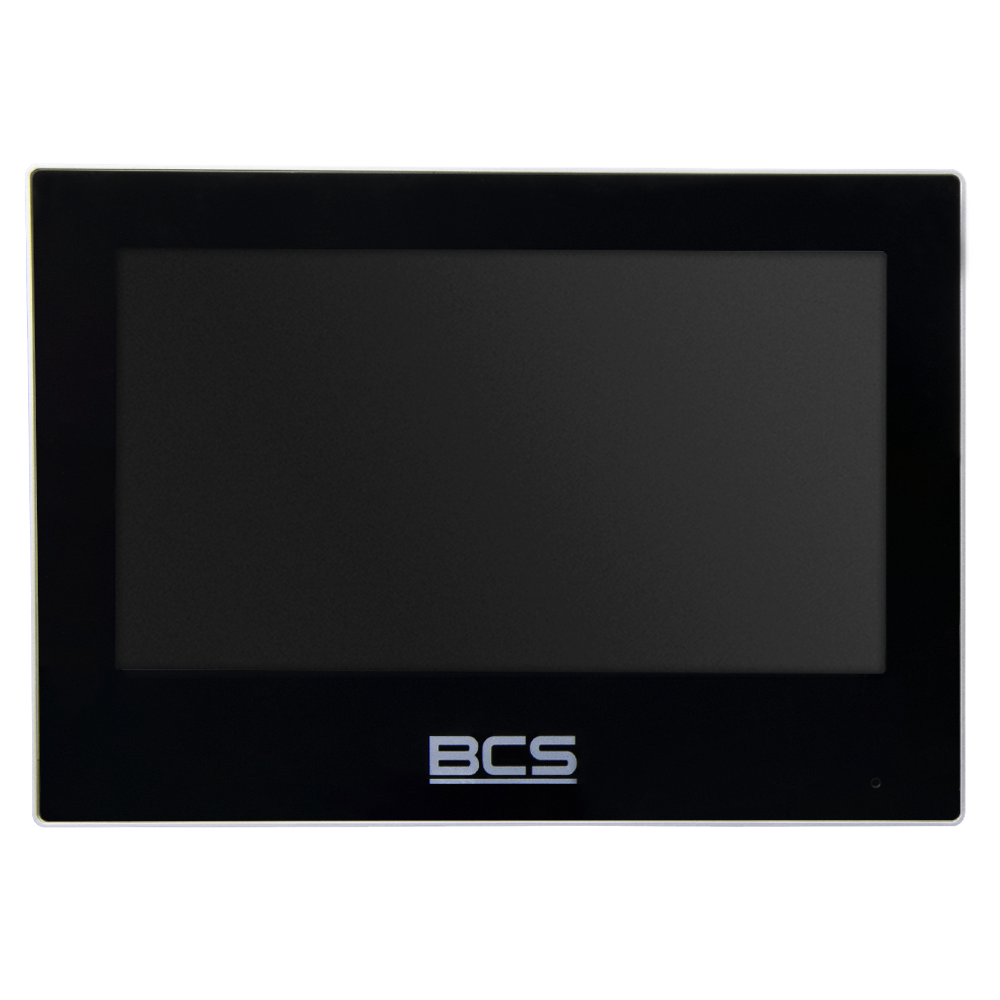

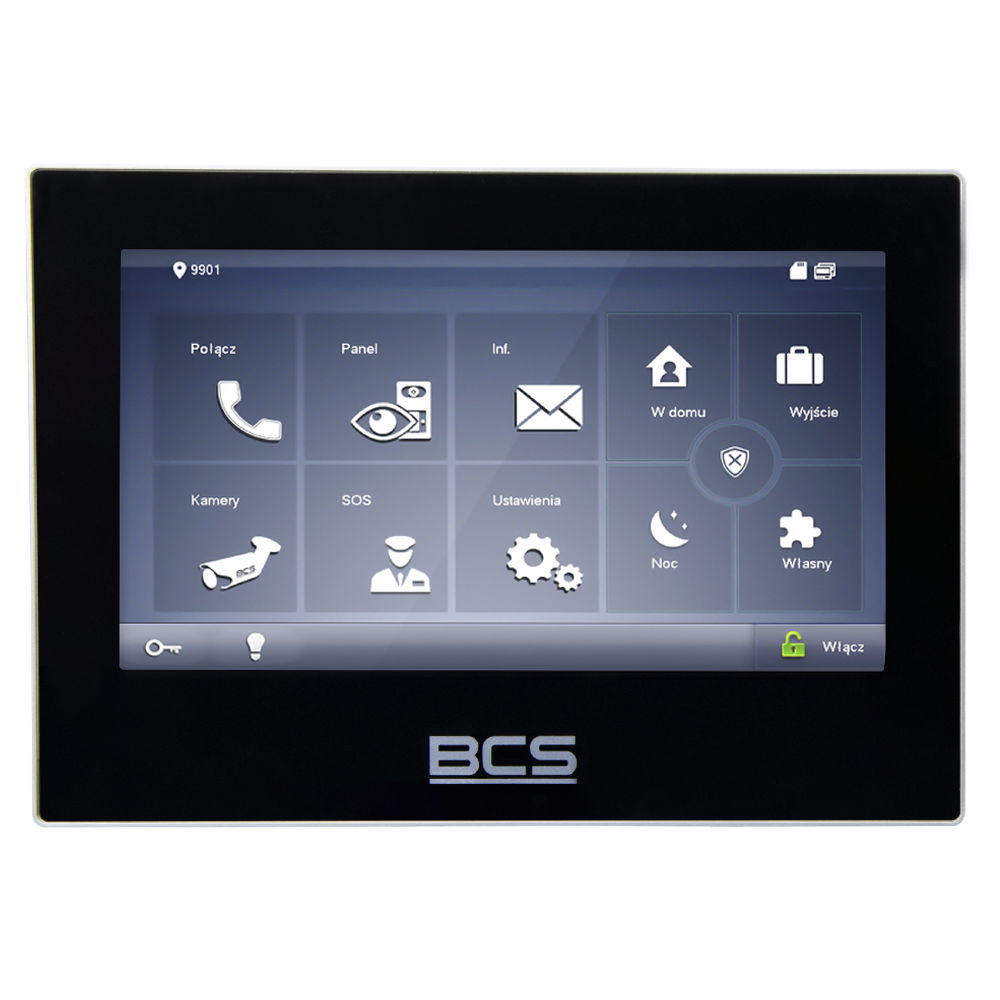

IP video monitor – black plastic housing, 7 “TFT capacitive touch screen, 1024 * 600 resolution, preview of BCS Line and Onvif IP cameras, power supply 12VDC or PoE 802.3 at / af / passive, max expansion up to 10 monitors in one place for single-family systems and up to 5 for multi-family systems, H.264 and H.265 encoding support, NO, COM relay output, economy line – no memory card slot.
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
Save 61%
BCS LINE
BCS-MON7700B-S
117,82 € gross
Out of Stock- IP hands-free video monitor.
- Compatible with any PoE switch conforming to the 802.3at/af/passive standard (BCS switches recommended).
- Compatibility: all BCS Line outdoor panels using IP technology.
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
| Built-in memory card | No |
|---|---|
| Product | BCS-MON7700B-S |
| Video compression | H.264, H.265 |
| Max quality cctv camera second stream | 720p |
| Videomonitor power supply type | 12V DC / PoE(802.3at/af/passive) |
| Onvif compatibility | Yes |
| Device type | Videomonitor |
| System type | IP |
| Ethernet | Built-in |
| Network connection | LAN |
| RS485 output | NO/COM |

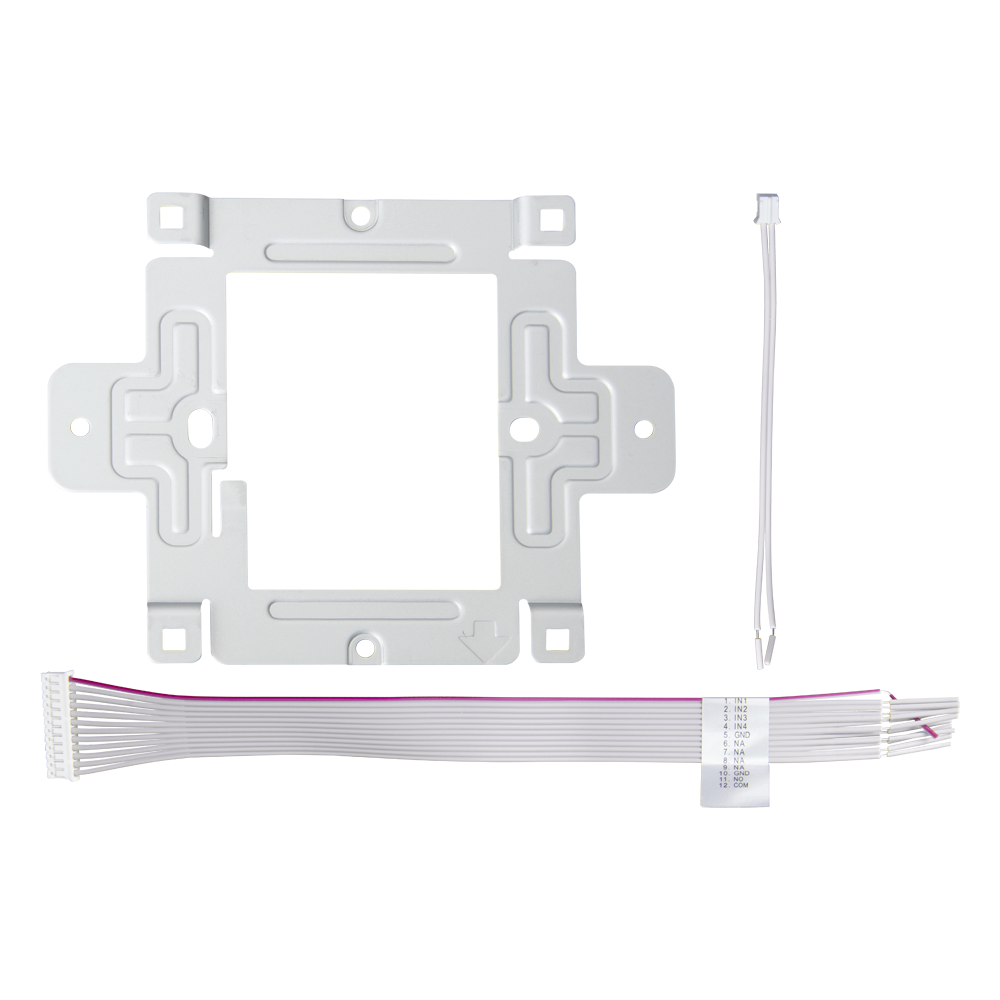

| Mounting type | Wall-mounted, desktop (additional handle required) |
| Videomonitor operating mode | Loudspeaker |
| Display type | Tactile, Capacitive |
| Screen diagonal size | 7'' |
| Screen resolution | 1024×600 |
| Operating system | Linux |
| CCTV IP camera preview | BCS Line/Point/View/Onvif |
| Number of supported cameras | 32 |
| Additional output | N/A |
| Monitor color | Black |
| Monitor dimensions | 189.6×134.6×26 |
| Monitor weight (g) | 340 |
