| Ai - Human/vehicle detection | Human recognition for intrusion into an area, crossing a line reduces false alarm triggers. |
|---|---|
| Recording in BCS CLOUD | Yes |
| Resolution | 5 Mpx |
| Pixels | 2880(H)×1620(V) |
| Focus | fixed |
| DORI | Detect 63m / Observe 25m / Recognize 13m / Identify 6m |
| WDR | 120dB |
| Product | BCS-P-DIP15FSR3-Ai |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| NDAA | National Defense Authorization Act |
| RoI | Region of Interest |
| Camera type | Dome |
| Sensor | 1/2.7'' CMOS |
| Scanning system | Progressive Scan |
| Lens | fixed |
| Focal length | 2.8 mm |
| Aperture | F1.6 |
| Iris | fixed |
| Digital zoom | 16× |
| Angle of view | H: 110° V: 58.7° D: 130° |
| Min illumination | 0.003Lux(F1.6,AGC) 0Lux(B/W,IR) |
| S/N ratio | 52dB |
| White balance | (AWB) Auto / manual |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| Defog | Digital |
| Image rotate | Mirror, Flip 0°/90°(corridor mode)/180°/270° |
| Stream support | 2 |
| Resolutions | 5M(2880×1620) / 4M(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 720P(1280×720) / D1(720×576) / (640×360) / 2CIF(704×288) / CIF(352×288) |
| Main stream | 2880×1620@25fps 2560×1440@25fps 2304×1296@30fps 1920×1080@30fps |
| Second stream | 1280×720@30fps 720×576@30fps 640×360@30fps 704×288@30fps 352×288@30fps |
| Bitrate | 128Kbps~6144kbps |
| Video compression | H.265 / H.265+ / H.264 / MJPEG |
| Day/night | ICR |
| Illuminator type | IR LED |
| IR range | 30m |
| Microphone | Yes |
| Audio compression | G.711A / G.711U |
| Storage | NAS(NFS) |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, 802.1x, SNMP |
| Network security | |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 4.4W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Surge protection | 4kV |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | Ø109×81mm |
| Weight | 0.36kg |
| Casing | Metal |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
Warning: This product belongs to the BCS POINT product line.
Use only components and devices from the same line to ensure compatibility.
BCS POINT
BCS-P-DIP15FSR3-Ai
146,37 € gross

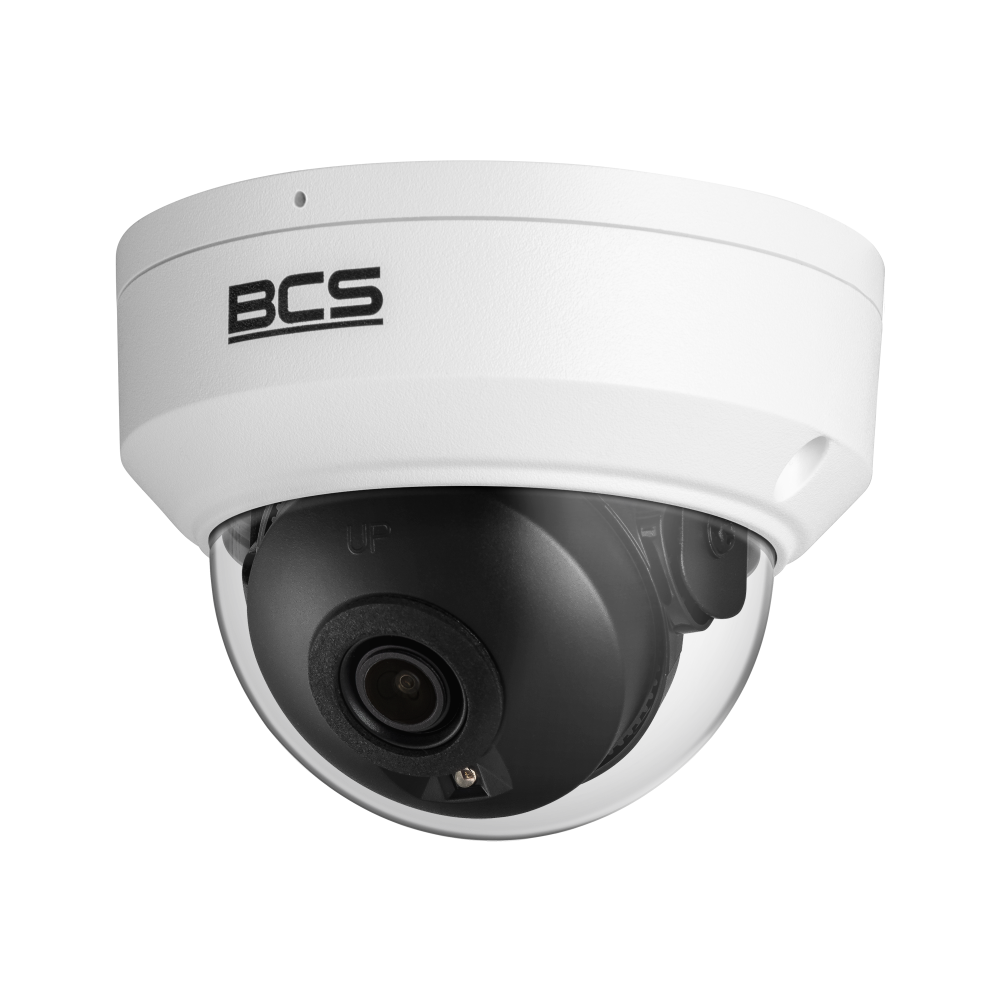

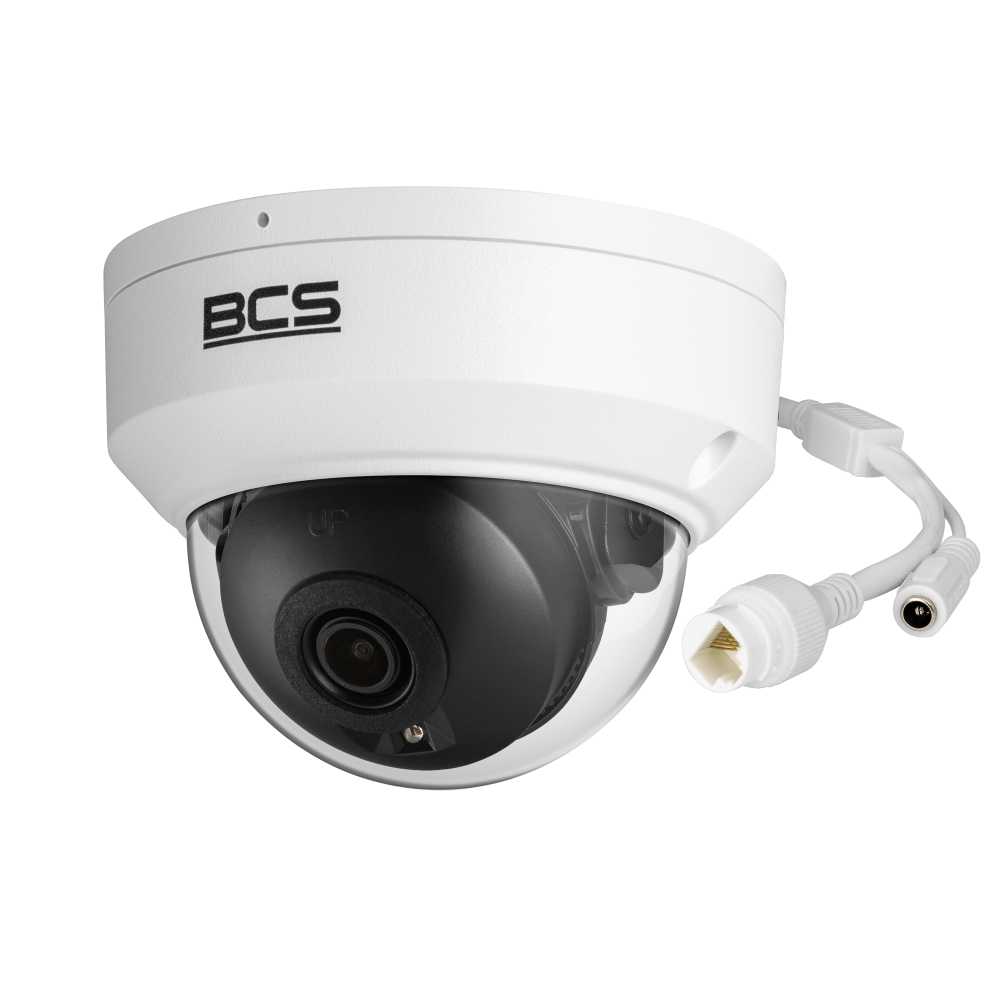

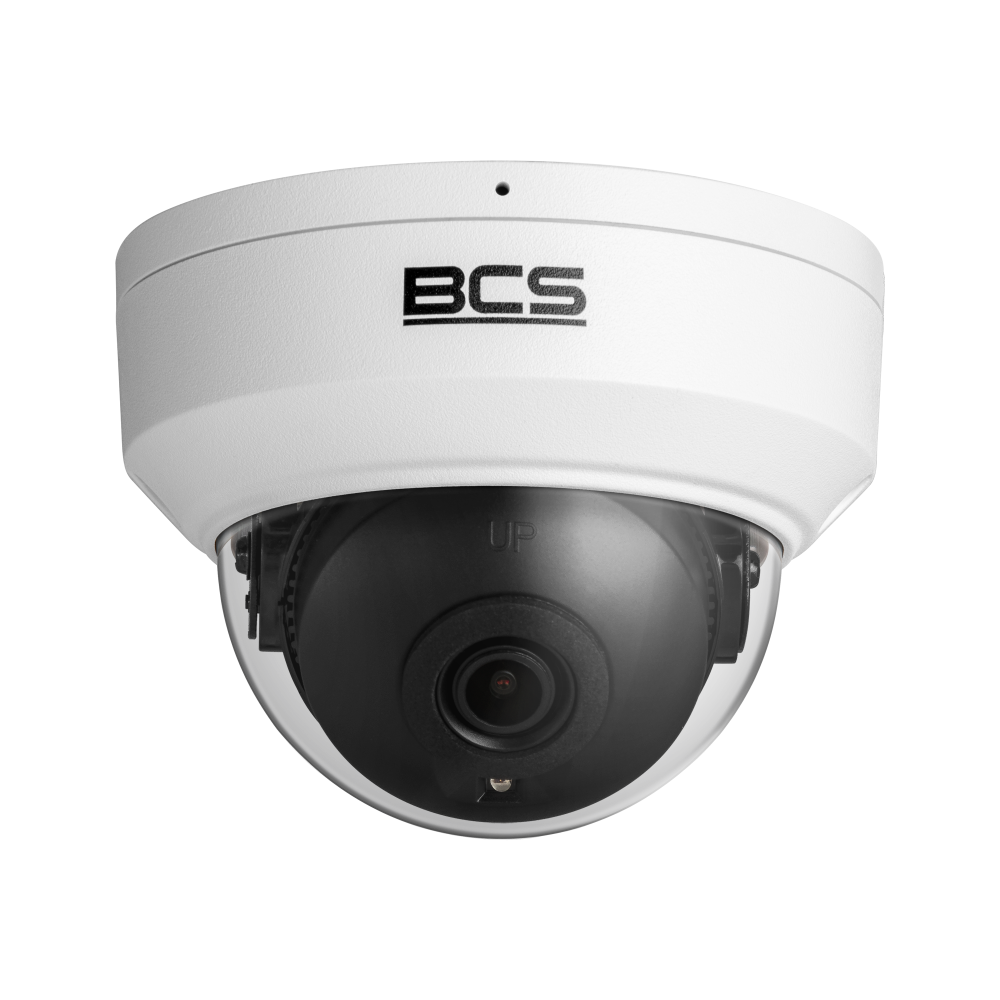

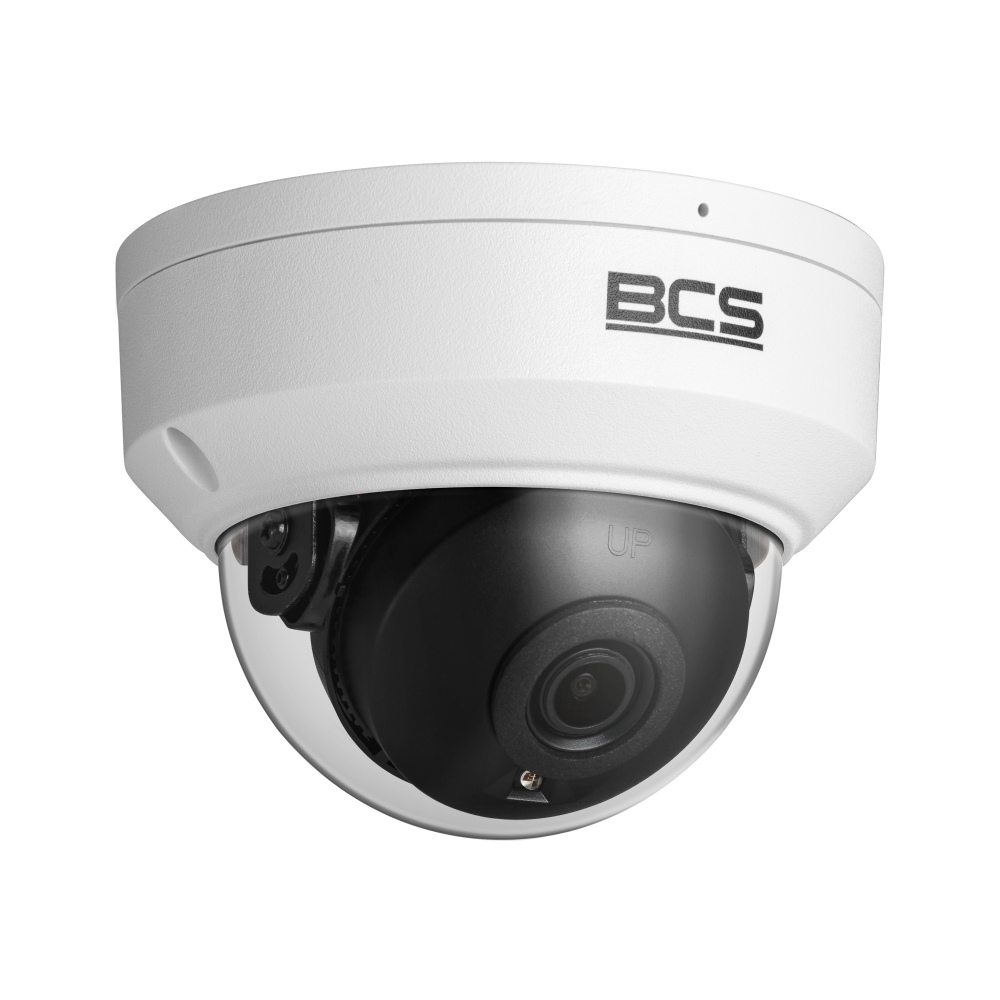

20 In Stock- 5Mpx dome IP camera
- 1/2.7" PS CMOS sensor
- SkyLight technology
- NDAA compliant
- 2.8mm fixed lens
- Microphone
- WDR 120dB
- IR 30m
- IP67, IK10 housing
- Area intrusion and line crossing with human detection
20 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
